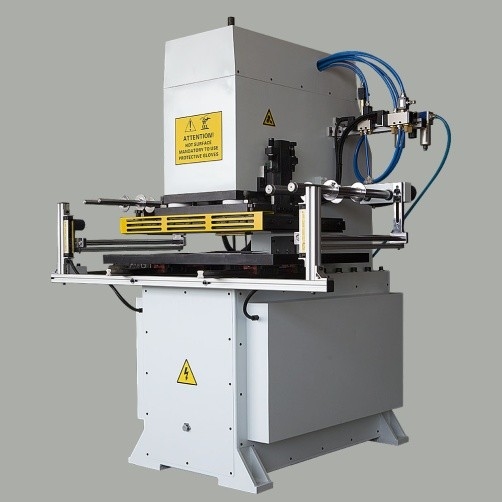

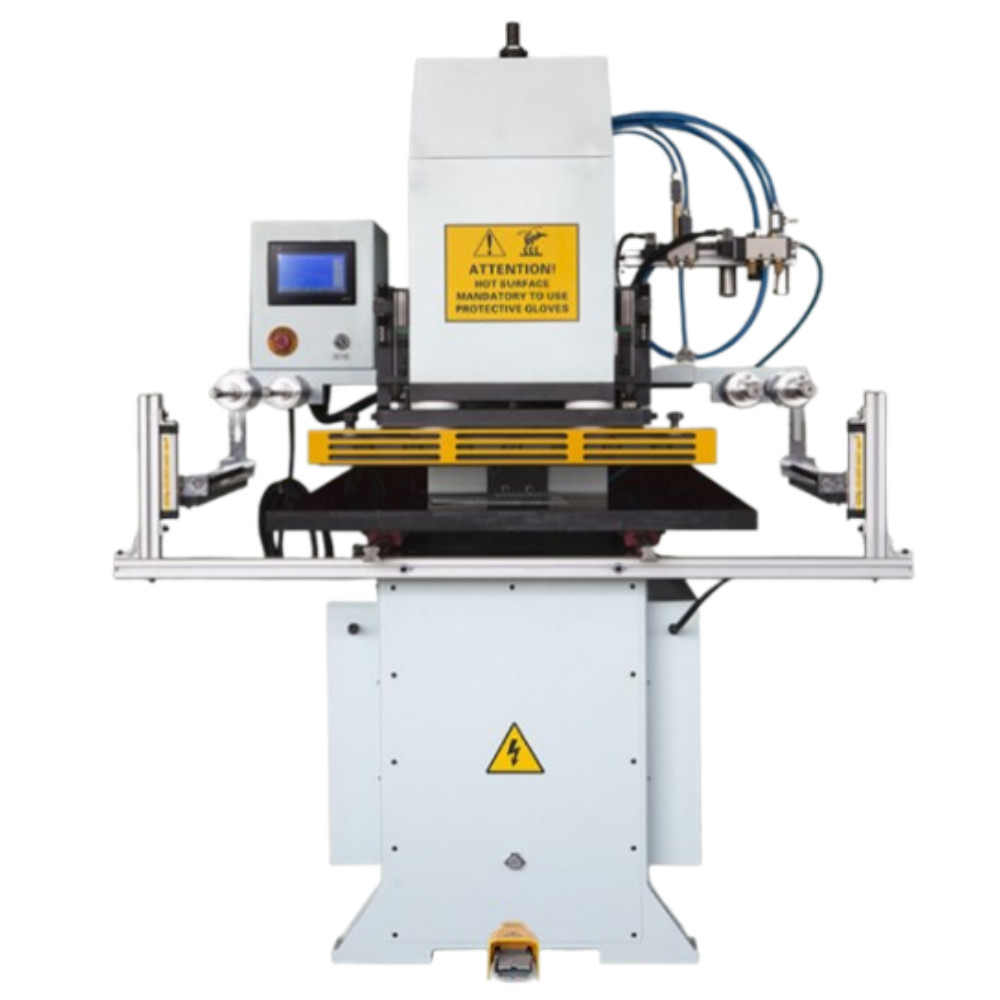

PRY-568 Air Over Hydraulic Driving System Embossing and Hot Stamping Machine

PRY-568 Air Over Hydraulic Driving System Embossing and Hot Stamping Machine
PRY-568 Air Over Hydraulic Driving System Embossing and Hot Stamping Machine
PRY-568 Air Over Hydraulic Driving System Embossing and Hot Stamping Machine PRY-568 Air Over Hydraulic Driving System Embossing and Hot Stamping Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-568
Minimum Order Quantity: 1 Set
Price: US 9000 ~ 14000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 50 Set/Sets per Month
Contact Now
Model: PRY-568-8T , PRY-568-15T , PRY-568-30T Max. Pressure: 8 Ton , 15 Ton , 30 Ton
Max. Stamping Size: 510 * 390 Mm , 590 * 440 Mm , 780 * 540 Mm Max. Cutting Area: 490 * 370 Mm , 570 * 420 Mm , 760 * 520 Mm
Worktable Area: 780 * 490 Mm , 880 * 540 Mm , 980 * 640 Mm Max. Working Height: 100 Mm
Workable Stroke: 160 Mm , 200 Mm , 250 Mm Temperature: 0 ~ 300℃
Air Supply: 0.8 ~ 1.2 Mpa Total Power: 4.8 Kw , 5.8 Kw , 7.8 Kw
Weight: 900 Kgs , 1200kgs , 1600 Kgs Dimension: 1120 * 890 * 1940 Mm , 1200 * 960 * 1990 Mm , 1440 * 1330 * 2010 Mm

PRY-568 Air Over Hydraulic Driving System Embossing and Hot Stamping Machine 0
PRY-568-8T Hot Stamping Machine
PRY-568 Air Over Hydraulic Driving System Embossing and Hot Stamping Machine 1PRY-568 Air Over Hydraulic Driving System Embossing and Hot Stamping Machine 2
Features
1.One man operation with easy parameters setting on touch screen,mainly used for hot stamping,embossing and die cutting on various materials.
2.Boosting cylinder from German technology,air over hydraulic reinforcement driving system,freely switching from two-stroke and three-stroke,ensure high efficiency and energy-saving.
3.Linear guideway from HIWIN,Taiwan,ensure high precision on sliding out and in of the worktable.
4.CE standard,safety device and electrical system is equipped:omron safety light curtain, heat protective cover,omron touch screen,digital control,working status display.
5.Adjustable delay time and pressure for hot stamping to achieve various results.
6.Two groups foil running,length and skip steps can be set on touch screen as you wish.
7.Foot pedal for more efficiency working and easy operation.
Technical Parameters
PRY-568-8T Hot Stamping Machine
Model
PRY-568-8T
 PRY-568-15T PRY-568-30T
Max. Pressure
8 Ton
 15 Ton 30 Ton
Max. Stamping Size
510 * 390 mm
 590 * 440 mm 780 * 540 mm
Max. Cutting Area
490 * 370 mm
 570 * 420 mm 760 * 520 mm
Worktable Area
780 * 490 mm
 880 * 540 mm 980 * 640 mm
Max. Working Height
100 mm
 100 mm 100 mm
Workable Stroke
160 mm
 200 mm 250 mm
Temperature
0 ~ 300 ℃
 0 ~ 300 ℃ 0 ~ 300 ℃
Air Supply
0.8 ~ 1.2 Mpa
 0.8 ~ 1.2 Mpa 0.8 ~ 1.2 Mpa
Total Power
4.8 kw
 5.8 kw 7.8 kw
Weight
900 kgs
 1200 kgs 1600 kgs
Dimension
1120 * 890 * 1940 mm
 1200 * 960 * 1990 mm 1440 * 1330 *2010 mm
Configuration
PRY-568 Air Over Hydraulic Driving System Embossing and Hot Stamping Machine 3PRY-568 Air Over Hydraulic Driving System Embossing and Hot Stamping Machine 4
PRY-568 Air Over Hydraulic Driving System Embossing and Hot Stamping Machine 5PRY-568 Air Over Hydraulic Driving System Embossing and Hot Stamping Machine 6
PRY-568 Air Over Hydraulic Driving System Embossing and Hot Stamping Machine 7
PRY-568 Air Over Hydraulic Driving System Embossing and Hot Stamping Machine 8
PRY-568 Air Over Hydraulic Driving System Embossing and Hot Stamping Machine 9
PRY-568 Air Over Hydraulic Driving System Embossing and Hot Stamping Machine 10
PRY-568 Air Over Hydraulic Driving System Embossing and Hot Stamping Machine 11
PRY-568 Air Over Hydraulic Driving System Embossing and Hot Stamping Machine 12
PRY-568 Air Over Hydraulic Driving System Embossing and Hot Stamping Machine 13
PRY-568 Air Over Hydraulic Driving System Embossing and Hot Stamping Machine 14
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
