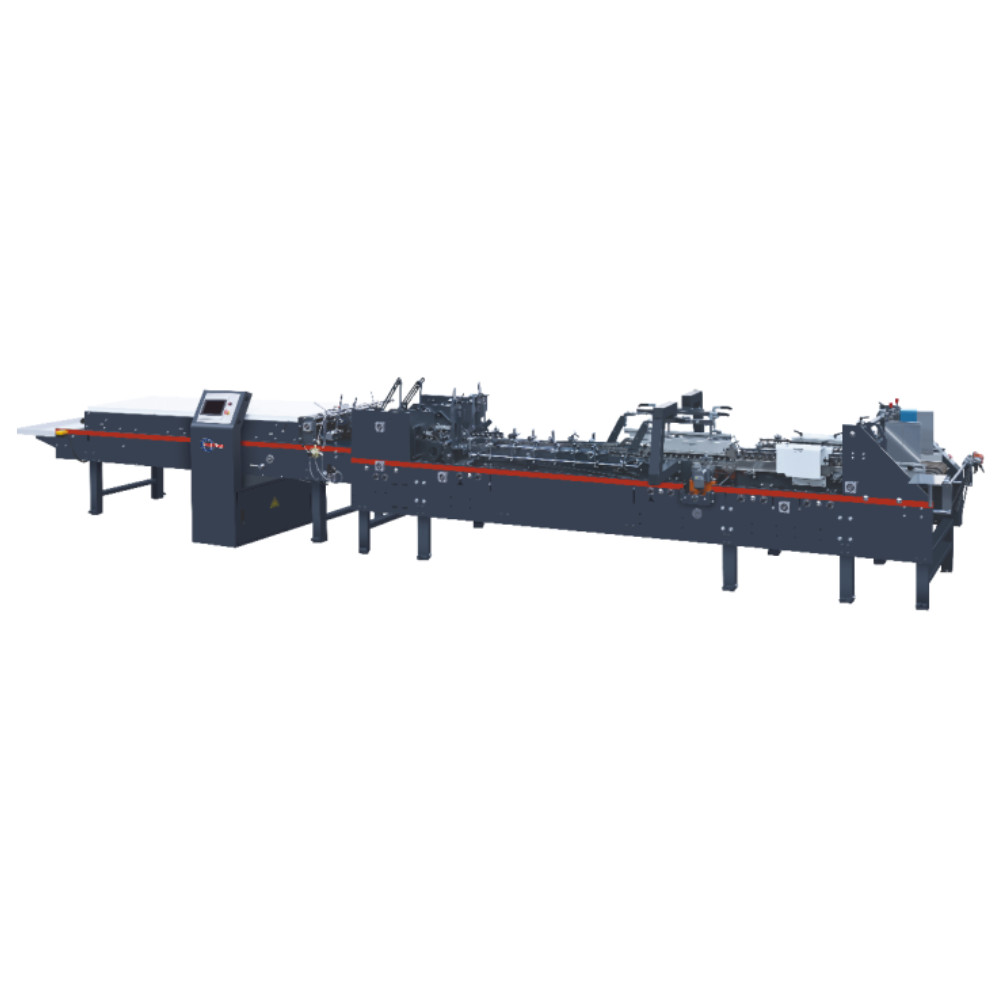

ZH-500B Automatic Feeding Paper Cup Sleeve Folding and Gluing Making Machine

ZH-500B Automatic Feeding Paper Cup Sleeve Folding and Gluing Making Machine
ZH-500B Automatic Feeding Paper Cup Sleeve Folding and Gluing Making Machine
ZH-500B Automatic Feeding Paper Cup Sleeve Folding and Gluing Making Machine ZH-500B Automatic Feeding Paper Cup Sleeve Folding and Gluing Making Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: ZH-500B
Minimum Order Quantity: 1 Set
Price: US 10500 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Paper Material: 210 ~ 600 G/m² Paperboard. Compatible With E/F Corrugated Max. Liner Speed: 0 ~ 300 M/min Continuous Adjustment
Feeding Way: Automatic Feeding Way Of Folding: Single Side Gluing Or Both Side Gluing
Glue Material: Cold Glue Electric Power: 7kw AC 3PH 380V
Weight: 1300 Kg Over Dimension: 7.8 * 1.0 * 1.3 M

ZH-500B Automatic Feeding Paper Cup Sleeve Folding and Gluing Making Machine 0
ZH-500B Paper Cup Sleeve Machine
ZH-500B Automatic Feeding Paper Cup Sleeve Folding and Gluing Making Machine 1
ZH-500B Automatic Feeding Paper Cup Sleeve Folding and Gluing Making Machine 2
Features
ZH-500B is design for paper cup sleeve box.lt have automatic feeding correcting gluing folding counting andwireless remote controller.lt have high speed,high stability,low price,it is ideal equipment in printing factory.
Technical Parameters
ZH-500B Paper Cup Sleeve Machine
Model
ZH-500B
Paper Material
210 ~ 600 g/m² Paperboard. Compatible with E/F Corrugated
Max. Liner Speed
0 ~ 300 m/min Continuous Adjustment
Feeding Way
Automatic Feeding
Way of Folding
Single Side Gluing or Both Side Gluing
Glue Material
Cold Glue
Electric Power
7kw AC 3PH 380V
Weight
1300 kg
Over Dimension
7.8 * 1.0 * 1.3 M
ZH-500B Automatic Feeding Paper Cup Sleeve Folding and Gluing Making Machine 3
Model
Box Type
A
B
ZH-500B
Paper Cup Sleeve
120 ~ 500 mm
50 ~ 500 mm
Configuration
ZH-500B Automatic Feeding Paper Cup Sleeve Folding and Gluing Making Machine 4ZH-500B Automatic Feeding Paper Cup Sleeve Folding and Gluing Making Machine 5

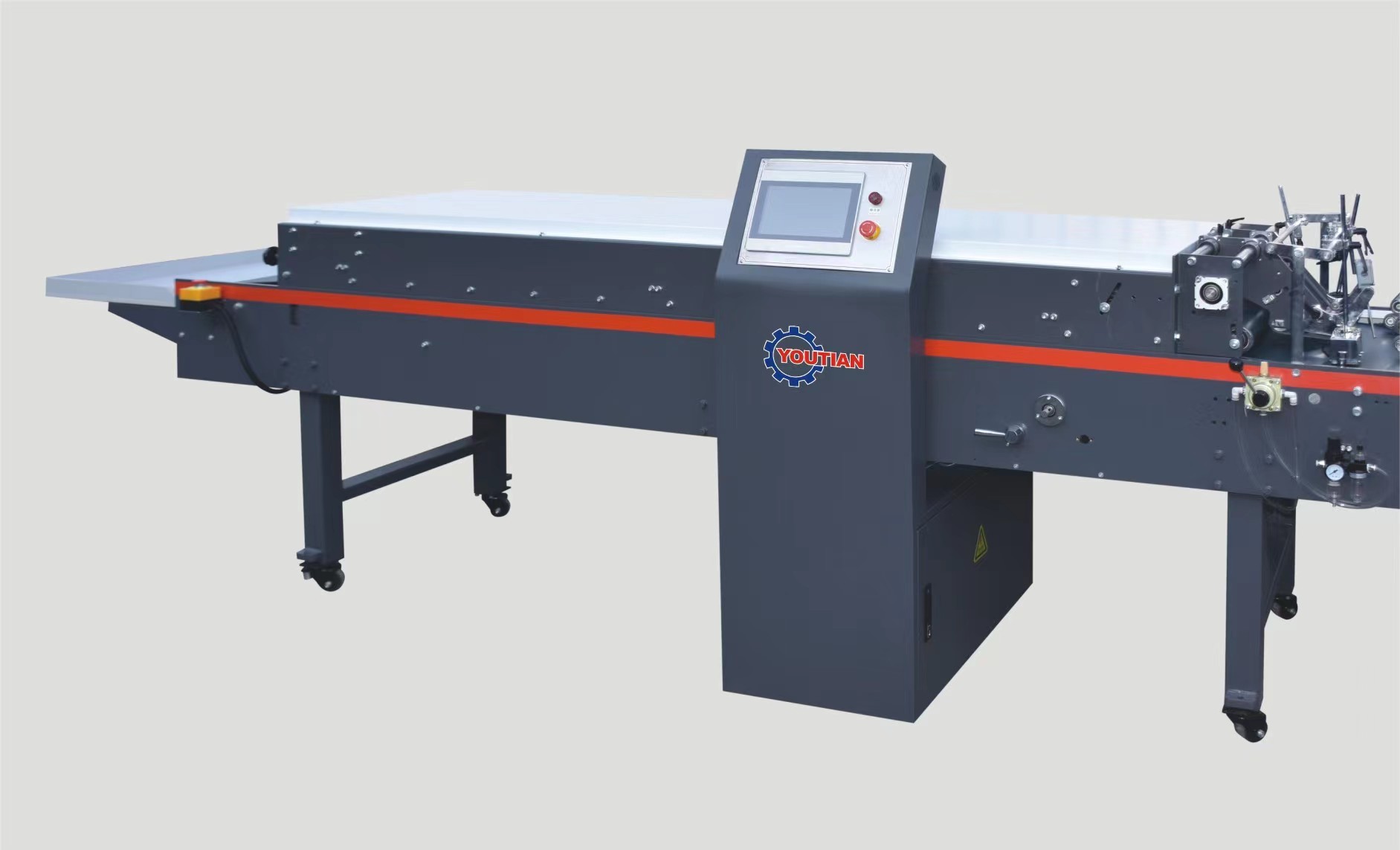

Paper Feeding Section

Equipped with 2 output knives,adjust the asymmetric length according to the actual sample.The embossing power guide wheel guides the paper output belt,and there are baffles on the left and right sides,which can be moved left and right according to the product style.The vibrating device cooperates with the motor to feed paper quickly,easily and continuously automatically.

Aligner Section

The paper board sent from feeder section will be corrected by aligner section to ensure transmission accurately.
Pressing drive pressure can be adjusted up and down to accommodate differentpaper board thickness.
ZH-500B Automatic Feeding Paper Cup Sleeve Folding and Gluing Making Machine 6ZH-500B Automatic Feeding Paper Cup Sleeve Folding and Gluing Making Machine 7

Lower Gluing Tank

Lower gluing tank is large volume.Easy to remove and clean.

Folding and Closing

The Second and fourth folding line 180°.The folding part is conveyed left and right, folded in sections to prevent slipping and ensure straight conveying.
ZH-500B Automatic Feeding Paper Cup Sleeve Folding and Gluing Making Machine 8ZH-500B Automatic Feeding Paper Cup Sleeve Folding and Gluing Making Machine 9

Trombone Section

Up and down belt can be adjusted separately.Equipped with photo electronic counting device and kicking paper device, which can press the paper after accounting and make it easy to pack.Also equipped with feeding paper inspection device.

Transmission

Equipped with special additional sponge belt for the press of boxes valley part.Upper section moves back and forward, allowing for different box length.
ZH-500B Automatic Feeding Paper Cup Sleeve Folding and Gluing Making Machine 10ZH-500B Automatic Feeding Paper Cup Sleeve Folding and Gluing Making Machine 11ZH-500B Automatic Feeding Paper Cup Sleeve Folding and Gluing Making Machine 12

Synchronous Belt & Synchronous Wheel

The most efficient mechanical power transmission method currently on the market. Reduce noise,reduce wear, and efficient power transmission system.

Aviation Connector

Easy to install and transport.

Independent Electrical Box

The independent structure reduces the interference of the mechanical structure to the electrical system, and it is beautiful and atmospheric.
Application
ZH-500B Automatic Feeding Paper Cup Sleeve Folding and Gluing Making Machine 13
ZH-500B Automatic Feeding Paper Cup Sleeve Folding and Gluing Making Machine 14
ZH-500B Automatic Feeding Paper Cup Sleeve Folding and Gluing Making Machine 15
ZH-500B Automatic Feeding Paper Cup Sleeve Folding and Gluing Making Machine 16
ZH-500B Automatic Feeding Paper Cup Sleeve Folding and Gluing Making Machine 17
ZH-500B Automatic Feeding Paper Cup Sleeve Folding and Gluing Making Machine 18
ZH-500B Automatic Feeding Paper Cup Sleeve Folding and Gluing Making Machine 19
ZH-500B Automatic Feeding Paper Cup Sleeve Folding and Gluing Making Machine 20
ZH-500B Automatic Feeding Paper Cup Sleeve Folding and Gluing Making Machine 21
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
