Home ProductsFolder Gluer MachinePRY-BZD1500 Semi-Automatic 56 m/min Pressing Type Gluer Machine

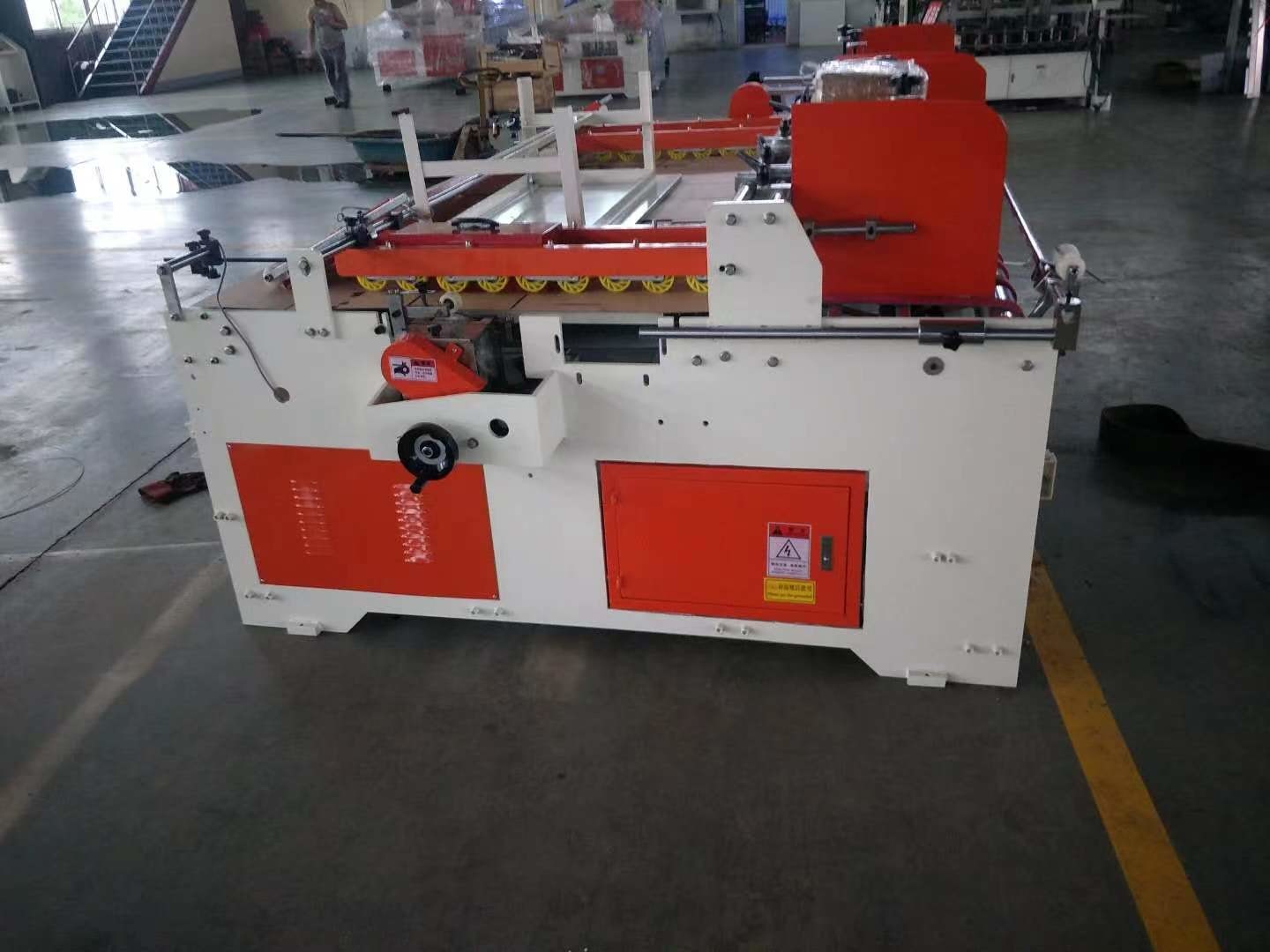

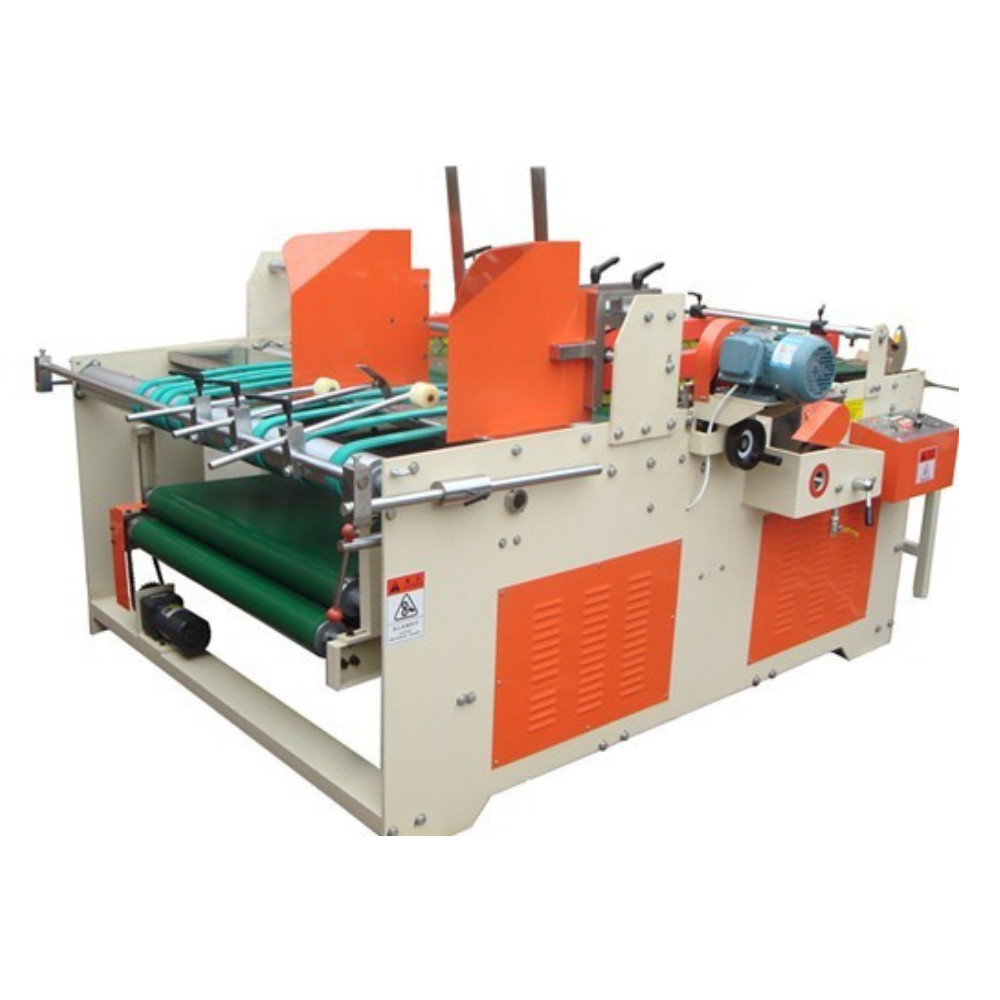

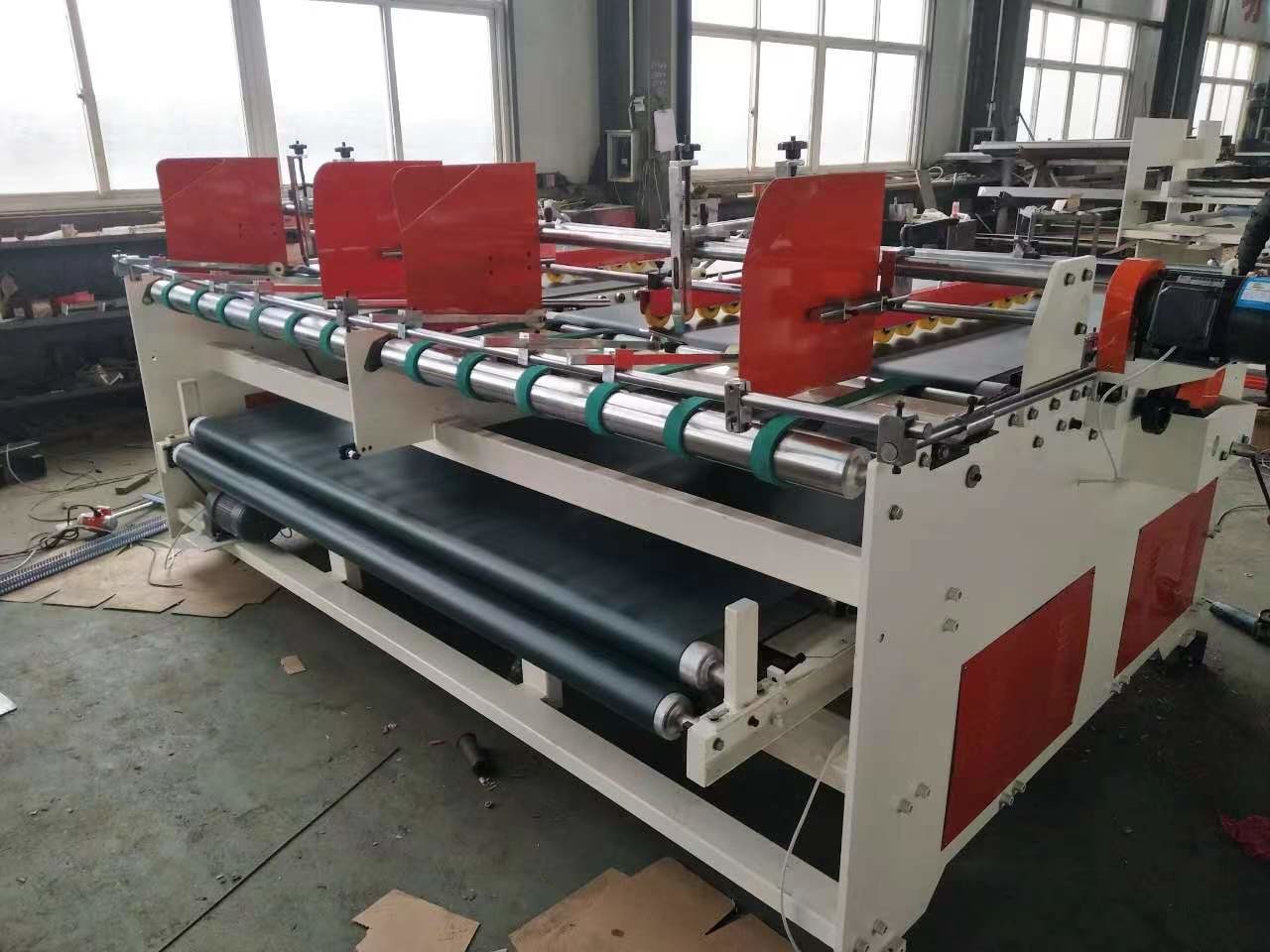

PRY-BZD1500 Semi-Automatic 56 m/min Pressing Type Gluer Machine

PRY-BZD1500 Semi-Automatic 56 m/min Pressing Type Gluer Machine
PRY-BZD1500 Semi-Automatic 56 m/min Pressing Type Gluer Machine
PRY-BZD1500 Semi-Automatic 56 m/min Pressing Type Gluer Machine PRY-BZD1500 Semi-Automatic 56 m/min Pressing Type Gluer Machine PRY-BZD1500 Semi-Automatic 56 m/min Pressing Type Gluer Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-BZD1500
Minimum Order Quantity: 1 Set
Price: US 4500 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Automatic Grade: Semi-automatic Driven Type: Electric
Voltage: 380 V Maximum Size: 1500 * 900 Mm
Minimal Size: 300 * 160 Mm Motor Power: 2 Kw
Mechanical Speed: 56 M/min Mechanical Weight: 1000 Kg
Machine Size: 2250 * 1800 * 1400 Mm

PRY-BZD1500 Semi-Automatic 56 m/min Pressing Type Gluer Machine 0
PRY-BZD1500 Semi-Automatic Pressing Type Gluer
PRY-BZD1500 Semi-Automatic 56 m/min Pressing Type Gluer Machine 1
Features
PRY-BZD1500 type semi-automatic pressing type gluing machine is a new type of environmental protection equipment for carton production newly developed in recent years, according to the users’ needs of small and medium-sized orders and heterogeneous cartons.
The size is small to save space,and the operation is simple and workers are easy to handle. It is ideally suitable for small batch production and varieties of replacement;It has a wide range of applications and can make ordinary cartons,shaped color boxes single-page molded glued,two-piece cartons and sky-lid cartons;Saving glue is another advantage,the glue quantity is only 1/3 of manual gluing;The maximum speed is 56M/Min of this machine, 3-4 times more efficient than manual operation;Make the cardboard bonded firmly and neatly without overflowing glue.And patented sanding technology to remove UV light film layer or laminated plastic layer,etc. to increase adhesive strength.Helps user factory to solve the problem that cartons are easy to open glue in some seasons.
Since this machine adopts manual folding,it is also suitable for the products with incorrect indentation,special shapes and open windows on the paper surface which are not well processed by the fully automatic machine,while improving the efficiency.
The structure of this machine:the machine rack,paper feeding table,front conveying device, grinding device,gluing device,middle conveying device,middle pressing device,the electrical control device.
1.PRY-BZD semi-automatic type pressing gluing machine using sophisticated processing technology and high-quality steel fabrication,mechanical efficiency to per minute 40-60 sheet.Using intelligent digital counter,convenient and quick to improve production efficiency.
2.The gluing section and main parts are made of high quality stainless steel,which is rustproof and resistant to many types of glue corrosion.Multi-model gluing wheel configurations can be purchased to meet the needs of different products.
3.The pressing part uses high-strength conveyor belt to press the carton,and the carton is conveyed to one end,and the quality of the carton must be guaranteed to be undamaged.
4.Fittings choose:
* Machine power:380V (440V) AC,2KW.Energy saving and high efficiency.
* Choose imported Italian belt loop seamless docking belt.
* Bear brand:TR.
* Spiral wire rod,ball screw,nut are chosen for 45 # steel,high quality and quenching process processing.
* Copper sleeve (ZQSn6-6-3) with drip oil lubrication,wear-resistant and durable.
* The whole machine is selected Taiwan brand motor,low noise,environmental protection, energy saving and low consumption.
5.The machine frame,beams,channels,thick wall square tube,thick wall plates,wall plate are made of the high quality Q235-A steel.The welding place adopts international standard continuous uninterrupted welding technology.All shaft parts are made of high quality No.45 steel with modulation processing.
Technical Parameters
PRY-BZD1500 Semi-Automatic Gluer
Maximum Size
1500 * 900 mm
Minimal Size
300 * 160 mm
Motor Power
2 KW
Mechanical Speed
56 m/min
Mechanical Weight
1000 kg
Machine Size
2250 * 1800 * 1400 mm



PRY-BZD1500 Semi-Automatic 56 m/min Pressing Type Gluer Machine 2
PRY-BZD1500 Semi-Automatic 56 m/min Pressing Type Gluer Machine 3
PRY-BZD1500 Semi-Automatic 56 m/min Pressing Type Gluer Machine 4
PRY-BZD1500 Semi-Automatic 56 m/min Pressing Type Gluer Machine 5
PRY-BZD1500 Semi-Automatic 56 m/min Pressing Type Gluer Machine 6
PRY-BZD1500 Semi-Automatic 56 m/min Pressing Type Gluer Machine 7
PRY-BZD1500 Semi-Automatic 56 m/min Pressing Type Gluer Machine 8
PRY-BZD1500 Semi-Automatic 56 m/min Pressing Type Gluer Machine 9
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
