Home ProductsPaper Processing MachineryPRYXG-80 80 m/min 9 Cutters Paper Drinking Straws Making Machinery

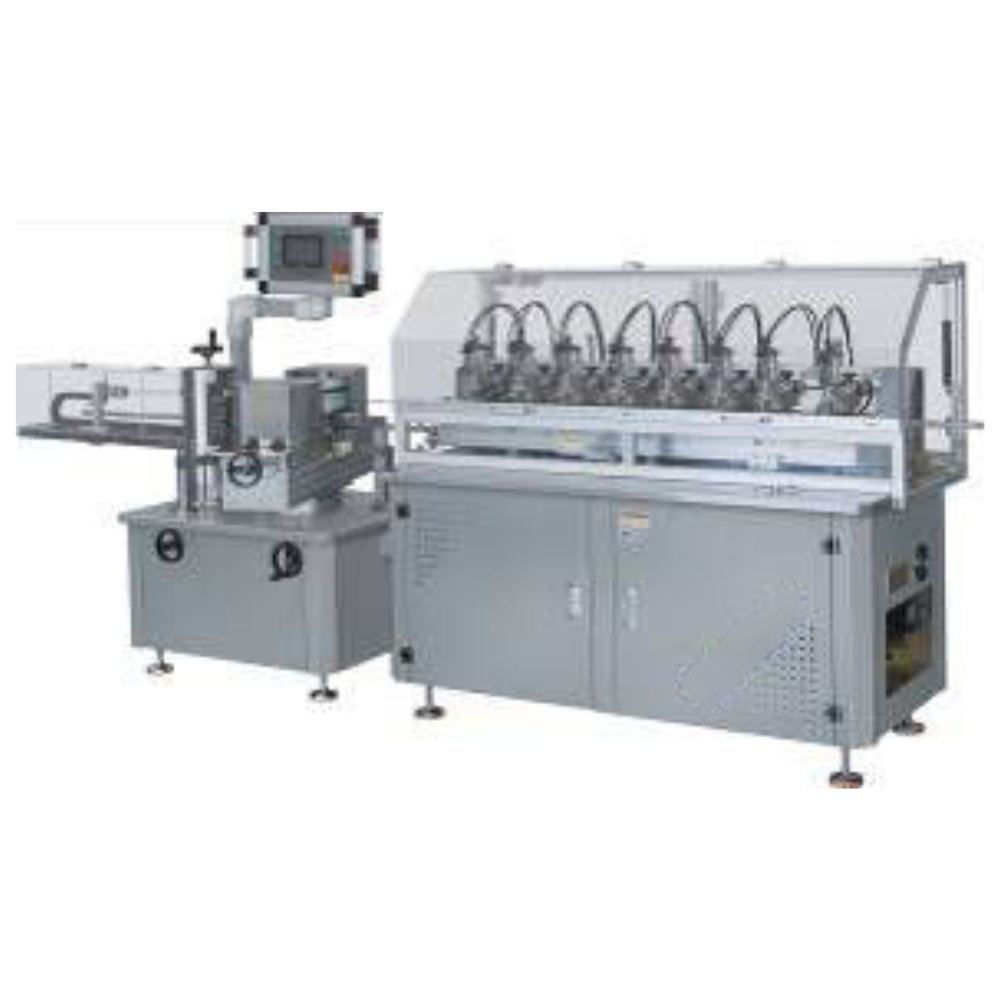

PRYXG-80 80 m/min 9 Cutters Paper Drinking Straws Making Machinery

PRYXG-80 80 m/min 9 Cutters Paper Drinking Straws Making Machinery
PRYXG-80 80 m/min 9 Cutters Paper Drinking Straws Making Machinery
PRYXG-80 80 m/min 9 Cutters Paper Drinking Straws Making Machinery PRYXG-80 80 m/min 9 Cutters Paper Drinking Straws Making Machinery
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRYXG-80
Minimum Order Quantity: 1 Set
Price: US 21500 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Weight: 2400 Kg Voltage: 380 V
Power: 8 Kw Dimension: 3500 * 1500 * 1200 Mm
Paper Layer: 3 Or 4 Layers Paper Straw OD: 4.2 ~ 13 Mm
Paper Straw ID: 3.8 ~ 12.3 Mm Highest Speed: 80 M/min
Stable Speed: 65 ~ 75 M/min Winding Nose: Two Noses Single Belt
Machine & Parts: 304 Stainless Steel Length Fixing: Encoder
Speed Control: By Inverter Cutting System: Multi-Blades ; 9 Pcs Online

PRYXG-80 80 m/min 9 Cutters Paper Drinking Straws Making Machinery 0
PRYXG-80 Paper Straw Machine
PRYXG-80 80 m/min 9 Cutters Paper Drinking Straws Making Machinery 1
Technical Parameters
PRYXG-80 Paper Straw Machine
Paper Layer
3 or 4 Layers
Paper Straw OD
4.2 ~ 13 mm
Paper Straw ID
3.8 ~ 12.3 mm
Highest Speed
80 m/min
Stable Speed
65 ~ 75 m/min (Related to Straw Size & Material Quality)
Winding Nose
Two Noses Single Belt
Machine & Parts
304 Stainless Steel
Length Fixing
Encoder
Speed Control
By Inverter
Cutting System
Multi-blades ; 9 pcs Online
Synchronism Tracking Cutting System
Servo Motor Synchronism Tracking
Straw Collecting
Automatically
Equipped with
Safety Covers
Operator
1 Person
Working Air Pressure
0.6 Mpa
Measurement
3500 * 1500 * 1200 mm
Working Space
8000 * 5000 mm
Weight
Around 2400kgs
Configuration
PRYXG-80 80 m/min 9 Cutters Paper Drinking Straws Making Machinery 2
Machine frame adopted with metal + 304 stainless steel.Strong enough for high speed working.
Surface:Covered with 304 stainless steel
Main Frame:Iron
PRYXG-80 80 m/min 9 Cutters Paper Drinking Straws Making Machinery 3PRYXG-80 80 m/min 9 Cutters Paper Drinking Straws Making Machinery 4
Winding Part:Both 3 layers and 4 layers are available.
PRYXG-80 80 m/min 9 Cutters Paper Drinking Straws Making Machinery 5PRYXG-80 80 m/min 9 Cutters Paper Drinking Straws Making Machinery 6
4 layers auto paper splicer,can make both 3 layers and 4 layers.
Automatic paper splicer–paper connecting without stop.
PRYXG-80 80 m/min 9 Cutters Paper Drinking Straws Making Machinery 7PRYXG-80 80 m/min 9 Cutters Paper Drinking Straws Making Machinery 8
9 blades cutting system–less wastes and more efficiency.                             Glue unit
PRYXG-80 80 m/min 9 Cutters Paper Drinking Straws Making Machinery 9PRYXG-80 80 m/min 9 Cutters Paper Drinking Straws Making Machinery 10
Lubricating oil tank for inner layer–without glue.                            Middle layer–double size glue.
PRYXG-80 80 m/min 9 Cutters Paper Drinking Straws Making Machinery 11PRYXG-80 80 m/min 9 Cutters Paper Drinking Straws Making Machinery 12
Top layer–single side glue.                                                                          Paper straw collector.
Applications
Finished paper straws.
PRYXG-80 80 m/min 9 Cutters Paper Drinking Straws Making Machinery 13
PRYXG-80 80 m/min 9 Cutters Paper Drinking Straws Making Machinery 14
PRYXG-80 80 m/min 9 Cutters Paper Drinking Straws Making Machinery 15
PRYXG-80 80 m/min 9 Cutters Paper Drinking Straws Making Machinery 16
PRYXG-80 80 m/min 9 Cutters Paper Drinking Straws Making Machinery 17
PRYXG-80 80 m/min 9 Cutters Paper Drinking Straws Making Machinery 18
PRYXG-80 80 m/min 9 Cutters Paper Drinking Straws Making Machinery 19
PRYXG-80 80 m/min 9 Cutters Paper Drinking Straws Making Machinery 20
PRYXG-80 80 m/min 9 Cutters Paper Drinking Straws Making Machinery 21
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
