| Place of Origin: | China |
|---|---|
| Brand Name: | PRINTYOUNG |
| Certification: | CE |
| Model Number: | PRY-10 |
| Minimum Order Quantity: | 1 Set |
| Price: | US 25000 Set |
| Packaging Details: | Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 Set/Sets per Month |
| Product Type: | Single Facer Machine | Voltage: | 380 V |
|---|---|---|---|
| Power: | 17 Kw | Dimension: | 2240 * 1360 * 1860 Mm |
| Working Width: | 1400 Mm | Design Speed: | 100 M/min |
| Economic Speed: | 60 - 80 M/min | Feeding Size: | 1450 - 850 Mm |
| Highest Steam Temperature: | 200 ℃ | Highest Steam Pressure: | 1.2 Mpa |


|

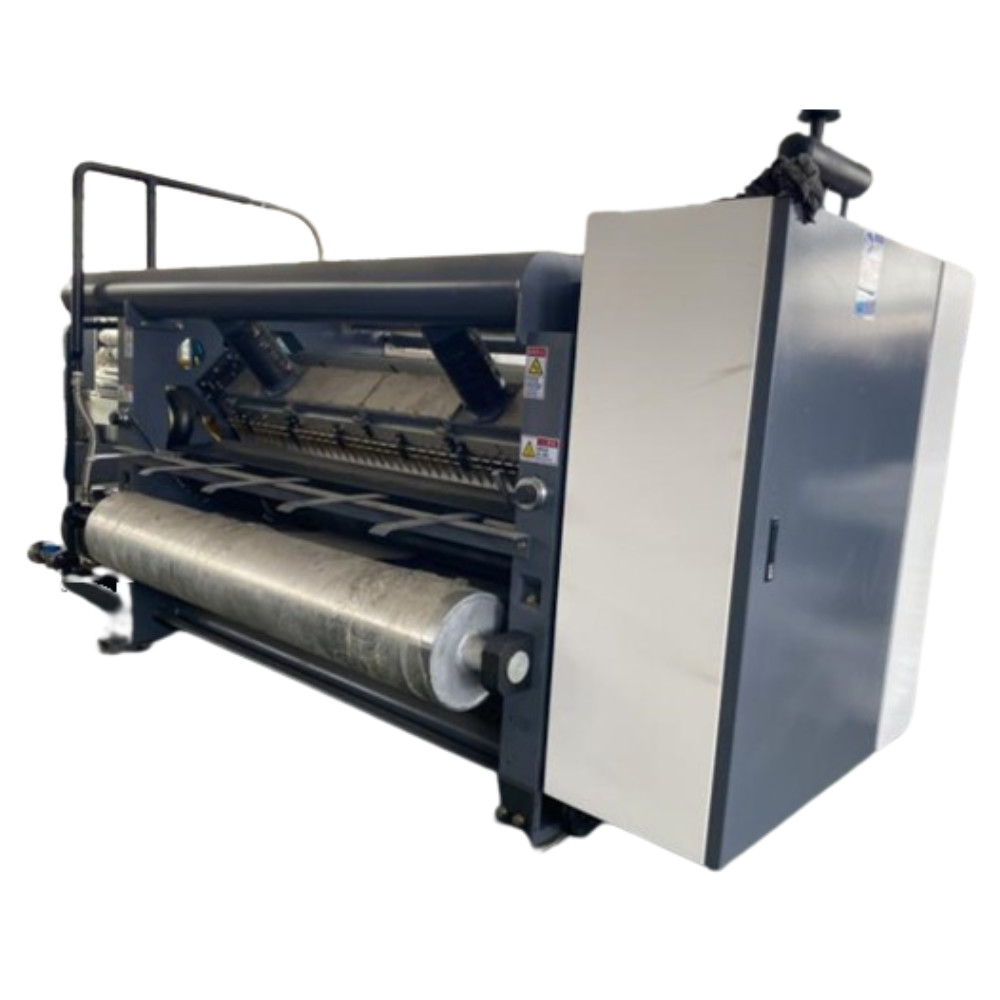

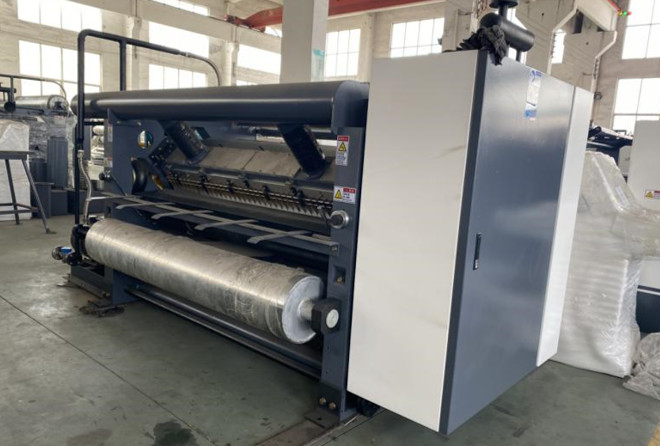

PRY-10 Single Facer Machine
|
|
|---|---|
|
Model No.
|
PRY-10
|
|
Working Width
|
1400 mm
|
|
Design Speed
|
100 m/min
|
|
Economic Speed
|
60 - 80 m/min
|
|
Feeding Size
|
1450 - 850 mm
|
|
Highest Steam Temperature
|
200 ℃
|
|
Highest Steam Pressure
|
1.2 Mpa
|
|
Working Power
|
380V 50Hz 17KW
|
|
Part Name
Craftsmanship
|
Specification
|
Material
|
Surface Treatment
|
|
Corrugated Roller
|
Main Roller¢292 mm
|
50CrMo Alloy Steel
|
Tungsten Carbide Treatment
|
|
Pressure Roller
|
¢268 mm
|
45#
|
Hardened Round Grinding Chrome Plating Polishing
|
|
Glue Roller
|
¢215 mm
|
45#
|
Round Grinding and Pressing Pit Mesh Chrome Plating
|
|
Doctor Roller
|
¢128 mm
|
45#
|
Round Grinding Chrome
|
|
Preheat Roller
|
¢320 mm
|
Q235B
|
Round Grinding Chrome
|
|
Paper Guide Roller
|
¢110/85 mm
|
45#
|
Round Grinding Chrome
|
