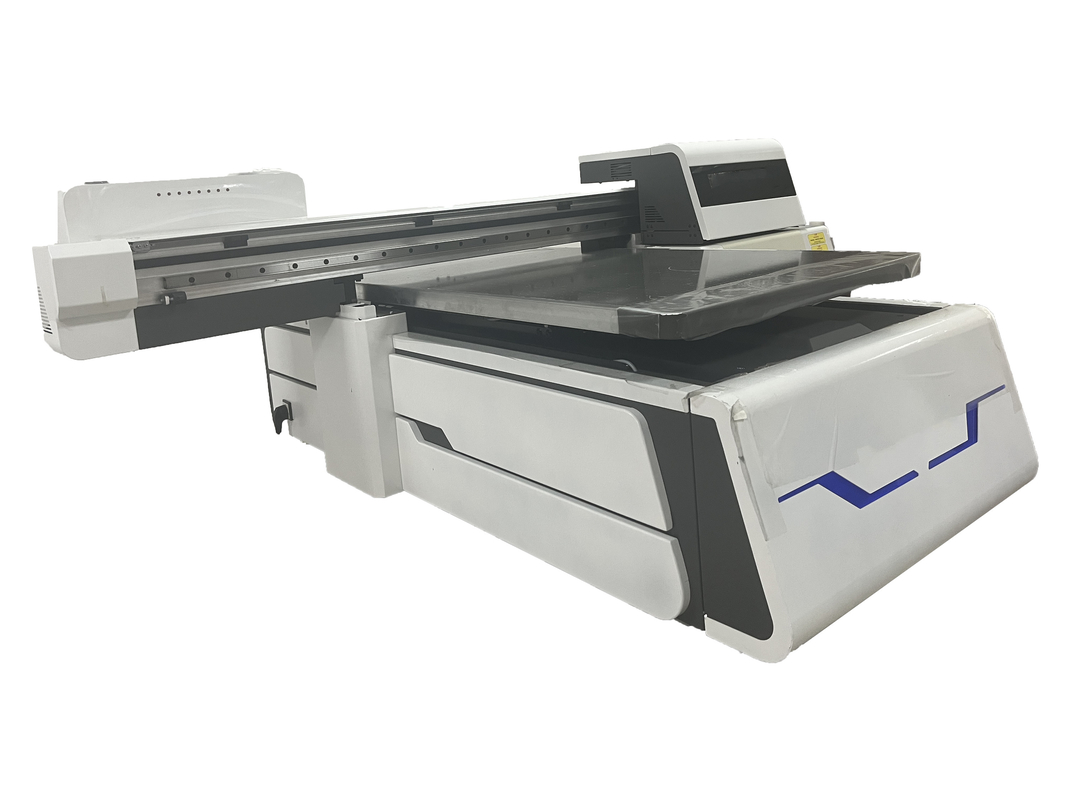

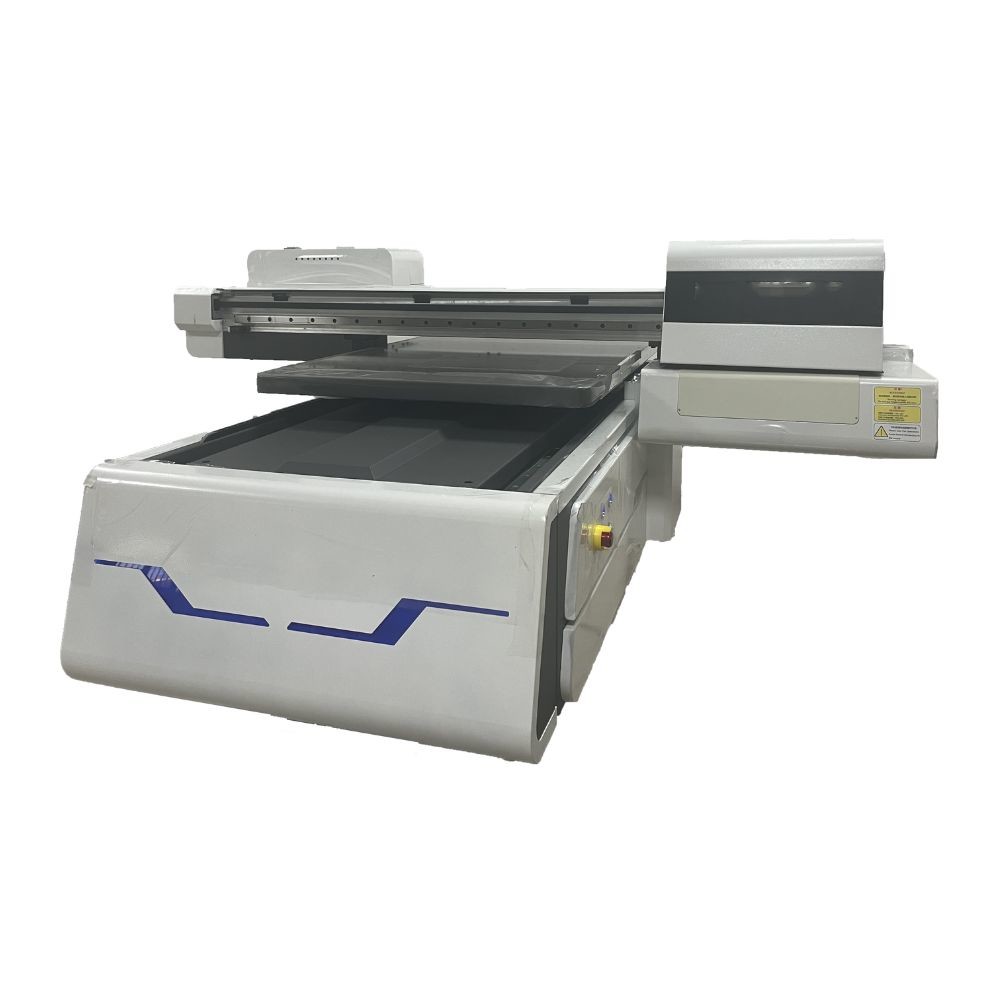

PRY-6090C Phone Case Flatbed Inkjet Sticker Led Large Format UV Printer Machine

Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-6090C
Minimum Order Quantity: 1 Set
Price: US 5500 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Print Dimension: 600 * 900 Mm Ink Type: UV Curable Ink
Plate Type: Flatbed Printer Weight: 280 KG
Warranty: 1 Year Type: Inkjet Printer
Automatic Grade: Automatic Voltage: 220 V
Dimensions: 1714 * 1600 * 650 Mm Type Of Printheads: EPSON I3200-U1 3 Unit
Maximum Print Size: 610 * 910 Mm Ink Supply: Positive Pressure For Ink
Curing Mode: High Power LED Air Cooler UV Lamp Control System: Hoson System
Data Interface: Network Rip Software: RIprint / Photoprint
Ink Cartridge Volume: 550 Ml Power: 1.6 Kw
Highlight:

Large Format Flatbed Inkjet Sticker Printer

,

Phone Case Flatbed Inkjet Sticker Printer

,

PRY-6090C Flatbed Inkjet Sticker Printer

PRY-6090C Phone Case Flatbed Inkjet Sticker Led Large Format UV Printer Machine 0
PRY-6090C Flatbed UV Printing Machine
PRY-6090C Phone Case Flatbed Inkjet Sticker Led Large Format UV Printer Machine 1
Features
Can be equipped with 3 pcs of Epson I3200 printheads,easily achieve high precision, multifunction and be high cost-effective.
Technical Parameters
PRY-6090C Flatbed UV Printing Machine
Type of Printheads
EPSON i3200-U1 3 Unit
Maximum Print Size
610 * 910 mm
Print Precision
720 * 720 720 * 1080 720 * 1440 720 * 2160
Printing Speeds
Draft Model
4 min 50 Seconds and 73
Production Model
6 min 20 Seconds and 50
Precision Model
8 min 46 Seconds and 01
Ink Supply
Positive Pressure for Ink
Curing Mode/Ink Type
High Power LED Air Cooler UV Lamp / UV Curable Ink
Control System
Hoson System
Data Interface
Network
Rip Software
RIprint / Photoprint
Ink Cartridge Volume
550 ml
Computer Config
Intel i7-7 and Above , USB 3.0 Gigabit Ethernet , 8G RAM , SSD
Power
1600 w
Machine Dimension
Machine Size:1714 * 1600 * 650 mm , Packing Size:1790 * 1570 * 875 mm
Net Weight / Gross Weight
280 kg / 360 kg
The Operating Environment
Temperature equipment operating 15℃-30℃ (recommended 20℃-28℃)
Humidity equipment 20%-80% (recommended 40%-60%)
The Printing Material
Signs , Crafts , Gift Boxes , Toys , etc , Crystal Label etc.
Advantage
PRY-6090C Phone Case Flatbed Inkjet Sticker Led Large Format UV Printer Machine 2PRY-6090C Phone Case Flatbed Inkjet Sticker Led Large Format UV Printer Machine 3

Steel Structure Main Frame

The main frame of steel structure,CNC three-side finish milling,stable structure,precision up to 20 wires.

Boards

Hoson 4H boards,more stable.
PRY-6090C Phone Case Flatbed Inkjet Sticker Led Large Format UV Printer Machine 4PRY-6090C Phone Case Flatbed Inkjet Sticker Led Large Format UV Printer Machine 5

Constant Temperature of Printhead

Fully closed structure,constant temperature system,to ensure that the nozzle can print normally.

UV Lamp Built-In Design

UV lamp built-in design,effectively avoid the damage of rays to the human body.
PRY-6090C Phone Case Flatbed Inkjet Sticker Led Large Format UV Printer Machine 6PRY-6090C Phone Case Flatbed Inkjet Sticker Led Large Format UV Printer Machine 7

Aviation Aluminum Beam

The upper beam is made of aviation aluminum and CNC finished.The surface is within 10 wires,which effectively guarantees the running accuracy of X axis.

Oxidation Platform

The thickness of 35 mm hard oxidation platform,flatness within 10 wires,effectively ensure the full plate printing accuracy.
PRY-6090C Phone Case Flatbed Inkjet Sticker Led Large Format UV Printer Machine 8PRY-6090C Phone Case Flatbed Inkjet Sticker Led Large Format UV Printer Machine 9

High Quality Parts

THK guide rail,megadyne belt,servo motor, meanwell power supply,and other high-quality accessories make the machine run more stable.

EPSON Printing Control System

Support multi-level grayscale printing: provide the most optimized visual experience for different scenarios.
Applications
PRY-6090C Phone Case Flatbed Inkjet Sticker Led Large Format UV Printer Machine 10PRY-6090C Phone Case Flatbed Inkjet Sticker Led Large Format UV Printer Machine 11PRY-6090C Phone Case Flatbed Inkjet Sticker Led Large Format UV Printer Machine 12PRY-6090C Phone Case Flatbed Inkjet Sticker Led Large Format UV Printer Machine 13
PRY-6090C Phone Case Flatbed Inkjet Sticker Led Large Format UV Printer Machine 14
PRY-6090C Phone Case Flatbed Inkjet Sticker Led Large Format UV Printer Machine 15
PRY-6090C Phone Case Flatbed Inkjet Sticker Led Large Format UV Printer Machine 16
PRY-6090C Phone Case Flatbed Inkjet Sticker Led Large Format UV Printer Machine 17
PRY-6090C Phone Case Flatbed Inkjet Sticker Led Large Format UV Printer Machine 18
PRY-6090C Phone Case Flatbed Inkjet Sticker Led Large Format UV Printer Machine 19
PRY-6090C Phone Case Flatbed Inkjet Sticker Led Large Format UV Printer Machine 20
PRY-6090C Phone Case Flatbed Inkjet Sticker Led Large Format UV Printer Machine 21
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.
A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
