Home ProductsPaper Die Cutting MachinePRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine

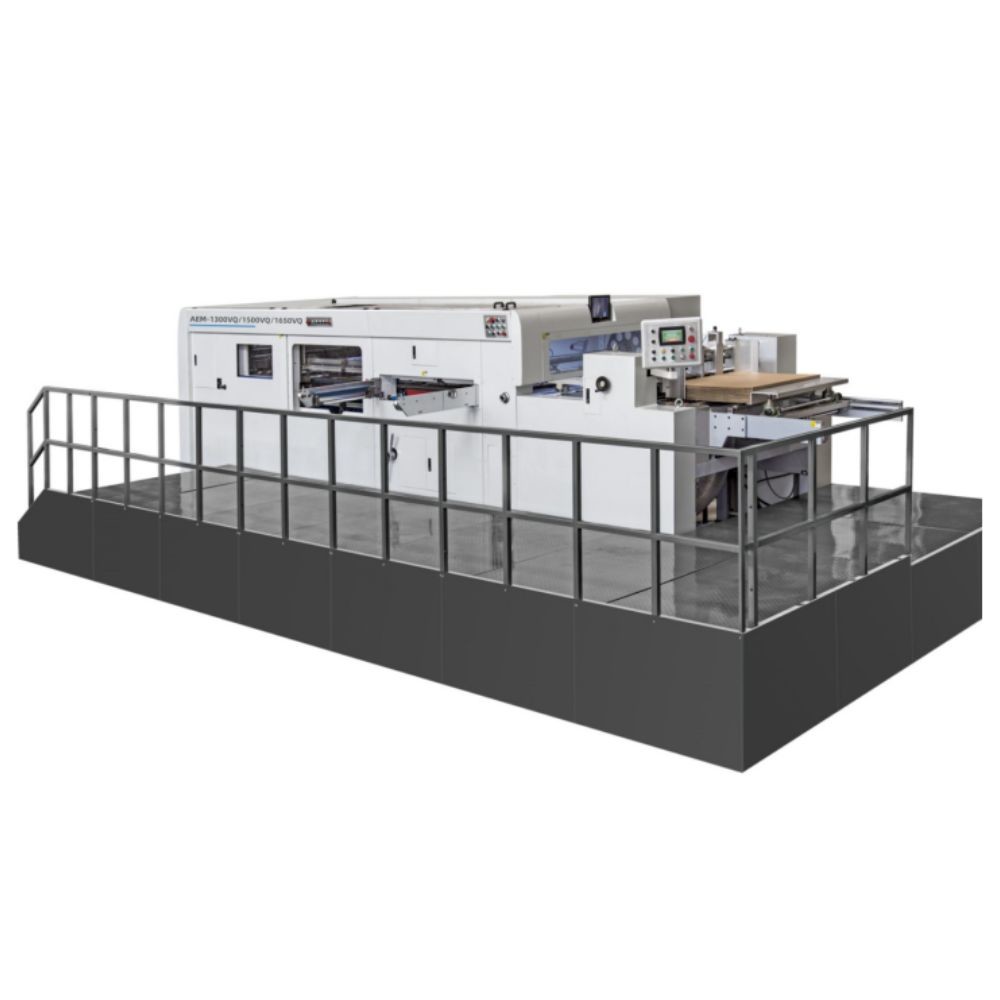

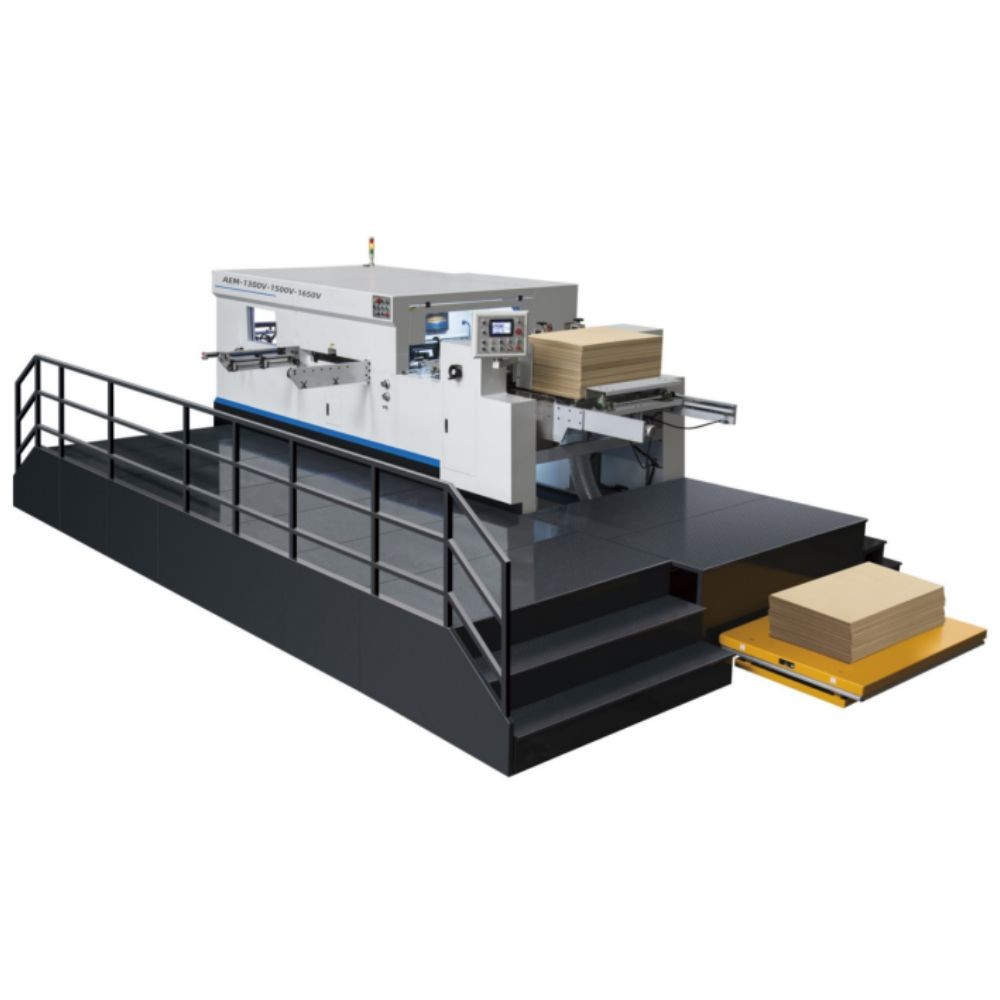

PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine

PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine
PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine
PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-1650V
Minimum Order Quantity: 1 Set
Price: US 100000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Type: Die-cutting Machine Production Capacity: 75 Sheets/min
Max. Workable Width: 1670 Mm Weight: 23000 Kg
Warranty: 1 Year Voltage: 380 V
Dimension: 6900 (+2300) * 3000 (+2300) * 2550 Mm Max. Sheet Size: 1670 * 1210 Mm
Min. Sheet Size: 520 * 460 Mm Feeding Pile Height: 300 Mm
Delivery Pile Height: 1300 Mm Max. Die-Cutting Size: 1650 * 1200 Mm
Inner Chase Size: 1660 * 1215 Mm Die Cutting Plate Size: 1680 * 1186 Mm
Cutting Rule Height: 23.8 Mm Cutting Plate Thickness: 7 Mm
Die-Cutting Accuracy: ≤ ± 0.25 Mm
Highlight:

0.25mm Accuracy Paper Die Cutting Machine

,

Flatbed Paper Die Cutting Machine

,

Fully Automatic Paper Die Cutting Machine

PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 0
PRY-1650V Automatic Die Cutting Machine
PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 1PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 2
PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 3
PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 4
Features
1.Platen press is driven by Taiwan TECO main motor with Panasonic inverter;the running of complete machine is controlled by PLC centralized controlling system which can automatically examine the working status and test unusual status as well as record the working condition.According to the Europe Safety Standard,we design reasonably to make the operability and safety perfect combination.
2.Advanced alarm system of starting up will remind operator to leave the unsafe area. Automatically detecting whole process,if malfunction,non-paper or paper stuck,the pneumatic clutch will separate and stop automatically which reduce the waste of paper, protect the staff and equipment.
3.Elaborate pre-stacked device and paper feeding & delivery non-stop devices reduce the time of stacking,improve the efficiency of machine and increase your income.
4.Selected European,Japanese,Taiwan electrical and pneumatic components improve the stability of the machine and reduce the frequency of inanimateness.
5.Mainframe and base adopt high strength spheroidal graphite iron QT500-7 which is accurately processed by numerical control center,guarantee the machine run stably in long time when bearing large pressure.The cores of the platen press machine such as crankshaft,worm gear,are all imported high-class alloy steel,which are processed by quenching and high temperature tempering with a long working life.
6.Lubrication system for core parts is equipped with display device for oil pressure and alarming device for insufficient pressure of oil and air.
7.Supply long-term and complete technical training as well as prompt free maintains for one year,guarantee that our clients can fully master the production technology of our equipment.Our machine is with Perfect design,accurate installation,high stability,high security,low noise.
Technical Parameters
PRY-1650V Automatic Die Cutting Machine
Model
PRY-1650V
Max. Sheet Size
1670 × 1210 mm
Min. Sheet Size
520 × 460 mm
Feeding Pile Height
300 mm
Delivery Pile Height
1300 mm
Max. Die-Cutting Size
1650 × 1200 mm
Inner Chase Size
1660 × 1215 mm
Die Cutting Plate Size
1680 × 1186 mm
Cutting Rule Height
23.8 mm
Cutting Plate Thickness
7 mm
Stock Range
Paperboard : 0.25 ～ 2 mm
Corrugated Paper : ＜ 8 mm
Die-Cutting Accuracy
≤ ± 0.25 mm
Max. Die-Cutting Pressure
300 T
Max. Machine Speed
4500 S/H
Min Gripper Margin
7 mm
Air Supply
0.6 - 0.7 Mpa , 0.36 m³/min
Power Requirement
3 phases 380 V 50 Hz
Main Motor Power
15 kw
Total Power
22 kw
Total Machine Weight
23 t
Overall Dimension
6900(+2300) × 3000(+2300) × 2550 mm
Configuration
PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 5PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 6
PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 7PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 8PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 9

Paper Feeding Section

1.Advanced lead edge feeder for thick paperboard and corrugated board.
2.Conveyer table with anti-wore PU press rollers and the brush wheels guarantees high feeding accuracy of paper,the conveyer belt can be adjusted nonstop.
3.Side lay and front lay guarantee accuracy of the sheet position.
4.Skew paper and accumulated paper detection function and auto stop function:when the sensors detect the paper is skewed or accumulated before being delivered to platen press section,machine will stop.
PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 10PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 11
PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 12PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 13PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 14
PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 15PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 16PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 17

Platen Press Section

1.Main body adopts high-strength ductile iron QT500 with special casting process.The Ni-Cr-Mo Alloy crankshaft with special craft process treatment and super wear-resistant worm and gear.
2.High pressure automatic oil motor with filter and cooling fan recycles the oil to lubricate the main transmission parts(crankshaft,worm and gear).And the auto oil pump lubricates all of the necessary parts.(gear,chains,etc.)
3.Big flywheel with the pneumatic clutch guarantees high precision when machine is high speed running.
4.Human-friendly design for die and liner plate(Manganese Steel)changing.Die frame can be overturned and locked pneumatically.
5.High-precision cam indexer to control the gripper bars to deliver paper in accurate position.
6.High-strength Ti-Al alloy grippers and wear-resisting chains for gripper bar.
PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 18PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 19
PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 20PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 21PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 22

Stripper Section(Optional)

1.Stripper is composed of three frames(upper,middle,and bottom frame)which can be pulled out for installation of pins.
2.Stripper bar with pins or male-female plate for waste stripping.
PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 23PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 24PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 25PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 26

Paper Delivery Section

1.Automatic aligning device,double side blowers and hair brush guarantee paper pile in good order,no matter the paper is thick or thin.
2.Overrun-prevention device:the sheet is moved upwards with the gripper bar,the detection sensor will be initiated and machine will stop.
3.Gripper chains protection device:sensors are connected to the main chains to monitor the tightness of the chains.When it is detected to be loose,the machine will be stopped.
4.The non-stop paper delivery device.
5.Tag insert device(1 set)to record the sheets quantity.
PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 27PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 28

Electrical Box and Control System

1.Interface controls are integrated,and numerous electrical switch controls are set in operation screen which is easy operation and easy understanding.
2.PLC centralized controlling system can automatically examine the working status and test unusual status as well as record the working condition.
3.Problem diagnosis function on touch screen,if any problems occur,you can check touch screen to find it.
4.Chinese,English or other any language(optional)on touch screen
5.Electrical components and electrical circuit are in accord with Europe American safety standard.
Applications
PRY-1650V lead edge feeder die cutting machine is specially designed for die cutting and creasing the thick board,like corrugated board(<8 mm).It is equipped with advanced friction paper feeding device.

PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 29
PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 30
PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 31
PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 32
PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 33
PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 34
PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 35PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 36PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 37
PRY-1650V Fully Automatic 0.25mm Accuracy Corrugated Paper Board Flatbed Die Cutting Machine 38
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
