PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery

PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery
PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery
PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-2300A
Minimum Order Quantity: 1 Set
Price: US 21000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 30 Set/Sets per Month
Contact Now
Applicable Industries: Manufacturing Plant Showroom Location: Egypt, Italy, Morocco, Algeria, South Africa
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Place Of Origin: Zhejiang, China Weight: 1500 KG
Warranty: 1 Year Condition: New
Application: Commodity Automatic Grade: Semi-automatic
Driven Type: Electric Voltage: 380 V
Dimension: 2700 * 1700 * 1600 Mm Power: 8 Kw
Max. Speed: 70 M/min Alignment Accuracy: 15 Mm
Overall Size: 3200 (L) * 2800 (W) Mm Max. Feeding: 1150 * 900 Mm
Min. Feeding: 450 * 350 Mm
Highlight:

Semi Automatic Gluing Machinery

,

70m per Minute Gluing Machinery

,

Double Sheets Pasting Jointing Gluing Machinery

PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery 0
PRY-2300A Double Sheets Jointing Gluer
PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery 1
PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery 2
Technical Parameters
PRY-2300A Two Pieces Jointing Gluer
Model
PRY-2300A
Power Supply
380V , 50 / 60 Hz
Power
8 kw
Max. Speed
70 m/min
Alignment Accuracy
15 mm
Glue Wheel Thickness
Middle Glue : Hot Glue Wheel 3mm + Cold Glue Wheel 3mm;Side Glue Wheel 6 mm
Configuration
Middle Glue : Hot Glue + Cold Glue ; Side Glue : Cold Glue
Overall Size
3200 (L) * 2800 (W) mm
Max. Feeding
1150 * 900 mm
Min. Feeding
450 * 350mm
Applicable
Corrugated Board Thickness 1 - 10 mm , White Board ≥ 500 g
Configuration
PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery 3PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery 4

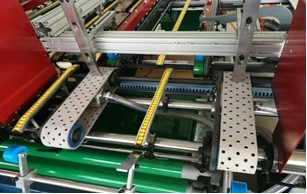

Feeder belt with hole + suction feeding,independent clutch at left / right to feed sheet boards of different sizes.Left and right independent motion control by servo positioning system.
PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery 5PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery 6

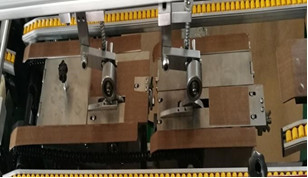

At middle adopt hot glue + cold glue,double gluing system.Hot glue for quick positioning while cold gluing for longtime pasting.
The servo motor drives the ball screw to align the paper,and the motion control servo positioning system,ensures more accurate alignment of the cardboard box and faster digital adjustment.
PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery 7
Glue tank at middle and side,both use lead screw for fine-adjustment to adjust gluing position.

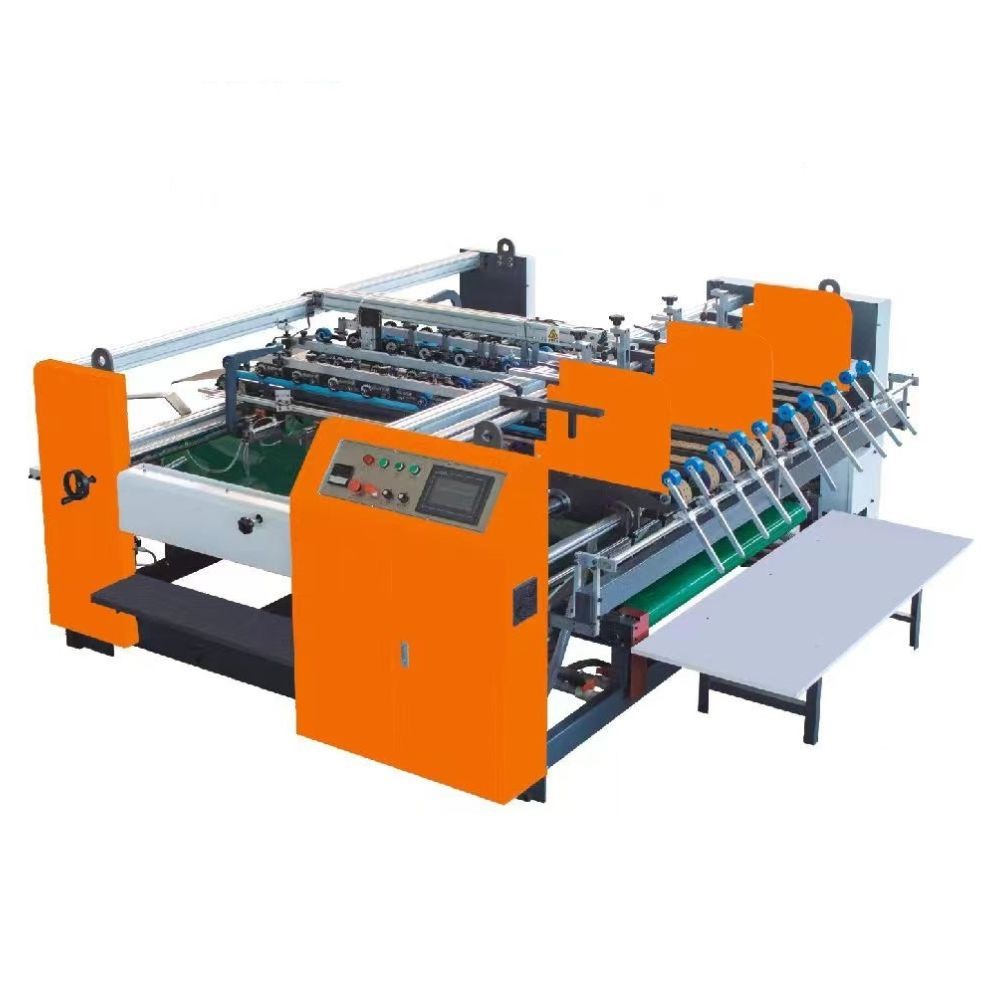

Machine Picture
PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery 8PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery 9PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery 10
PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery 11PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery 12PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery 13
PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery 14PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery 15PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery 16
PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery 17
PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery 18
PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery 19
PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery 20
PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery 21
PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery 22
PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery 23
PRY-2300A Semi Automatic 70m per Minute 1150 * 900 mm Double Sheets Pasting Jointing Gluing Machinery 24
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
