Home ProductsFolder Gluer MachinePRY-800Q Automatic Erecting Box Forming Machine with Servo Motor

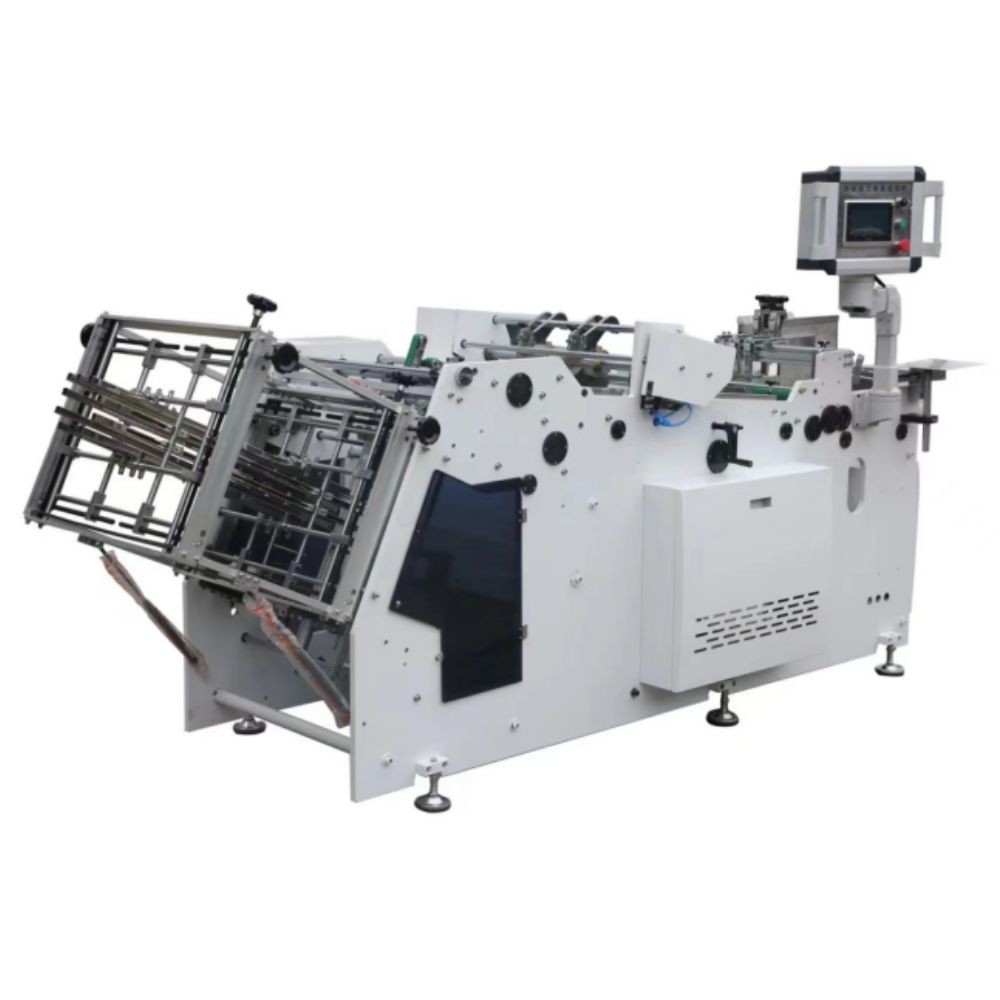

PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor

PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor
PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor
PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-800Q
Minimum Order Quantity: 1 Set/Sets
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 30 sets per month
Contact Now
Warranty: 1 Year Condition: New
Product Category: Folder Gluer Machine Paper Forming Servo Motor: 8 Kw
Showroom Location: Egypt, Italy, Morocco, Algeria, South Africa Max. Feeding Paper Width: 580 Mm
Max Paper Specification: 320 * 450 Mm Max Paper Thickness: 1.5 Mm
Highlight:

Automatic Erecting Box Forming Machine

,

Servo Motor Box Forming Machine

,

PRY-800Q Box Forming Machine

PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor 0

PRY-800Q Box Forming Machine
PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor 1
Features
The carton erecting machine is highly efficient.It can be customized to do different size and shaped boxes through changing mold.(hamburger box,fried chips box,paper tray,noodle box,lunch box and other food container.)It use fours servo motors to make the machine adjustment more easily.
Main Function:
1.The host speed setting,servo motor automatic tracking.
2.Automatic counting,batches calculation,automatic mark.
3.Setting length of the paper-out.
4.Roll on glue automatically.
5.Gluing automatically.
PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor 2
Technical Parameters
PRY-800Q Box Forming Machine
Paper Specification
60 * 100 - 320 * 450 mm
Suitable Material
200 - 600 g/m2 Paper
Max. Paper Thickness
1.5 mm
Production Speed
60 - 220 pcs/minute
Max. Feeding Paper Width
580 mm
Paper Forming Servo Motor
8 kw
Feeding Servo Motor
0.75 kw
Main Host Servo Motor
1.3 kw
Paper Down Deceleration Servo Motor
1.3 kw
Machine Weight
2000 kg
Machine Size
3500 * 1600 * 1600 mm
Package Size
3600 * 1600 * 1860 mm
Configuration
PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor 3
This is feeding paper servo motor, the adjustment is easy,just need set it on the touch screen according to the paper length.

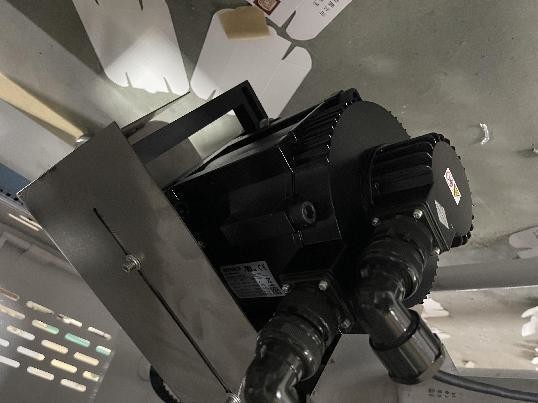

PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor 4
This is the forming pusher servo motor,when changing paper size and mold,the pusher time can be adjusted,then it will finish one process after the paper goes down.
PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor 5
It is normal standard Gluing motor, when the machine is stopped,the small motor drives the roller,so the glue will not fall down due to gravity.
PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor 6
This is Paper down deceleration Servo motor.When the machine is driven at a high speed of 200,this servo motor will drive the deceleration belt on the mold to prevent the edge of the paper from hitting the brace and damaging the paper.
PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor 7
This is Main Host Servo motor,it controls pushing paper and gluing, it can save the time when changing the mold,no need adjust the swing arm route,just set it on the touch screen.
PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor 8
It adapts paper tape counting equipment to count product quickly and accurately,and to be readjusted.
PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor 9
Electrical cabinet
PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor 10
Touch screen
PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor 11
Nylon molds
Applications
It suits for hamburger box, fried chips box,paper tray,noodle box,lunch box and other food container and so on.
PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor 12
PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor 13
PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor 14
PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor 15
PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor 16
PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor 17
PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor 18
PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor 19
PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor 20PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor 21
PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor 22
PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor 23
PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor 24
PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor 25
PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor 26
PRY-800Q Automatic Erecting Box Forming Machine with Servo Motor 27
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
