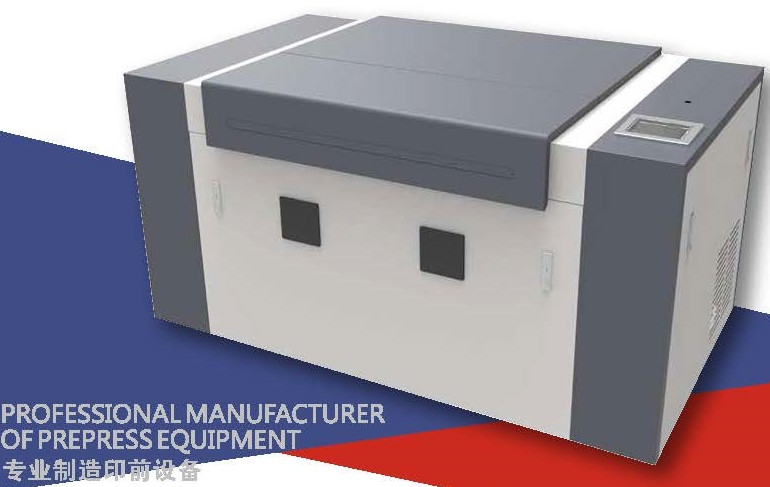

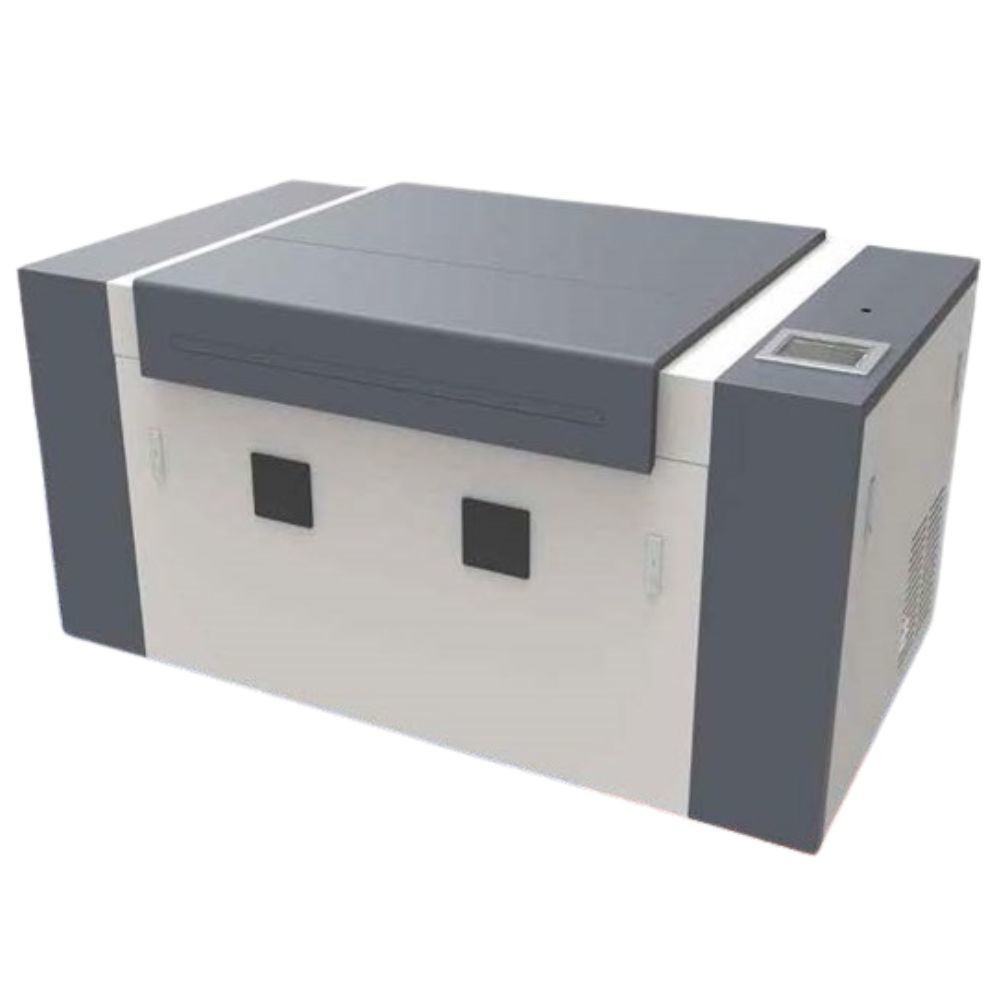

DX830T/U 2400 Dpi 0.15 ~ 0.4 Mm Thermal CTP Plate Setter Making Machine

DX830T/U 2400 Dpi 0.15 ~ 0.4 Mm Thermal CTP Plate Setter Making Machine
DX830T/U 2400 Dpi 0.15 ~ 0.4 Mm Thermal CTP Plate Setter Making Machine
DX830T/U 2400 Dpi 0.15 ~ 0.4 Mm Thermal CTP Plate Setter Making Machine DX830T/U 2400 Dpi 0.15 ~ 0.4 Mm Thermal CTP Plate Setter Making Machine DX830T/U 2400 Dpi 0.15 ~ 0.4 Mm Thermal CTP Plate Setter Making Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: DX830T/U
Minimum Order Quantity: 1 Set
Price: US 31500 ~ 59000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Condition: New Type: Conventional Plate Processor
Voltage: 220V Applicable Industries: Manufacturing Plant, Printing Shops
Showroom Location: Egypt, Italy, Morocco, Algeria, South Africa Video Outgoing-inspection: Provided
Machinery Test Report: Provided Place Of Origin: Zhejiang, China
Weight: 1200 KG Warranty: 1 Year
Automatic Grade: Automatic Dimension: 1950 * 1120 * 1130 Mm
Resolution: 2400 Dpi Exposure Structure: External Drum
Max Plate Size: 830 * 660 Mm Min Plate Size: 450 * 340 Mm
Plate Thickness: 0.15 ~ 0.4 Mm Max Hanged Line: 300 Lpi
Repeatability: +/- 0.005 Mm
Highlight:

2400 dpi Thermal CTP Plate Setter

,

DX830T/U Thermal CTP Plate Setter

,

Thermal CTP Plate Setter Making Machine

DX830T/U 2400 Dpi 0.15 ~ 0.4 Mm Thermal CTP Plate Setter Making Machine 0
DX830T/U Thermal CTP Plate Setter
DX830T/U 2400 Dpi 0.15 ~ 0.4 Mm Thermal CTP Plate Setter Making Machine 1
DX830T/U 2400 Dpi 0.15 ~ 0.4 Mm Thermal CTP Plate Setter Making Machine 2
Technical Parameters
DX830T/U Thermal CTP Plate Setter
Model No.
DX830T/U-I
 DX830T/U-II DX830T/U-III DX830T/U-IV
Laser System
830/405 nm LD
32 channels
830/405 nm LD
48 channels
830/405 nm LD
64 channels
830/405 nm LD
96 channels
Resolution
2400 dpi
Output Speed
15 p/h
(745 * 605 mm)

25 p/h

(745 * 605 mm)

30 p/h

(745 * 605 mm)

40 p/h

(745 * 605 mm)
Exposure Structure
External Drum
Max Plate Size
830 * 660 mm
Min Plate Size
450 * 340 mm
Plate Thickness
Thermal (830 nm) 0.15 ~ 0.4 mm / UV (405 nm) 0.15 ~ 0.4 mm
Max Hanged Line
300 lpi
FM Dots Output
15 um
Repeatability
+/- 0.005 mm
Power Supply
AC 220 V AC/50 Hz - 60 Hz 4.5 kw (Single Phase)
External Dimension
1950 * 1120 * 1130 mm
Weight
1200 kg
DX830T/U 2400 Dpi 0.15 ~ 0.4 Mm Thermal CTP Plate Setter Making Machine 3
DX830T/U 2400 Dpi 0.15 ~ 0.4 Mm Thermal CTP Plate Setter Making Machine 4
DX830T/U 2400 Dpi 0.15 ~ 0.4 Mm Thermal CTP Plate Setter Making Machine 5
DX830T/U 2400 Dpi 0.15 ~ 0.4 Mm Thermal CTP Plate Setter Making Machine 6
DX830T/U 2400 Dpi 0.15 ~ 0.4 Mm Thermal CTP Plate Setter Making Machine 7
DX830T/U 2400 Dpi 0.15 ~ 0.4 Mm Thermal CTP Plate Setter Making Machine 8
DX830T/U 2400 Dpi 0.15 ~ 0.4 Mm Thermal CTP Plate Setter Making Machine 9
DX830T/U 2400 Dpi 0.15 ~ 0.4 Mm Thermal CTP Plate Setter Making Machine 10
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
