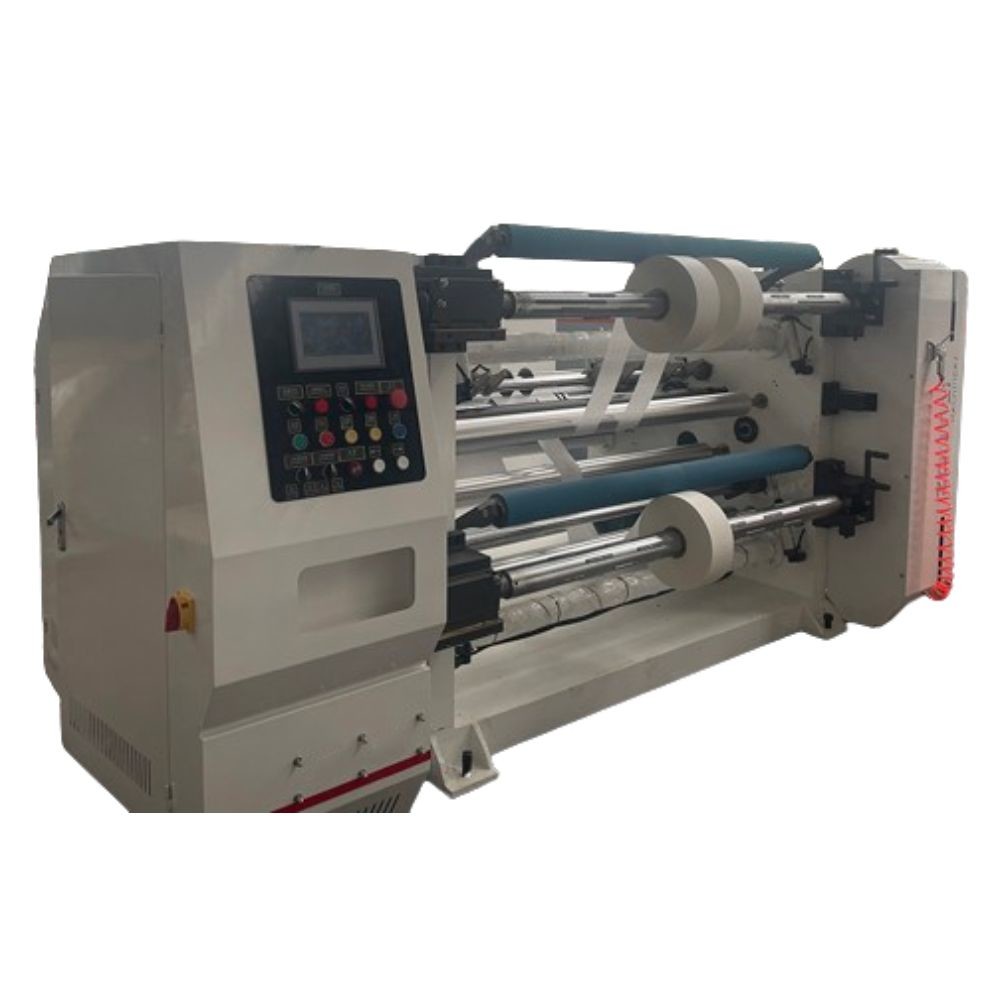

ZWQ-1000 Automatic Horizontal Thermal Paper Coil Slitting Rewinding Machine

ZWQ-1000 Automatic Horizontal Thermal Paper Coil Slitting Rewinding Machine
ZWQ-1000 Automatic Horizontal Thermal Paper Coil Slitting Rewinding Machine
ZWQ-1000 Automatic Horizontal Thermal Paper Coil Slitting Rewinding Machine ZWQ-1000 Automatic Horizontal Thermal Paper Coil Slitting Rewinding Machine ZWQ-1000 Automatic Horizontal Thermal Paper Coil Slitting Rewinding Machine ZWQ-1000 Automatic Horizontal Thermal Paper Coil Slitting Rewinding Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: ZWQ-1000
Minimum Order Quantity: 1 Set
Price: US 13000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 45 days
Payment Terms: T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Type: Slitting Rewinder Applicable Industries: Manufacturing Plant
Showroom Location: Egypt, Italy, Algeria, South Africa, Morocco Place Of Origin: Zhejiang, China
Weight: 3000 Kg Warranty: 1 Year
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Condition: New Computerized: Yes
Voltage: 380 V Dimension: 2300 X 3500 X 1700 Mm
Max. Width Of Mother: 1000 Mm Max. Diameter Of Unwinder Roll: 1000 Mm
Width Of Final Roll: 30 - 1000 Mm Diameter Of Rewinder Rolls: 600 Mm
Diameter Of Paper Core: 3'' Slitting And Rewinding Speed: 5 - 200 M/min
Tolerance Of EPC: ± 0.3 Mm Motor Power: 7.5 Kw
Highlight:

Thermal Paper Coil Slitting Rewinding Machine

,

Horizontal Paper Coil Slitting Rewinding Machine

,

Automatic Paper Coil Slitting Rewinding Machine

ZWQ-1000 Automatic Horizontal Thermal Paper Coil Slitting Rewinding Machine 0
ZWQ-1000 Automatic Horizontal Slitting Machine
ZWQ-1000 Automatic Horizontal Thermal Paper Coil Slitting Rewinding Machine 1
Features
This machine is suitable for slitting and rewinding such various roll materials,BOPP, PVC, PET,PE,PP film rolls, etc,and craft paper,copy paper,adhesive paper,fabric etc,it can cut edge,separate and slit material according to different requirements during production,and rewind it in rolls.
Performance and Characteristics
1.Main Motor:Vector motor with inverter controller.
2.Independent master control panel,more flexible and easier operation.

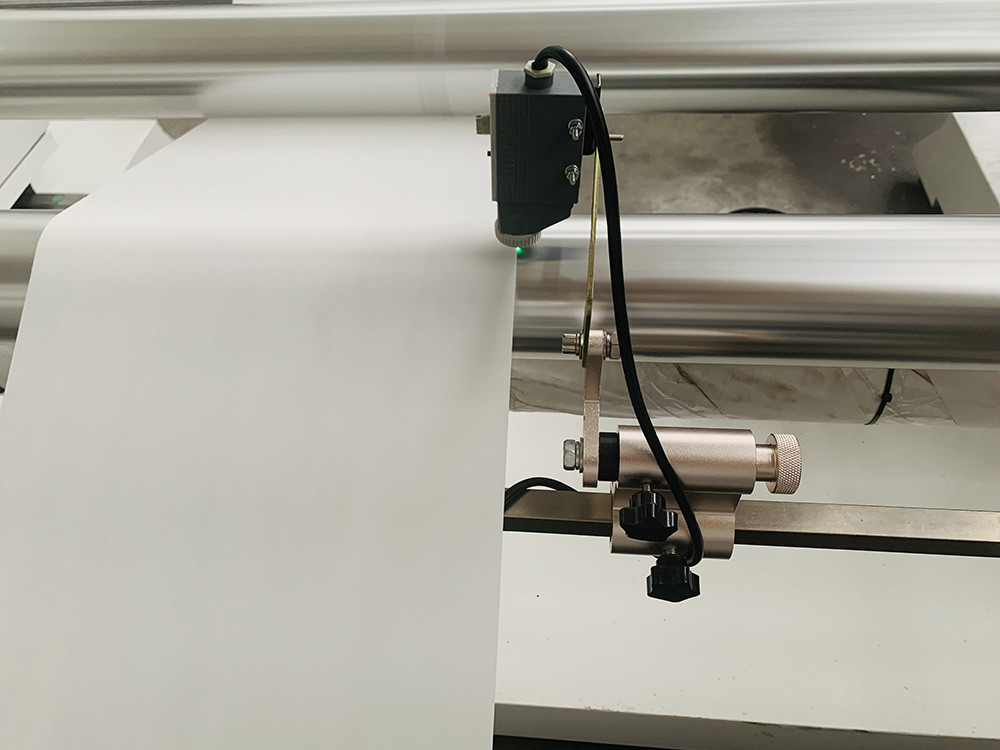

3.Automatic EPC for unwinding,photocell is suitable for tracking the edge and the printed line of material.
4.Equipped with air shaft for unwinding material loading,magnetic powder brake for unwinding tension control; Pneumatic loading system for upload jumbo rolls.
5.Air shaft 3inch for rewinding,Magnetic powder clutch for rewinding tension control.
6.Equipped with air trim discharge blowing system.
7.Automatic meter counting device.
8.Pressure roller for rewinding to make rewinding roll more uniform.
9.Circle knives and razor knives each 10pcs are available in the machine.
Technical Parameters
ZWQ-1000 Automatic Horizontal Slitting Machine
Type
ZWQ - 1000
Max. Width of Mother
1000 mm
Max. Diameter of Unwinder Roll
Φ 1000 mm
Width of Final Roll
30 - 1000 mm
Diameter of Rewinder Rolls
600 mm
Diameter of Paper Core
3’’
Slitting and Rewinding Speed
5 - 200 m/min
Tolerance of EPC
± 0.3 mm
Motor Power
7.5 kw
Weight of Machine
3000 kg
Overall Dimension
2300 x 3500 x 1700 mm

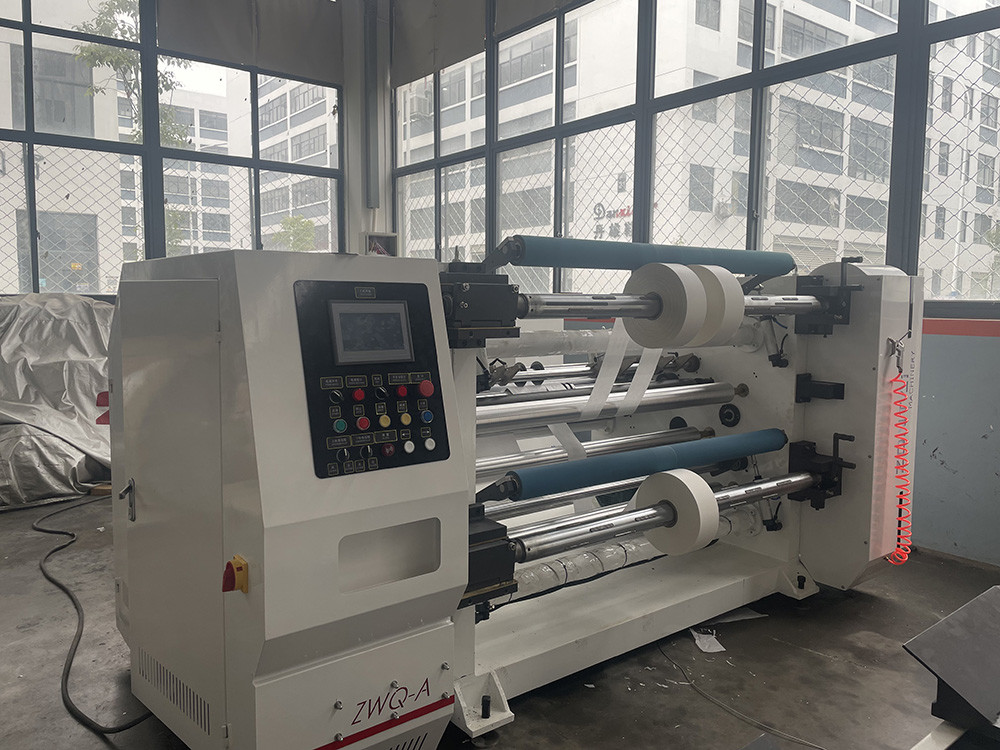

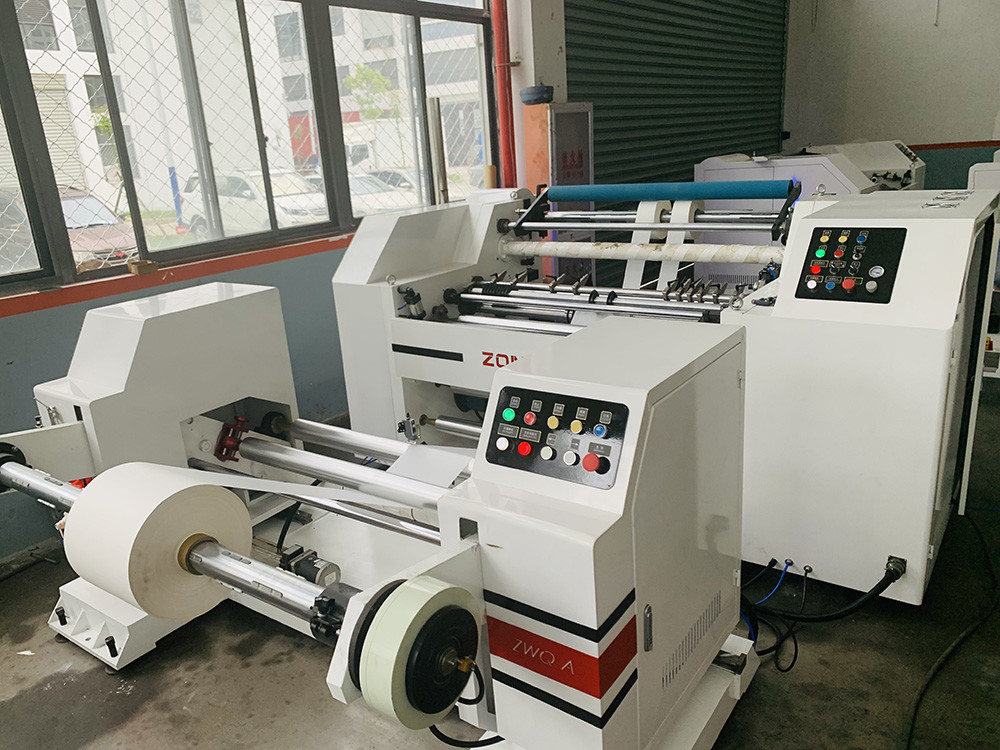

ZWQ-1000 Automatic Horizontal Thermal Paper Coil Slitting Rewinding Machine 2
ZWQ-1000 Automatic Horizontal Thermal Paper Coil Slitting Rewinding Machine 3
ZWQ-1000 Automatic Horizontal Thermal Paper Coil Slitting Rewinding Machine 4
ZWQ-1000 Automatic Horizontal Thermal Paper Coil Slitting Rewinding Machine 5
ZWQ-1000 Automatic Horizontal Thermal Paper Coil Slitting Rewinding Machine 6
ZWQ-1000 Automatic Horizontal Thermal Paper Coil Slitting Rewinding Machine 7
ZWQ-1000 Automatic Horizontal Thermal Paper Coil Slitting Rewinding Machine 8
ZWQ-1000 Automatic Horizontal Thermal Paper Coil Slitting Rewinding Machine 9
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
