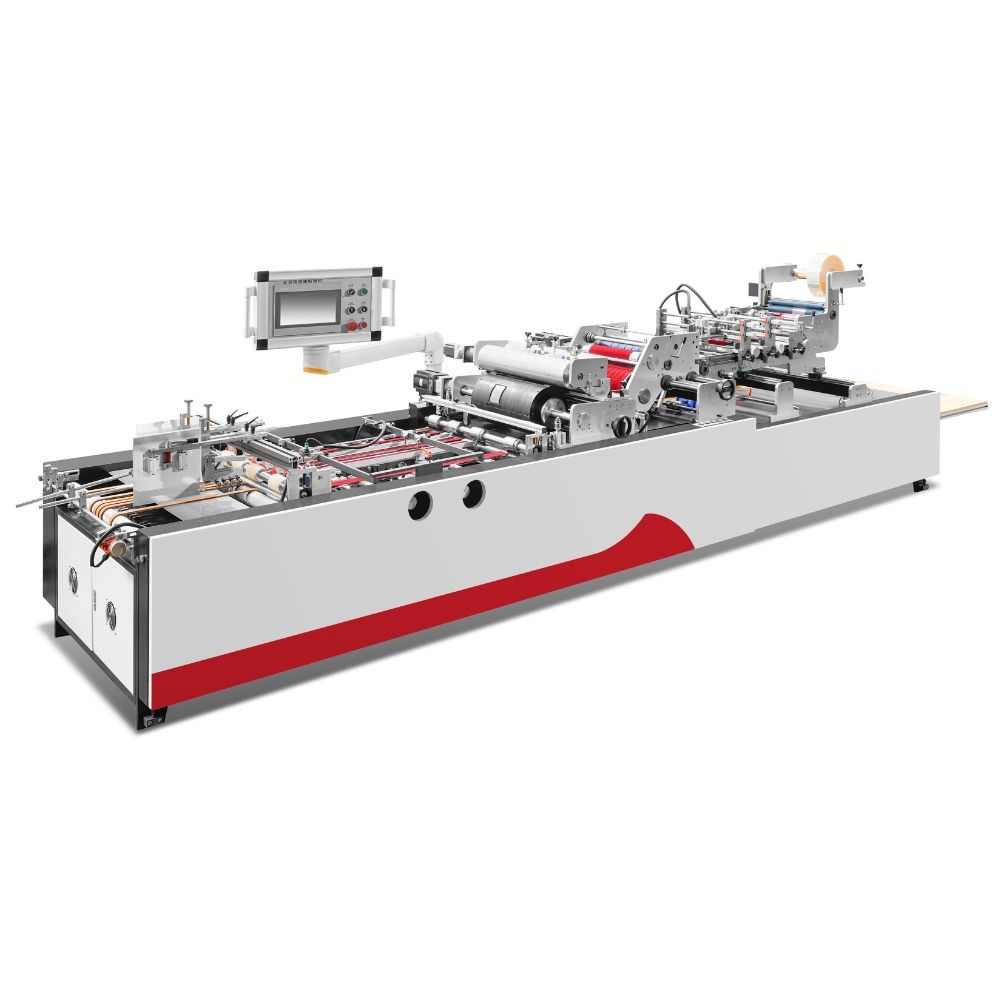

TC-880A Fully Automatic Window Patching Machine With Punching And Creasing

TC-880A Fully Automatic Window Patching Machine With Punching And Creasing
TC-880A Fully Automatic Window Patching Machine With Punching And Creasing
TC-880A Fully Automatic Window Patching Machine With Punching And Creasing TC-880A Fully Automatic Window Patching Machine With Punching And Creasing TC-880A Fully Automatic Window Patching Machine With Punching And Creasing TC-880A Fully Automatic Window Patching Machine With Punching And Creasing
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: TC-880A
Minimum Order Quantity: 1 Set
Price: US 40000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Applicable Industries: Manufacturing Plant Showroom Location: Egypt, Italy, Morocco, Algeria, South Africa
Condition: New Product Type: Window Patching Machine
Place Of Origin: Zhejiang, China Weight: 2800 Kg
Warranty: 1 Year Machinery Test Report: Provided
Video Outgoing-inspection: Provided Voltage: 380 V
Power: 12000 W Dimension: 6700mm * 1700mm * 1600 Mm
Cardboard Weight: 200 Gsm - 1000 Gsm Output Per Hour: 10000 Pieces
Min Cardboard Size: 150 Mm * 160 Mm Max Cardboard Size: 780 Mm * 880 Mm
Min Window Size: 30 Mm * 50 Mm Max Window Size: 350 Mm * 400 Mm
Accuracy: ± 0.5 Mm Film Thickness: 0.04 Mm - 0.25 Mm
Highlight:

12000W Window Patching Machine

,

Fully Automatic Window Patching Machine

TC-880A Fully Automatic Window Patching Machine With Punching And Creasing 0
TC-880A Automatic Window Patching Machine
TC-880A Fully Automatic Window Patching Machine With Punching And Creasing 1
Features
Full automatic window patching machine is used for patching window by film on paper.It can accept PP film,PET film,PVC film and so on.Its max capacity is 10000 pieces for one hour.It can produce tissue boxes,gift boxes, toy boxes,shirt boxes,milk cartons and other window boxes.
Technical Parameters
TC-880A Automatic Window Patching Machine
Model
TC-880A
Cardboard Weight
200 g/m² - 1000 g/m²
Output per Hour
10000 pieces
Size Range of Cardboard
Min.150 mm x 160 mm Max.780 mm x 880 mm
Size Range of Window
Min.30 mm x 50 mm Max.350 mm x 400 mm
Accuracy
±0.5 mm
Film Thickness
0.04 mm - 0.25 mm
Connected Load
12 kw
Weight
2800 kg
Dimensions
6700 mm x 1700 mm x 1600 mm
TC-880A Fully Automatic Window Patching Machine With Punching And Creasing 2TC-880A Fully Automatic Window Patching Machine With Punching And Creasing 3
Configuration
TC-880A Fully Automatic Window Patching Machine With Punching And Creasing 4TC-880A Fully Automatic Window Patching Machine With Punching And Creasing 5

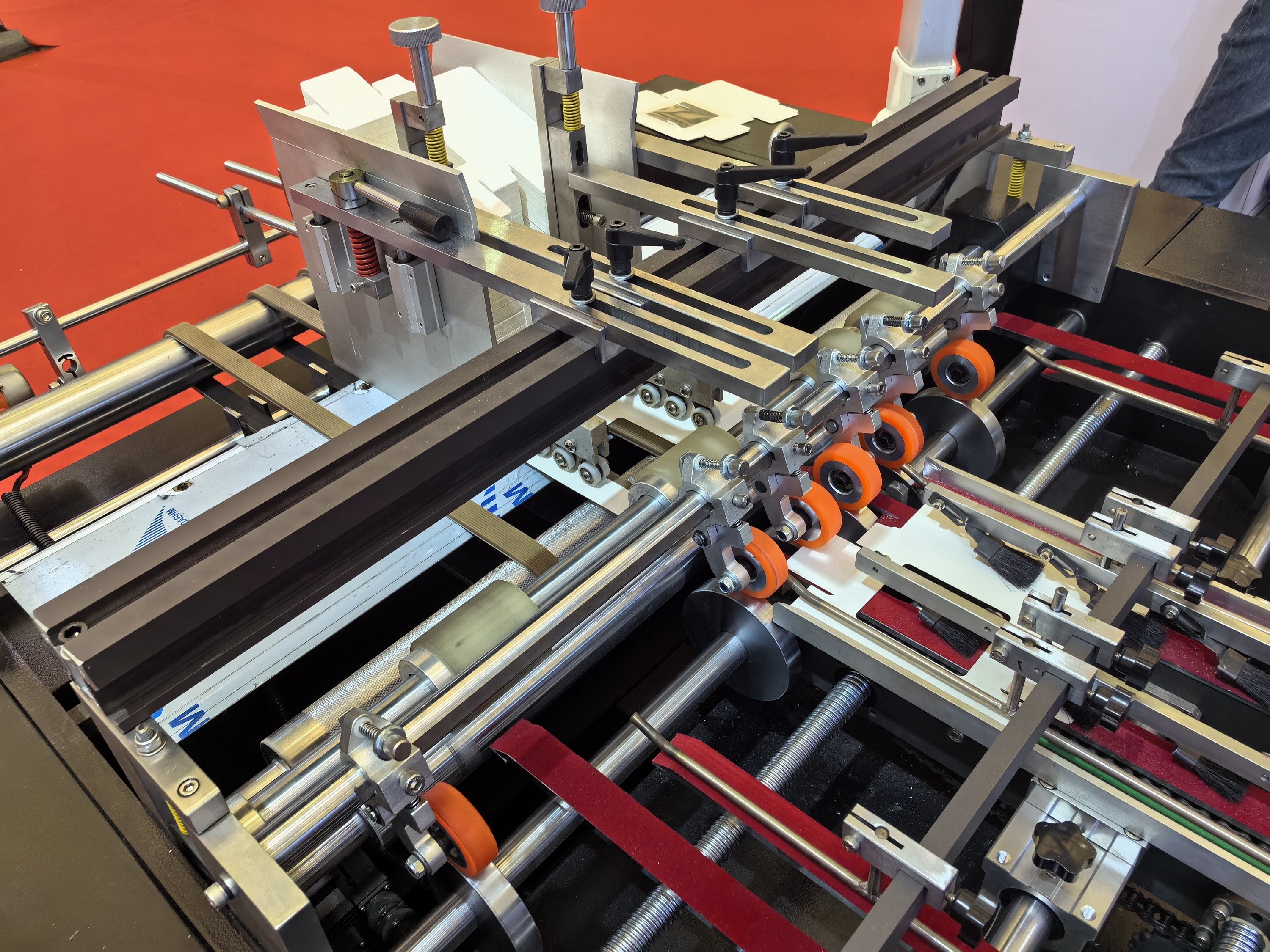

The paper feeder is controlled by servo motor,the belt is from Poland.No-stop feeding paper,no overlapping paper or missing paper.
The paper moving system adopt pushing chain and air sucking belt.They have positioning function,insure the paper comes same place in same time.
TC-880A Fully Automatic Window Patching Machine With Punching And Creasing 6

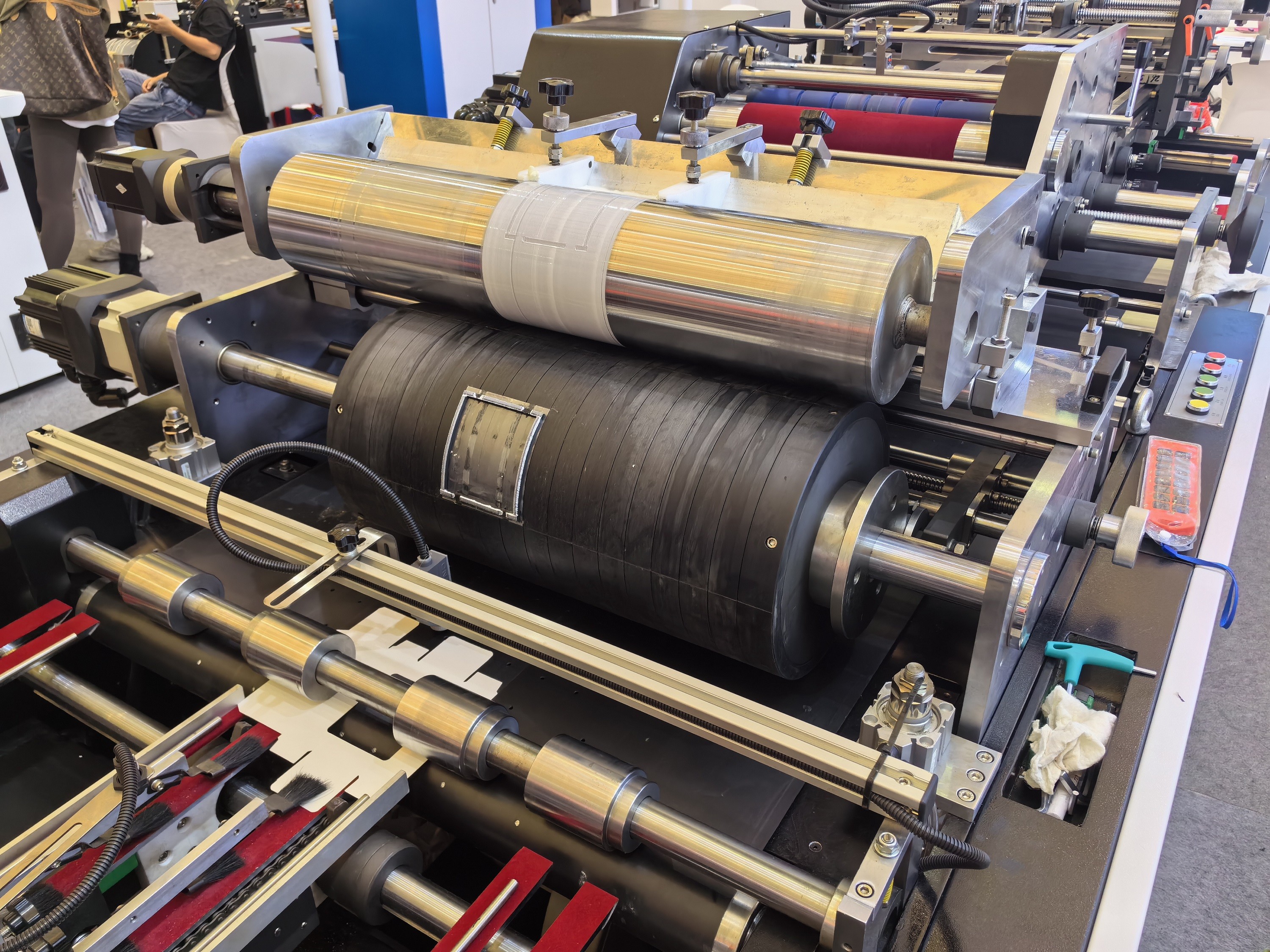

Glue part adopt flexo printing technology.We can adjust the place of glue on the paper without any stop.When missing paper,glue part will up in case of the glue leaves on the air sucking belt.
TC-880A Fully Automatic Window Patching Machine With Punching And Creasing 7TC-880A Fully Automatic Window Patching Machine With Punching And Creasing 8TC-880A Fully Automatic Window Patching Machine With Punching And Creasing 9TC-880A Fully Automatic Window Patching Machine With Punching And Creasing 10

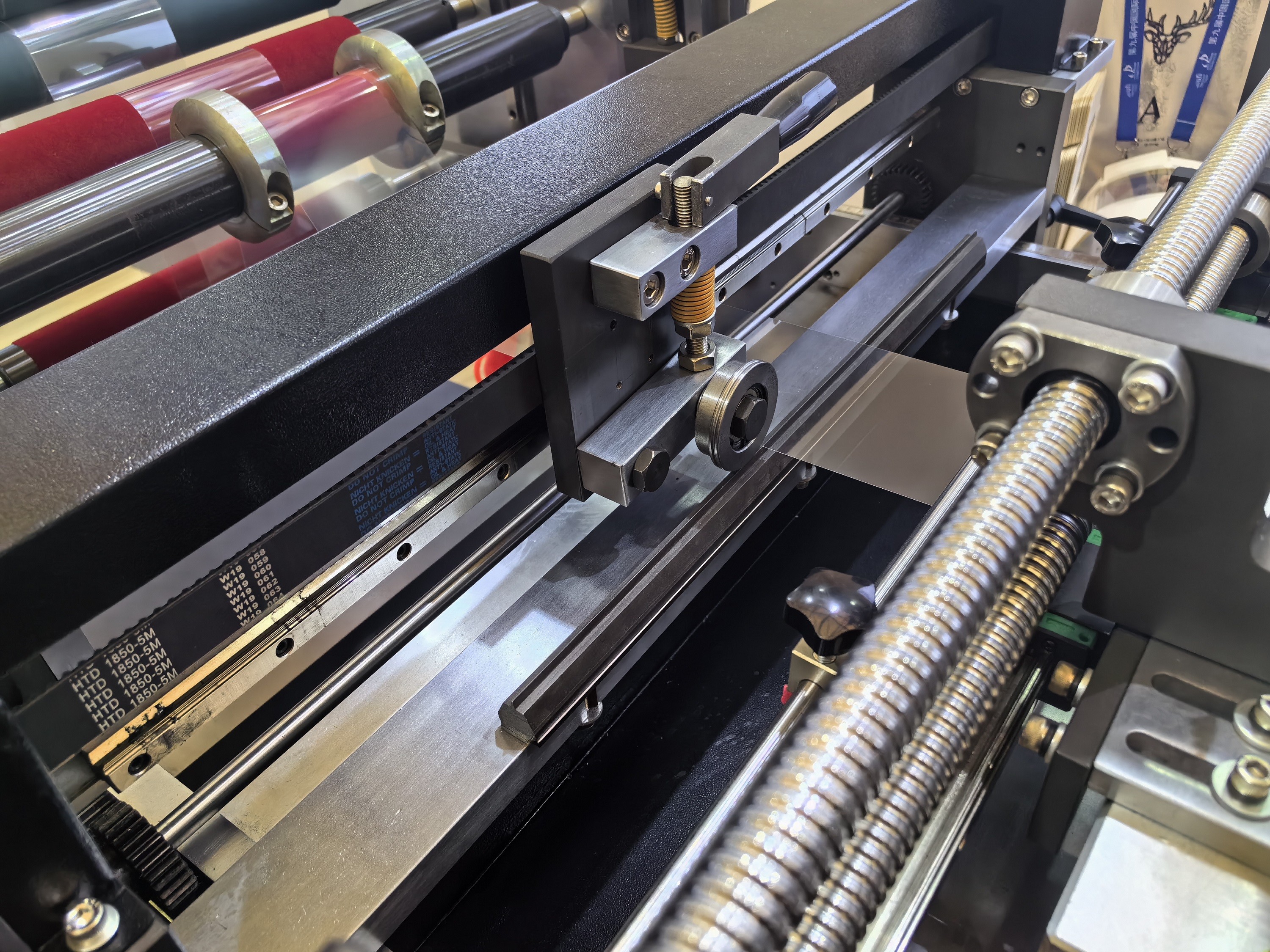

Film cutting part adopt our patented technology and design.The film length is controlled by servo motor in PLC. The place of paper is controlled by cylinder.Because of this set of design,the accuracy is ±0.5mm.There are letter embossing function,heating roller section function,print register camera sensor function for option.
Applications
Punch & crease window patching machine is widely used for patching the window on the liquor box,gift box, cosmetic box,toy box and so on.It has punching and creasing function, special for corner window.It is the best machine for patching corner window.
TC-880A Fully Automatic Window Patching Machine With Punching And Creasing 11TC-880A Fully Automatic Window Patching Machine With Punching And Creasing 12

TC-880A Fully Automatic Window Patching Machine With Punching And Creasing 13
TC-880A Fully Automatic Window Patching Machine With Punching And Creasing 14
TC-880A Fully Automatic Window Patching Machine With Punching And Creasing 15
TC-880A Fully Automatic Window Patching Machine With Punching And Creasing 16
TC-880A Fully Automatic Window Patching Machine With Punching And Creasing 17
TC-880A Fully Automatic Window Patching Machine With Punching And Creasing 18
TC-880A Fully Automatic Window Patching Machine With Punching And Creasing 19
TC-880A Fully Automatic Window Patching Machine With Punching And Creasing 20
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
