FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife

FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife
FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife
FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: FM-1100
Minimum Order Quantity: 1 Set
Price: US 46000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 45 days
Payment Terms: T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Driven Type: Electric Applicable Industries: Manufacturing Plant
Showroom Location: Egypt, Italy, Morocco, Algeria, South Africa Video Outgoing-inspection: Provided
Machinery Test Report: Provided Place Of Origin: Zhejiang, China
Weight: 9500 KG Warranty: 1 Year
Type: Laminating Machine Condition: New
Automatic Grade: Automatic Voltage: 380 V
Dimension: 9600 * 2600 * 2700 Mm Max. Paper Size: 1000 * 1080 Mm
Min. Paper Size: 285 * 350 Mm Recommended Paper Thickness: 100 - 500 Gsm
Recommended Film Thickness: 8 ~ 35 Micron Max. Speed: 100 M/min
Lap Accuracy: ± 2 Mm Normal Lamination Pressure: 5 ~ 15 Mpa
Coating Glue Amount: 3 ~ 8 G/m^2 Working Power: 25 ~ 40 Kw
Highlight:

Multifunctional Vertical Film Laminating Machine

,

Round Knife Film Laminating Machine

,

Automatic Vertical Film Laminating Machine

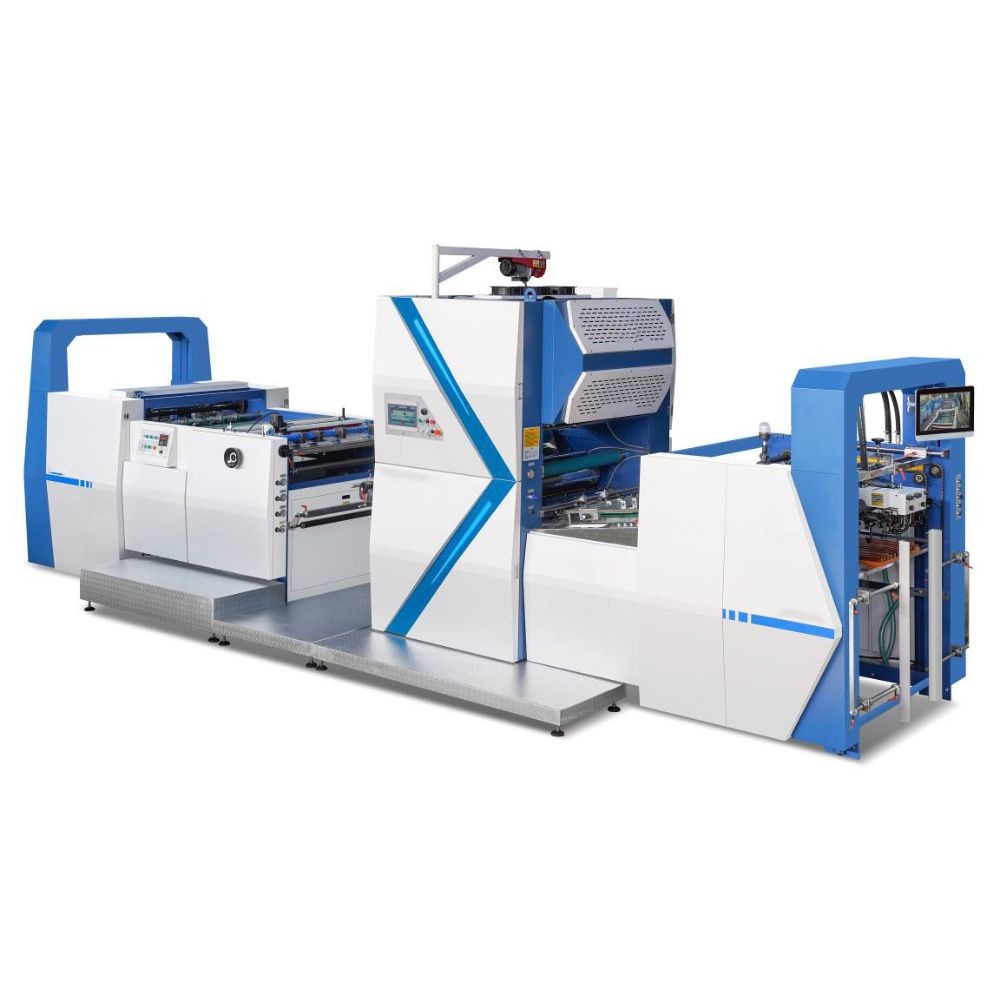

FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife 0
FM-1100 Automatic Vertical Laminating Machine
FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife 1
Features
FM-1100 series fully automatic vertical lamination machine is designed for water based glue and thermal lamination multi-functions.It’s with latest built-in electromagnetic heating device,one-click start,and automatic stacking board exchanging functions.Features high automation,high laminating speed,high accuracy,and electrical appliance is centralized by programmable system,touch screen easy to operate.
1.Automatic High Speed Feeder
Adopt high speed pneumatic offset feeder,speed up to 100m/min.Pre-stacking system can realize non-stop feeding,obviously improving work efficiency.
2.High Accuracy Lap Control
Servo-controlled lap within ±2mm,synchronizes with feeder,high accuracy front lay and pneumatic side lay regulator ensure accurate and stable position.
3.Automatic Shutdown Protection System
Equipped with photo electrically controlled automatic shutdown protection devices,in case of paper shortage, paper broken and paper overlap.
4.Drying And Heating System
The 800mm diameter large heating roller equipped with multi-group of heating lamps,at the same time supported with drying channel thermal circulation system,can realize high speed booting and heating in 5~10 minutes,2 times than traditional oil heating device meanwhile save much power consumption.
5.Automatic Hydraulic System
The hydraulic system automatically provides stable and large pressure to ensure high quality of lamination.
6.Man-Machine Interface System
Equipped with 10 inch color touch screen,easy and convenient to operate.The operator can view the machine's working status at any time from the touch screen.
7.Air Shaft and Tension Control System
Adopt air shaft,easy to load film,accurate film position by the graduation of the air shaft.At the same time the intelligent tension system easy to control the tension of film,increase laminating performance.
8.High Accurate Slitting System
Adopt disc knife,coordinated with pneumatic pull and separating device,can slit BOPP and OPP film perfectly.
(If you use PET or thin foil,we have chain knife and hot knife cutting device optional.)
9.Anti-Curvature System
Adopt corrugated delivery and anti-curvature system,especially designed for thin paper, avoid paper curvature.
10.Automatic Stacker
Equipped with IR sensor,automatically count the sheets.Three-direction high speed pneumatic stacker can collect the sheets automatically and flat without stopping.
Technical Parameters
FM-1100 Automatic Vertical Laminating Machine
Model
FM-1100
Max. Paper Size
1000 × 1080 mm
Min. Paper Size
285 × 350 mm
Recommended Paper Thickness
100 - 500 gsm
Recommended Film Thickness
8 ~ 35 micron
Max. Speed
100 m/min
Voltage
380 V 50 Hz
Total Power
75 kw (Depends on Configuration)
Working Power
25 ~ 40 kw
Lap Accuracy
± 2 mm
Normal Lamination Pressure
5 ~ 15 Mpa
Coating Glue Amount
3 ~ 8 g/m2
Dimension (L*W*H)
9600 × 2600 × 2700 mm
Total Weight
9500 kg
Configuration

1.Feeder Part

Equipped with high-speed offset feeder and chain drive non-stop pre-stacking system,it can realize high-speed and non-stop continuous paper feeding and greatly improve the production efficiency.The machine adopts man-machine interactive control buttons for easy operation.

2.Delivery Platform

Equipped with high-precision paper stop front regulator and side regulator,the paper is accurately positioned, and the lap positioning is accurate with small error;the flexibly adjustable paper pressing wheel group can adapt to different sizes of paper to ensure stable paper feeding.At the same time,non-static stainless steel pattern platen is adopted to ensure fast and smooth paper feeding,with nice appearance.

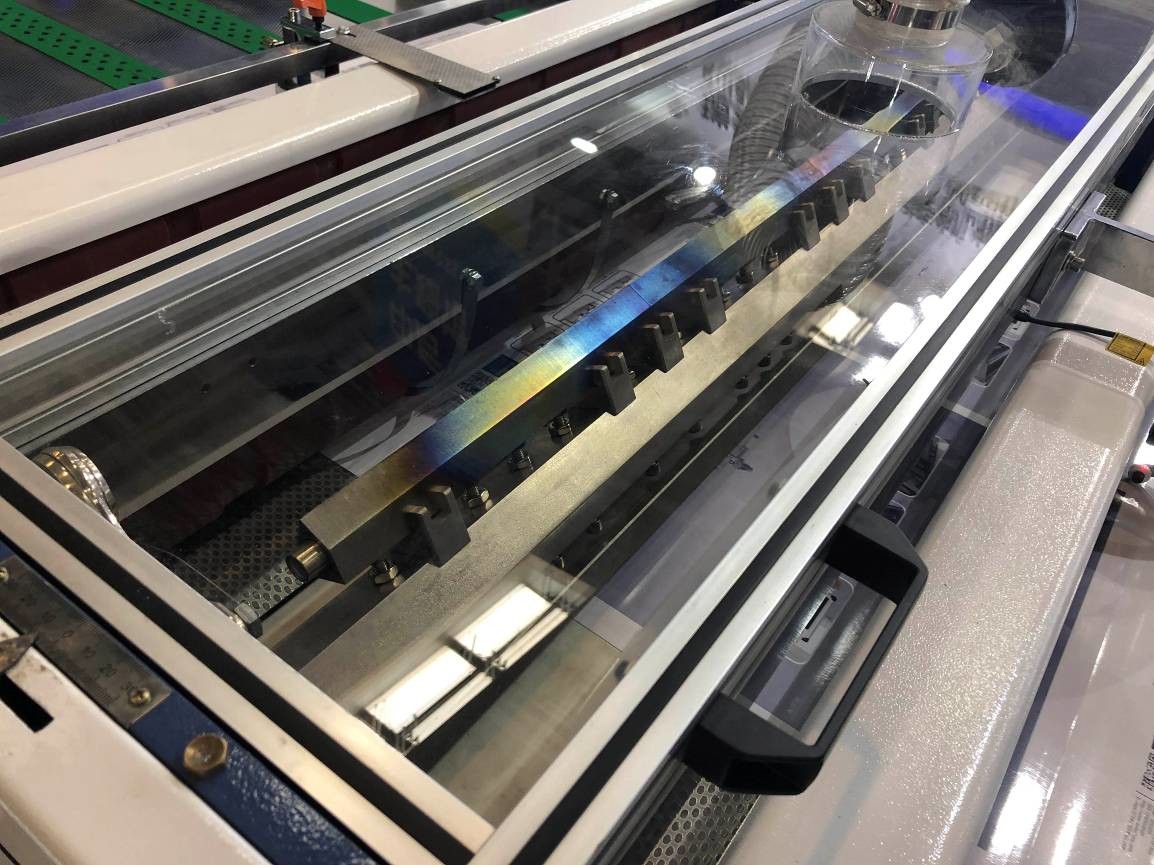

FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife 2FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife 3

3.Lamination Main Part

The up drying part adopts a large 800mm diameter drying cylinder,coated with special material,equipped with groups of built-in heating lamps,supplemented by drying channel thermal circulation system,which can not only greatly reduce the heating time,improve the heating effect and ensure the coating quality,but also save much energy consumption.
The core lamination part adopts a 320mm diameter of high-precision steel cylinder, equipped with the latest built-in electromagnetic heating technology.The heating efficiency is higher,the temperature control is more stable,and the coating quality is effectively improved;
The 300mm diameter of high-precision rubber lamination cylinder adopts high-grade rubber materials, and the surface is smooth and flat to ensure the laminating quality.
Electrical appliance is centralized by programmable system, with electromagnetic heating system drive.

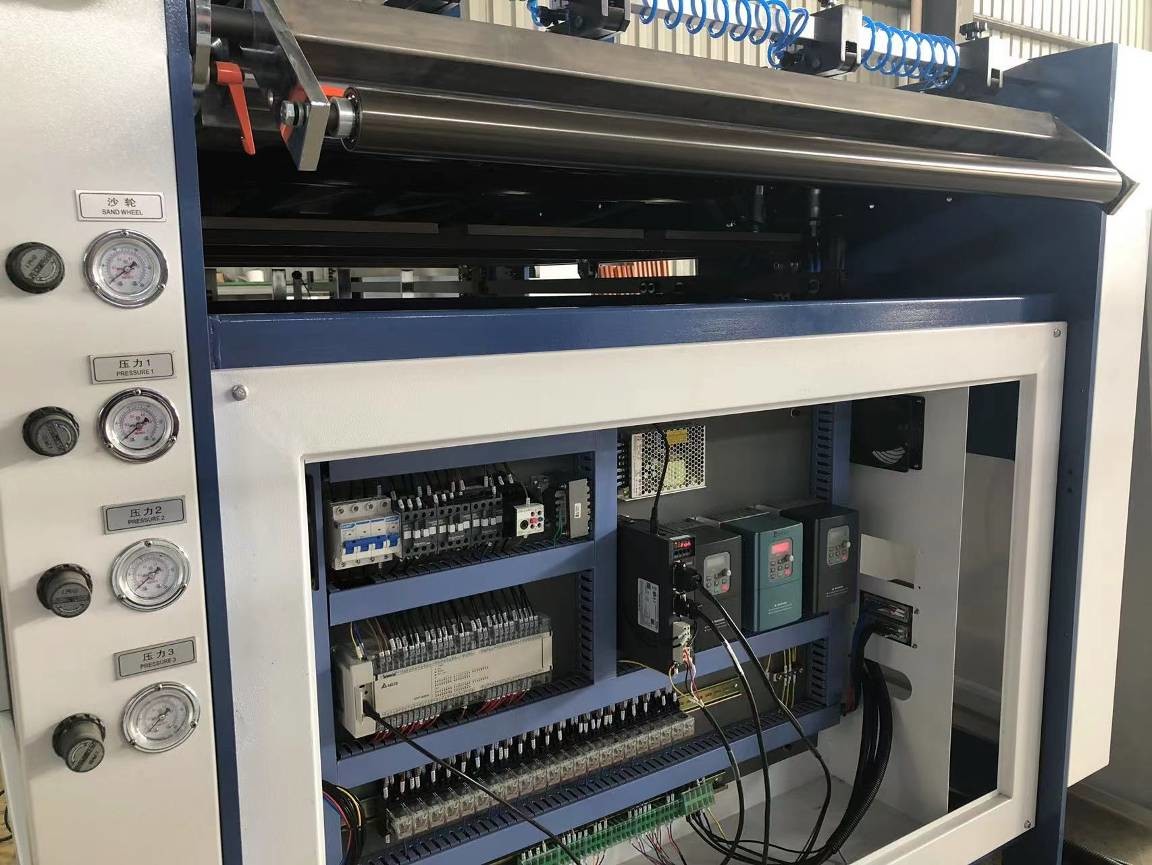

FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife 4FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife 5FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife 6

4.Glue Coating Part

The high-precision glue coating system can fine tune the coating thickness by controlling the position between the scraper and the roller,ensures uniform coating,reduces glue consumption while ensuring the lamination quality.
The automatic glue circulation system can realize the automatic circulation of glue,which is easier and more convenient for maintenance and cleaning.
FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife 7FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife 8FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife 9
The air shaft is marked with scale, to load film easily.There is an inflatable gas gun for air shaft;The tension of the film roll can be easily adjusted through the tension controller;The electric waste film winding rack assists in winding excess waste film.

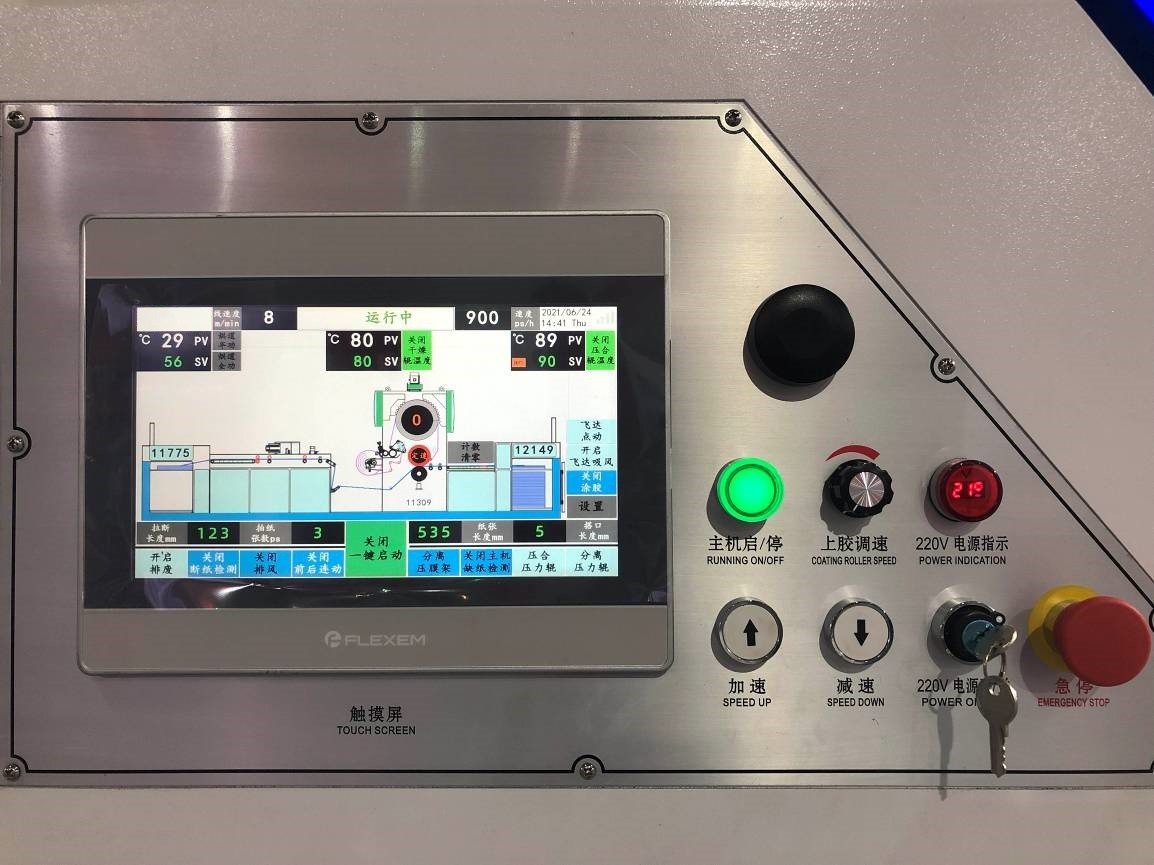

Equipped with 10 inch color human -computer interaction touch screen,the interface is simple and easy to operate.The operator can view the working state of the machine at any time through the display screen,and easily set and adjust various parameters;A new NC one-click-start button is added to facilitate the operator to run the machine quickly.
FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife 10
5.Slitting Part
Adopt disc knife,coordinate with pneumatic roller separating system,can slit BOPP and OPP film perfectly.
(If you use PET or metalized foil, there is Chain knife and Hot knife cutting device optional)
The paper anti-curvature mechanism can solve the problem of curling that may occur after lamination of thin paper,so as to make the paper more flat and facilitate the subsequent slitting and stacking.
FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife 11FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife 12FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife 13
Chain Knife(Optional)
High speed chain knife slitting, designed for PET and thin foil,can slit most material of films such as PET,PVC, BOPP,aluminized film and so on without tail film.Easy to adjust by inputting data to the setting panel.
Hot Knife(Optional)
The latest technology hot knife cutting system in the industry,can quickly and perfectly cut all kinds of films such as PET,PVC,BOPP, aluminized film and so on without tail film.It’s controlled by servo, synchronized with lamination main unit.Easy to adjust by inputting data to the setting panel.
FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife 14
6.Stacking Part
After slitting,the paper can be smoothly received even if the paper is very thin through the corrugating mechanism;
The fan group provides downward thrust to prevent paper from flying out of the receiving stack when the running speed is too fast.
FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife 15FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife 16
The automatic paper stacker can stack single or multiple sheets at the same time.The paper is stacked neatly, which is convenient for transportation and subsequent processing;The stacked paper can be counted automatically through the infrared sensor.
Equipped with latest automatic stacking board exchanging technology,it can automatically output and receive paper when the paper stacking capacity is almost full,which greatly saves the man hours required for manual board exchanging,and significantly improves the work efficiency.
FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife 17
FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife 18
FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife 19
FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife 20
FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife 21
FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife 22
FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife 23
FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife 24
FM-1100 Multifunctional Automatic Vertical Film Laminating Machine With Round Knife 25
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
