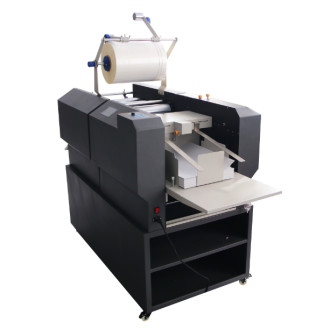

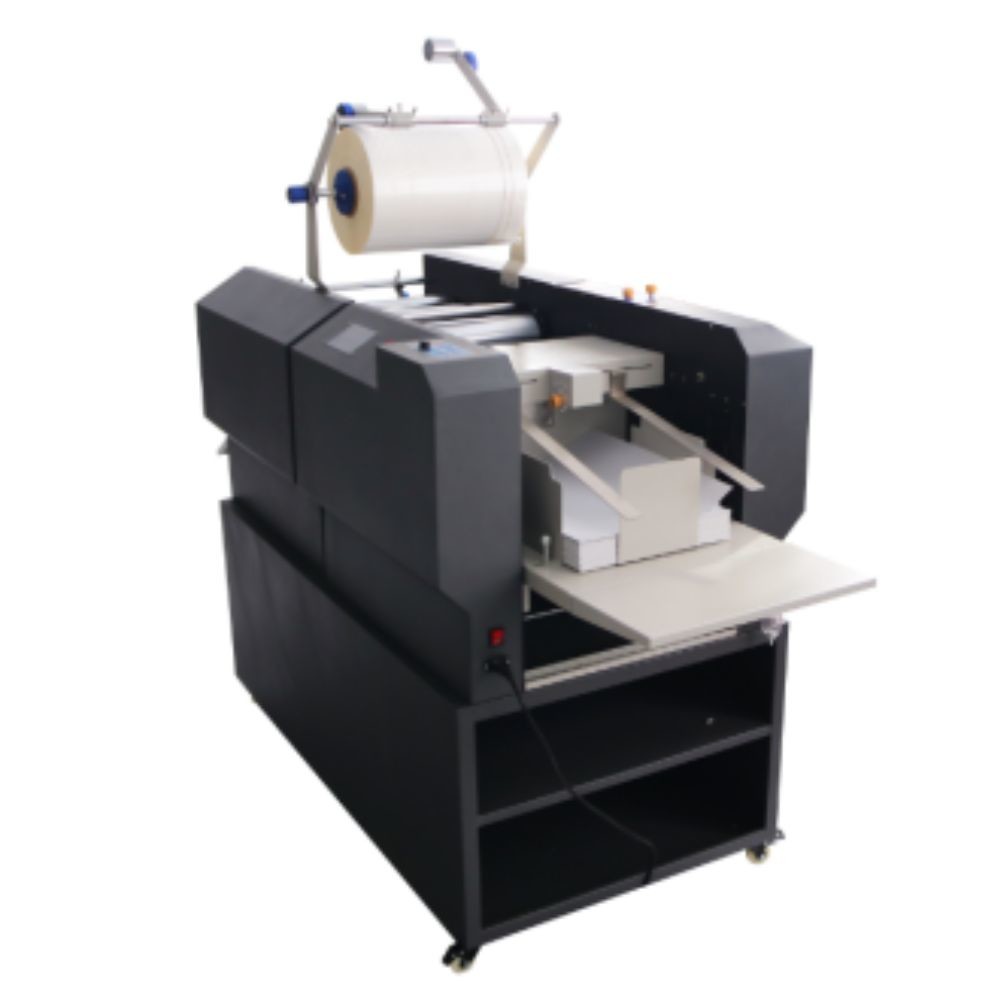

SMFM-G Automatic Digital Oil Heating Film Laminating Machine with Suction Feed

SMFM-G Automatic Digital Oil Heating Film Laminating Machine with Suction Feed
SMFM-G Automatic Digital Oil Heating Film Laminating Machine with Suction Feed
SMFM-G Automatic Digital Oil Heating Film Laminating Machine with Suction Feed SMFM-G Automatic Digital Oil Heating Film Laminating Machine with Suction Feed
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: SMFM-G
Minimum Order Quantity: 1 Set
Price: US 3500 - 5200 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Driven Type: Electric Applicable Industries: Manufacturing Plant
Showroom Location: Egypt, Italy, Morocco, Algeria, South Africa Video Outgoing-inspection: Provided
Machinery Test Report: Provided Place Of Origin: Zhejiang, China
Warranty: 1 Year Type: Laminating Machine
Condition: New Application: Commodity
Automatic Grade: Automatic Voltage: 380 V
Dimension: 1.99 * 0.75 * 1.42 M Max Paper Size: 360 X 680 Mm , 480 X 680 Mm
Min Paper Size: 150 X 210 Mm Maximum Height Of Paper: 150 Mm
Operating Speed: 0 ~ 13.5 M/min Laminating Temperature: 80 ~ 125 ℃
Pressure: 0.1 ~ 0.5 MPa Slitting Function: With
Anti-Curl Function: With Rolling-Up After Laminating: No
Automatic Disconnecting After Laminating: Yes

SMFM-G Automatic Digital Oil Heating Film Laminating Machine with Suction Feed 0
SMFM-390G/520G Automatic Digital Film Laminating Machine
SMFM-G Automatic Digital Oil Heating Film Laminating Machine with Suction Feed 1
Features
This model feed paper by suction.All machines’ heating rollers of our company are equipped with oil heating system,which can solve the problem that Allover black,red and green and will not appear white spots.Other companies are using electric heating in heating system.Electric heating will appear white spots.Pressure roller imported silica gel.Our pressure roller is pressure resistant,non stick and explosion-proof.The pressure uses pneumatic pressure.Need connect compressor.This model uses Speed regulating motor.The speed is 13 meters per minute.And our machine has Anti-curl function.Thinner paper after laminating will not curl.And this model have overlap function.Also with PLC control.
Technical Parameters
SMFM-G Automatic Digital Film Laminating Machine
Model
SMFM-390G
 SMFM-520G
Max Paper Size
360 x 680 mm
 480 x 680 mm
Mini Paper Size
150 x 210 mm
 150 x 210 mm
Maximum Height of Paper
150 mm
 150 mm
Operating Speed
0 ~ 13.5 m/min
 0 ~ 13.5 m/min
Laminating Temperature
80 ~ 125 ℃
 80 ~ 125 ℃
Total Power
3 Kw
 3 Kw
Voltage
220 V / 50 Hz
 220 V / 50 Hz
Dimensions
1.99 × 0.75 × 1.42 m
 1.99 × 0.88 × 1.42 m
Pressure
0.1 ~ 0.5 MPa
 0.1 ~ 0.5 MPa
Feeding Mode
Automatic
 Automatic
Feeding Method

 Suction

 Suction
With Slitting Function
with
 with
Anti-Curl Function
with
 with
Rolling-Up After Laminating
No
 No
Automatic Disconnecting After Laminating
Yes
 Yes
SMFM-G Automatic Digital Oil Heating Film Laminating Machine with Suction Feed 2
SMFM-G Automatic Digital Oil Heating Film Laminating Machine with Suction Feed 3
SMFM-G Automatic Digital Oil Heating Film Laminating Machine with Suction Feed 4
SMFM-G Automatic Digital Oil Heating Film Laminating Machine with Suction Feed 5
SMFM-G Automatic Digital Oil Heating Film Laminating Machine with Suction Feed 6
SMFM-G Automatic Digital Oil Heating Film Laminating Machine with Suction Feed 7
SMFM-G Automatic Digital Oil Heating Film Laminating Machine with Suction Feed 8
SMFM-G Automatic Digital Oil Heating Film Laminating Machine with Suction Feed 9
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
