| Place of Origin: | China |
|---|---|
| Brand Name: | PRINTYOUNG |
| Certification: | CE |
| Model Number: | PRY-ST-92 |
| Minimum Order Quantity: | 1 Set |
| Price: | US 14000 Set |
| Packaging Details: | Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 Set/Sets per Month |
| Model: | PRY-ST-92 | Max Stripping Area: | 920 * 650 Mm |
|---|---|---|---|
| Mini Stripping Area: | 450 * 320 Mm | Max Stripping Finished Product Size: | 310 * 280 Mm |
| Mini Stripping Finished Product Size: | 30 * 30 Mm | Stripping Height: | 40 - 120 Mm |
| Stripping Speed: | 15 - 20 Times/min | Main Power: | 4KW |
| Voltage: | 380 V / 50 Hz | Wire Specification: | 2.5 Mm |
| Machine Weight: | 2100 Kg | Overall Dimension(mm): | 2950*1600*1900 |
| Packing Size: | 3200*1900*2050 | ||
| High Light: | Automatic Double Heads Trash Remover,Automatic Waste Cleaning Stripping Machine,Die Cutting Box Trash Remover |
||
|

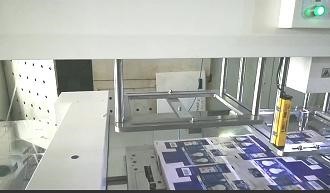

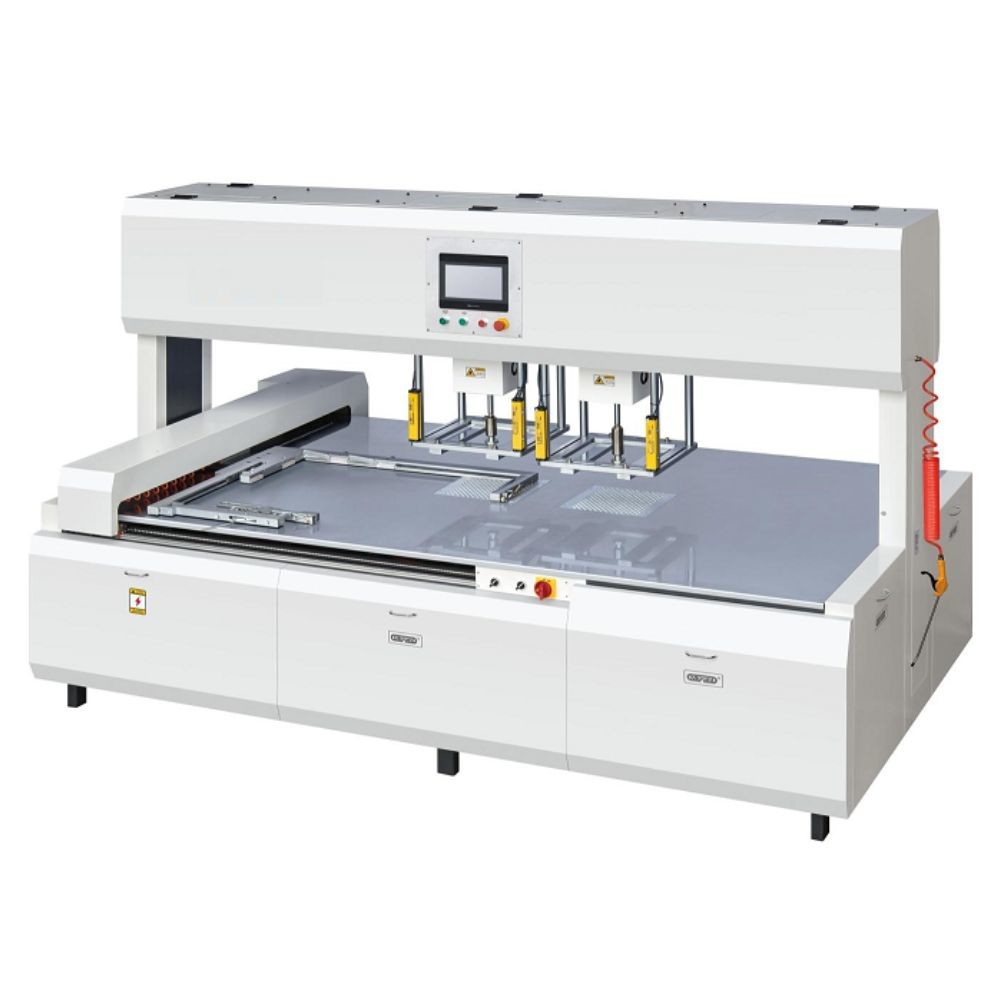

PRY-ST-92 Automatic Stripping Machine
|
|
|---|---|
|
Model
|
PRY-ST-92
|
|
Max Stripping Area
|
920 * 650 mm
|
|
Mini Stripping Area
|
450 * 320 mm
|
|
Max Stripping Finished Product Size
|
310 * 280 mm
|
|
Mini Stripping Finishes Product Size
|
30 * 30 mm
|
|
Stripping Height
|
40 - 120 mm
|
|
Stripping Speed
|
15 - 20 time/min
|
|
Main Power
|
4 kw
|
|
Voltage
|
380 V / 50 Hz
|
|
Wire Specification
|
2.5 mm
|
|
Machine Weight
|
2100 kg
|
|
Overall Dimension
|
2950 * 1600 * 1900 mm
|
|
Packing Size
|
3200 * 1900 * 2050 mm
|
|
List of Machine Accessories
|
Name
|
Quantity
|
|---|---|---|
|
1
|
Instructions
|
1 piece
|
|
2
|
Oiling kettle
|
1 piece
|
|
3
|
10 inches adjustable spanner
|
1 piece
|
|
4
|
sharp-nose pliers
|
1 piece
|
|
5
|
Inner hexagon spanner
|
1 piece
|
|
6
|
slotted screwdriver
|
2 pieces
|
|
7
|
Cross screwdriver
|
1 piece
|
|
8
|
8-10 Open spanner
|
1 piece
|
|
9
|
14-17 Open spanner
|
1 piece
|
|
10
|
19-22 Open spanner
|
1 piece
|
|
11
|
24-27 Open spanner
|
1 piece
|
|
12
|
toolbox
|
1 piece
|
|
13
|
Stripping mould
|
2 sets
|
|
14
|
Pressed paper strip
|
2 sets(24 pieces)
|
|
15
|
pin
|
500pieces
|
|
16
|
rubber
|
1200pieces
|
|
17
|
Lock pin switch
|
2 pieces
|
|
18
|
screw jack6#*5
|
10 pieces
|
|
19
|
screw jack5#*5
|
10 pieces
|
|
20
|
screw jack8#*5
|
10 pieces
|
|
21
|
flat washer
|
30pieces
|
|
22
|
T-cap base
|
30 pieces
|
|
23
|
LED
|
1 piece
|
|
24
|
screen
|
30pieces
|
