PRY-1300A Fully Automatic Paper To Corrugated Flute Laminator Machine 380V

PRY-1300A Fully Automatic Paper To Corrugated Flute Laminator Machine 380V
PRY-1300A Fully Automatic Paper To Corrugated Flute Laminator Machine 380V PRY-1300A Fully Automatic Paper To Corrugated Flute Laminator Machine 380V PRY-1300A Fully Automatic Paper To Corrugated Flute Laminator Machine 380V PRY-1300A Fully Automatic Paper To Corrugated Flute Laminator Machine 380V
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-1300A
Minimum Order Quantity: 1 Set
Price: US 23000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Driven Type: Electric Applicable Industries: Manufacturing Plant
Showroom Location: Egypt, Italy, Morocco, Algeria, South Africa Video Outgoing-inspection: Provided
Machinery Test Report: Provided Weight: About 4.5 T
Warranty: 1 Year Type: Laminating Machine
Condition: New Automatic Grade: Automatic
Voltage: 380 V Dimension: 13.5 M X 2 M X 2.9 M
Max Size Of Cover Face: 1300 X 1250 Mm Min Size Of Cover Face: 400 X 400 Mm
Top Paper Thickness: 140 - 800 G Bottom Sheet Thickness: 2/4 Ply A/B/C/E/F Flute
Economic Speed: 0 - 8000 Pcs/h Precision: ±1 Mm
Power: 14 Kw
High Light:

Flute Laminator Machine 380V

,

Paper To Corrugated Flute Laminator Machine

,

Corrugated Paper Flute Laminator

PRY-1300A Fully Automatic Paper To Corrugated Flute Laminator Machine 380V 0
PRY-1300A Fully Automatic Flute Laminator
PRY-1300A Fully Automatic Paper To Corrugated Flute Laminator Machine 380V 1
Features
This machine can be used in color printing corrugated paper and corrugated paper laminating,tissue using scale continuous paper feeding,unique front gauge positioning way to insure the bottom paper never advance.Easy to operate,easy to maintain.
1.Advanced automatic tracking technology,according to the size of the paper automatically adjust the relevant parameters,so that the machine is always running in the best condition.
2.Unique front gauge positioning system,accuracy and the bottom paper never exceed;top paper exceed adjustable.
3.Equipped with high precision high speed automatic feeder,strengthening type paper feeding device,feeding smoothly.
4.Standby stack table can pile paper under non-stop situation,along the rail into the elevator,high working efficiency.
5.Imported electrical components,to ensure the stability of the circuit system.PLC tracking technology, automatic fault alarm.
6.Fully automatic glue supplementary system,can automatically replenish the loss of the amount of glue,and cooperated with the glue recycling.
7.Independent water tank control cycle,ensure the bottom paper back dry,at the same time cleaning up roller,glue receive tank and back glue tank.
8.Single side adjustment of the roller pressure,and equipped with a dial gauge,the replacement of the bottom paper one-step-to-reach.
Technical Parameters
PRY-1300A Automatic Flute Laminator
Model
PRY-1300A
Max Size of Cover Face
1300 X 1250 mm
Min Size of Cover Face
400 mm X 400 mm
Top Paper Thickness
140 - 800 g
Bottom Sheet Thickness
2/4 ply A/B/C/E/F Flute
Economic Speed
0 - 8000 pcs/h
Precision
± 1 mm
Power
14 kw
Size
13.5 m x 2 m x 2.9 m
Weight
About 4.5 T
Configuration
PRY-1300A Fully Automatic Paper To Corrugated Flute Laminator Machine 380V 2PRY-1300A Fully Automatic Paper To Corrugated Flute Laminator Machine 380V 3

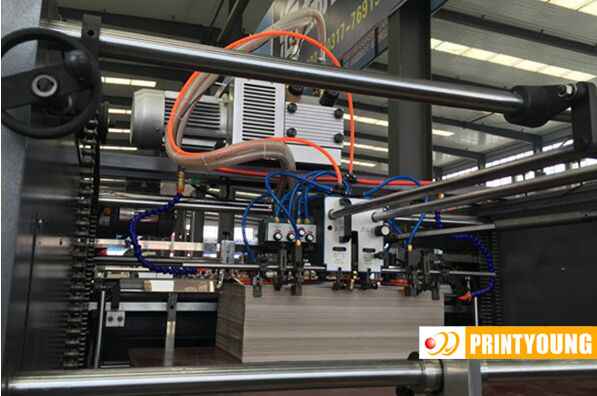

Top Sheet Feeding Mechanism

High precision high speed automatic feeder, feeding smoothly.Strengthening type paper feeding device,nozzle angle is adjustable, suitable for different type of papers.

Electrical System

Main electrical components are imported brands PLC tracking technology,automatic fault detection
PRY-1300A Fully Automatic Paper To Corrugated Flute Laminator Machine 380V 4PRY-1300A Fully Automatic Paper To Corrugated Flute Laminator Machine 380V 5

Pressure Regulation Positioning

Single pressure regulation,to ensure that the two side pressure be same.With the display of dial gauge,it is easy to adjust when change the paper.

Transmission

Floating design of press,no need to adjust the pressure.Heightening design,smooth working for thick corrugated paperboard.
PRY-1300A Fully Automatic Paper To Corrugated Flute Laminator Machine 380V 6
Pre-Stack Part
Standby stack table can pile paper under non-stop situation,along the rail into the elevator,high working efficiency.Using the "working" font design, the platform can be used to push and easy back, labor saving.

PRY-1300A Fully Automatic Paper To Corrugated Flute Laminator Machine 380V 7
PRY-1300A Fully Automatic Paper To Corrugated Flute Laminator Machine 380V 8
PRY-1300A Fully Automatic Paper To Corrugated Flute Laminator Machine 380V 9
PRY-1300A Fully Automatic Paper To Corrugated Flute Laminator Machine 380V 10
PRY-1300A Fully Automatic Paper To Corrugated Flute Laminator Machine 380V 11
PRY-1300A Fully Automatic Paper To Corrugated Flute Laminator Machine 380V 12
PRY-1300A Fully Automatic Paper To Corrugated Flute Laminator Machine 380V 13
PRY-1300A Fully Automatic Paper To Corrugated Flute Laminator Machine 380V 14
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
