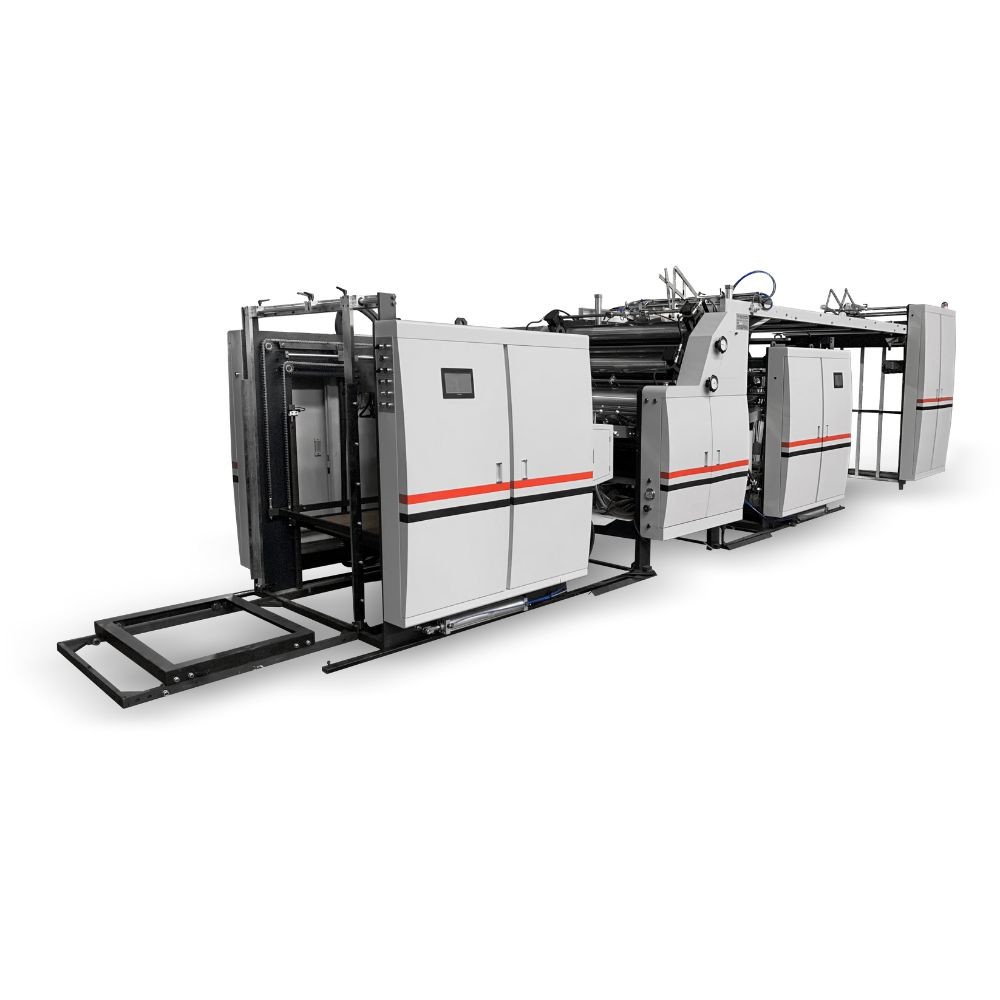

PRY-1150 Automatic Cardboard To Cardboard Flute Laminating Machine 4000 s/h

PRY-1150 Automatic Cardboard To Cardboard Flute Laminating Machine 4000 s/h
PRY-1150 Automatic Cardboard To Cardboard Flute Laminating Machine 4000 s/h
PRY-1150 Automatic Cardboard To Cardboard Flute Laminating Machine 4000 s/h PRY-1150 Automatic Cardboard To Cardboard Flute Laminating Machine 4000 s/h PRY-1150 Automatic Cardboard To Cardboard Flute Laminating Machine 4000 s/h PRY-1150 Automatic Cardboard To Cardboard Flute Laminating Machine 4000 s/h
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-1150
Minimum Order Quantity: 1 Set
Price: US 52000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Driven Type: Electric Applicable Industries: Manufacturing Plant
Showroom Location: Egypt, Italy, Morocco, Algeria, South Africa Video Outgoing-inspection: Provided
Machinery Test Report: Provided Place Of Origin: Zhejiang, China
Weight: 6500 KG Warranty: 1 Year
Type: Laminating Machine Condition: New
Application: Commodity Voltage: 380 V
Dimension: 9500 * 1900 * 2200 Mm Max Paper Size: 1080 * 800 Mm
Min Paper Size: 280 * 280 Mm Paper Thickness: 150 - 900 Gsm
Paper Feeding Table: 920 Mm Delivery Height Of Paper: 1450 Mm
Max Speed: 4000 S/h Temperature Range: 20 - 120 °C
Max.Working Pressure: 50 T Machine Weight: 6500 Kg
High Light:

Automatic Flute Laminating Machine

,

Cardboard To Cardboard Flute Laminating Machine

,

4000 S/H Automatic Flute Laminator

PRY-1150 Automatic Cardboard To Cardboard Flute Laminating Machine 4000 s/h 0
PRY-1150 Flute Laminating Machine
PRY-1150 Automatic Cardboard To Cardboard Flute Laminating Machine 4000 s/h 1
PRY-1150 Automatic Cardboard To Cardboard Flute Laminating Machine 4000 s/h 2
Features
PRY-1150 automatic card mounting machine,with a speed of 4000 sheets/hour.The vacuum pump drives Feeder and paper feeding.There is a double sheet control in front of the paper feeding.When the paper is fed with two or more sheets,the inclined sheet will stop automatically.
The pressing part is composed of a group of large rollers and two groups of small rollers. The diameter of the large roller is 320mm and the diameter of the small roller is 160mm. The large roller is equipped with teeth. The paper is bitten by the large roller,and then the finished product is produced after pressing between the two small rollers.It's main working performance is:less glue,fast drying and good paper stiffness.
PRY-1150 automatic card mounting machine is driven by frequency converter.The whole machine is controlled by PLC.There is a pressure of 50 tons between the two rollers of the machine.
1.Stable overall performance,energy saving and consumption,green environmental protection
2.The glue has the characteristics of low cost,fast drying and good stiffness
3.The whole machine is beautiful,easy to operate and easy to maintain
Technical Parameters
PRY-1150 Flute Laminating Machine
Model
PRY-1150
Max Paper Size
1080 * 800 mm
Min Paper Size
280 * 280 mm
Paper Thickness
150 - 900 g/m2
Paper Feeding Table
920 mm
Delivery Height of Paper
1450 mm
Max Speed
4000 s/h
Temperature Range
20 - 120 °C
Total Power
16 kw
Machine Weight
6500 kg
Machine Dimension
9500 * 1900 * 2200 mm
Max. Working Pressure
50 t
Configuration
PRY-1150 Automatic Cardboard To Cardboard Flute Laminating Machine 4000 s/h 3PRY-1150 Automatic Cardboard To Cardboard Flute Laminating Machine 4000 s/h 4

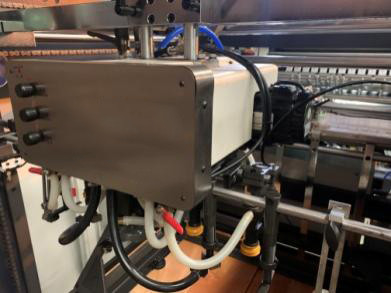

Feeding Section & Feeder

High speed Feida is directly driven by servo motor (traditional transmission shaft configuration),and some parts are imported and assembled in China.It has a four suction and two feeding structure with strong paper suction. The suction head can adjust various paper suction angles according to the deformation of the paper,which can better ensure the smooth paper feeding from thin paper to large gram paper jam; Equipped with Feida head quick adjustment device.Equipped with 3-channel Feida head anti-collision device to protect Feida head.
PRY-1150 Automatic Cardboard To Cardboard Flute Laminating Machine 4000 s/h 5
Transportation
The paper feeding part is driven by synchronous belt;The paper feeding accessories are changed to general type, and the paper feeding is relatively stable;Using servo motor to directly drive Feida, the structure is more stable.In order to cope with various complex and changeable box shapes of modern packaging, the ultra-small format paper feeding device can easily make up, set the most economical production paper format and greatly enhance the competitiveness.

Embossing Section

The large roller is made of high-grade 45 steel after heat treatment,high-temperature quenching and surface chromium plating.Resin sand cast iron is selected for the main engine wallboard and base to ensure the long-term reliable and stable operation of the whole machine.The tooth row adopts super hard stainless steel profile to achieve accurate positioning in high speed operation.The driving chain adopts the reinforced chain imported from Japan to improve the accuracy and stability of the machine and prolong the service life.
PRY-1150 Automatic Cardboard To Cardboard Flute Laminating Machine 4000 s/h 6

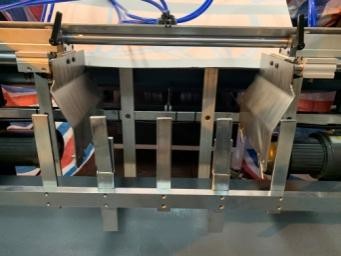

Delivery Section

The paper is fed into the receiving table by the conveyor belt and automatically drops to the bottom.Two way pneumatic automatic and neat paper receiving,convenient operation and labor saving.
PRY-1150 Automatic Cardboard To Cardboard Flute Laminating Machine 4000 s/h 7

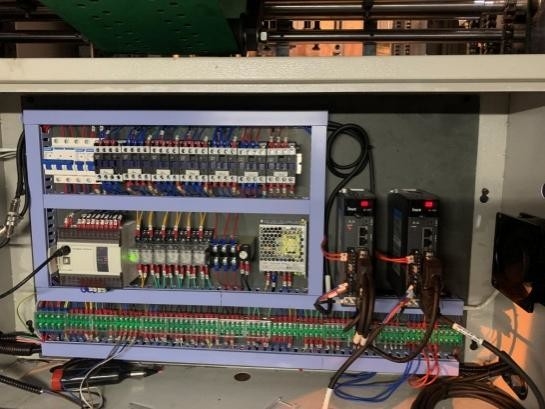

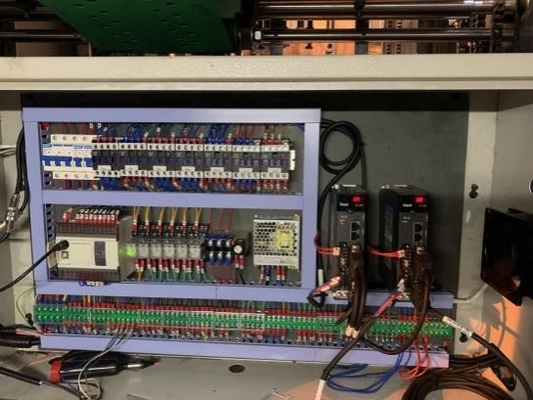

Electric Control System

The advanced national safety standards in Europe and America are adopted for electrical components and electrical circuits.The electrical cabinet adopts air cooling device to effectively ensure the normal operation of electrical control under hightemperature conditions.The interface controls are integrated, and a large number of electrical switch controls are involved in the operation interface,which is simple and easy to operate. PLC controls the operation and fault monitoring system of the whole machine.
Product Advantage
Traditional paper mounting machine,are using glue to glue coating on the surface of the paper,with a large amount of adhesive,because of the glue ingredient is water,and accounts for the absolute big ingredients,this glue,the greater the amount of water,the more the longer drying,framed the paper after crisp degree,flatness is not good,poor adhesiveness, easy come unglued,variant,mold and other problems.The e card mounting machine produced by our company is to use very little glue,strong and balanced pressure,break the fiber on the glue surface of the paper,glue coated in the pores of the paper,forced bonding,so the paper mounted stiff, flatness,bonding fastness is more superior.

Contrast with the Same Type of Products

Feida is directly driven by servo motor -- (traditional transmission shaft configuration)
1.Fast speed. 4000 PCS / h (the highest speed of the same type at home and abroad)
2.Steady bite and accurate mounting. ±0.3
3.Greater mounting strength(the roller is thickened on the original basis to avoid paper bending and more force during paper output.The wall plate structure and thickness are greatly improved.It is a solid structure,which has more use guarantee and safety compared with the structure of other products of the same type)
4.Have double,oblique,multi control.(The use of equipment is safer and more stable,while reducing paper loss)
5.The machine is equipped with ready paper loading,which saves time and improves output
6.Adopt the most high-end electrical equipment.Performance and safety are better guaranteed,walking on the high-quality route.
7.Processing technology:after forging,put it into the baking house for simmering processing.Prevent casting deformation and make the material stronger.
Applications
It is suitable for high-grade wine boxes,hangtag boxes,cake boxes,shoe boxes,cosmetic boxes,drug packaging boxes,food packaging boxes,mouse sticking plates and other products.It can press papers of different thicknesses and sizes.It is the most advanced and practical post press processing equipment in the world.
PRY-1150 Automatic Cardboard To Cardboard Flute Laminating Machine 4000 s/h 8PRY-1150 Automatic Cardboard To Cardboard Flute Laminating Machine 4000 s/h 9PRY-1150 Automatic Cardboard To Cardboard Flute Laminating Machine 4000 s/h 10PRY-1150 Automatic Cardboard To Cardboard Flute Laminating Machine 4000 s/h 11
PRY-1150 Automatic Cardboard To Cardboard Flute Laminating Machine 4000 s/h 12
PRY-1150 Automatic Cardboard To Cardboard Flute Laminating Machine 4000 s/h 13
PRY-1150 Automatic Cardboard To Cardboard Flute Laminating Machine 4000 s/h 14
PRY-1150 Automatic Cardboard To Cardboard Flute Laminating Machine 4000 s/h 15
PRY-1150 Automatic Cardboard To Cardboard Flute Laminating Machine 4000 s/h 16
PRY-1150 Automatic Cardboard To Cardboard Flute Laminating Machine 4000 s/h 17
PRY-1150 Automatic Cardboard To Cardboard Flute Laminating Machine 4000 s/h 18PRY-1150 Automatic Cardboard To Cardboard Flute Laminating Machine 4000 s/h 19PRY-1150 Automatic Cardboard To Cardboard Flute Laminating Machine 4000 s/h 20
PRY-1150 Automatic Cardboard To Cardboard Flute Laminating Machine 4000 s/h 21
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
