Brand Name: | PRINTYOUNG |
---|---|
Certification: | CE |
Model Number: | PRY-1400 |
Minimum Order Quantity: | 1 Set |
Price: | US 320000 Set |
Packaging Details: | Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included. |
Delivery Time: | 60 days |
Payment Terms: | T/T |
Supply Ability: | 1 Set/Sets per Month |
Place Of Origin: | Zhejiang, China | Packaging Type: | Bags |
---|---|---|---|
Packaging Material: | Paper | Driven Type: | Electric |
Applicable Industries: | Manufacturing Plant | Local Service Location: | Egypt, Italy, Morocco, Algeria, South Africa |
Showroom Location: | Egypt, Italy, Morocco, Algeria, South Africa | Weight: | 15000 KG |
Warranty: | 1 Year | Machinery Test Report: | Provided |
Provided: | Provided | Type: | Wrapping Machine |
Condition: | New | Application: | Paper |
Automatic Grade: | Automatic | Voltage: | 380 V |
Dimension: | 17500 * 6900 * 3700 Mm | Paper Kind: | Copy Paper , Coated Paper |
Working Speed: | 9 - 11 Reams/min | Paper Thickness: | 60 - 500 Gsm |
Thickness Of Wrapping Paper: | 100 - 180 Gsm | Diameter Of Wrapping Paper: | Max. 1000 Mm |
Kind Of Wrapping Paper: | Laminated Paper , Kraft Paper | Maximum Size Of Bag: | 650 - 1400 Mm |
Minimum Size Of Bag: | 600 - 1000 Mm | Thickness Of Ream: | 25 Mm - 60 Mm |
High Light: | Automatic A4 Paper Packaging Machine,Ream Paper Wrapping Machine,Copy Coated A4 Paper Wrapping Machine |

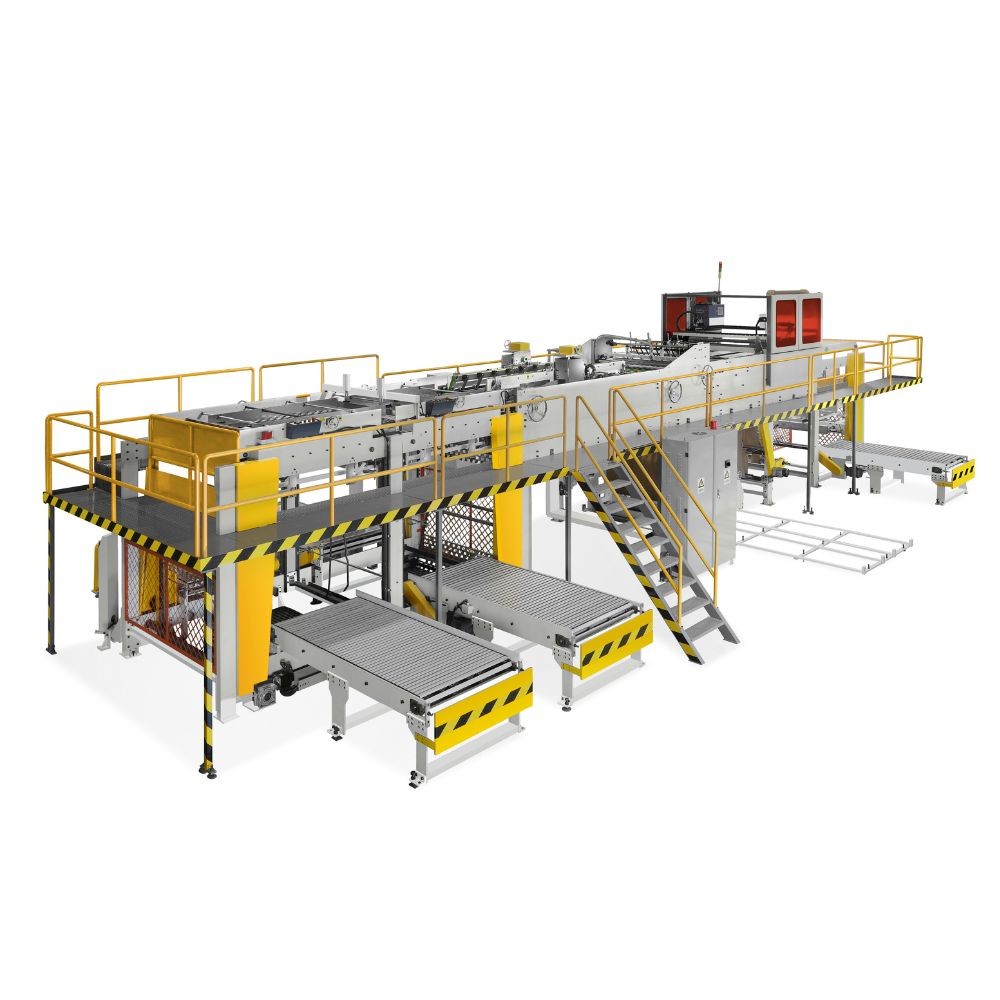

PRY-1400 Ream Paper Wrapping Machine
|
|
---|---|
Paper Kind
|
Copy paper , coated paper
|
Automation
|
Automatic
|
Working Speed
|
9 - 11 reams/min
|
Paper Thickness
|
60 - 500 gsm
|
Thickness of Wrapping Paper
|
100 - 180 gsm
|
Diameter of Wrapping Paper
|
Max. 1000 mm
|
Core Diameter of Wrapping Paper
|
3”
|
Kind of Wrapping Paper
|
Laminated paper , kraft paper
|
Maximum Size of Bag
|
650 - 1400 mm
|
Minimum Size of Bag
|
600 - 1000 mm
|
Thickness of Ream
|
25 mm - 60 mm
|
Weight of Ream
|
15 - 60 kg
|
Overall Size of Machine
|
17500 × 6900 × 3700 mm
|
Gross Power
|
35 kw
|
Machine Weight
|
15 T
|

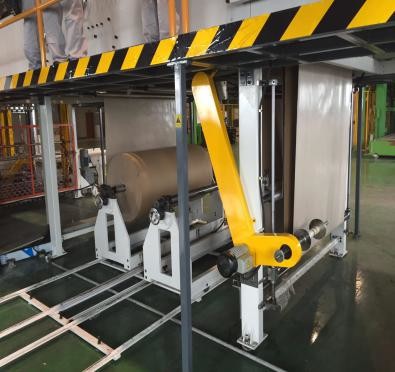

Unwind Unit
|
|
Wrapping Paper
|
Kraft paper , printed paper
|
Unwind Unit
|
1 set of unwinder
|
Paper Reel Lifting
|
Fixed
|
Brake of Paper Reel
|
Magnetic powder brake
|
Dia. of Paper Reel
|
1000 mm
|
Height of Paper Reel
|
1.8 m
|
Dia. of Air Shaft
|
3 inch
|
Stand of Core
|
Unwinding trolley , fixed frame on both sides
|
Cutting Unit
|
|
Cutting Method
|
Photoelectric control
|
Cross Sheeting Knife
|
Upper and bottom knife fixed
|
Cutting Length Control
|
Photoelectric Control
|
Cutting Width
|
The width is wrapping paper is decided by wrapped paper and the rest is silted
|
Driving Unit
|
|
Method
|
Motor drive the axis
|
Pressing Wheel
|
Rubber
|
Bottom Driving Roll
|
Driven by principal axis
|
Driving Motor
|
Servo motor
|
Clamp
|
Driven by motor
|
Conveying of Wrapping Paper
|
|
Feeding Method
|
Photoelectric Control
|
Belt Drving
|
Belt and driving shaft
|
Belt Quantity
|
37 articles
|
Convey Method
|
pneumatic
|
Belt Clearing (Adjustable)
|
Adjustable and cleaning
|
Vacuum Source
|
0.4 Mpa
|
Ream Conveying
|
|
Conveying Method
|
Driving belt and driving axis
|
Ream Position Inspection (Input)
|
Photoelectric control
|
Ream Position Control (Input)
|
Photoelectric control
|
Ream Longitudinal Positioning
|
Photoelectric Positioning
|
Ream Transverse Positioning
|
Positioning Plate
|
Input Clamping Belt (Adjustable)
|
Robot
|
Front Board
|
Adjustable
|
Side Pushing Plate
|
Adjustable
|
Ream Wrapping Unit
|
|
Ream Lifting
|
Lifted by motor
controlled by photoelectric sensor
|
Upper Pressing of Ream
|
Vacuum Wrapping Paper
|
Front Pres of Ream
|
Adjustable positioning plate
|
Sealing of Ream Bottom
|
Sealing by hot-melt adhesive
|
Ream Side Folding
|
Fixed side folding plate
|
Side Sealing
|
Sealing by hot-melt adhesive
|
Side Guiding Plate (Adjustable)
|
Adjust the side guiding plate
|
Conveying Method
|
Belt Conveying
|
Side Conveying Belt
|
Adjustable side conveying belt
|
Driving Method of Conveying
|
Servo motor driving
|
Glue Spraying Unit
|
|
Gluing Method
|
Glue stripes
|
Glue Gun Qantity
|
3 pcs
|
Glue Hot-melter
|
kola
|
Glue Control
|
Photoelectric sensor
|
Ream Conveying Unit
|
|
Conveying Method
|
Belt
|
Driving of Conveying
|
Servo motor
|
Conveying Route
|
Put the ream into wrapping unit by hand
|
Anchor bolt , Nut and Washers
|
20 mm , 16 mm
|
