| Place of Origin: | China |
|---|---|
| Brand Name: | PRINTYOUNG |
| Certification: | CE |
| Model Number: | PRY |
| Minimum Order Quantity: | 1 Set |
| Price: | US 900 Set |
| Packaging Details: | Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included. |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 30 Set/Sets per Month |
| Packaging Type: | Belt | Packaging Material: | Paper, OPP Film |
|---|---|---|---|
| Driven Type: | Electric | Applicable Industries: | Manufacturing Plant |
| Local Service Location: | Egypt, Italy, Morocco, Algeria, South Africa | Showroom Location: | Egypt, Italy, Morocco, Algeria, South Africa |
| Place Of Origin: | Zhejiang, China | Weight: | 35 KG |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Type: | Wrapping Machine | Condition: | New |
| Application: | Food, Beverage, Commodity, APPAREL, Textiles | Automatic Grade: | Semi-automatic |
| Voltage: | 220 V | Dimension: | 596 * 364 * 504 Mm |
| Width Of Band: | 30 (20) Mm | Banding Tape: | OPP Film Or Laminated Paper |
| The Thickness Of Tape: | 0.12 Mm | Length Of Band Roll: | 150 M |
| Outer Diameter Of Banding Roll: | 160 Mm | Biggest Banding Size Of Object: | 470 * 200 Mm |
| Smallest Banding Size Of Object: | 30 * 10 Mm | Roll Core Diameter: | 40 Mm |
| Outer Diameter Of Band Roll: | 155 Mm | Internal Diameter Of Band Roll: | 40 Mm |
| Highlight: | Heating Sealing Edge Bander,Laminated Paper Edge Banding Machine,OPP Film Paper Edge Banding Machine |
||


|

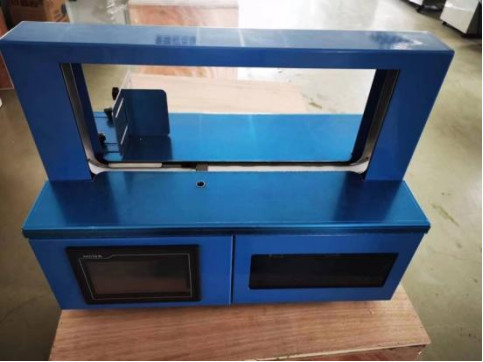

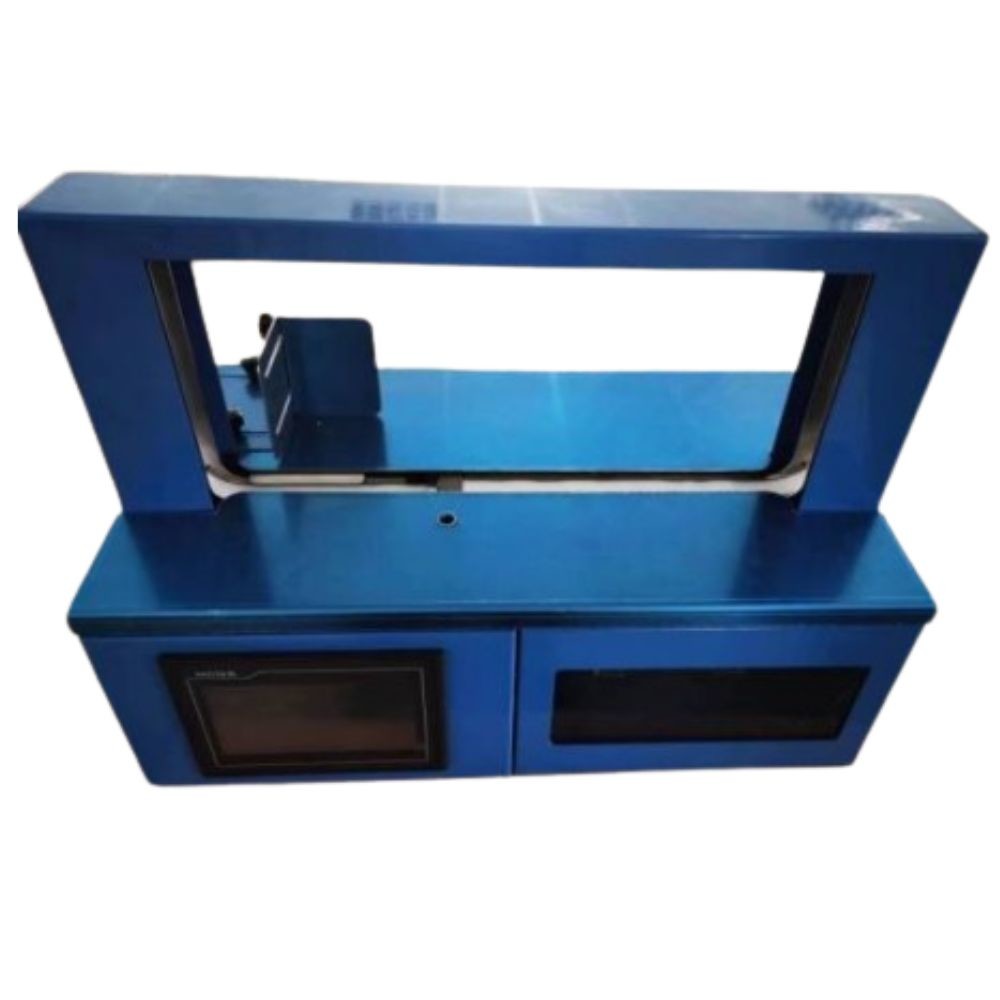

Heating Sealing Edge Banding Machine
|
|
|---|---|
|
Width of Band
|
30 (20) mm
|
|
Banding Tape
|
Opp film or laminated paper
|
|
The Thickness of Tape
|
0.12 mm
|
|
Length of Band Roll
|
150 m
|
|
Outer Diameter of Banding Roll
|
160 mm
|
|
Biggest Banding Size of Object
|
470 × 200 mm (w×h)
|
|
Smallest Banding Size of Object
|
30 × 10 mm (w×h)
|
|
Roll Core Diameter
|
40 mm
|
|
Outer Diameter of Band Roll
|
155 mm
|
|
Internal Diameter of Band Roll
|
40 mm
|
|
Single Banding Time
|
Less than 2.5 second
|
|
Banding Tension
|
5 - 50 n (adjustable)
|
|
Banding Sealing Way
|
Heat sealing
|
|
Power Supply
|
AC 220 V / 50Hz / 80W
|
|

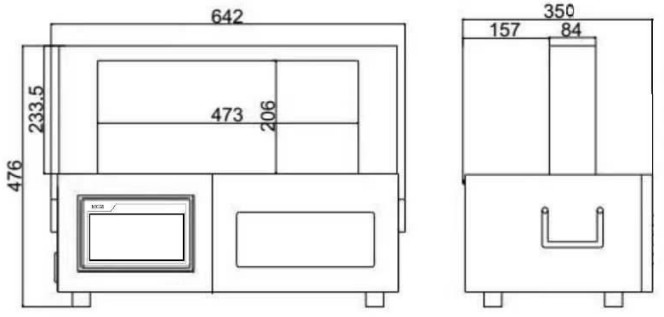

Outer Measurement of Machine
|
596 × 364 × 504 mm
|
|
Size of Polywood Case
|
680 x 400 x 630 mm
|
|
Weight of Machine & Case
|
N.W. : 35 kgs , G.W. : 55 kgs
|
