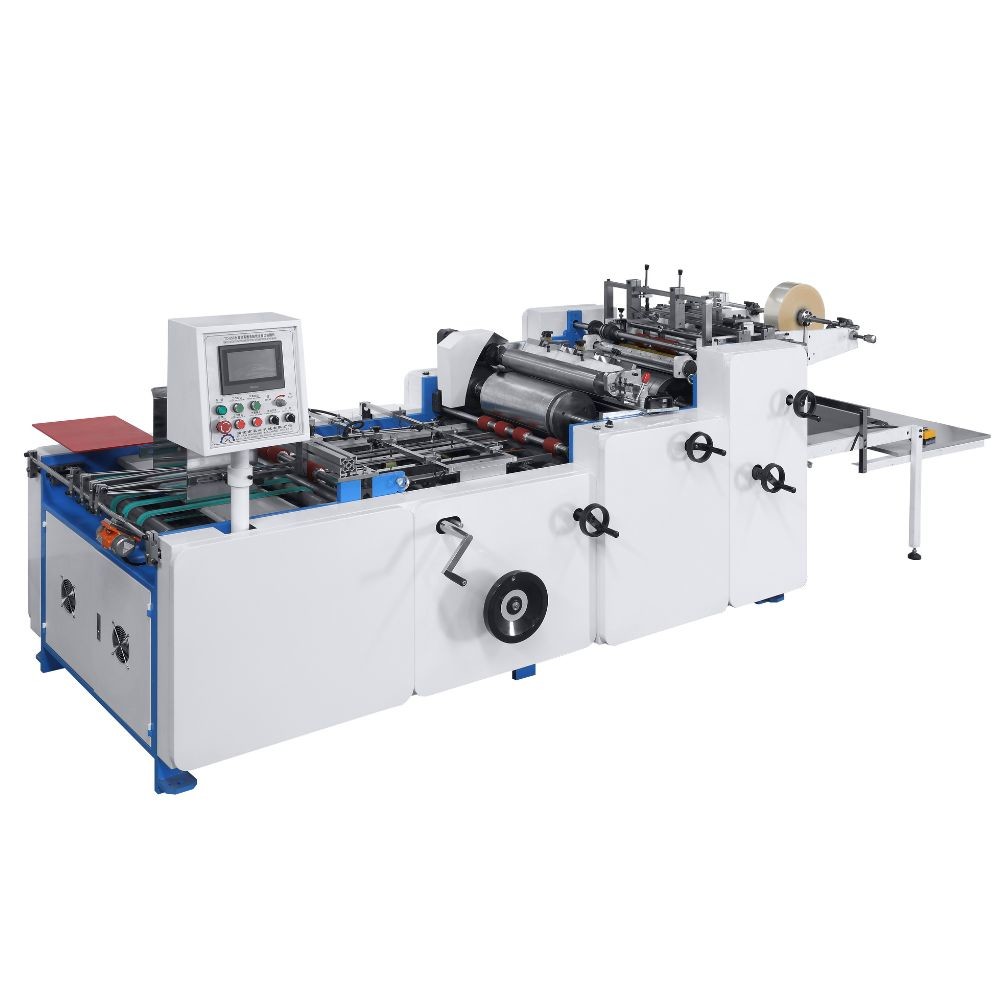

TC-650A Fully Automatic Window Patching Machine For Cardboard Paper Cake Gift Box

TC-650A Fully Automatic Window Patching Machine For Cardboard Paper Cake Gift Box
TC-650A Fully Automatic Window Patching Machine For Cardboard Paper Cake Gift Box
TC-650A Fully Automatic Window Patching Machine For Cardboard Paper Cake Gift Box TC-650A Fully Automatic Window Patching Machine For Cardboard Paper Cake Gift Box TC-650A Fully Automatic Window Patching Machine For Cardboard Paper Cake Gift Box TC-650A Fully Automatic Window Patching Machine For Cardboard Paper Cake Gift Box
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: TC-650A
Minimum Order Quantity: 1 Set
Price: US 26000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 45 days
Payment Terms: T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Production Capacity: 200 Pcs/min Applicable Industries: Manufacturing Plant
Showroom Location: Egypt, Italy, Morocco, Algeria, South Africa Condition: New
Product Type: Window Patching Machine Weight: 2500 Kg
Warranty: 1 Year Machinery Test Report: Provided
Video Outgoing-inspection: Provided Voltage: 380 V
Power: 6.4 Kw Dimension: 4500 X 1200 X 1600 Mm
Paper Thickness: 200 - 1000 Gsm Min Paper Size: 150 X 160 Mm
Max Paper Size: 560 X 650 Mm Min Window Size: 30 X 50 Mm
Max Window Size: 300 X 350 Mm Accuracy: ±1 Mm
Film Thickness: 0.05 - 0.25 Mm Total Power: 6.4 Kw
Machine Weight: 2500 Kg
Highlight:

Automatic Paper Box Window Patching Machine

,

Cardboard Box Window Patching Machine

,

Cardboard Window Pasting Machine

TC-650A Fully Automatic Window Patching Machine For Cardboard Paper Cake Gift Box 0
TC-650A Window Patching Machine
TC-650A Fully Automatic Window Patching Machine For Cardboard Paper Cake Gift Box 1
Features
Full automatic window patching machine is used for patching window by film on paper.It can accept PP film,PET film,PVC film and so on.Its max capacity is 10000 pieces for one hour.It can produce tissue boxes,gift boxes, toy boxes,shirt boxes,milk cartons and other window boxes.
Technical Parameters
TC-650A Window Patching Machine
Model
TC-650A
Paper Thickness
200 - 1000 gsm
Capacity
12000 pcs/hour
Min Paper Size
150 x 160 mm
Max Paper Size
560 x 650 mm
Min Window Size
30 x 50 mm
Max Window Size
300 x 350 mm
Accuracy
±1 mm
Film Thickness
0.05-0.25mm
Total Power
6.4 kw
Machine Weight
2500kg
Machine Size
4500x1200x1600mm
TC-650A Fully Automatic Window Patching Machine For Cardboard Paper Cake Gift Box 2TC-650A Fully Automatic Window Patching Machine For Cardboard Paper Cake Gift Box 3TC-650A Fully Automatic Window Patching Machine For Cardboard Paper Cake Gift Box 4
Configuration
Window patching machine is widely used for patching the window on the liquor box,gift box,tissue box,cosmetic box,toy box and so on.
TC-650A Fully Automatic Window Patching Machine For Cardboard Paper Cake Gift Box 5TC-650A Fully Automatic Window Patching Machine For Cardboard Paper Cake Gift Box 6

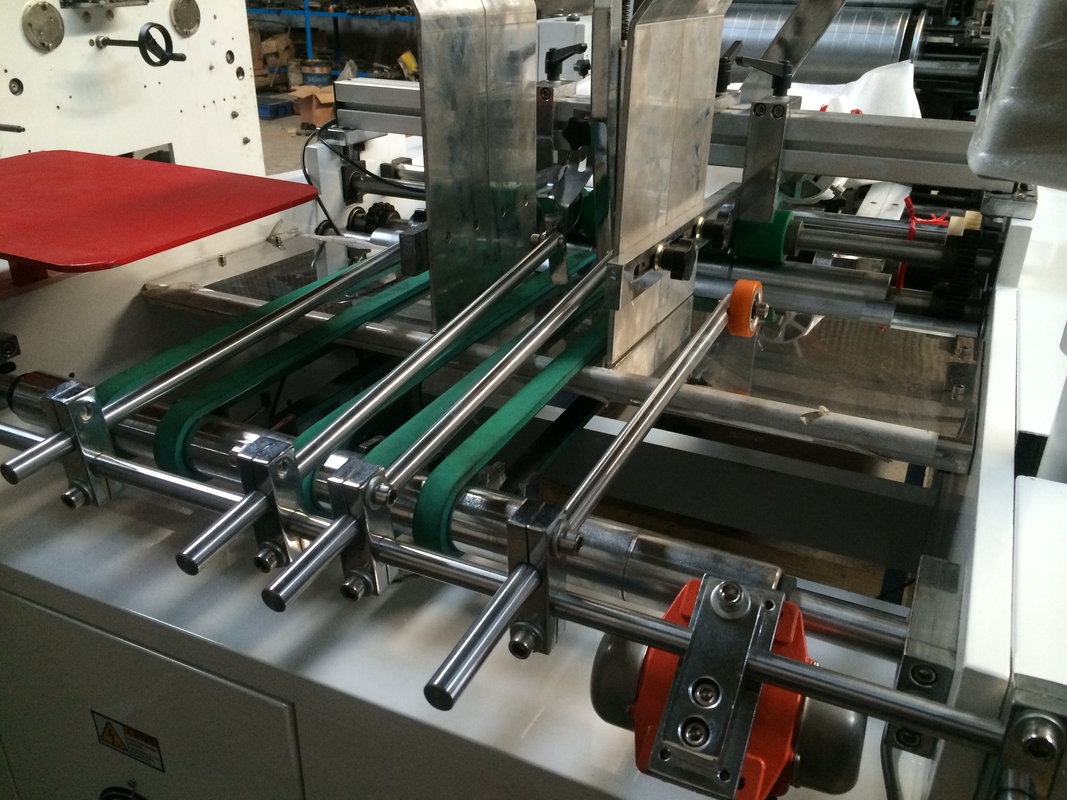

The paper feeder is controlled by servo motor,the belt is from Poland.No-stop feeding paper,no overlapping paper or missing paper.

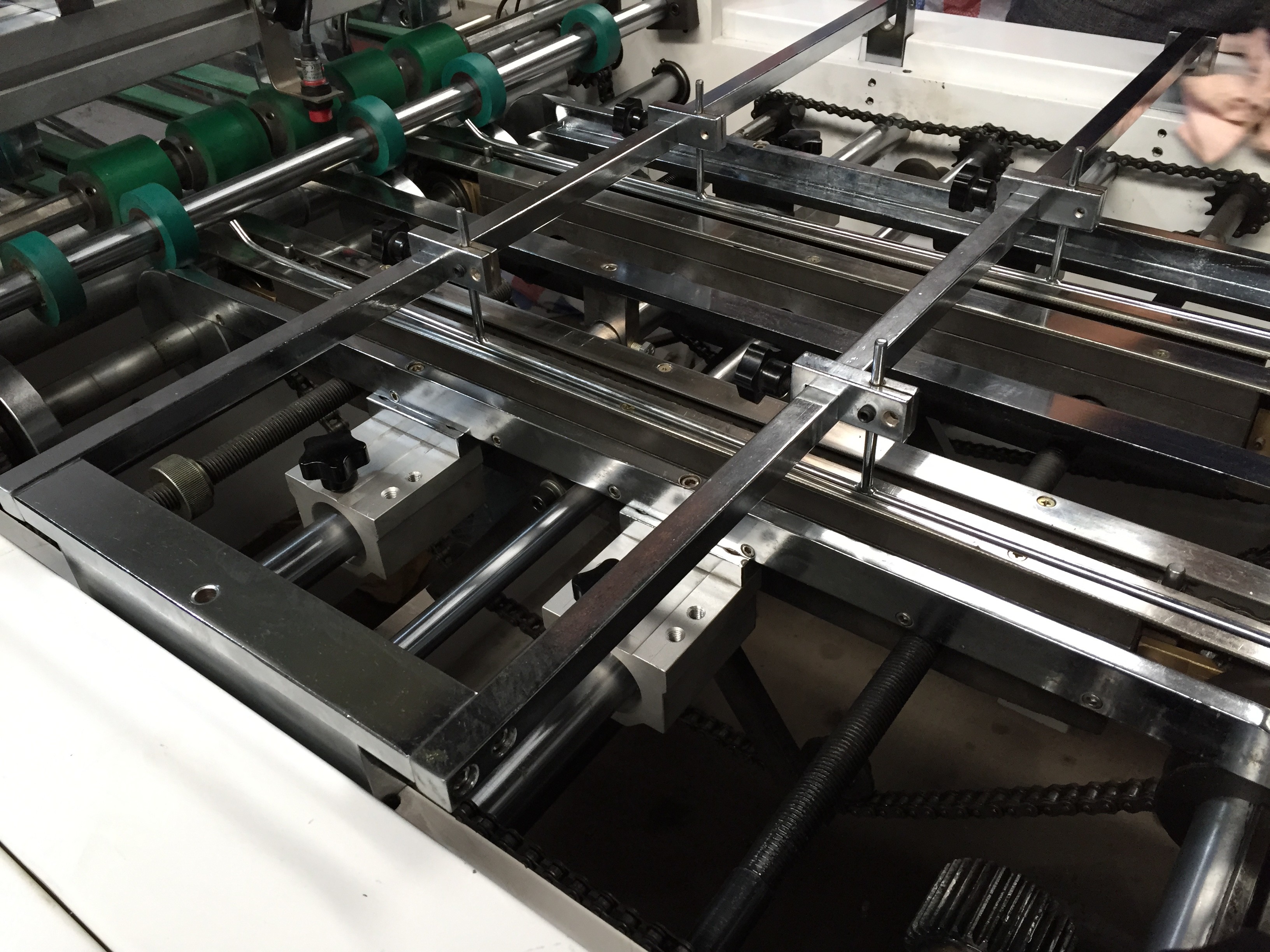

The paper moving system adopt pushing chain and air sucking belt.They have positioning function,insure the paper comes same place in same time.
TC-650A Fully Automatic Window Patching Machine For Cardboard Paper Cake Gift Box 7TC-650A Fully Automatic Window Patching Machine For Cardboard Paper Cake Gift Box 8

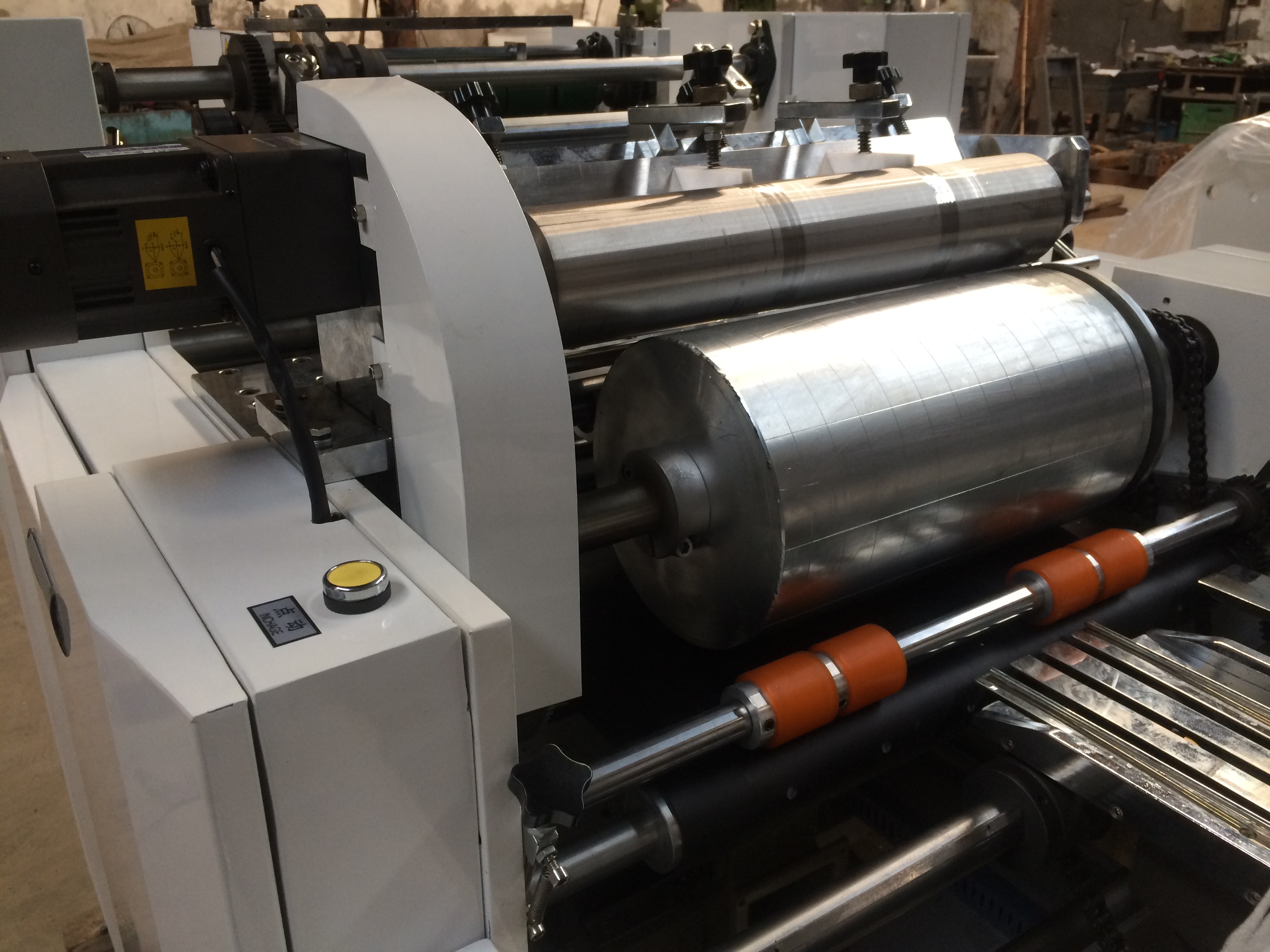

Glue part adopt flexo printing technology.We can adjust the place of glue on the paper without any stop.When missing paper,glue part will up in case of the glue leaves on the air sucking belt.
The film cutting part adopt roll-knife.It is controlled by servo motor so that we can adjust the film length without stop in the PLC.It also can adjust the place of film on the paper without stop.It has special knife to cut film for tissue box.When it is patching window with punching and scoring,the speed is around 4000 pcs for one hour,and the accuracy is ±1 mm.
Sample Show
TC-650A Fully Automatic Window Patching Machine For Cardboard Paper Cake Gift Box 9TC-650A Fully Automatic Window Patching Machine For Cardboard Paper Cake Gift Box 10
TC-650A Fully Automatic Window Patching Machine For Cardboard Paper Cake Gift Box 11
TC-650A Fully Automatic Window Patching Machine For Cardboard Paper Cake Gift Box 12
TC-650A Fully Automatic Window Patching Machine For Cardboard Paper Cake Gift Box 13
TC-650A Fully Automatic Window Patching Machine For Cardboard Paper Cake Gift Box 14
TC-650A Fully Automatic Window Patching Machine For Cardboard Paper Cake Gift Box 15
TC-650A Fully Automatic Window Patching Machine For Cardboard Paper Cake Gift Box 16
TC-650A Fully Automatic Window Patching Machine For Cardboard Paper Cake Gift Box 17
TC-650A Fully Automatic Window Patching Machine For Cardboard Paper Cake Gift Box 18
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
