Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series

Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series
Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series
Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: ZH-XC
Minimum Order Quantity: 1 Set
Price: US 30000-36000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Applicable Industries: Manufacturing Plant Showroom Location: Egypt, Italy, Morocco, Algeria, South Africa
Condition: New Product Type: Folder Gluer Machine
Processing Type: Paper Folding Gluing Machine Place Of Origin: Zhejiang, China
Weight: 3000 Kg Warranty: 1 Year
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Voltage: 380 V Power: 15 KW
Dimension: 16 * 1.3 * 1.3 M Finished Products: Paper Box
Raw Material: Paper Paper Material: 210 - 600 G/m² Paperboard.Compatible With E/F Corrugated
Max. Line Speed: 300 M/min Continuous Adjustment Feeding Way: Automatic Feeding
Way Of Folding: Single Side Gluing Or Both Side Gluing.Pre-folding.Crash Lockbottom Glue Material: Cold Glue
Highlight:

Modular Box Folding Gluing Machine

,

Four Corner Box Folder Gluer Machine

,

Six Corner Box Folding Gluing Machine

Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 0

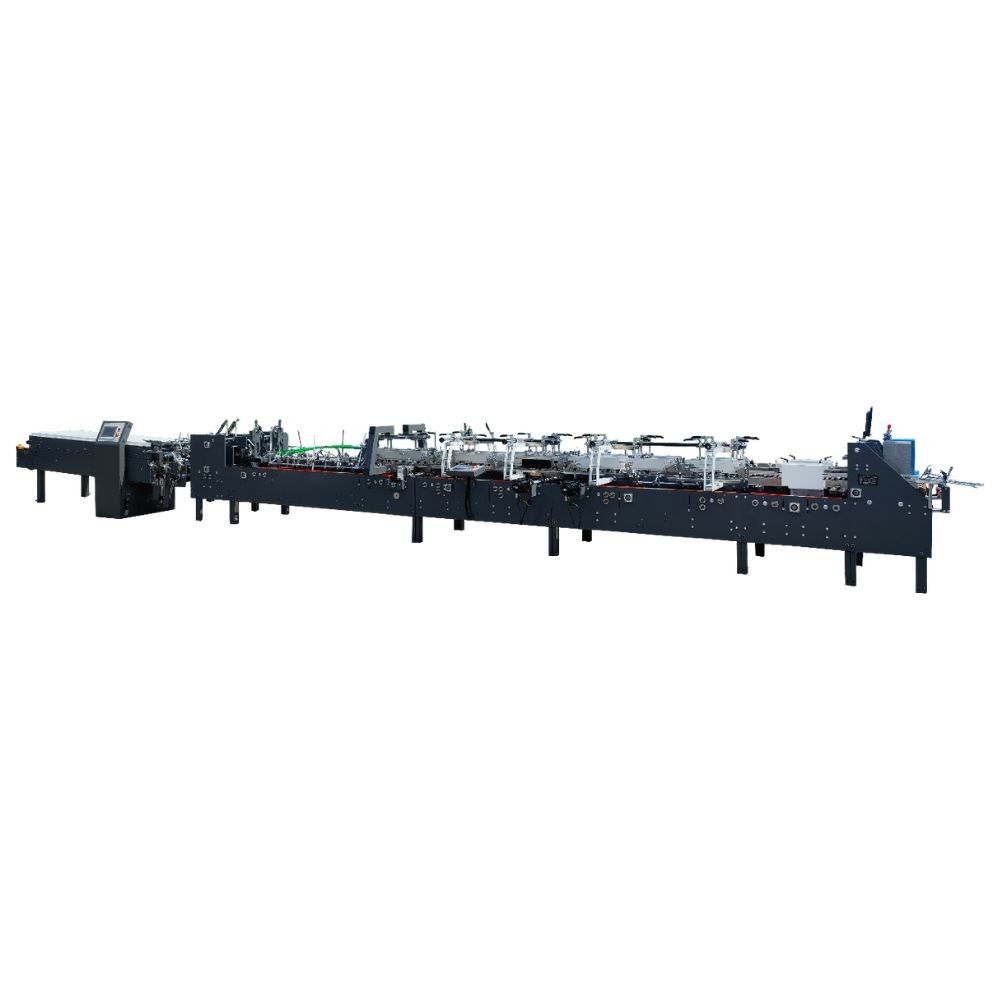

ZH-XC Folder Gluer Machine
Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 1
Features
1.With Several national patents,the performance of the GEN 5 machine is ahead of its peers.
2.Modular structure,different functions can be combined according to customer needs.
3.Functions can be upgraded after purchase.
4.The Multi-motor transmission has strong power,fast speed,and longer service life.
5.Equipped with synchronous belt transmission with high speed and low noise.
6.The upper and lower conveyor belts are powered,and there is no curling phenomenon.
7.The new curved arm bracket has a unique shape and a beautiful appearance.
8.The integrated electrical control box is hidden at the bottom of the conveyor,which saves space.
Technical Parameters
Model ZH-800XC ZH-900XC ZH-1100XC
Line Speed
0 - 300 m/min adjustable
Paperboard
210 - 600 g/m2 Paperboard compatible with E/F corrugated
Way of Folding
single side gluing or both side gluing
Paper Board Feeding
Automatic feeding
Glue Type
Cold glue
Power
12 KW AC 3 PH 380 V
 15 KW AC 3 PH 380 V
Weight
2600 KG
 3000 KG
Dimension
13 * 1.3 * 1.3 m
 16 * 1.3 * 1.3 m
Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 2
Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 3
Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 4Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 5Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 6Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 7
Model Box type A B C (min) D (min)
ZH-800XC Side-glue box 130-800 60-700 60 10
Pre-fold box 170-750 60-700 80 10
Crash lock bottom box 180-750 100-700 90 40
4 corner box 160-600 180-600 E:30-100
6 corner box 250-600 180-600 E:30-100
ZH-900XC Side-glue box 130-900 60-700 60 10
Pre-fold box 170-800 60-700 80 10
Crash lock bottom box 180-800 100-700 90 40
4 corner box 160-700 180-600 E:30-100
6 corner box 250-700 180-600 E:30-100
ZH-1100XC Side-glue box 180-1100 100-700 100 50
Pre-fold box 200-1000 100-700 100 50
Crash lock bottom box 200-1000 100-700 100 50
4 corner box 200-900 200-600 E:30-100
6 corner box 300-900 200-600 E:30-100

























Configuration
Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 8Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 9

Paper Feeding Section

Equipped with 2 output knives,adjust the asymmetric length according to the actual sample.The embossing power guide wheel guides the paper output belt,and there are baffles on the left and right sides,which can be moved left and right according to the product style.The vibrating device cooperates with the motor to feed paper quickly,easily and continuously automatically.

Aligner Section

The paper board sent from feeder section will be corrected by aligner section to ensure transmission accurately.
Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness.
Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 10Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 11

Pre-Folding Section

The first line can be pre-folded at 180°,and the third line at 135°,which is perfectly combined with automated packaging.

Crash Lock Bottom Section

A complete set of front flap bottom locking device and servo anti-hook device to ensure accurate bottom locking action.The segmented upper belt board,combined with a special design,can be adjusted by expansion and contraction according to the needs of the product.
Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 12Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 13

Lower Gluing Tank

Lower gluing tank is large volume.Easy to remove and clean.Electronic upper gluing system by guns.

Folding and Closing

The Second and fourth folding line 180°.Folding and closing section transmit from right and left side,the belt speed can be adjusted separately and correct the way of box running to ensure straightly delivery.
Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 14Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 15

Trombone Section

Up and down belt can be adjusted separately.Equipped with photo electronic counting device and kicking paper device,which can press the paper after accounting and make it easy to pack.Also equipped with feeding paper inspection device.

Transmission

Equipped with special additional sponge belt for the press of boxes valley part.
Upper section moves back and forward, allowing for different box length.
Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 16Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 17

Box Squaring Device

Full press section continuously and automatically box collection mechanism that ensures a neat transfer to the press section,guaranteeing a well aligned flow.

Synchronous Belt & Wheel

The most efficient mechanical power transmission method currently on the market Reduce noise,reduce wear, and efficient power transmission system.
Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 18Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 19

Aviation Connector

Easy to install and transport.

Independent Electrical Box

The independent structure reduces the interference of the mechanical structure to the electrical system,and it is beautiful and atmospheric.
Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 20Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 21

Electric Wallboard Move

Accurate and labor-saving wall panel movement.

4 and 6-Corner Back Hook

Anti-hook specially equipped for four-hexagonal boxes.
Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 22Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 23

4 and 6-Corner Device

Motorized and untimed electronic back folding system with intelligent servo motor technology.

Conveyor Monitoring

The situation in front of the conveying section can be observed on the screen of the paper feed section.
Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 24Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 25

Conveying Part Snapping Function

The flat-mouth box can be slapped,so that the product has a better molding effect.

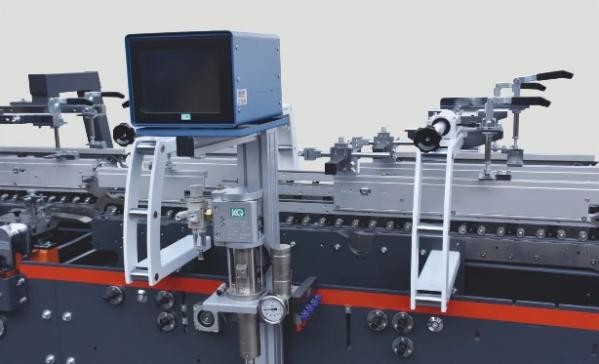

Spraying System(Option)

Equipped with three guns, convenient in the production of 4/6 corner box and various special-shaped box,gluing quickly and accurately sizing.

Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 26
Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 27
Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 28
Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 29
Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 30
Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 31
Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 32
Modular Multifunction Automatic Four And Six Corner Box Folding Gluing Machine ZH-XC Series 33
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
