Home ProductsPaper Processing MachineryPRY-DP100 9 Gear Paper Cup Making Machine Fully Automatic Type

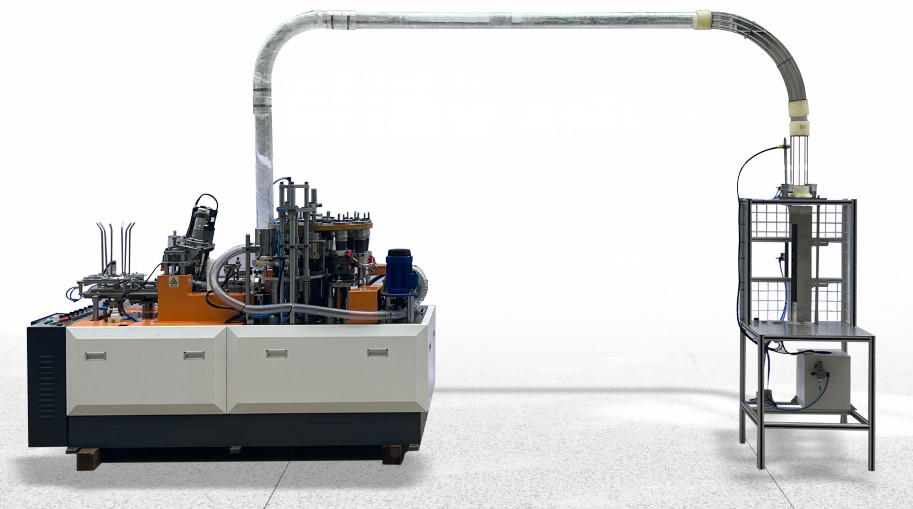

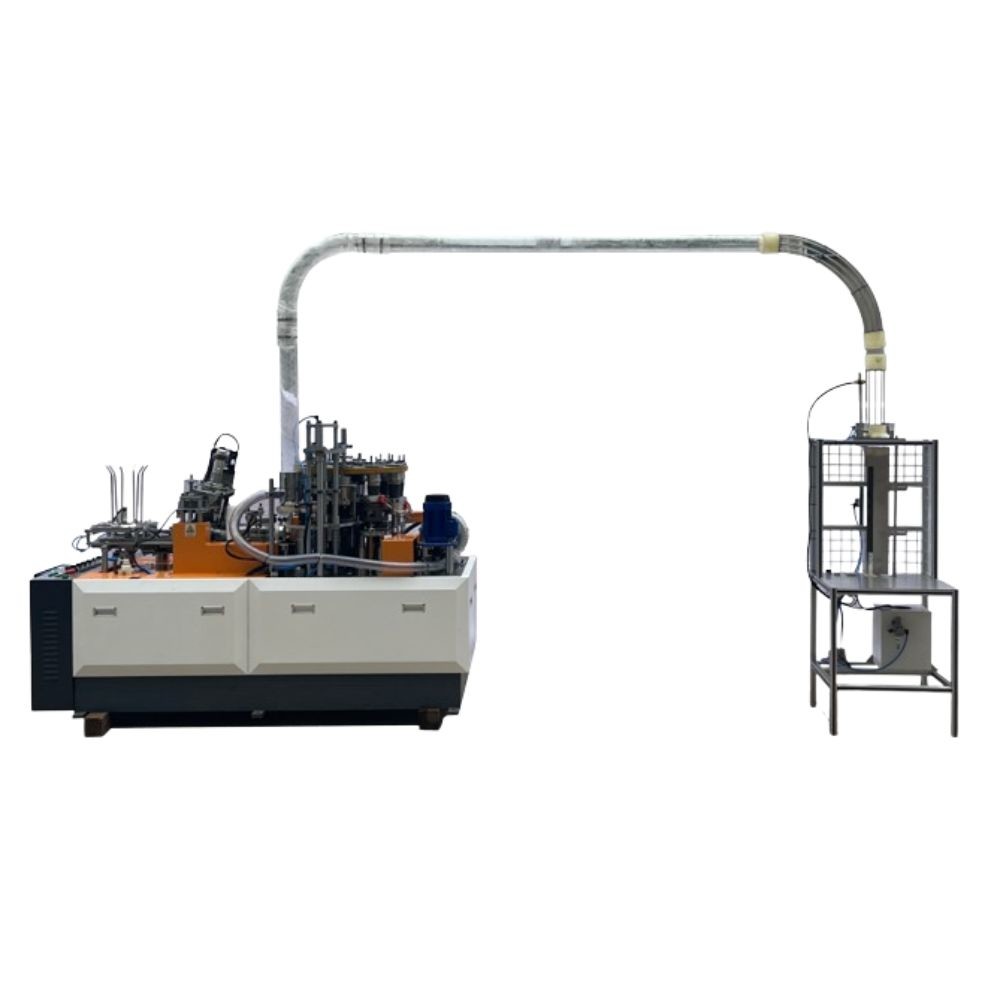

PRY-DP100 9 Gear Paper Cup Making Machine Fully Automatic Type

PRY-DP100 9 Gear Paper Cup Making Machine Fully Automatic Type
PRY-DP100 9 Gear Paper Cup Making Machine Fully Automatic Type
PRY-DP100 9 Gear Paper Cup Making Machine Fully Automatic Type PRY-DP100 9 Gear Paper Cup Making Machine Fully Automatic Type PRY-DP100 9 Gear Paper Cup Making Machine Fully Automatic Type
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-DP100
Minimum Order Quantity: 1 Set
Price: US 11000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Applicable Industries: Manufacturing Plant Showroom Location: Egypt, Italy, Morocco, Algeria, South Africa
Condition: New Product Type: Paper Cup Machine
Weight: 1700 Kg Warranty: 1 Year
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Voltage: 380 V Power: 3 Kw
Dimension: 2080 X 920 X 1650 Mm Finished Products: Paper Cup
Raw Material: Paper Production Speed: 80 - 100 Pcs/min
Material Requirements: 160 - 300 Gsm Single Pe Coated Paper Paper Cup Size: 3 Oz - 9 Oz
Paper Thickness: 150 - 350 Gsm ; ± 20 Gsm Gas Supply Requirements: 0.6 - 0.8 Mpa ; 0.4 M3/min
Cup Holder Package Size: 2800 X 1250 X 1900 Mm
Highlight:

380V Paper Cup Making Machine

,

Fully Automatic Paper Cup Making Machine

PRY-DP100 9 Gear Paper Cup Making Machine Fully Automatic Type 0
PRY-DP100 9 Type Paper Cup Machine
PRY-DP100 9 Gear Paper Cup Making Machine Fully Automatic Type 1
Features
The working principle of our paper cup machine is that a main motor drives the whole machine to work, realizing the perfect fusion of the chain and the cam structure.Now the machine uses a single aluminum disc instead of the previous three disc machines,so that the machine failure rate is greatly reduced,and the training time of the operator is reduced. 3-9 oz double membrane paper cups can be customized according to customer requirements.Is a fully automatic paper cup molding equipment,through many automatic paper,paper back device(ensure accurate positioning),ultrasonic or copper welding,mechanical paper tube transfer,injection, bottom,folding,preheating,roller,unloading cup,continuous process,can be stable production of different specifications of paper cup,is our company independent research and development through comprehensive technical improvement to improve the stability of the paper cup equipment.
Technical Parameters
PRY-DP100 Paper Cup Machine
Model
PRY-DP100
Production Speed
80 - 100 pcs/min
Voltage
380 V / 50 Hz
Machine Package Size
2080 x 920 x 1650 mm
Material Requirements
160 - 300 gsm single pe coated paper
Power
3 kw
Weight
1700 Kg
Paper Cup Size
3 - 9 oz
Paper Thickness
150 - 350 gsm ; ± 20 gsm
Gas Supply Requirements
0.6 - 0.8 mpa ; 0.4 m³/min
Cup Holder Package Size
2800 x 1250 x 1900 mm
Cup Body Bonding Mode
Ultrasonic / Copper strip (over 12 oz with ultrasonic)
Bottom Rolling Flowers
Bottom heating
Molds can be customized according to customer requirements
Sample Pictures
PRY-DP100 9 Gear Paper Cup Making Machine Fully Automatic Type 2PRY-DP100 9 Gear Paper Cup Making Machine Fully Automatic Type 3
PRY-DP100 9 Gear Paper Cup Making Machine Fully Automatic Type 4
PRY-DP100 9 Gear Paper Cup Making Machine Fully Automatic Type 5
PRY-DP100 9 Gear Paper Cup Making Machine Fully Automatic Type 6PRY-DP100 9 Gear Paper Cup Making Machine Fully Automatic Type 7PRY-DP100 9 Gear Paper Cup Making Machine Fully Automatic Type 8
PRY-DP100 9 Gear Paper Cup Making Machine Fully Automatic Type 9
PRY-DP100 9 Gear Paper Cup Making Machine Fully Automatic Type 10
PRY-DP100 9 Gear Paper Cup Making Machine Fully Automatic Type 11
PRY-DP100 9 Gear Paper Cup Making Machine Fully Automatic Type 12
PRY-DP100 9 Gear Paper Cup Making Machine Fully Automatic Type 13
PRY-DP100 9 Gear Paper Cup Making Machine Fully Automatic Type 14
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
