PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine

PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine
PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-160S
Minimum Order Quantity: 1 Set
Price: US 24000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Production Capacity: 150 Pcs/min Applicable Industries: Manufacturing Plant
Showroom Location: Egypt, Italy, Morocco, Algeria, South Africa Condition: New
Product Type: Paper Cup Machine Weight: 4000 Kg
Warranty: 1 Year Machinery Test Report: Provided
Video Outgoing-inspection: Provided Voltage: 380 V
Power: 25 Kw Dimension: 2800 X 1100 X 1800 Mm
Finished Products: Paper Cup Raw Material: Paper
Power Configuration: 380 V , 25 KW Compressed Air Configuration: 0.6 - 0.8 MPa , 0.5 M³/min
Paper Type: Single And Double PE / PLA Paper Thickness: 210 - 330 Gsm
Detection Device: Optional Control Panel: 7 Inches
Collection Table: 1000 X 650 X 1600 Mm
High Light:

PLA Paper Cup Machine

,

150pcs/min Paper Cup Making Machine

,

Smart Single PE Paper Cup Machine

PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine 0

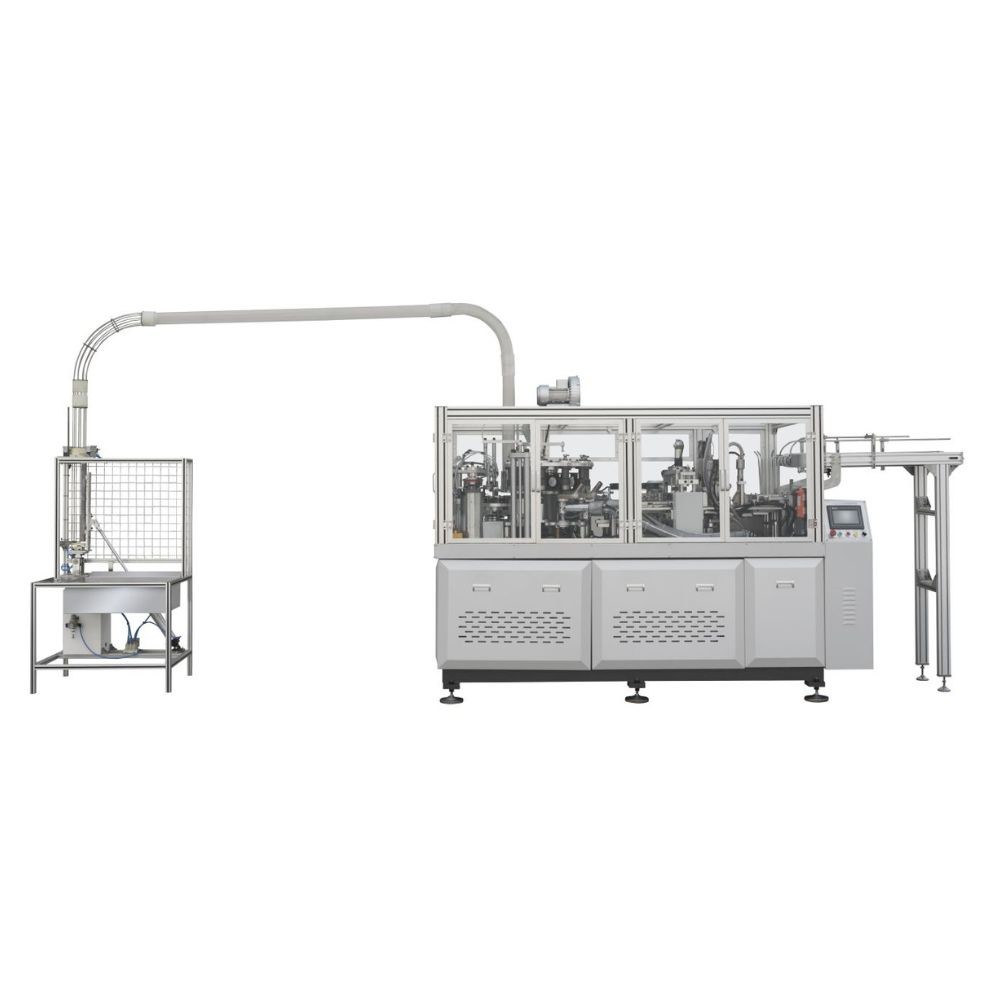

PRY-160S Paper Cup Machine
PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine 1
PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine 2
Features
The PRY-160S smart paper cup machine uses a desktop layout that isolating the transmission parts and molds. The transmission parts are under the table and the mold on the table,this layout facilitates cleaning and maintenance.The machine adopts automatic spray lubrication,longitudinal shaft drive structure,barrel cylindrical dividing mechanism and gear transmission,to ensure the stability and quality of the whole machine. For electrical components,use PLC,photoelectric tracking and servo feed.The machines have a production capacity of up to 120-150 pcs/min and are suitable for producing 5-16 oz cold / hot cups.
PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine 3
Intelligent Control System
1.Multiple models of modules.Guided by simple window prompts,select the model for the setup.
2.Flexible parameter setting.You can backup,restore or restore parameters to factory.You can also manually modify the parameters in detail.
3.Flexible encoder origin setting,automatic direction setting and fault self-checking.The hardware installation of the encoder does not need to consider the position,only need to set the software.
4.Automatically configure the parking space,and quickly drop in less than one lap.After configuration,the machine will automatically calculate the inertia distance of the machine, and the position after deceleration is at least one step faster.
5.The system's key station sensor signals are automatically calculated and identified.The molding failure can be encountered by simply operating the start button,and the system automatically tracks the signal according to the sensor,so that the mold stops quickly in the middle of the two heaters.
6.Stop the automatic removal of the cup.After the machine stops abnormally,the system will automatically remove the heater and bracket position because the heater is burnt out and the adhesive is not firm.
7.Intelligent temperature control of heating system.The temperature is controlled by PLC PID,the user only needs to select the paper manufacturer,weight,single/double PE,the system will automatically set the corresponding target temperature,and the speed of the machine will change when the target temperature is automatically adjusted.Users can also customize target temperature control.
8.(Optional) Vision system defect detection.Automatically identify paper cup shape,internal and bottom defects, and automatically remove them.Unique algorithm,accurate and stable light gray stain recognition.One key to quickly set parameters,and you can also modify each parameter in detail.The system supports internal network monitoring output reports.
9.Hardware monitoring system.PLC output point,relay,contactor,plc and touch screen,plc and computer,plc has extended line real-time monitoring function,and the abnormal alarm in the touch screen prompts the cause of the failure.With detailed hardware and software fault information,users can easily troubleshoot according to the prompts.
Technical Parameters
PRY-160S Paper Cup Machine
Weight
4000 kg
Packing without Carton
2800 x 1100 x 1800 mm
Power Configuration
380 V , 25 KW
Compressed Air Configuration
0.6 - 0.8 MPa , 0.5 m³/min
Production Capacity
120 - 150 pcs/min
Paper Type
Single and double PE / PLA
Paper Thickness
210 - 330 g/m2
Detection Device
Optional
Control Panel
7 inches
Collection Table
1000 x 650 x 1600 mm
PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine 4
D1 : ф 50 - 90 mm     D2 : ф 40 - 65 mm     H : 50 - 138 mm     h : 5 - 12 mm
Machine Picture

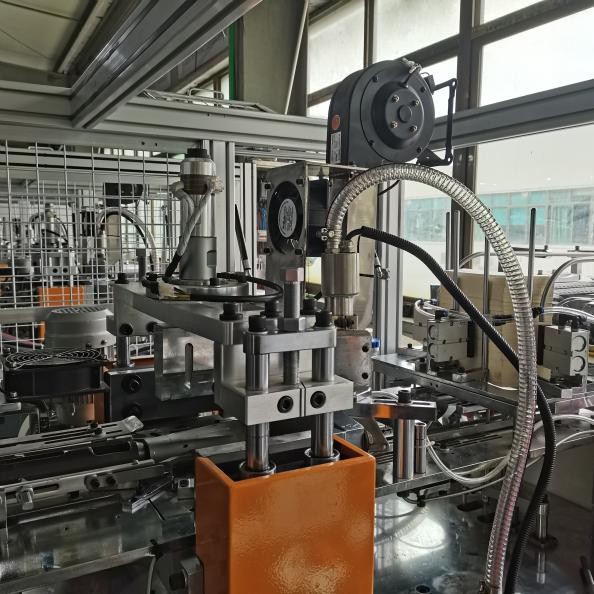

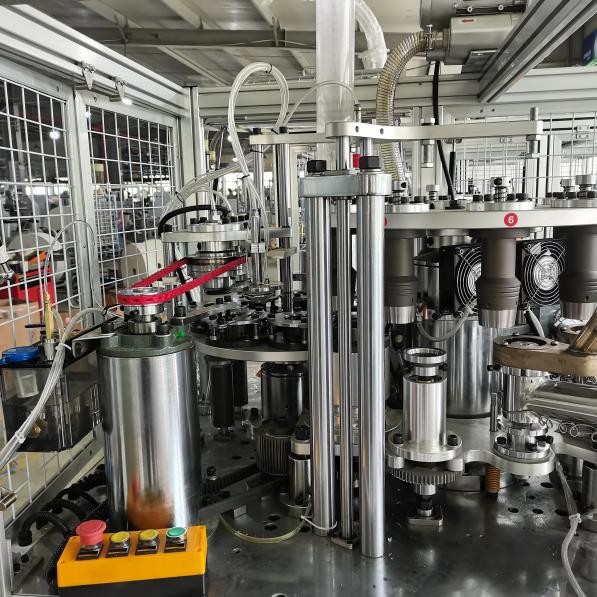

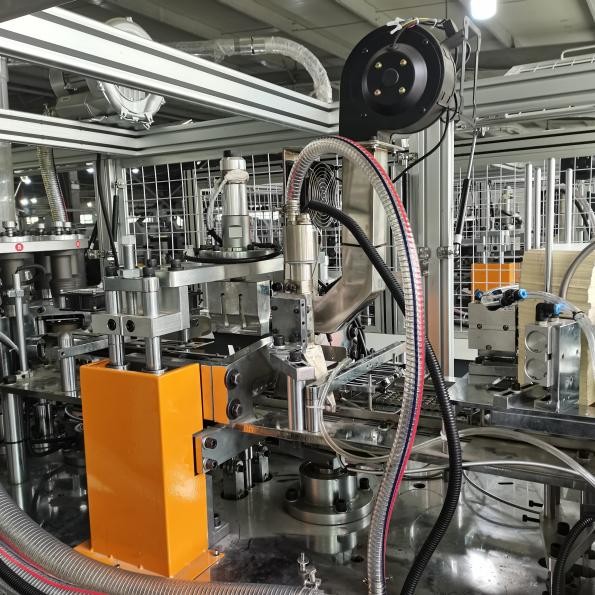

PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine 5PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine 6PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine 7
PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine 8PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine 9PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine 10PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine 11
Sample Pictures
PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine 12PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine 13
PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine 14
PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine 15
PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine 16PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine 17PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine 18
PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine 19
PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine 20
PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine 21
PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine 22
PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine 23
PRY-160S High Speed Smart Single And Double PE / PLA Paper Cup Forming Making Machine 24
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
