PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station

PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station
PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station
PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-DP16
Minimum Order Quantity: 1 Set
Price: US 7800 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Production Capacity: 90 Pcs/min Applicable Industries: Manufacturing Plant
Showroom Location: Egypt, Italy, Morocco, Algeria, South Africa Product Type: Paper Cup Machine
Weight: 2000 Kg Warranty: 1 Year
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Voltage: 380 V Power: 5.5 Kw
Dimension: 2100 X 1200 X 1800 Mm Finished Products: Paper Cup
Raw Material: Paper Material Requirements: Single Coated Paper
Paper Cup Size: 3 - 16 Oz Paper Thickness: 150 - 350 Gsm ; ± 20 Gsm
Gas Supply Requirements: 0.6 - 0.8 Mpa ; 0.4 M³/min Cup Holder Package Size: 900 X 600 X 1800 Mm
Cup Body Bonding Mode: Ultrasonic / Copper Strip (over 12 Oz With Ultrasonic) Bottom Rolling Flowers: Bottom Heating
Custom Mold: Yes
Highlight:

Fully Automatic Paper Cup Forming Machine

,

90pcs/min Paper Cup Making Machine

,

Paper Cup Machine Eight Station

PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station 0
PRY-DP16 Gear Paper Cup Machine
PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station 1
Features

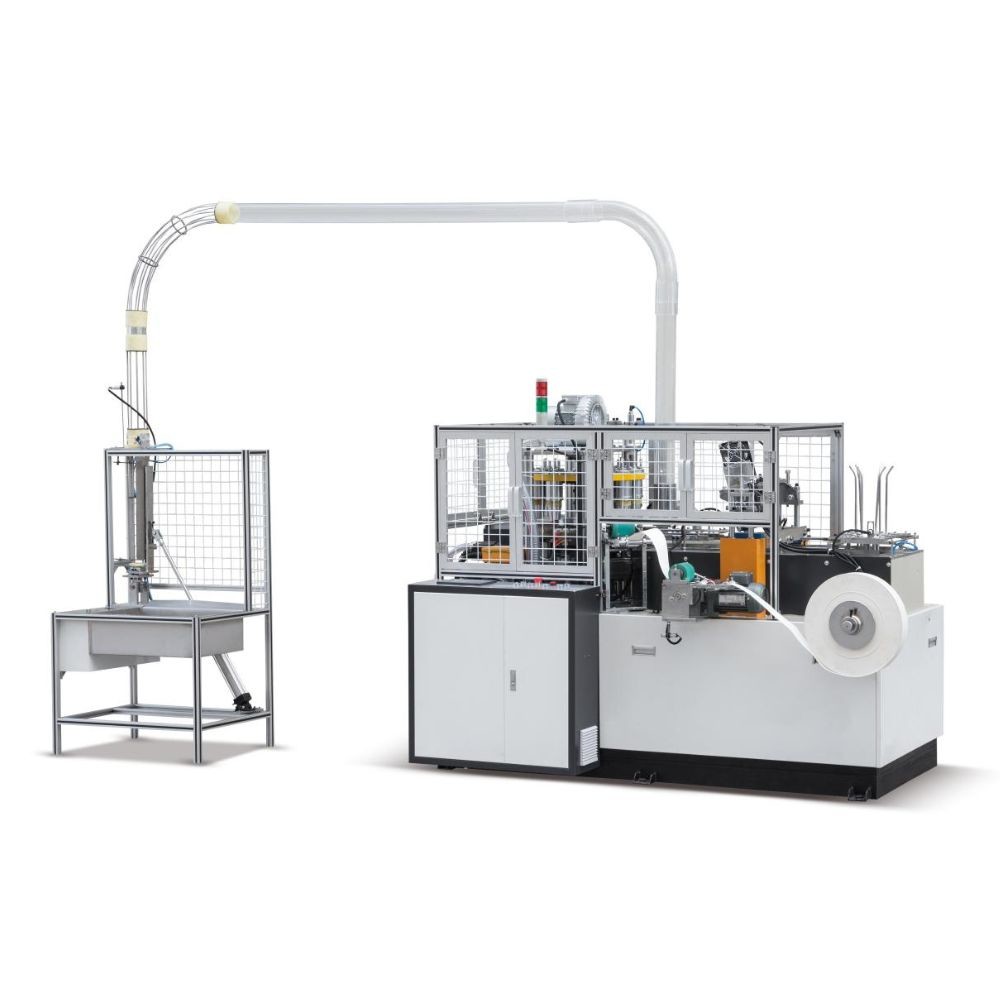

The aluminum frame guardrail and cup holder in the picture are optional.
Standard without aluminum frame guardrail and cup holder.
The working principle of the paper cup machine is that a main motor drives the whole machine to realize the perfect integration of gear and cam structure.Now the machine uses a single aluminum disk instead of the previous three-disk machine,greatly reducing the failure rate of the machine and reducing the training time for the operators.A 3-16oz odd-even shower film paper cup can be made according to customer request.Is a automatic paper cup molding equipment,through rows of automatic paper,paper device(ensure accurate positioning),ultrasonic or copper welding,mechanical paper transfer,oil injection bottom,folding,preheating, rolling,cup,unloading continuous process,can stabilize the production of different specifications of paper cup,is our company after comprehensive technical improvement to improve the stability of the paper cup equipment.
Tips:Gear paper cup machine can do 3 to 16oz paper cups,but do paper cups need to rely on molds to form,so a machine to do multi-specification paper cups,you need to add additional molds,mold a set of pictures as follows:
PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station 2
Technical Parameters
PRY-DP16 Gear Paper Cup Machine
Model
PRY-DP16
Production Speed
70-90 pcs/min
Voltage
380 V / 50 Hz
Machine Package Size
2100 x 1200 x 1800 mm
Material Requirements
Single coated paper
Power
5.5 kw
Weight
2000 Kg
Paper Cup Size
3 - 16 oz
Paper Thickness
150 - 350 gsm ; ± 20 gsm
Gas Supply Requirements
0.6 - 0.8 mpa ; 0.4 m³/min
Cup Holder Package Size
900 x 600 x 1800 mm
Cup Body Bonding Mode
Ultrasonic / Copper strip (over 12 oz with ultrasonic)
Bottom Rolling Flowers
Bottom heating
Molds can be customized according to customer requirements
PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station 3
T:45-90mm
B:35-70mm
H:32-135mm

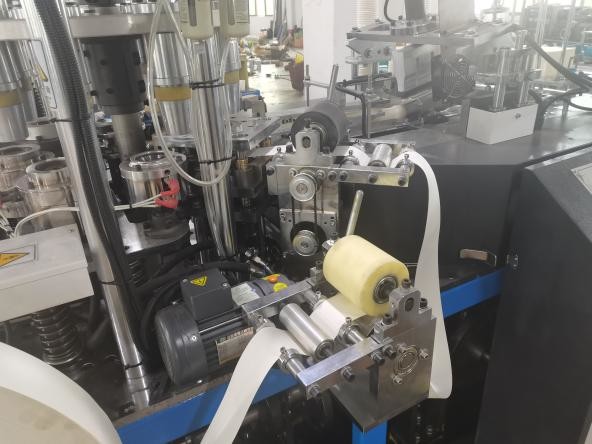

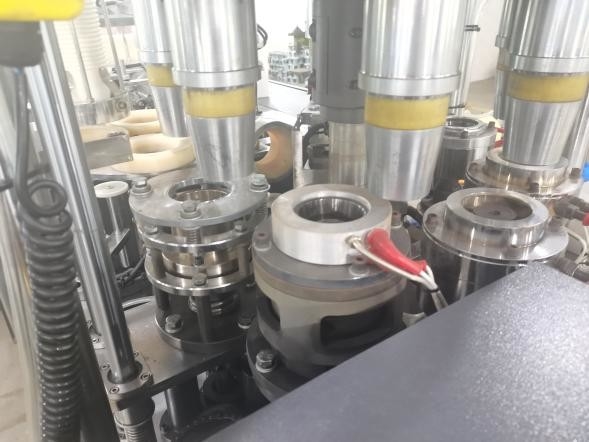

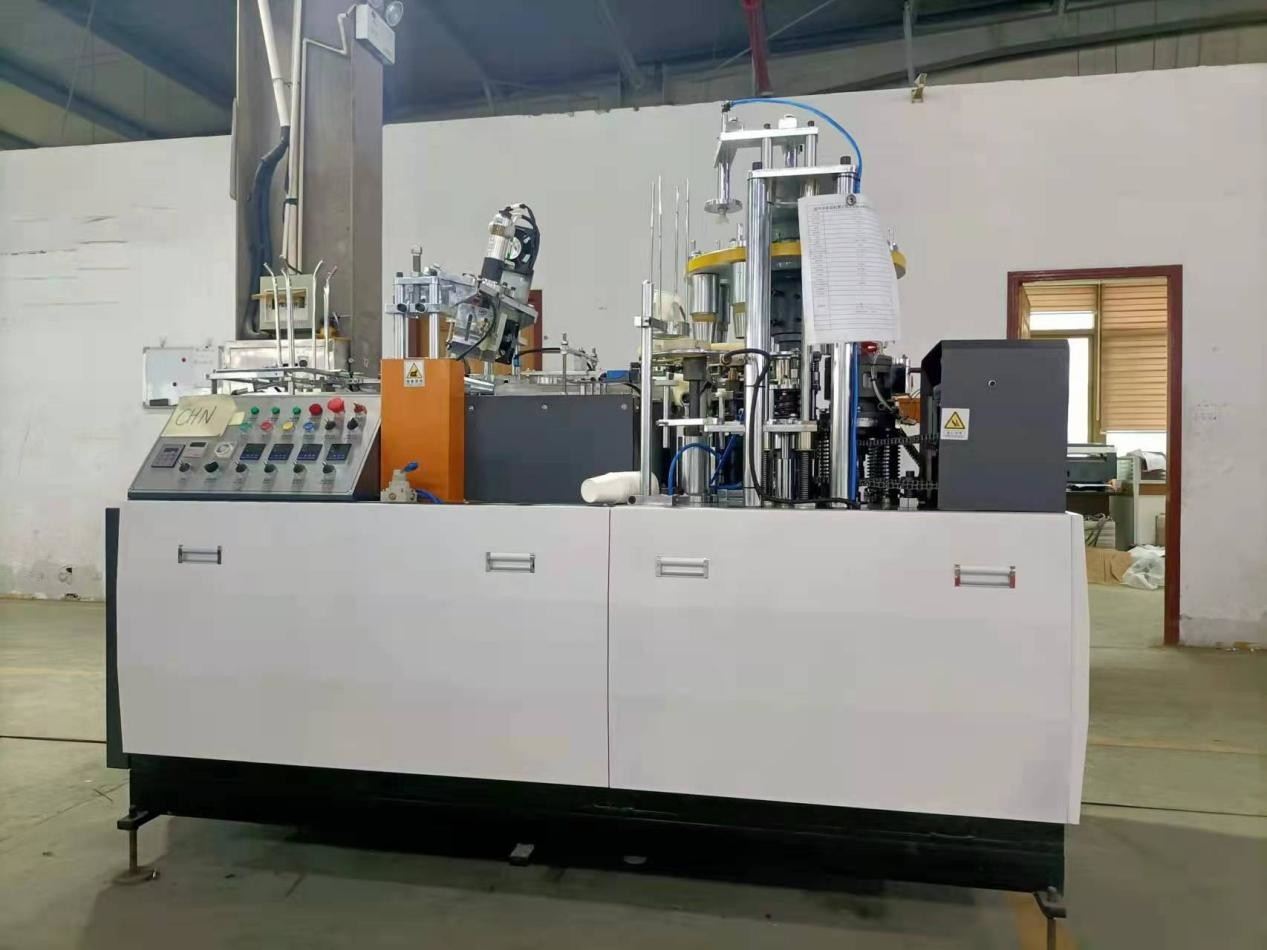

Machine Picture
PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station 4PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station 5PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station 6
PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station 7PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station 8PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station 9
PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station 10PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station 11PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station 12
Sample Pictures
PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station 13PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station 14

PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station 15
PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station 16
PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station 17PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station 18PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station 19
PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station 20
PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station 21
PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station 22
PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station 23
PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station 24
PRY-DP16 Fully Automatic Gear Paper Cup Forming Making Machine Eight Station 25
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
