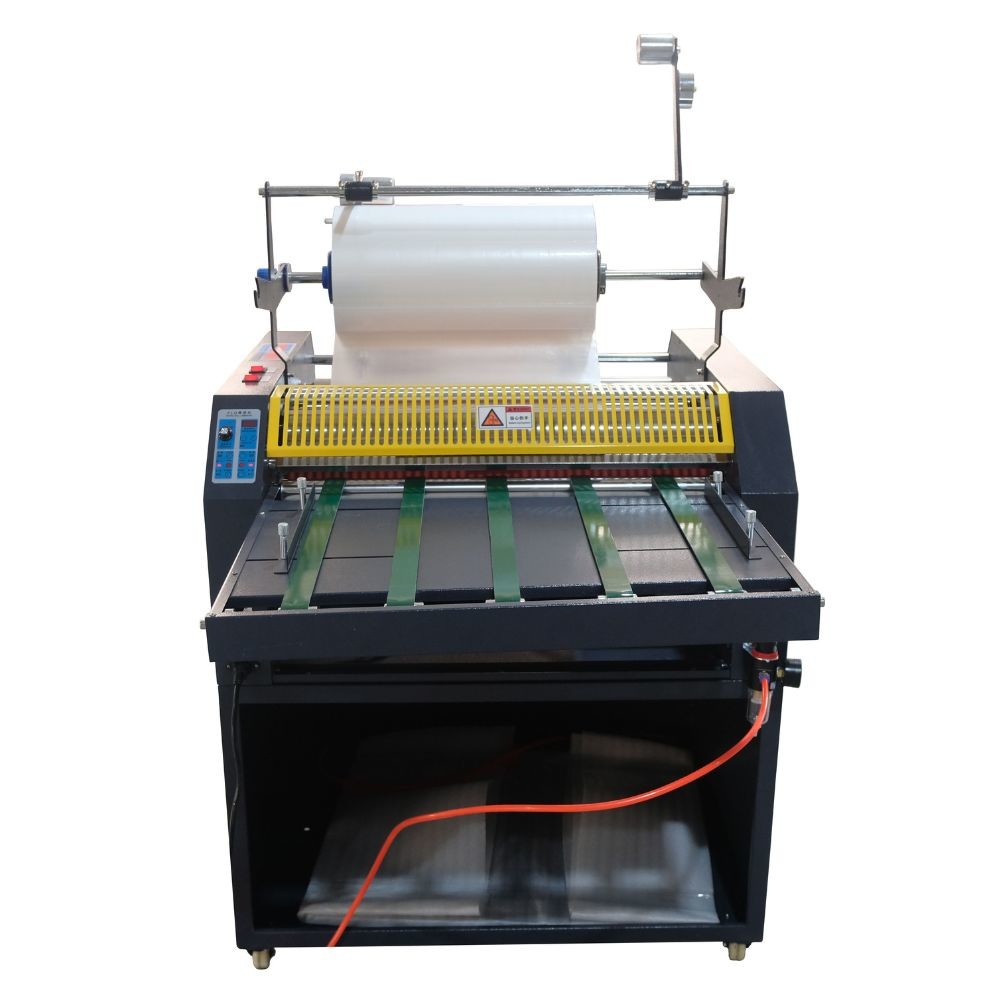

SMFM-650D Semi Automatic Digital Oil Heating Automatic Cut Film Laminator With Overlap Function

SMFM-650D Semi Automatic Digital Oil Heating Automatic Cut Film Laminator With Overlap Function
SMFM-650D Semi Automatic Digital Oil Heating Automatic Cut Film Laminator With Overlap Function
SMFM-650D Semi Automatic Digital Oil Heating Automatic Cut Film Laminator With Overlap Function SMFM-650D Semi Automatic Digital Oil Heating Automatic Cut Film Laminator With Overlap Function SMFM-650D Semi Automatic Digital Oil Heating Automatic Cut Film Laminator With Overlap Function SMFM-650D Semi Automatic Digital Oil Heating Automatic Cut Film Laminator With Overlap Function
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: SMFM-650D
Minimum Order Quantity: 1 Set
Price: US 1800 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Driven Type: Electric Applicable Industries: Manufacturing Plant
Showroom Location: Egypt, Italy, Morocco, Algeria, South Africa Video Outgoing-inspection: Provided
Machinery Test Report: Provided Weight: 150 KG
Warranty: 1 Year Type: Laminating Machine
Condition: New Automatic Grade: Semi-automatic
Voltage: 220 V Dimension: 1.6 * 0.92 * 1.2 M
Max Paper Size: 630 * 570 Mm Mini Paper Size: 150 * 150 Mm
Operating Speed: 0 - 13 M/min Laminating Temperature: 50 - 120 ℃
Total Power: 2 Kw Pressure: 0.1 ~ 0.5 MPa
Paper Thickness: 125 ~ 350 Gsm Feeding Mode: By Hands
Highlight:

Automatic Cut Film Laminator

,

Overlap Function Cut Film Laminator

,

Digital Oil Heating Film Laminating Machine

SMFM-650D Semi Automatic Digital Oil Heating Automatic Cut Film Laminator With Overlap Function 0
SMFM-650D Digital Film Laminating Machine
SMFM-650D Semi Automatic Digital Oil Heating Automatic Cut Film Laminator With Overlap Function 1
SMFM-650D Semi Automatic Digital Oil Heating Automatic Cut Film Laminator With Overlap Function 2SMFM-650D Semi Automatic Digital Oil Heating Automatic Cut Film Laminator With Overlap Function 3SMFM-650D Semi Automatic Digital Oil Heating Automatic Cut Film Laminator With Overlap Function 4
Features

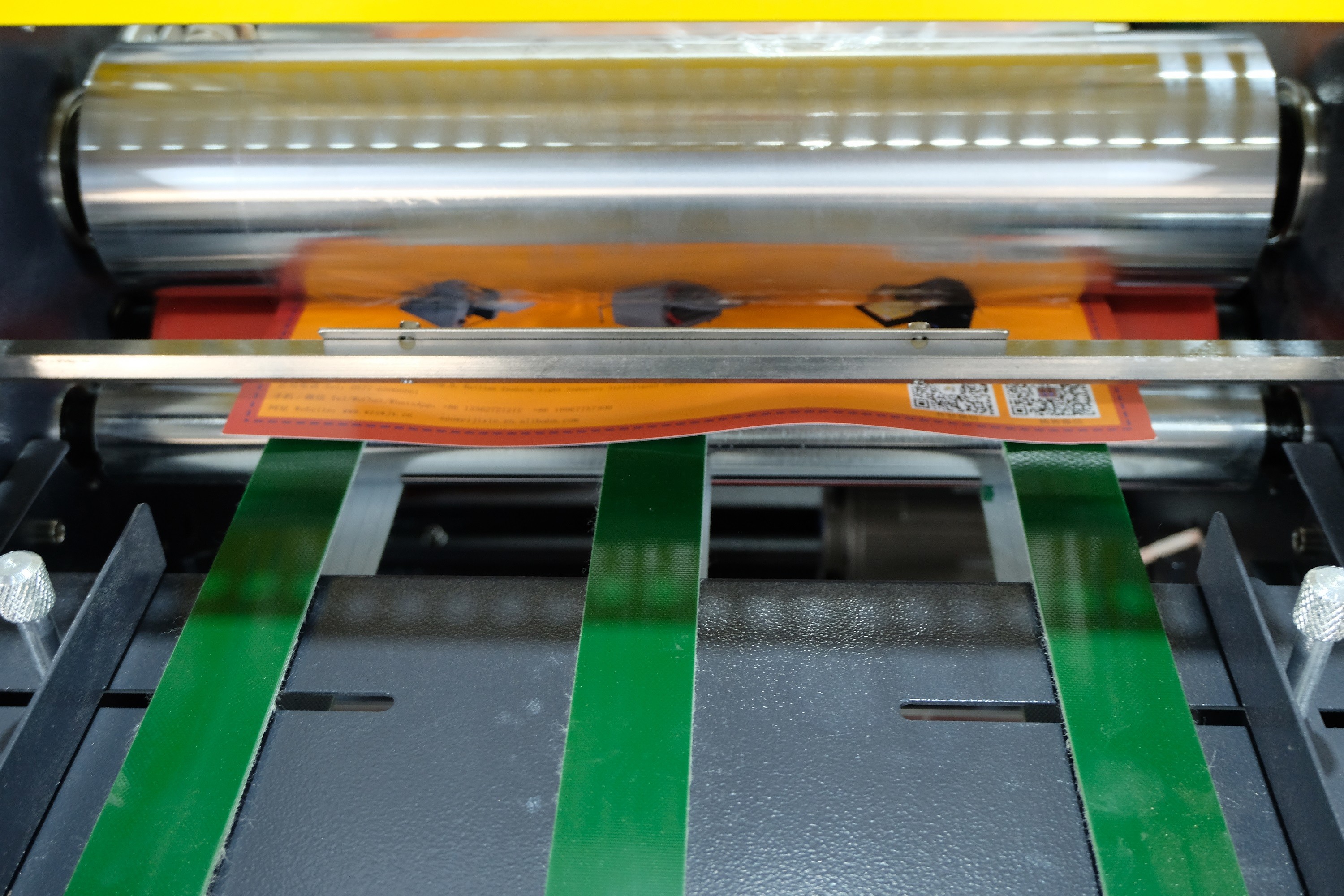

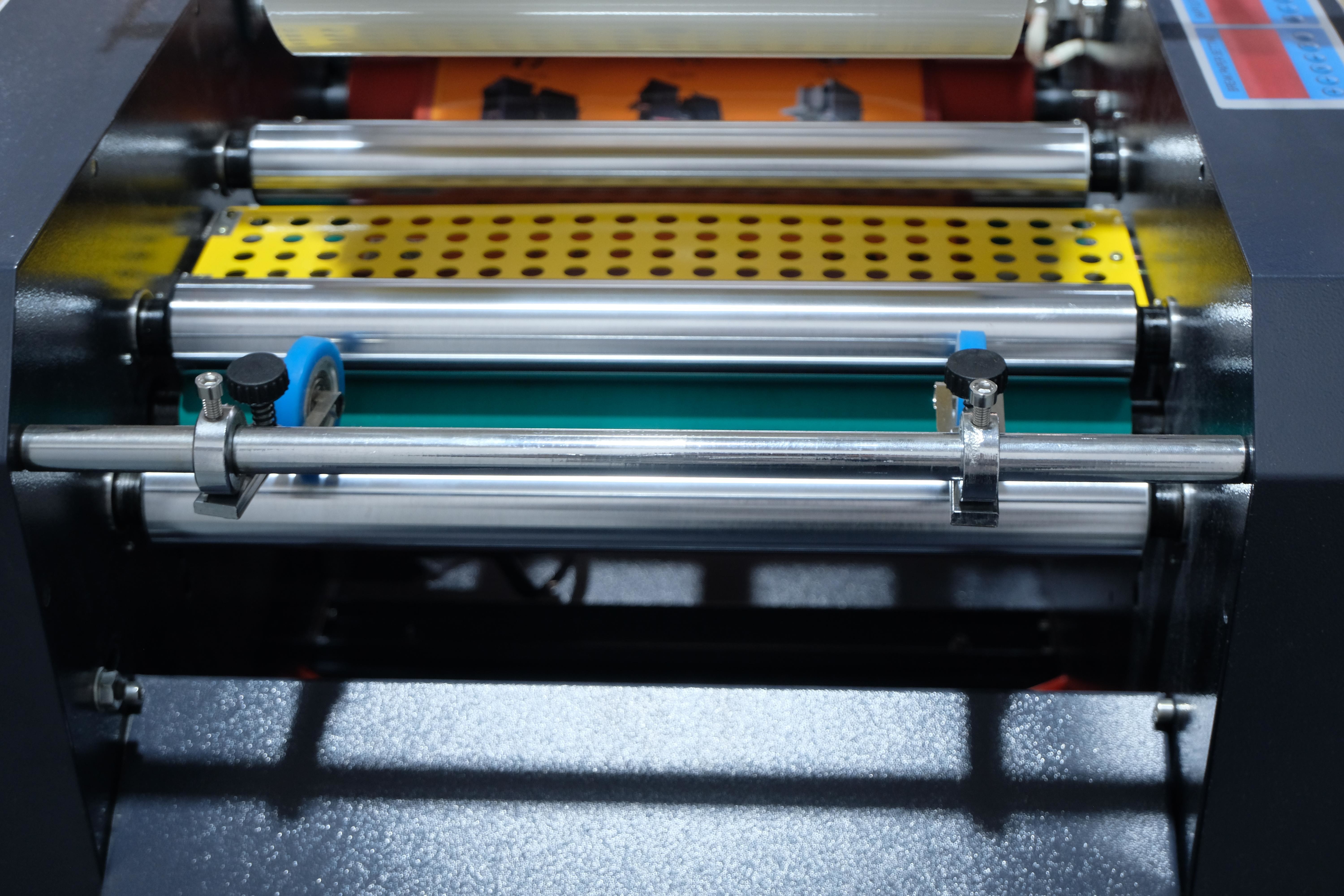

What we are showing you now is model digital 650D.This model max paper width is 630 millimeter.Length is not limited.All machines’ heating rollers of our company are equipped with oil heating system,which can solve the problem that Allover black,red and green and will not appear white spots.Other companies are using electric heating in heating system. Electric heating will appear white spots.The pressure uses pneumatic pressure.Manual feed and automatic cut.This model uses Speed regulating motor.The speed is 13 meters per minute.And our machine has Anti-curl function. Thinner paper after laminating will not curl.
Technical Parameters
SMFM-650D Digital Film Laminating Machine
Model
SMFM - 650D
Max Paper Size
630 x 570 mm
Mini Paper Size
150 x 150 mm
Operating Speed
0 - 13 m/min
Laminating Temperature
50 - 120 ℃
Total Power
2 kw
Dimensions(LxWxH)
1.6 x 0.92 x 1.2 m
Pressure Mode
pneumatic pressure
Pressure
0.1 ~ 0.5 MPa
Voltage
220 V/50 Hz
Feeding Mode
by hands
With Overlap
with
With Slitting Function
with
Anti-Curl Function
with
Rolling-Up After Laminating
No
Automatic Disconnecting After Laminating
Yes
Paper Thickness
125 ~ 350 gsm



SMFM-650D Semi Automatic Digital Oil Heating Automatic Cut Film Laminator With Overlap Function 5
SMFM-650D Semi Automatic Digital Oil Heating Automatic Cut Film Laminator With Overlap Function 6
SMFM-650D Semi Automatic Digital Oil Heating Automatic Cut Film Laminator With Overlap Function 7
SMFM-650D Semi Automatic Digital Oil Heating Automatic Cut Film Laminator With Overlap Function 8
SMFM-650D Semi Automatic Digital Oil Heating Automatic Cut Film Laminator With Overlap Function 9
SMFM-650D Semi Automatic Digital Oil Heating Automatic Cut Film Laminator With Overlap Function 10
SMFM-650D Semi Automatic Digital Oil Heating Automatic Cut Film Laminator With Overlap Function 11
SMFM-650D Semi Automatic Digital Oil Heating Automatic Cut Film Laminator With Overlap Function 12
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
