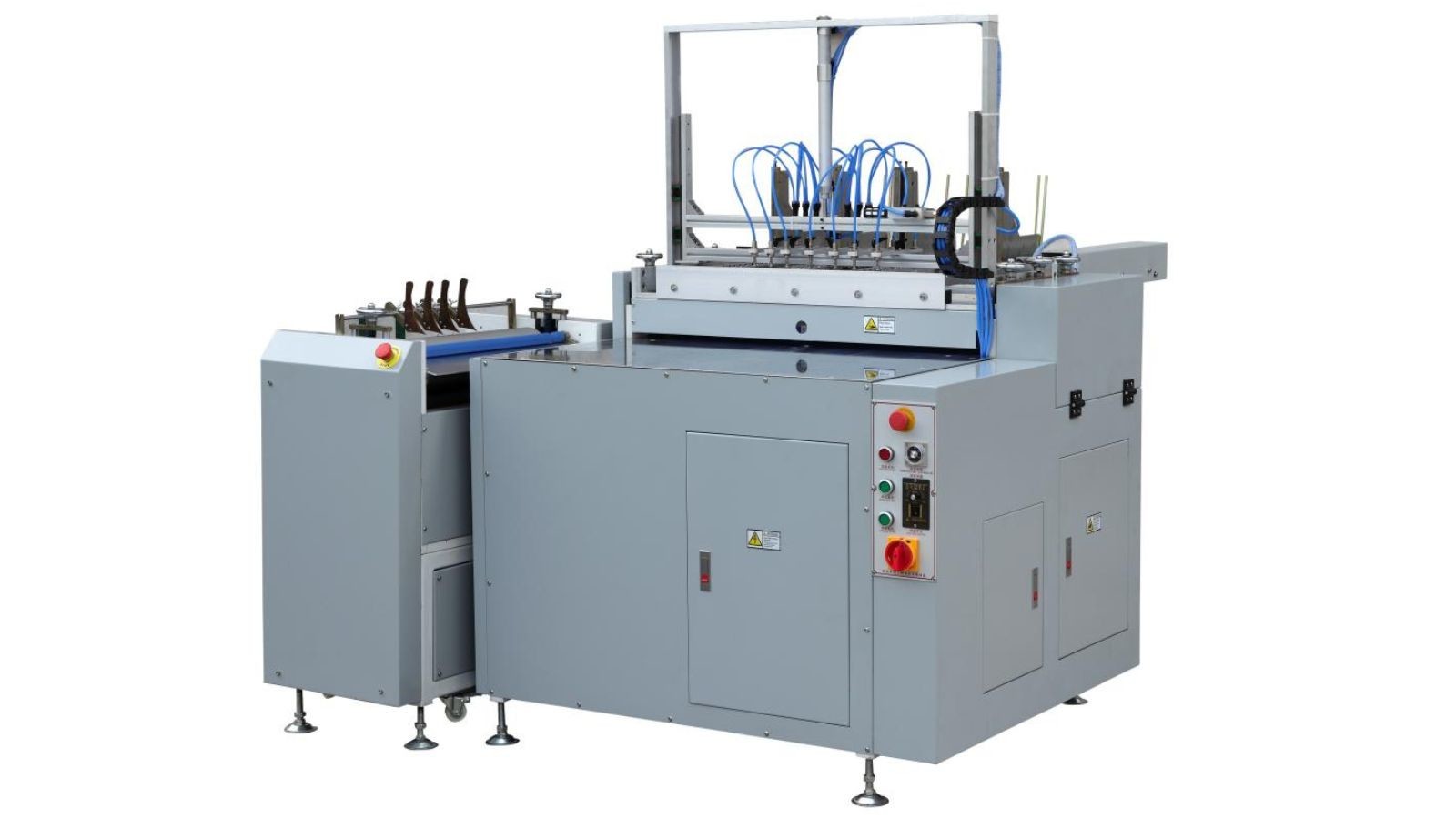

Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480

Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480
Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480
Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480 Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-C480
Minimum Order Quantity: 1 Set
Price: US 9980 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Applicable Industries: Manufacturing Plant Showroom Location: Egypt, Italy, Morocco, Algeria, South Africa
Condition: New Product Type: Hardcover Making Machine
Place Of Origin: Zhejiang, China Weight: 650 Kg
Warranty: 1 Year Machinery Test Report: Provided
Video Outgoing-inspection: Provided Voltage: 380V
Power: 6.5 Kw Dimension: 1600 * 1750 * 1600 Mm
Finished Products: Hardcover Raw Material: Paper
Power Supply: 3 Phases 380 V / 50 Hz Work Speed: 3-9 Pcs/minute
Case Size (Maximum): 760 * 450 Mm Case Size (Minimum): 140 * 140 Mm
Machine Dimensions: 1600 * 1750 * 1600 Mm Paper Thickness: 80-175 G
Highlight:

Book Hard Cover Case Maker

,

Book Cover Case Making Machine 6.5kw

Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480 0

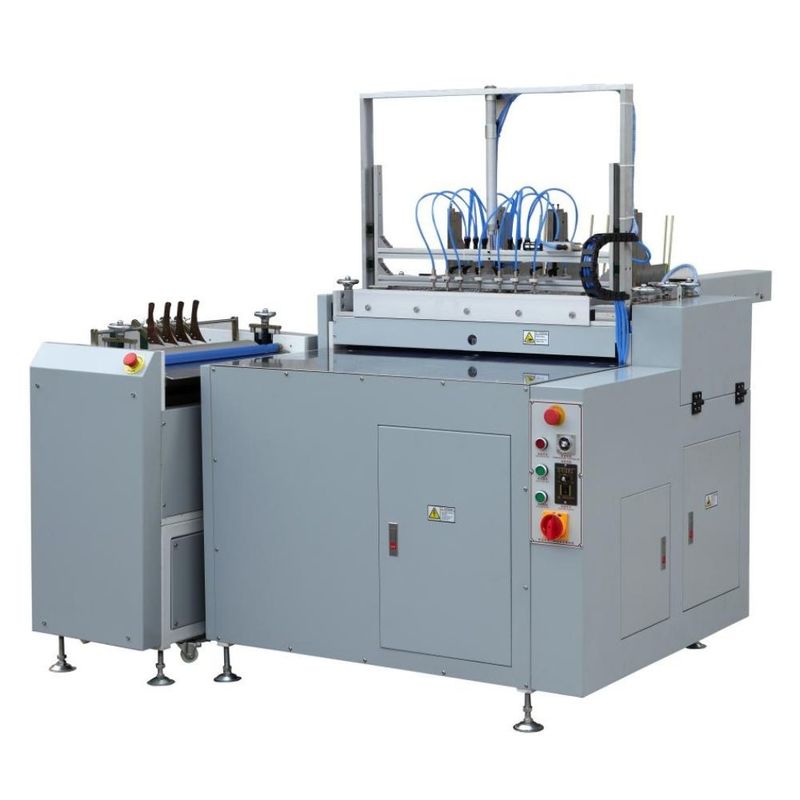

PRY-C480 Semi-Automatic Case-Maker
Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480 1
This machine is composed by three parts of a gluing,folding flattening and electrical cabinet
Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480 2
4.1 As shown in the main power switch is used to turn the machine power on or turn it off.
4.2 Gluing roller power switch is used to the gluing roller run and stop.The gluing roller speed is adjusted by the knob.(Caution:The speed adjustment knob can not leave on the 70% position for long tine.It will reduce the lift of speed controller if keep 70% position with a long time).
4.3 Glue tank temp.controller is for the glue temperature control.It will be set in 65~75℃ in general but it may be increased or reduced properly according to the glue melting point and the weather changing.
4.4 Heater start switch is for the glue tank heating control.
4.5 Folding roller run switch is for tuming folding roller on or off.
4.6 Suction switch is used to the suction control.
Notice:The button and switch on the panel except the main power switch are individually controlled,the relation section can be turn on or off individually and regardless of order.
Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480 3Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480 4Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480 5
5.1 There are two adjusting knob on the right and left sides.They are used to adjust the glue thickness that is gluing on the paper.The glue thickness is needed to adjust according to the product requirement.
5.2 The picture above is glue bucket.It includes two parts.One is for the glue and another is for the water.
5.3 The water tank valve shown in the picture above is for cleaning glue.The hot water from the tank can clean the machine.
5.4 The bucket valve is for open and closes the glue supply.
5.5 The heater shown in the picture is for heating water and then melt the glue in the bucket.Its power is 6KW.
5.6 The temperature detect sensor shown in the picture above is for detecting the water temperature in the tank and then control it.
5.7 Adding glue pot,the water by heating to melt glue pot.
5.8 The water filling inlet is to fill additional water into glue tank.
Note:It is important to check the water level in the water tank and make sure it has enough water there before run the machine.There are the heaters installed in glue bucket and glue tank.Otherwise,the heater may be easy to damage.
Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480 6Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480 7
6.1 The vacuum generator is shown in the picture.It generates the vacuum for the suction.
6.2 There are two sensors installed in the front shown in the picture and inside.These two sensors control the flatten roller forward and reverse running when do the folding.They are needed cleaning often to avoid their reaction reduce or fail due to the dust.
6.3 The folding pull finger located between the folding rollers is for the folding function.
6.4 The air filter is located under the working table.Its working pressure is bigger than 0.6kg/c㎡.It needs to lubricate and also exhaust water everyday from it.Keep the air dry and long life the pneumatic parts.
Mode
Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480 8Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480 9
Normal operation,each time into the hem,                    When put Flap,only every two long sides folded,
each time in front of it.                                               out from behind.
Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480 10Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480 11
Flatten work,put off every time,directly out from the     When you first folded out from the front on both sides,
rear,only to flatten.                                                     the second fold,from behind a finished finished.
Technical Parameters
PRY-C480 Semi Automatic Case Maker
Model
PRY-C480
Power Supply
3 phases 380 V / 50 Hz
Mainframe Power
6.5 KW
Work Speed
3-9 pcs/minute
Case Size(Maximum)
760 × 450 mm
Case Size(Minimum)
140 × 140 mm
Machine Dimensions
1600 × 1750 × 1600 mm
Paper Thickness
80-175 g
Machine Weight
650 kg

Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480 12
Product Requirements
When the paper thickness is less than 157gsm,the A area need to keep around 15mm,if the paper thickness is more than 157gsm, the A area need to correspond to big,if the paper thickness is more than 200gsm,the A area can not be less than 20mm.otherwise,the edge can not be folded.
Configuration
Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480 13
Gluing Part:There are two adjusting knob on the right and left sides.They are used to adjust the glue thickness that is gluing on the paper.The glue thickness is needed to adjust according to the product requirement.
Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480 14
There are two sensors installed in the front shown in the picture and inside.These two sensors control the flatten roller forward and reverse running when do the folding.They are needed cleaning often to avoid their reaction reduce or fail due to the dust.
Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480 15
The vacuum generator is shown in the picture.It generates the vacuum for the suction.
Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480 16
The folding pull finger located between the folding rollers is for the folding function.
Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480 17
Electrical cabinet.
Applications
This machine is the most applicable to various notebook,(photo album),folder, certificate, hardcover book,shell for folding(covering)and pressing,twice finished on both sides,one operator,forthright,Covers an area of small space,is post-press especially digital post-press good partner.

Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480 18
Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480 19
Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480 20
Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480 21
Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480 22
Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480 23
Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480 24
Semi Automatic Hard Leather Book Hard Cover Case Maker Machine PRY-C480 25
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
