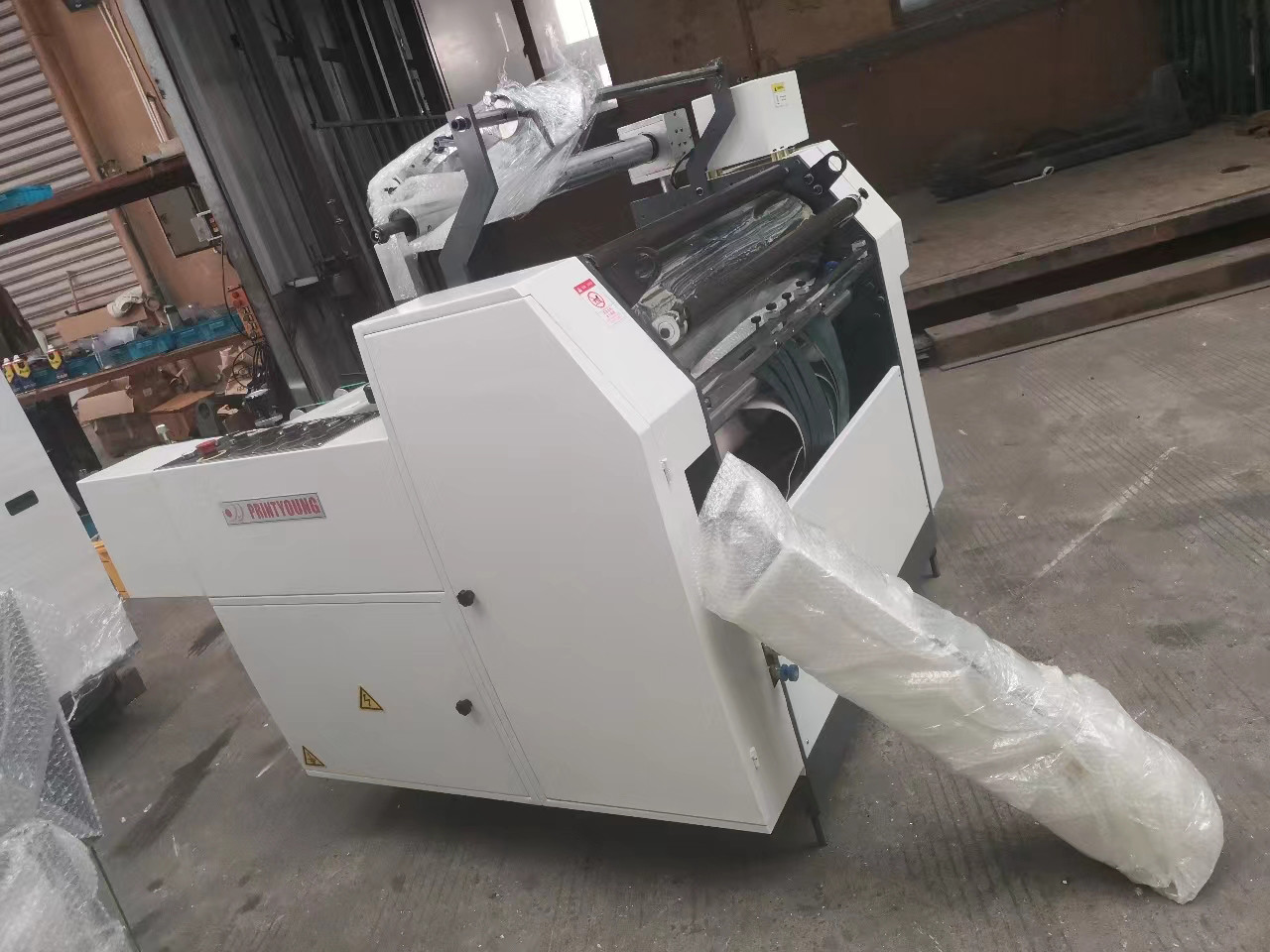

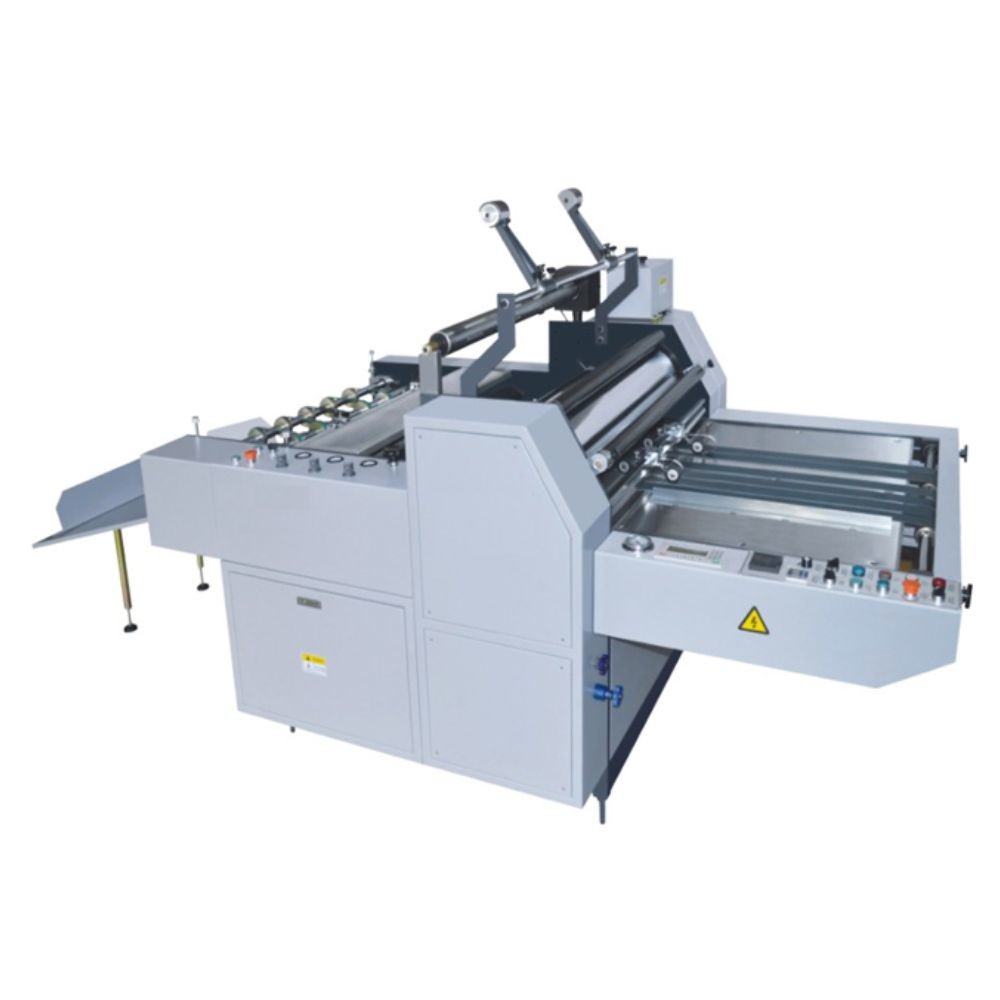

YFMB Semi Automatic Hydraulic Pressure System Both Pre-Glued And Glue-Less Film Laminating Machine

YFMB Semi Automatic Hydraulic Pressure System Both Pre-Glued And Glue-Less Film Laminating Machine
YFMB Semi Automatic Hydraulic Pressure System Both Pre-Glued And Glue-Less Film Laminating Machine
YFMB Semi Automatic Hydraulic Pressure System Both Pre-Glued And Glue-Less Film Laminating Machine YFMB Semi Automatic Hydraulic Pressure System Both Pre-Glued And Glue-Less Film Laminating Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: YFMB
Minimum Order Quantity: 1 Set
Price: US 8900-9900 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Driven Type: Electric Applicable Industries: Manufacturing Plant
Showroom Location: Egypt, Italy, Morocco, Algeria, South Africa Video Outgoing-inspection: Provided
Machinery Test Report: Provided Warranty: 1 Year
Type: Laminating Machine Condition: New
Application: Commodity Automatic Grade: Semi-automatic
Voltage: 380 V Max Speed: 0-30 M/min
Laminating Temperature: ≤130℃ Paper Weight: 127 - 450 Gsm
Highlight:

30m/min Hydraulic Pressure System

,

Film Laminating Hydraulic Pressure System

YFMB Semi Automatic Hydraulic Pressure System Both Pre-Glued And Glue-Less Film Laminating Machine 0
YFMB Semi Automatic Laminating machine
YFMB Semi Automatic Hydraulic Pressure System Both Pre-Glued And Glue-Less Film Laminating Machine 1
Features
YFMB series of semi-auto laminating machine is a competitive laminator which is designed and manufactured elaborately based on the combination of advanced technology of the international similar products and the manufacturing experience of about 30 years.It is of high technical content,excellent quality and original appearance.This machine is a kind of dual-function product which is for both pre-glued and glue-less film.It is of compact structure,easy operation and high degree of auto matization.All the main components adopt the international noted brands.The electrical and pneumatic devices are controlled by PLC system,and can be operated by only one person.The operator can realize both laminating and separating processes at the same time as long as the size of workable paper is input on the text screen.
Technical Parameters
YFMB Film Laminating machine
Model
YFMB-720A
 YFMB-920A YFMB-1100A
Max Laminating Size
680 mm
 880 mm 1040 mm
Max Speed
0-30 m/min
 0-30 m/min 0-30 m/min
Laminating Temperature
≤130℃
 ≤130℃ ≤130℃
Paper Weight
127-450 gsm
 127-450 gsm 127-450 gsm
Power
13 KW
 15 KW 16 KW
Total Weight
1600 kg
 1800 kg 2000 kg
Overall Dimensions
4000*1500*1600mm
 4200*1700*1600mm 4000*1900*1600mm
Configuration
YFMB Semi Automatic Hydraulic Pressure System Both Pre-Glued And Glue-Less Film Laminating Machine 2
1.Omron frequency converter is equipped for infinitely variable speed,and the operator can change the machine's speed easily and guarantee the machine's running stable.
2.One-piece construction design makes the machine run more stably,and lengthens the machine's lifetime.
3.Manual paper feeding.
4.Magnetic regulating plate can be adjusted easily to regulate manual paper feeding.
5.High precision of chrome plated heating roller is equipped with built-in oil heating system,which has excellent performance to temperature control.The laminating temperature is adjustable upon applications.
6.Hydraulic pressuring system provides big and steady pressure to guarantee good laminating quality.
7.Air expansion shaft releases film,and precisionizes film release,and also makes the loading and unloading of film roll more convenient.
8.The combination of air expansion shaft and braking device can adjust film release tension and speed.
9.Film cutter cuts film width to make it meet paper size.The cut film is left on the film release spindle.
10.Film perforating wheel perforates film edge for the automatic cut of laminated paper.
11.Anti-curvature device:when going through anti-culrature device,the laminated paper shall be leveled at conce and wont curve again after cut.
12.Pneumatic cutting system realizes automatic paper cut as long as the operator inputs the wirkable paper size on the text screen.
13.The cut paper is sent to paper receiving table.And the table height is adjustable upon applications.
Applications
To suit two kinds of film:pre-glued film and glue-less film.

YFMB Semi Automatic Hydraulic Pressure System Both Pre-Glued And Glue-Less Film Laminating Machine 3
YFMB Semi Automatic Hydraulic Pressure System Both Pre-Glued And Glue-Less Film Laminating Machine 4
YFMB Semi Automatic Hydraulic Pressure System Both Pre-Glued And Glue-Less Film Laminating Machine 5
YFMB Semi Automatic Hydraulic Pressure System Both Pre-Glued And Glue-Less Film Laminating Machine 6
YFMB Semi Automatic Hydraulic Pressure System Both Pre-Glued And Glue-Less Film Laminating Machine 7
YFMB Semi Automatic Hydraulic Pressure System Both Pre-Glued And Glue-Less Film Laminating Machine 8
YFMB Semi Automatic Hydraulic Pressure System Both Pre-Glued And Glue-Less Film Laminating Machine 9
YFMB Semi Automatic Hydraulic Pressure System Both Pre-Glued And Glue-Less Film Laminating Machine 10
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
