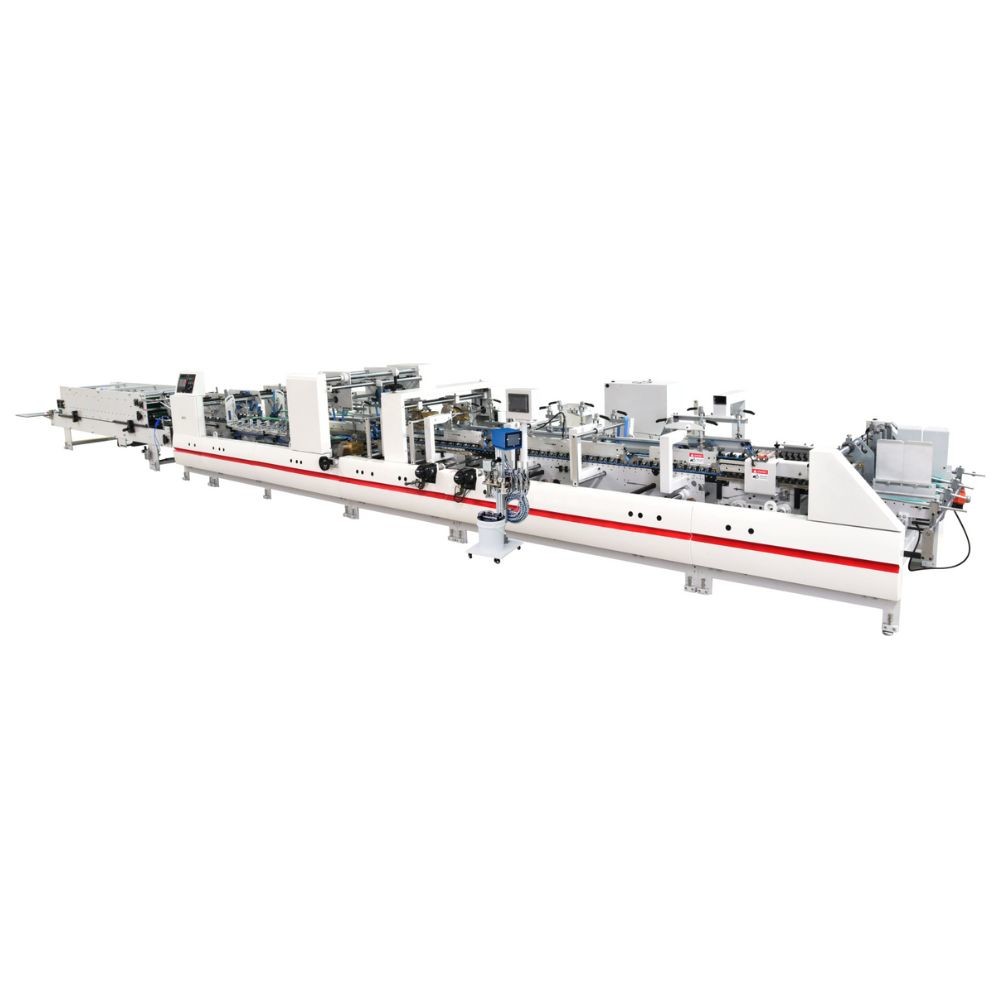

4 / 6 Corners Box Folder Gluer Machine Automatic Straight Line Lock Bottom PRY-850IV/1100IV

4 / 6 Corners Box Folder Gluer Machine Automatic Straight Line Lock Bottom PRY-850IV/1100IV
4 / 6 Corners Box Folder Gluer Machine Automatic Straight Line Lock Bottom PRY-850IV/1100IV
4 / 6 Corners Box Folder Gluer Machine Automatic Straight Line Lock Bottom PRY-850IV/1100IV 4 / 6 Corners Box Folder Gluer Machine Automatic Straight Line Lock Bottom PRY-850IV/1100IV 4 / 6 Corners Box Folder Gluer Machine Automatic Straight Line Lock Bottom PRY-850IV/1100IV 4 / 6 Corners Box Folder Gluer Machine Automatic Straight Line Lock Bottom PRY-850IV/1100IV
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-850IV/1100IV
Minimum Order Quantity: 1 Set
Price: US 58000-65000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Product's Width: 125-850mm / 125-1100mm Outer Dimension: 15.8×1.4×1.4m / 15.2×2×1.5m
Glue: Solute Property Total Weight: 9T / 10.2T
Highlight:

Lock Bottom Automatic Gluing Machine

,

6 Corners Box Folder Gluer Machine

,

Automatic Straight Line Folder Gluer Machine

4 / 6 Corners Box Folder Gluer Machine Automatic Straight Line Lock Bottom PRY-850IV/1100IV 0
PRY-850IV/1100IV Automatic Folder Gluer Machine
4 / 6 Corners Box Folder Gluer Machine Automatic Straight Line Lock Bottom PRY-850IV/1100IV 1
Features
1.The machine is unit-type structure,which can work in with other function structures.
2.The host is controlled by computer with wireless remote device and improved the operations flexibility.
3.The machine adopts below outsourcing packed belts and you can change belts easily without tearing down shafts.
4.Feeder,host and delivery systems are controlled by inverters and they can run together or one runs.
5.The steel plates are 20mm,and it makes sure the machine with high speed and no shaking.
6.All the adjusting plates are automatic.
7.The feeding belt is Japan original Nitta belts.
8.The machine has worm-driving system,which can run more than 15 years.
Technical Parameters
PRY-850IV
Gluing Type
Normal edge gluing
Bottom gluing
Both sides gluing
4 points gluing
6 points gluing
Max Box Size
850×800
850×600
550×650
750×600
750×600
Min Box Size
120X60
140×80
190×110
180×130
180×130

PRY-1100IV

Box Type Paper Size (W x L)
(straight line) Max 1100×800 mm Min:150×80 mm
(lock bottom) Max 1100×800 mm Min:280×80 mm
(6-corner box) Max 1100 mm Min:160 mm
(4-corner box) Max 1100 mm Min:160 mm
Paper weight corrugated carton, paper cardboard, Flute E, C, F
Max speed 350m/min
Overall dimension 15200 (L) ×2000 (W) ×1500mm(H)
Weight 10200Kg
Power consumption 18KW
Box Type

Side Gluing,Lock Bottom,4&6 points box,double sides boxes,

cone-shape boxes,other boxes which will be added the same moulds.
Configuration
4 / 6 Corners Box Folder Gluer Machine Automatic Straight Line Lock Bottom PRY-850IV/1100IV 2

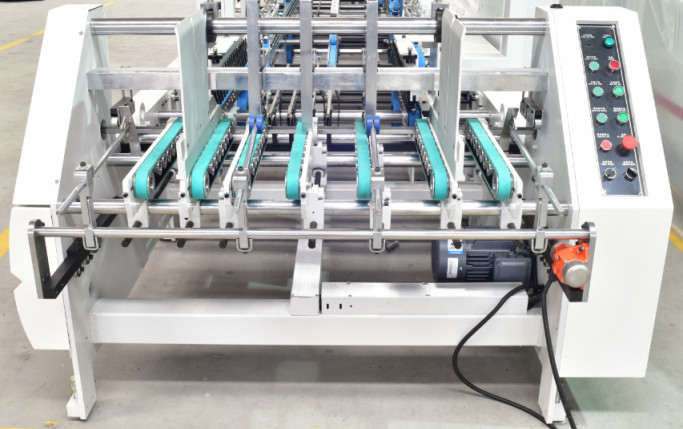

Feeder

*Swiss NITTA feeding belts
*Equipped with adjustable feeding knives
*Equipped with vibrator motor
*Equipped with Japanese infinite speed regulator
4 / 6 Corners Box Folder Gluer Machine Automatic Straight Line Lock Bottom PRY-850IV/1100IV 3

4&6 Corners Section

*This section is installed in a stand,according to the folding size,set up and rotate the hook height.
*Inner couriers are adjusted by motors.
4 / 6 Corners Box Folder Gluer Machine Automatic Straight Line Lock Bottom PRY-850IV/1100IV 4

Lower Gluer

*Lower gluing tank both at left and right
*Multi-layer sealing anti-leaking device is used in shaft core
*Stainless steel gluing wheel is used
4 / 6 Corners Box Folder Gluer Machine Automatic Straight Line Lock Bottom PRY-850IV/1100IV 5

Folding Section

*Special long folding section,boxes can be well folded and formed in this section.
*Inner couriers are adjusted by motors
*Rail-guide for belts are used to avoid belts going to sides.
*NITTA folding belts
4 / 6 Corners Box Folder Gluer Machine Automatic Straight Line Lock Bottom PRY-850IV/1100IV 6

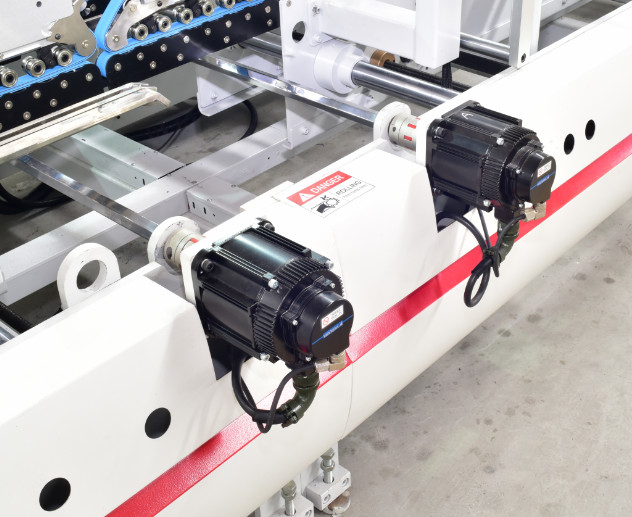

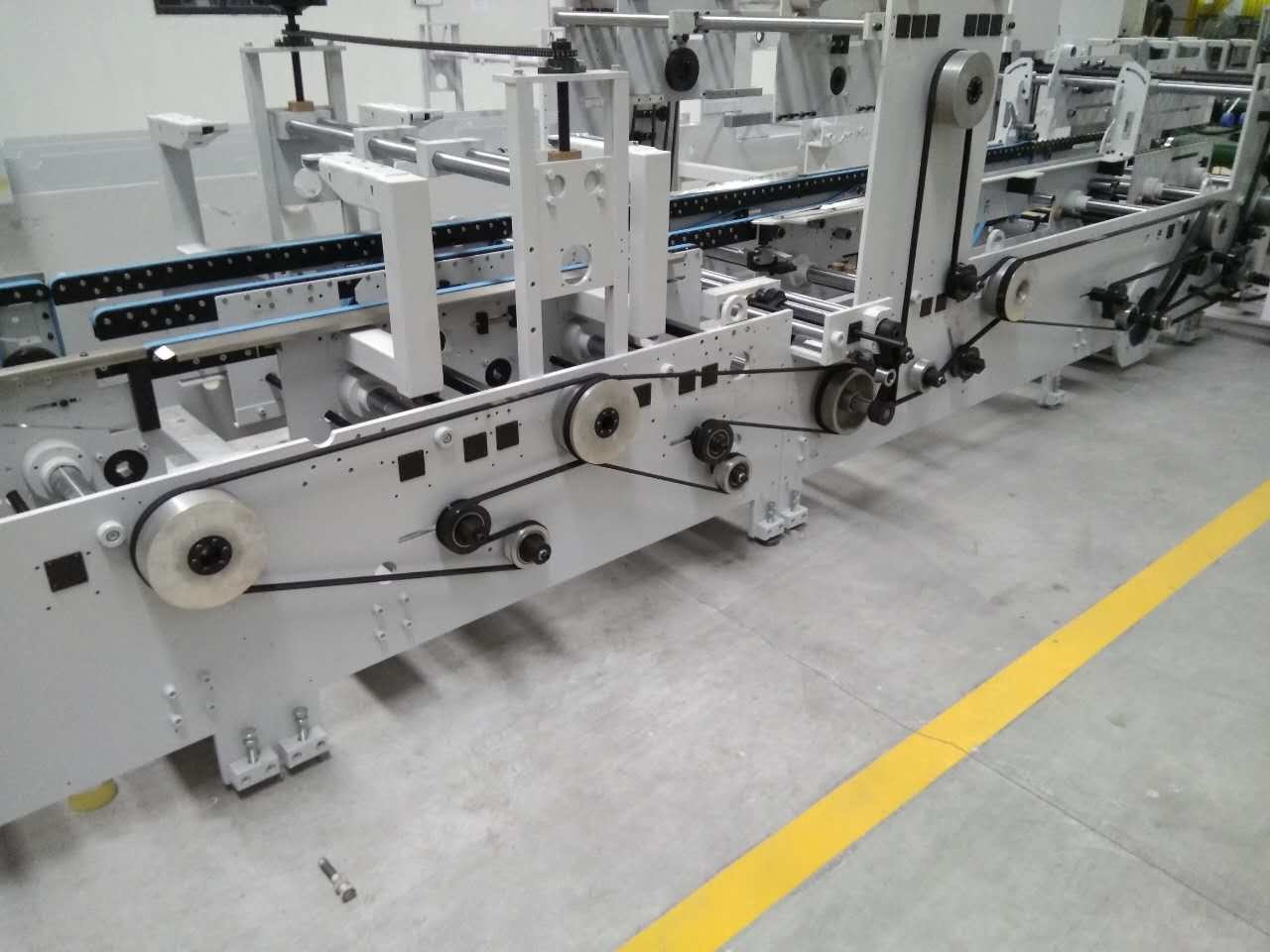

Driving System the Same as BOBST

The same as BOBST
4 / 6 Corners Box Folder Gluer Machine Automatic Straight Line Lock Bottom PRY-850IV/1100IV 7

Register System

It corrects the feeding paper smoothly
Applications
4 / 6 Corners Box Folder Gluer Machine Automatic Straight Line Lock Bottom PRY-850IV/1100IV 8 4 / 6 Corners Box Folder Gluer Machine Automatic Straight Line Lock Bottom PRY-850IV/1100IV 9 4 / 6 Corners Box Folder Gluer Machine Automatic Straight Line Lock Bottom PRY-850IV/1100IV 10
4 / 6 Corners Box Folder Gluer Machine Automatic Straight Line Lock Bottom PRY-850IV/1100IV 11
4 / 6 Corners Box Folder Gluer Machine Automatic Straight Line Lock Bottom PRY-850IV/1100IV 12
4 / 6 Corners Box Folder Gluer Machine Automatic Straight Line Lock Bottom PRY-850IV/1100IV 13
4 / 6 Corners Box Folder Gluer Machine Automatic Straight Line Lock Bottom PRY-850IV/1100IV 14
4 / 6 Corners Box Folder Gluer Machine Automatic Straight Line Lock Bottom PRY-850IV/1100IV 15
4 / 6 Corners Box Folder Gluer Machine Automatic Straight Line Lock Bottom PRY-850IV/1100IV 16
4 / 6 Corners Box Folder Gluer Machine Automatic Straight Line Lock Bottom PRY-850IV/1100IV 17
4 / 6 Corners Box Folder Gluer Machine Automatic Straight Line Lock Bottom PRY-850IV/1100IV 18
4 / 6 Corners Box Folder Gluer Machine Automatic Straight Line Lock Bottom PRY-850IV/1100IV 19
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
