Automatic Straight Line Carton Box Folder Gluer Machines High Speed ZH-1300

Automatic Straight Line Carton Box Folder Gluer Machines High Speed ZH-1300
Automatic Straight Line Carton Box Folder Gluer Machines High Speed ZH-1300 Automatic Straight Line Carton Box Folder Gluer Machines High Speed ZH-1300 Automatic Straight Line Carton Box Folder Gluer Machines High Speed ZH-1300 Automatic Straight Line Carton Box Folder Gluer Machines High Speed ZH-1300
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: ZH-1300
Minimum Order Quantity: 1 Set
Price: US 29500 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Weight: 2200 KG Automatic Grade: Automatic
Driven Type: Electric Voltage: 380V
Dimension: 10220*1950*1450mm Line Speed: 280m/min Continuous Adjustment
Usage Paper: 250-650g/m² Paperboard E Corrugated Board Box Forming: Straight Line , Double Side(optional)
Power: 8KW 380V
High Light:

Carton Automatic Gluing Machine

,

Straight Line Carton Box Folder Gluer

,

High Speed Box Folder Gluer Machine

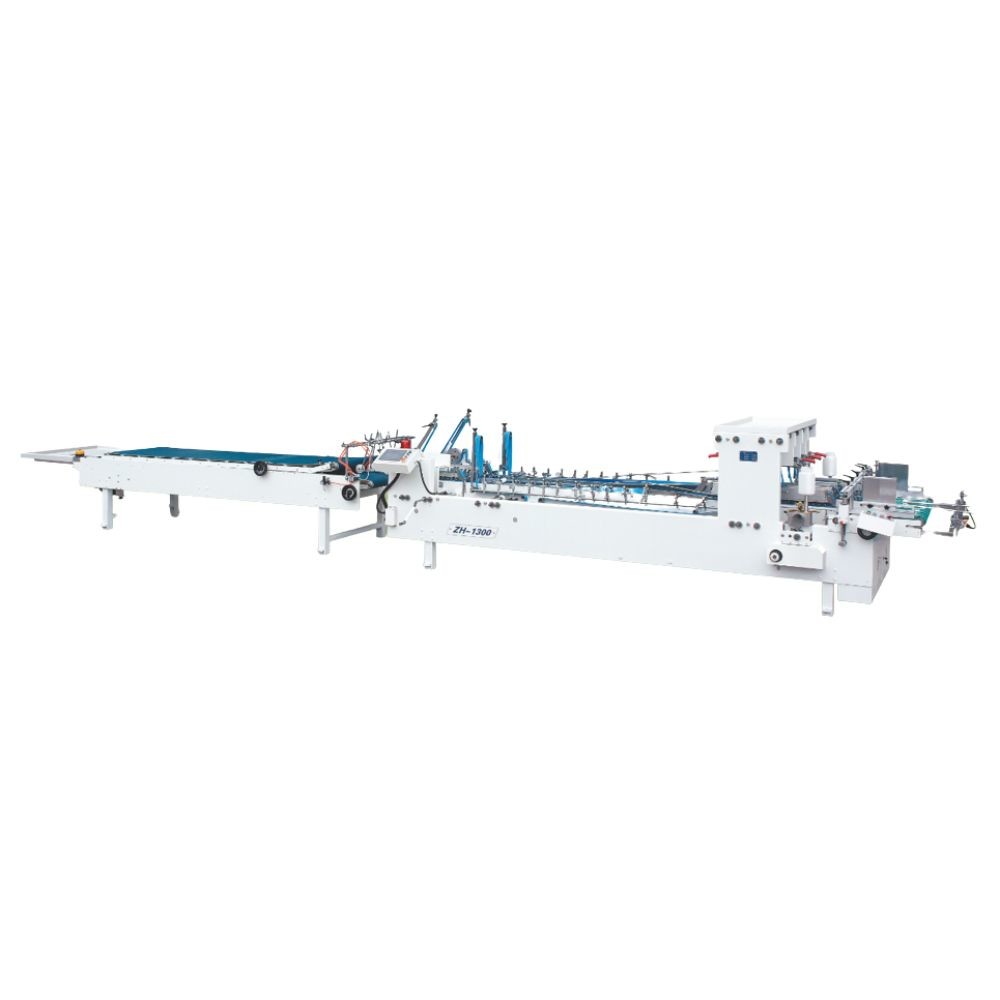

Automatic Straight Line Carton Box Folder Gluer Machines High Speed ZH-1300 0
ZH-1300 Folder Gluer Machine

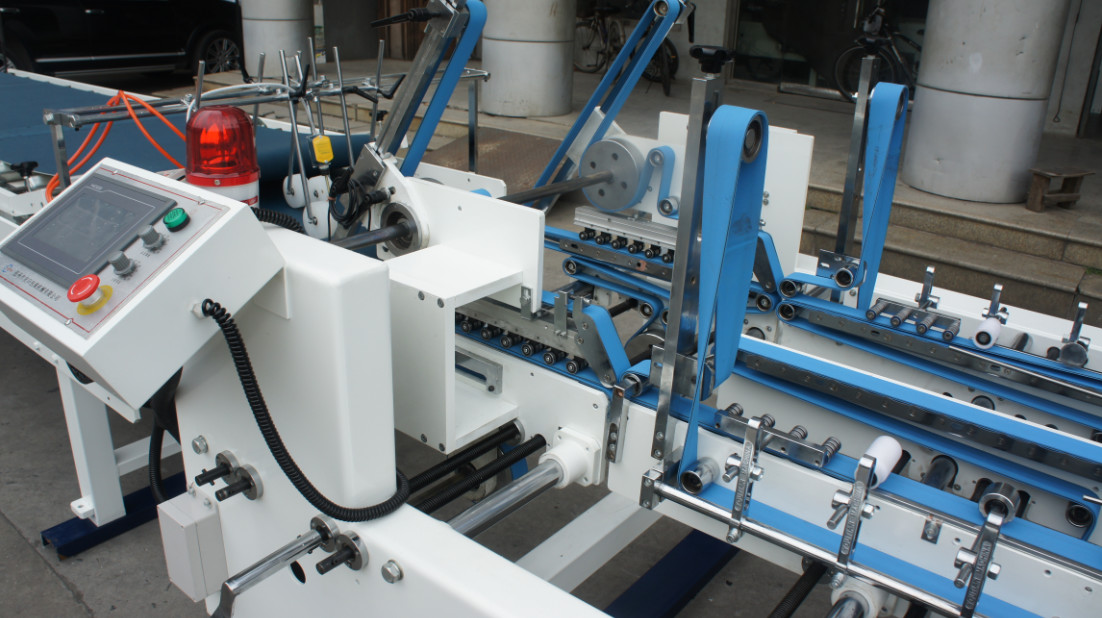

Automatic Straight Line Carton Box Folder Gluer Machines High Speed ZH-1300 1
Features
1.The whole machine steel frame adopts laser cutting,after-punching folding.So the structure is more reasonable,assembling is more accurate and running is more stable.
2.It adopts synchronous belt driving.Synchronous driving is faster,noise-lower and safer.
3.Adopts PLC and frequency speed regulator.
4.It can be applied to duplex board and E/F/N corrugated cardboard.
5.The maximum speed is 220m/min,standard speed is 20000pc/hour.

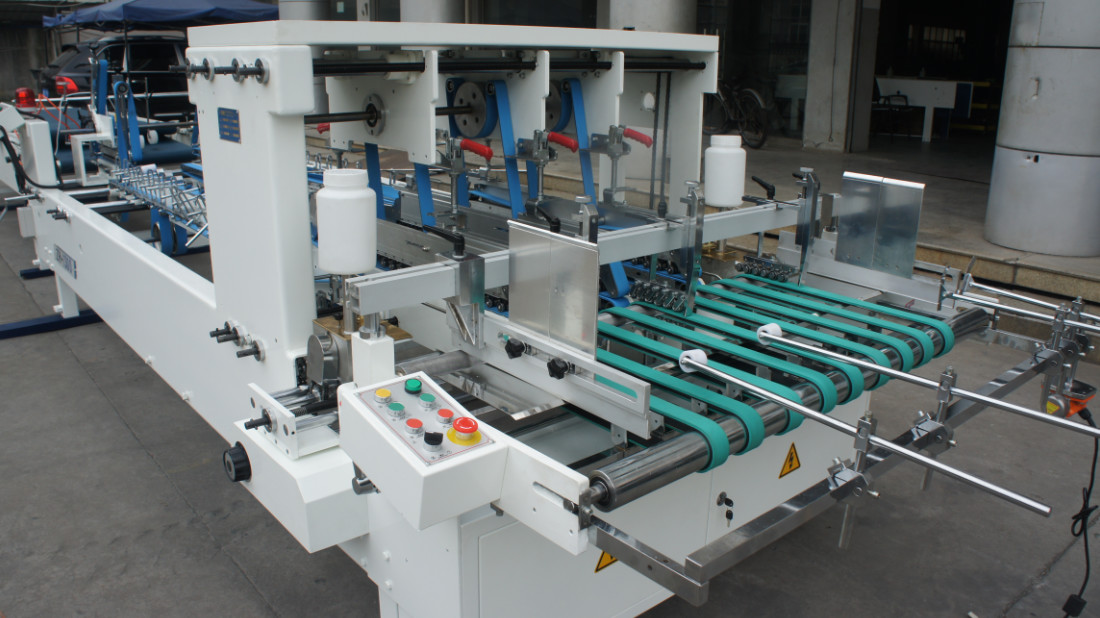

Automatic Straight Line Carton Box Folder Gluer Machines High Speed ZH-1300 2
Technical Parameters
ZH-1300 Folder Gluer Machine
Line Speed
220m/min continuous adjustment
Usage Paper
250-650g/m² paperboard E corrugated board
Box Forming
straight line , double side(optional)
Power
8KW 380V
Weight
2200kg
Dimension
10220*1950*1450mm

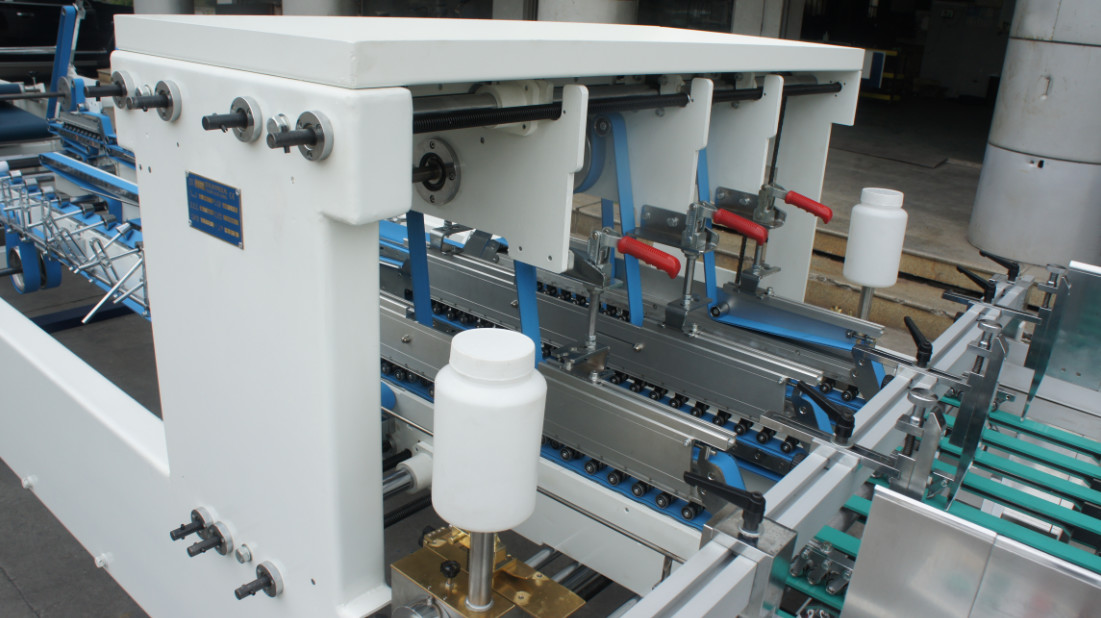

Automatic Straight Line Carton Box Folder Gluer Machines High Speed ZH-1300 3
Box Type
 A B C D Min E Min
Straight line box
 350-1300mm 200-700mm 180-650mm 30mm 15mm



Automatic Straight Line Carton Box Folder Gluer Machines High Speed ZH-1300 4
Automatic Straight Line Carton Box Folder Gluer Machines High Speed ZH-1300 5
Automatic Straight Line Carton Box Folder Gluer Machines High Speed ZH-1300 6
Automatic Straight Line Carton Box Folder Gluer Machines High Speed ZH-1300 7
Automatic Straight Line Carton Box Folder Gluer Machines High Speed ZH-1300 8
Automatic Straight Line Carton Box Folder Gluer Machines High Speed ZH-1300 9
Automatic Straight Line Carton Box Folder Gluer Machines High Speed ZH-1300 10
Automatic Straight Line Carton Box Folder Gluer Machines High Speed ZH-1300 11
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
