| Place of Origin: | China |
|---|---|
| Brand Name: | PRINTYOUNG |
| Certification: | CE |
| Model Number: | PRY-62U |
| Minimum Order Quantity: | 1 Set |
| Price: | US 8100 Set |
| Packaging Details: | Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 Set/Sets per Month |
| Dimensions: | 1800 * 997 * 1477 Mm | Plate Type: | Flatbed Printer |
|---|---|---|---|
| Weight: | 275 KG | Automatic Grade: | Automatic |
| Color & Page: | Multicolor | Usage: | Paper Printer |
| Voltage: | 220V | Print Dimension: | 600 Mm |
| Ink Type: | UV Dtf Type Ink Serie | Key Selling Points: | High-accuracy |
| Printing Method: | Piezo Ink-jet Technology | Print Head Mainten Technology: | Auto Keep Wet Cap Station System |
| Laminator Type: | Automatic Eletronic Laminating After Printing | Laminator Roller Motion: | Laminator Roller Electronic Up Down Motion Control Under 25mm Distance |
| Lamimating Temperature: | 0~100℃ Adjustable | Maximum Printing Width: | 600mm Width X, Roll Feed Y No Limit |
| Film Size: | 600mm*100meter/Roll | Ink Tank Capacity: | 500ml Per Each Color |
| Working Power: | 450 W | ||
| High Light: | UV DTF Multicolor Printer,Film Laminator Multicolor Printer,Multicolor Printing And Packaging Machines |
||
|

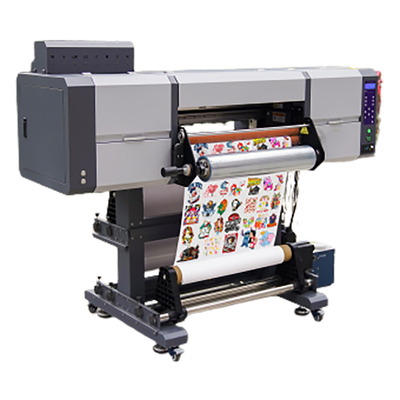

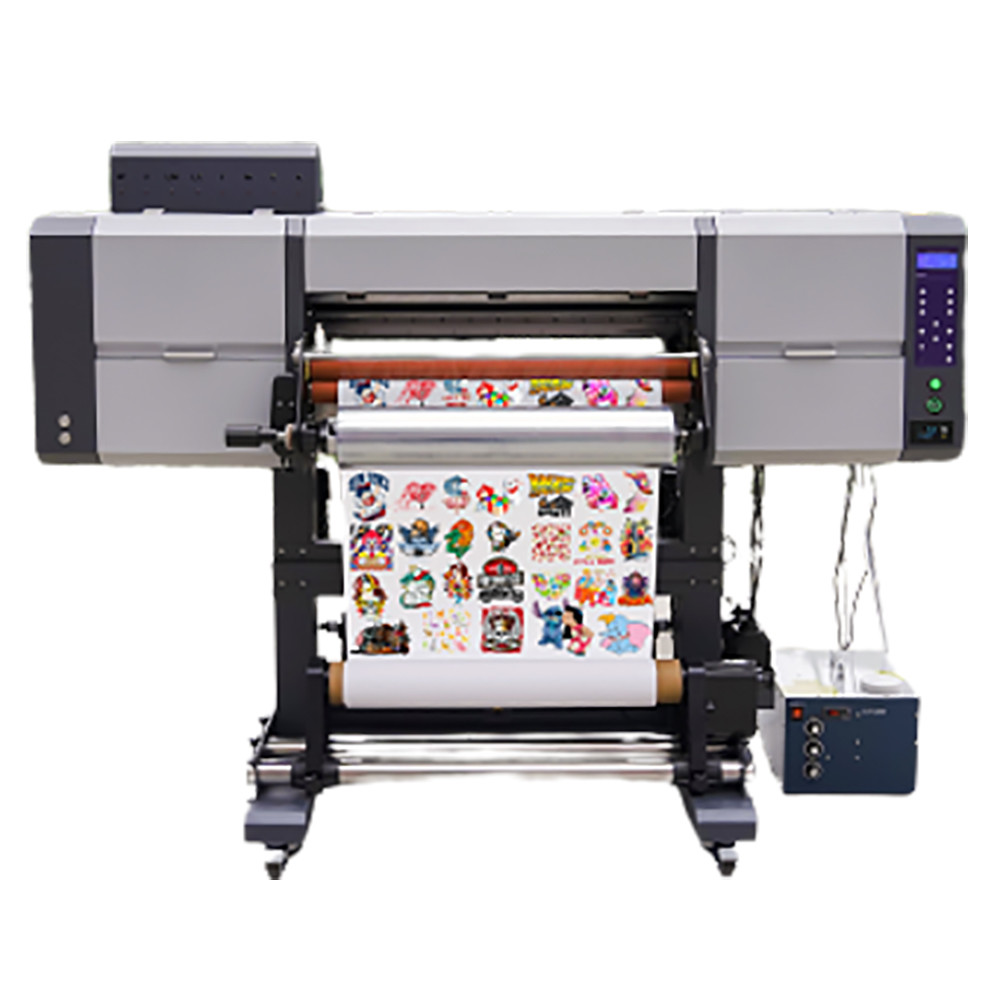

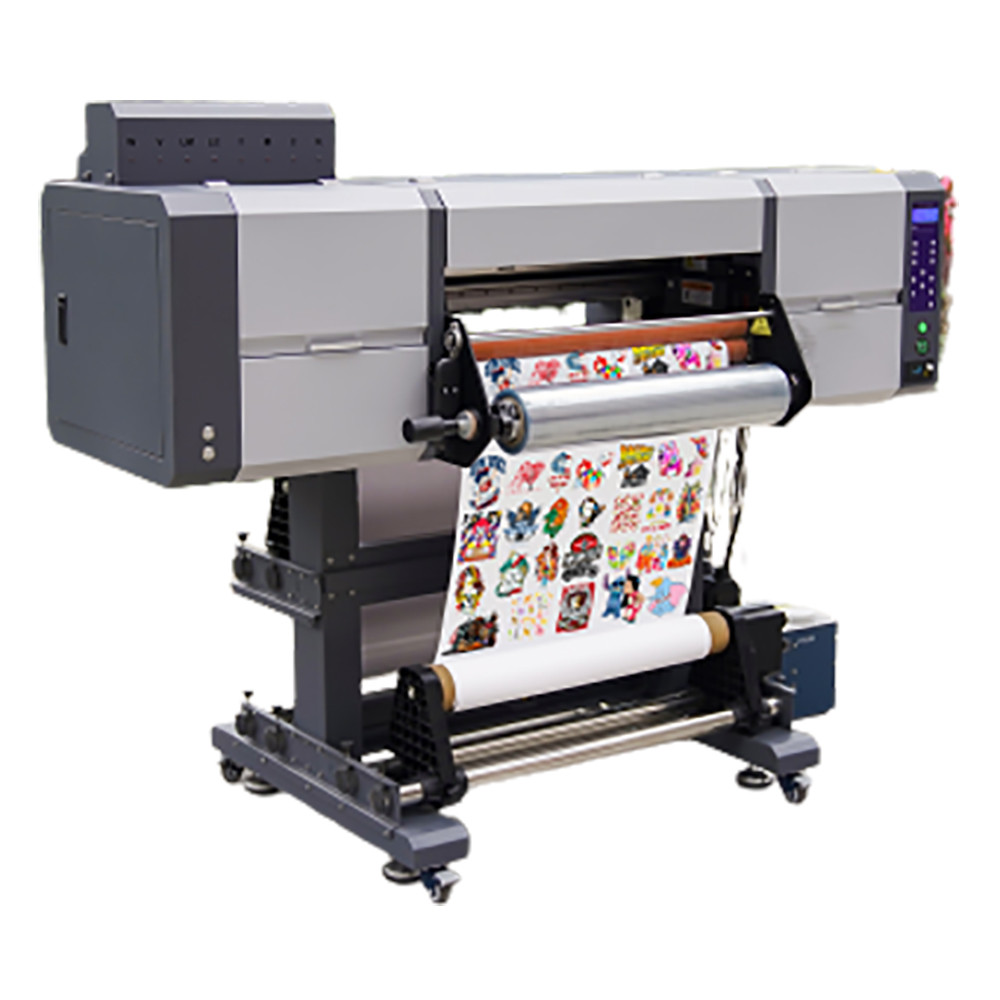

PRY-62U UV DTF Printer With Laminator All-in-One Specifications
|
||
|---|---|---|
|
Printing Method
|
Piezo ink-jet technology
|
|
|
Print Head
|
Standard Cofiguration
|
3/4pcs*F1080/DX11/i3200 U1 Piezo print head
|
|
Number of Nozzles
|
F1080:3240 staggered,180 x 18 rows
(180 x 6 rows per each head)
|
|
|
i3200 U1:9600 staggered, 400 x24 rows
(400 x 8 rows per each head)
|
||
|
Jetting Frequency
|
21.6~43.2kHz
|
|
|
Drop Volume
|
3.5-12.5pl (Variable data single drop & multi drop) 2~4 Grayscale
|
|
|
Print Resolution
(dots per inch)
|
F1080 Head: 720*1200dpi; 720*1800dpi,720*2400dpi;
|
|
|
i3200 U1 Head: 720*720dpi; 720*1080dpi,720*1440dpi;
|
||
|
Print Head Mainten Technology
|
Auto keep wet cap station system &
Clean flashing during printing and idle
|
|
|
Laminating
|
Laminator Type
|
Automatic eletronic Laminating after printing
|
|
Laminator Roller Motion
|
Laminator roller Electronic up down
motion control under 25mm distance
|
|
|
Lamimating Temperature
|
0~100℃ Adjustable
|
|
|
Media Type
|
Roll Feed Media
|
Roll type AB Film,Golden &Silver film,paper,
Canvas,leather etc with thickness less than 3mm
|
|
Media
|
Maximum Printing Width
|
600mm Width X,Roll feed Y no limit
|
|
Transfer Media
|
Garment Transfer
|
Mug,Cups,Glass,Metal,Acylic,Ceramic,Leather etc.
|
|
Film Feeding
|
Automatic Release
|
Automatic tenssion release roller
|
|
Film Take Up
|
Automatic Take Up
|
Automatic detect electronic take up
Roller for Film C and Film after Laminated
|
|
Film Vacuum System
|
Automatic Adsorption
|
Automatic adsorption aluminum vacuum table
|
|
Film Size
|
Roll Type
|
600mm*100meter/Roll
|
|
Ink
|
Type
|
UV dtf type ink series
|
|
Color
|
F1080 Head:KCMY LC LM+White+Varnish+*
(Glue optional)
|
|
|
i3200 U1 Head: KCMY + White+Varnish+*
(Glue optional)
|
||
|
Ink Tank Capacity
|
500ml per each color
|
|
|
Ink
Process Unit
|
White Ink Stirring
|
Automatic white ink stirring system
|
|
White Ink Circulation
|
Automatic white ink circulation system
|
|
|
Dimensions
|
Machine Size
|
Printer: 70.9(W) × 39.3(D) × 58.2(H) in.
(1800 × 997 × 1477mm)
|
|
Packing Size
|
Printer packing: 77.2(W) × 52.0(D) ×36.6(H) in.
(1960 × 1320 × 930mm)
|
|
|
Weight
|
Net Weight
|
605 lb (275 kg)
|
|
Gross Weight
|
869 lb (395 kg)
|
|
|
Working Environment
|
Temperature
|
59 to 86 °F (15 to 30 °C)
|
|
Humidity
|
40 to 80 %
|
|
|
Working Power
|
450W
|
|
|
Included Items
|
Enthernet cable,cleaning kit,
USB Flash of software etc.
|
|
|
Connectivity
|
Enthernet cable
|
|
|
Power Requirements
|
10A Single-phase 220 V,50HZ
|
|
