ZKT-1080B Setting Paper Pasting Machine Envelope Window Patching Machine

ZKT-1080B Setting Paper Pasting Machine Envelope Window Patching Machine
ZKT-1080B Setting Paper Pasting Machine Envelope Window Patching Machine
ZKT-1080B Setting Paper Pasting Machine Envelope Window Patching Machine ZKT-1080B Setting Paper Pasting Machine Envelope Window Patching Machine ZKT-1080B Setting Paper Pasting Machine Envelope Window Patching Machine ZKT-1080B Setting Paper Pasting Machine Envelope Window Patching Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: ZKT-1080B
Minimum Order Quantity: 1 Set
Price: US 58000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Product Type: Window Patching Machine Voltage: 380 V
Power: 2.2 Kw Dimension: 5500 * 1900 * 1600 Mm
Weight: 3500 Kg Production Capacity: 6000-10000 Pcs/h
Paper Length: 200 - 700 Mm Paper Width: 200 - 1080 Mm
Film Length: 70 - 400 Mm Film Width: 30 - 500 Mm
Power Of Pump: 2.2 Kw Main Power: 2.2 Kw
Gross Weight: 3700 Kg
Highlight:

ZKT-1080B Paper Pasting Machine

,

Envelope Window Patching Machine

,

Envelope Paper Pasting Machine

ZKT-1080B Setting Paper Pasting Machine Envelope Window Patching Machine 0
ZKT-1080B Window Patching Machine
ZKT-1080B Setting Paper Pasting Machine Envelope Window Patching Machine 1
Features
ZKT-1080B window patching machine can be extensively used in sticking window and line pressing functions. ZKT-1080B is the Innovation machine of window patching machine, Manufactured &Designed by our technical team.
Technical Parameters
ZKT-1080B Window Patching Machine
Paper Length
200 - 700 mm
Paper Width
200 - 1080mm
Film Length
70 - 400 mm
Film Width
30 - 500 mm
Paper Caliper
Paper box & cardboard box 250-1000g/m2,
Corrugated/flute up to 3mm
Film Thickness
0.03 - 0.25 mm,OPP,PVC,PET,PE etc
Speed
corner cutting and creasing line speed:4000-7000 pcs/h
normal / standard pasting:6000-10000 pcs/h
optional function double line:8000-18000 pcs/h
(v-cut & creasing line is not suit for double line)
Power of Pump
2.2 kw
Main Power
2.2 kw
Net Weight
3500 kg
Gross Weight
3700kg
External Dimension
5500*1900*1600 mm
ZKT-1080B Setting Paper Pasting Machine Envelope Window Patching Machine 2
ZKT-1080B Setting Paper Pasting Machine Envelope Window Patching Machine 3
Configuration
ZKT-1080B Setting Paper Pasting Machine Envelope Window Patching Machine 4

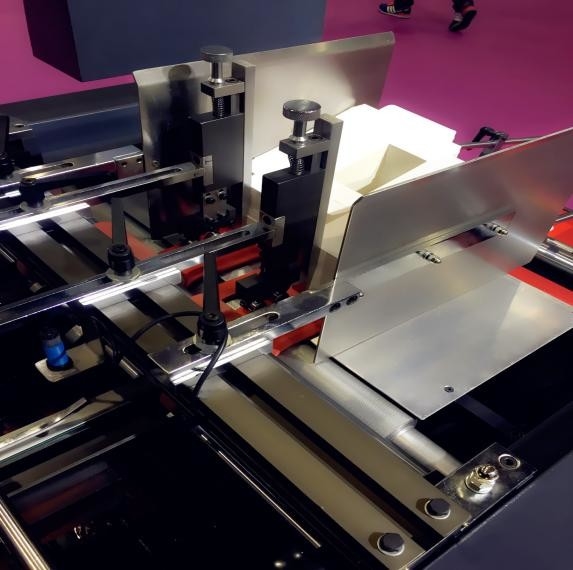

Paper Feeder

The paper feeder use the point pattern by servo motor,so it now no need to adjust paper length by hand,thus making paper feeding easy,quick and accurate it applies to card paper and corrugated paper.The paper and film feeding sections are equipped with a chain guide imported from Germany and a linear guide imported from Taiwan,and other accessories,which helps improve film patching accuracy and reduce noise.
ZKT-1080B Setting Paper Pasting Machine Envelope Window Patching Machine 5

Film Feeder & Cutting

Film feeding part is controlled by Imported servo system,input the needed Film’s length on the touch screen,saving the adjust time and highly position.
The film cutting & the film patching part install free axial rotation,is used for various shape & position of paper window.Saving
adjust time,greatly improve the production efficiency.
ZKT-1080B Setting Paper Pasting Machine Envelope Window Patching Machine 6

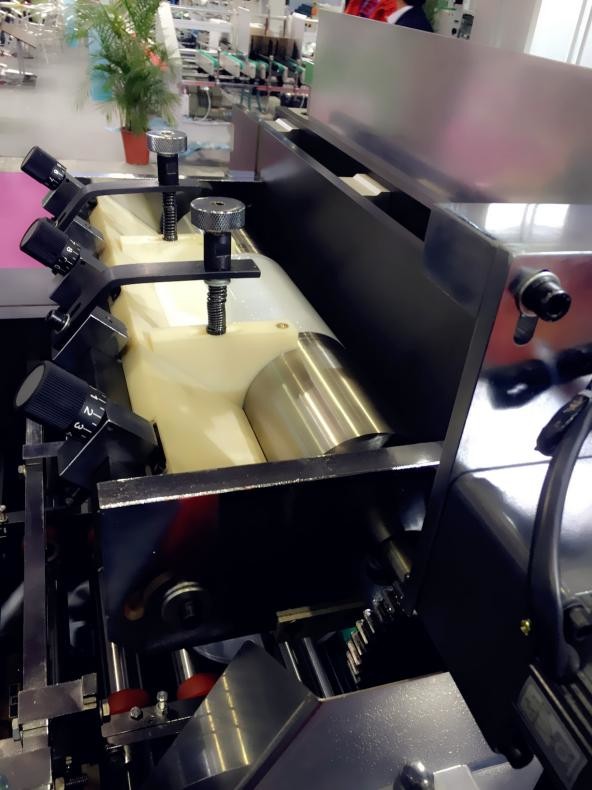

The Gluing Section

(1)The gluing section consists of chromed sizing roller, glue separating guide,side limiter and sizing template roller.It is easy to pull out,set and clean the sizing section.
(2)The glue separating guide can be adjusted to control the range and amount of glue.In the event of shutdown,the cylinder can raise the sizing roller and it is driven by the other independent motor to avoid glue solidification.
(3)Without shutdown, the printing roller can be adjusted freely on an axial or radial basis.
ZKT-1080B Setting Paper Pasting Machine Envelope Window Patching Machine 7

Function

Based on the original mechanism,the layout of each section of this product has been improved in order to reduce the adjusting time,so it becomes more efficiency and friendly.
ZKT-1080B is widely used for 90 degress angle window sample,has the function of angle cutting &scoring.Also normal pasting and tissue box of cutting line on film.
Application
ZKT-1080B Setting Paper Pasting Machine Envelope Window Patching Machine 8
ZKT-1080B Setting Paper Pasting Machine Envelope Window Patching Machine 9 ZKT-1080B Setting Paper Pasting Machine Envelope Window Patching Machine 10 ZKT-1080B Setting Paper Pasting Machine Envelope Window Patching Machine 11
ZKT-1080B Setting Paper Pasting Machine Envelope Window Patching Machine 12
ZKT-1080B Setting Paper Pasting Machine Envelope Window Patching Machine 13
ZKT-1080B Setting Paper Pasting Machine Envelope Window Patching Machine 14
ZKT-1080B Setting Paper Pasting Machine Envelope Window Patching Machine 15
ZKT-1080B Setting Paper Pasting Machine Envelope Window Patching Machine 16
ZKT-1080B Setting Paper Pasting Machine Envelope Window Patching Machine 17
ZKT-1080B Setting Paper Pasting Machine Envelope Window Patching Machine 18
ZKT-1080B Setting Paper Pasting Machine Envelope Window Patching Machine 19
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
