SW-820 / SWAFM-1050 Fully Automatic Thermal Film Laminating Machine With Stacker

Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: SW-820/SWAFM-1050
Minimum Order Quantity: 1 Set
Price: US 43800-48400 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Type: Laminating Machine Automatic Grade: Automatic
Driven Type: Electric Voltage: 380 V
Dimension: 6200 * 2000 * 1900 Mm , 5200 * 2200 * 1900 Mm Weight: 4000 KG , 3800 KG
Model: SW-820 , SWAFM-1050 Max Paper Width: 820 * 1050 Mm , 1050 * 820 Mm
Min Paper Size: 300 * 300 Mm Paper Thickness: 90-600 Gsm
Max Laminating Speed: 0-60 M/min , 0-80 M/min Gross Power: 35/18 Kw
Pre-Feeder: 1850 Mm
High Light:

Stacker Film Laminating Machine

,

SW-820 Film Laminating Machine

,

60m/min Fully Automatic Laminator

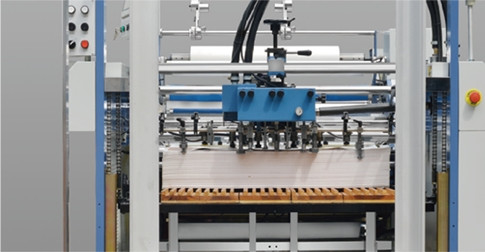

SW-820 / SWAFM-1050 Fully Automatic Thermal Film Laminating Machine With Stacker 0
SW-820,SWAFM-1050 Automatic Film Laminating Machine

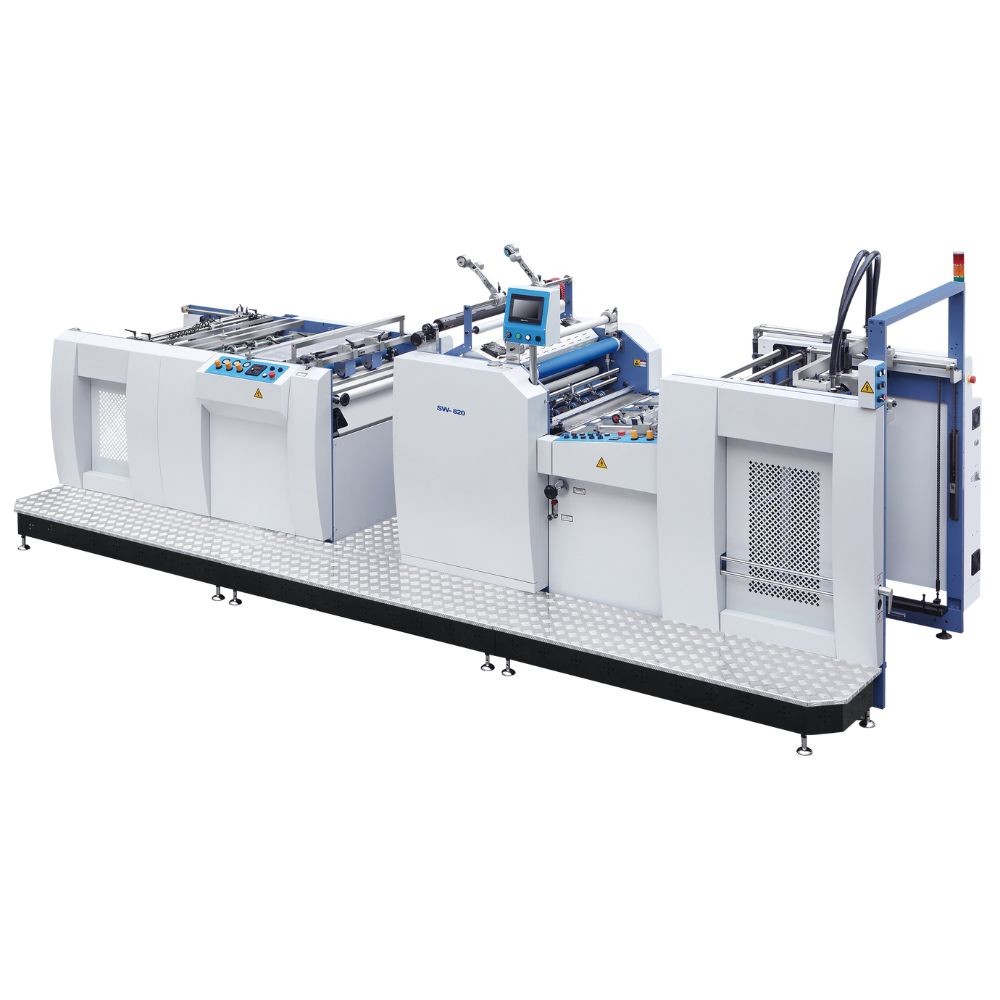

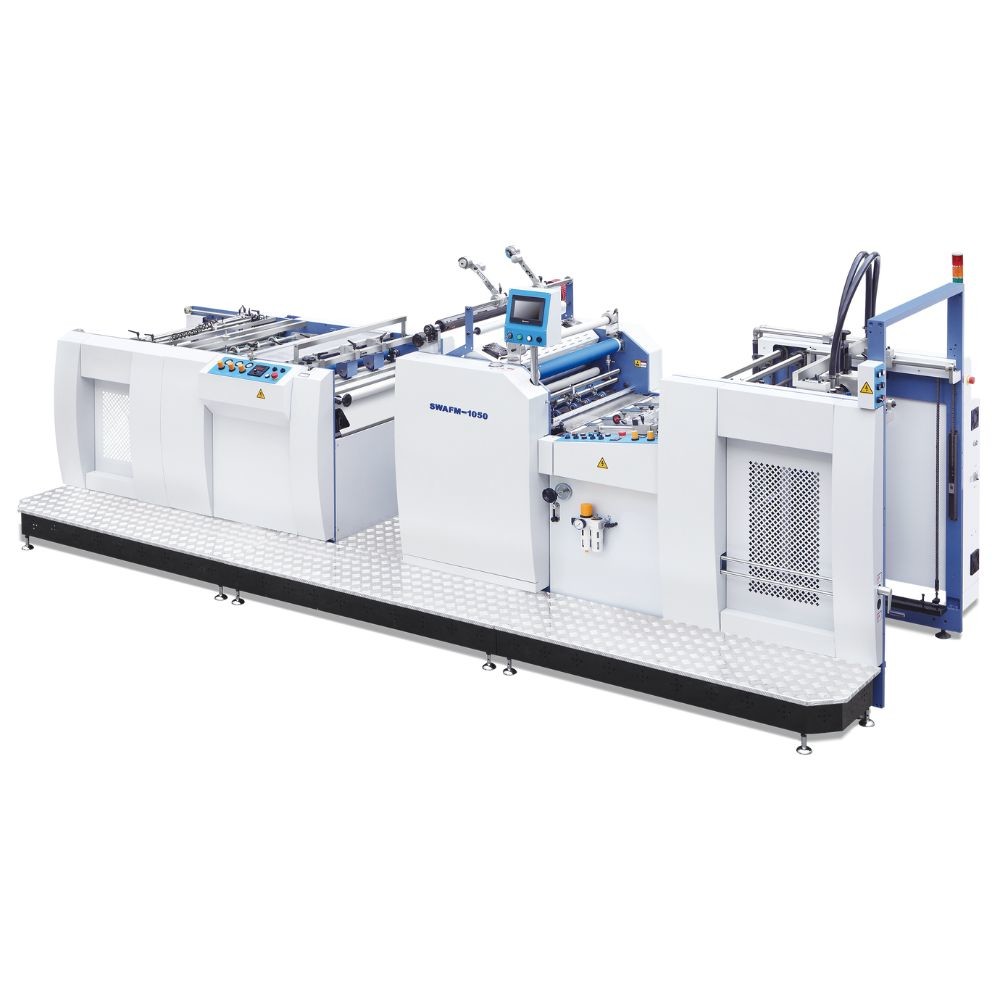

SW-820 / SWAFM-1050 Fully Automatic Thermal Film Laminating Machine With Stacker 1 SW-820 / SWAFM-1050 Fully Automatic Thermal Film Laminating Machine With Stacker 2
Features
SW-820 automatic laminator is updated laminating machine for film and paper lamination. The machine is equipped with complete automation to paper feed,lamination,paper separation,deivery and temperature control.The electrics and pneumatics are controlled by PLC (programmable control) system,and can be operated easily in touch screen.Heating roller adopts electromagnetic heater.To meet users’ different requirements,delivery section is optional for stacker.This machine centralizes the features of high automation, high precision of lamination, humanized configuration and easy operation,and is the best choice with high cost performance for large and medium-size enterprises.
Feeder
*Sheets pre-stacker provides a continuous feed without a stop
*Servo-controlled feeder head replenishes sheets
*Sheets gap sensor for self-protection
*The overlap regulator adjusts the sheets overlapped length
*Side-lay regulator aligns sheets
Laminator
*Electromagnetic-heated,chrome laminating roller
*Hydraulic pump along with rubber roller exerts a big,even and constant laminating pressure
*Film mounted on a quick-change,micro-adjustable air-shaft
*Air-shaft ensures precise film release tension and speed
*Film roll slitting and perforating mechanisms
Pneumatic Sheeter
*Adjustable pro-active,anti-curl bar takes the curl out of laminated sheets
*Steer wheel exerts negative force on one side to help with sheeting
*Adjustable sheeting pressure
*Stable and efficient pneumatic sheeting system with a photoelectric detection
Stacker
*Corrugated delivery system flattens and delivers sheets
*Side joggers and back-stop stack sheets in order
*Height-adjustable pallet
Others
*Feed,overlap and side-lay adjustment,laminating,sheeting and stacking are finished in one pass
*Compact structure
*Touch screen and control panel with colourful buttons
Technical Parameters
SW-820,SWAFM-1050 Film Laminator Machine
Model
SW-820
SWAFM-1050
Max Paper Width
820 * 1050 mm
1050 * 820 mm
Min Paper Size
300 * 300 mm
300 * 300 mm
Paper Thickness
90-600 gsm
90-600 gsm
Max Laminating Speed
0-60 m/min
0-80 m/min
Laminating Temperature
80-110 Celsius degree
80-110 Celsius degree
Gross Power
35/18 kw
35/18 kw
Weight
4000 kgs
3800 kgs
Size
6200 * 2000 * 1900mm
5200 * 2200 * 1900mm
Pre-Feeder
1850 mm
1850 mm
Configuration

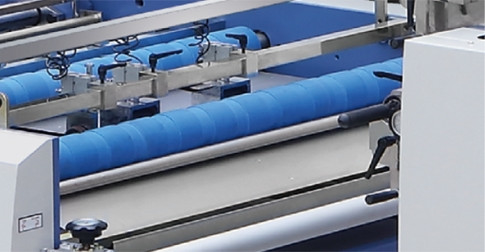

SW-820 / SWAFM-1050 Fully Automatic Thermal Film Laminating Machine With Stacker 3

Auto Feeder

This machine is equipped with a paper pre-stacker,Servo controlled feeder and a photoelectric sensor to ensure that paper is
continuously fed into the machine.
SW-820 / SWAFM-1050 Fully Automatic Thermal Film Laminating Machine With Stacker 4

Side Lay Regulator

The Servo controller and Side Lay Mechanism guarantees precise paper alignment at all times.
SW-820 / SWAFM-1050 Fully Automatic Thermal Film Laminating Machine With Stacker 5

Electromagnetic Heater

Equipped with advanced electromagnetic heater.Fast pre-heating.Energy saving. Environmental protection.
SW-820 / SWAFM-1050 Fully Automatic Thermal Film Laminating Machine With Stacker 6

Human-Computer Interface

A user-friendly interface system with a color touch screen simplifies the operation process. The operator can easily and automatically control paper sizes,overlapping and machine speeds.
SW-820 / SWAFM-1050 Fully Automatic Thermal Film Laminating Machine With Stacker 7

Separation System

Pneumatic separation system to separate the paper stably and quickly.
SW-820 / SWAFM-1050 Fully Automatic Thermal Film Laminating Machine With Stacker 8

Corrugrated Delivery

A corrugatted delivery system collects paper easily.
SW-820 / SWAFM-1050 Fully Automatic Thermal Film Laminating Machine With Stacker 9

Anti-Curvature Device

The machine is equipped with an anti-curl device,which ensures that paper remains flat and smooth during the lamination process.
SW-820 / SWAFM-1050 Fully Automatic Thermal Film Laminating Machine With Stacker 10

Automatic Stacker

Automatic stacker receive the sheets quickly in order without stop the machine as well as counter the sheets.
SW-820 / SWAFM-1050 Fully Automatic Thermal Film Laminating Machine With Stacker 11



Film Loader
Operating the film loader is easy and efficient to use.
SW-820 / SWAFM-1050 Fully Automatic Thermal Film Laminating Machine With Stacker 12
SW-820 / SWAFM-1050 Fully Automatic Thermal Film Laminating Machine With Stacker 13
SW-820 / SWAFM-1050 Fully Automatic Thermal Film Laminating Machine With Stacker 14
SW-820 / SWAFM-1050 Fully Automatic Thermal Film Laminating Machine With Stacker 15
SW-820 / SWAFM-1050 Fully Automatic Thermal Film Laminating Machine With Stacker 16
SW-820 / SWAFM-1050 Fully Automatic Thermal Film Laminating Machine With Stacker 17
SW-820 / SWAFM-1050 Fully Automatic Thermal Film Laminating Machine With Stacker 18
SW-820 / SWAFM-1050 Fully Automatic Thermal Film Laminating Machine With Stacker 19
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
