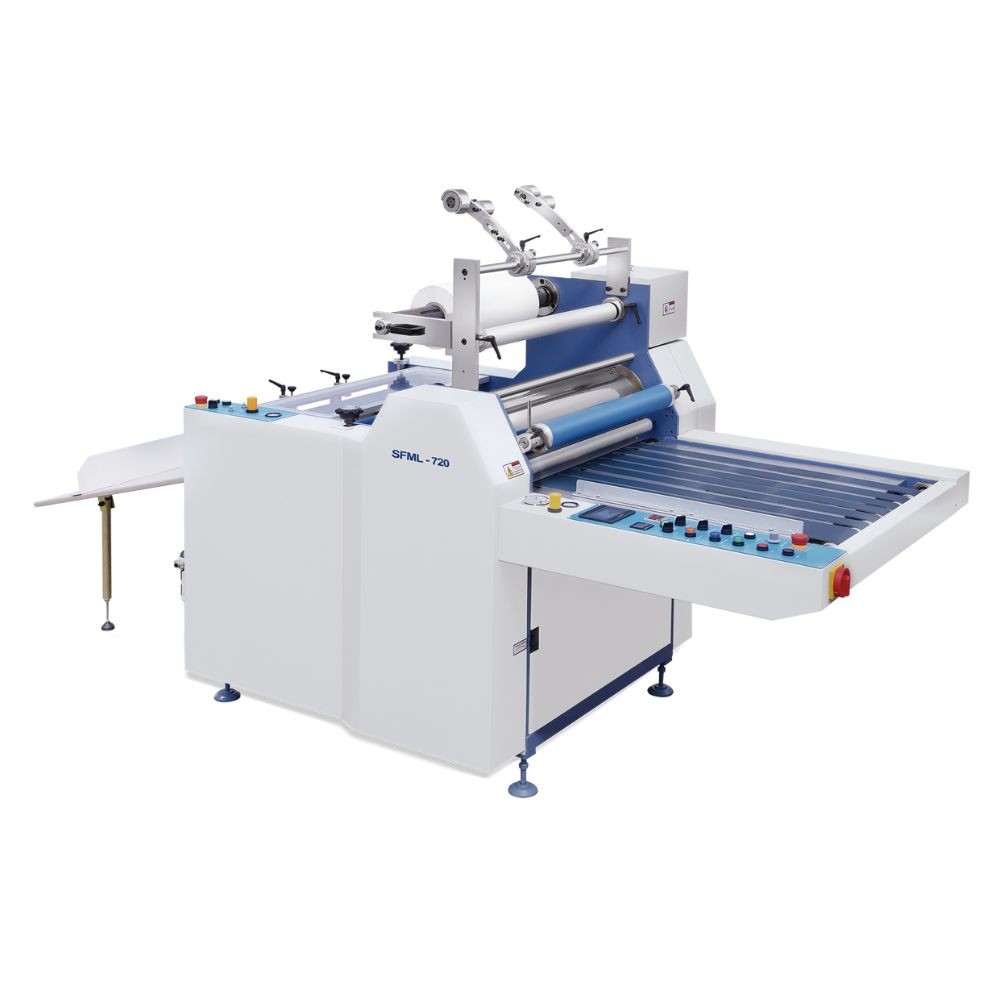

Semi Automatic Paper Thermal Film Laminating Machine SFML-720 / 920

Semi Automatic Paper Thermal Film Laminating Machine SFML-720 / 920
Semi Automatic Paper Thermal Film Laminating Machine SFML-720 / 920 Semi Automatic Paper Thermal Film Laminating Machine SFML-720 / 920 Semi Automatic Paper Thermal Film Laminating Machine SFML-720 / 920
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: SFML-720/920
Minimum Order Quantity: 1 Set
Price: US 9100-10200 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Type: Laminating Machine Automatic Grade: Semi-automatic
Driven Type: Electric Voltage: 380 V
Dimension: 3100 * 1450 * 1600 Mm / 3100 * 1650 * 1600 Mm Weight: 1000 KG / 1200 KG
Model: SFML-720 / 920 Max Sheet Size: 680 Mm / 880 Mm
Laminating Speed: 0-25 M/min Sheet Thickness: 100-500 Gsm
Gross Power: 13 Kw / 15 Kw
High Light:

Semi Automatic Paper Film Laminating Machine

,

Paper Thermal Film Laminating Machine

,

25m/Min Thermal Film Laminator

Semi Automatic Paper Thermal Film Laminating Machine SFML-720 / 920 0
SFML Semi-Auto Thermal Film Laminator
Semi Automatic Paper Thermal Film Laminating Machine SFML-720 / 920 1
Features
1.Operates smoothly by using frequency conversion.
2.PLC system ensures automatic paper separation,breakdown alert for self-protection.
3.The machine has increased precision with built-in chrome plated oil heating system and temperature control.
4.An airshaft allows for accuracy when loading,unloading and positioning laminating film roll.
Technical Parameters
SFML Semi-Auto Thermal Film Laminator
Model
SFML-720
 SFML-920
Max Sheet Size
680 mm(width)
 880 mm(width)
Laminating Speed
0-25 m/min
 0-25 m/min
Sheet Thickness
100-500 gsm
 100-500 gsm
Gross Power
13 kw
 15 kw
Total Weight
1000 kg
 1200 kg
Overall Dimensions
3100 * 1450 * 1600 mm
 3100 * 1650 * 1600 mm
Configuration
Semi Automatic Paper Thermal Film Laminating Machine SFML-720 / 920 2 Semi Automatic Paper Thermal Film Laminating Machine SFML-720 / 920 3

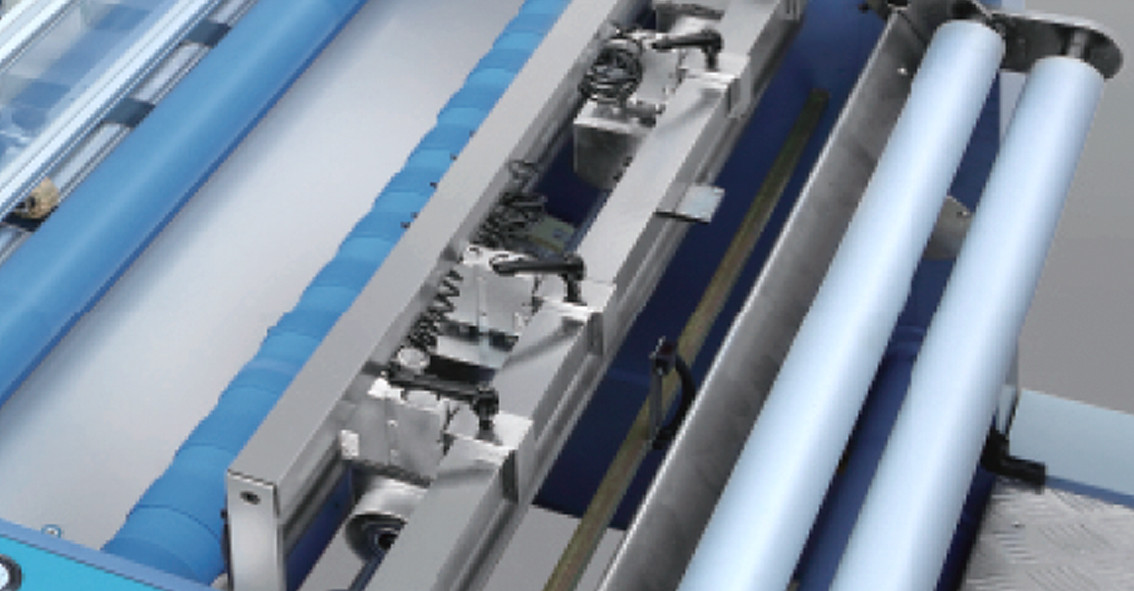

Film roll slitting and perforating mechanisms   Pneumatic sheeter
Feeding
*Magnetic regulating plate,flexible and easily adjustable,fits manual feed
*The operator replenishes sheets on the run to provide a continuous feed
Laminator
*Oil-heated,chrome laminating roller
*Rubber counter-pressure roller
*Hydraulic pressure system exerts a constant and steady pressure
*Film mounted on a quick-change inflatable air-shaft with the scale on it
*Air-shaft ensures precise film release tension and speed
*Film roll slitting and perforating mechanisms
Sheeter
*Adjustable pro-active,anti-curl bar takes the curl out of laminated sheets
*Chain wheels of delivery rollers maintain film tension
*Adjustable sheeting pressure
*Stable and efficient pneumatic sheeting system
*Delivering rollers and sheeting rollers run in line
Sheets Collecting
*Height-adjustable inclined table
Others
*User-friendly design,refined appearance,as well as space-saving structure
*Touch screen

Semi Automatic Paper Thermal Film Laminating Machine SFML-720 / 920 4
Semi Automatic Paper Thermal Film Laminating Machine SFML-720 / 920 5
Semi Automatic Paper Thermal Film Laminating Machine SFML-720 / 920 6
Semi Automatic Paper Thermal Film Laminating Machine SFML-720 / 920 7
Semi Automatic Paper Thermal Film Laminating Machine SFML-720 / 920 8
Semi Automatic Paper Thermal Film Laminating Machine SFML-720 / 920 9
Semi Automatic Paper Thermal Film Laminating Machine SFML-720 / 920 10
Semi Automatic Paper Thermal Film Laminating Machine SFML-720 / 920 11
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
