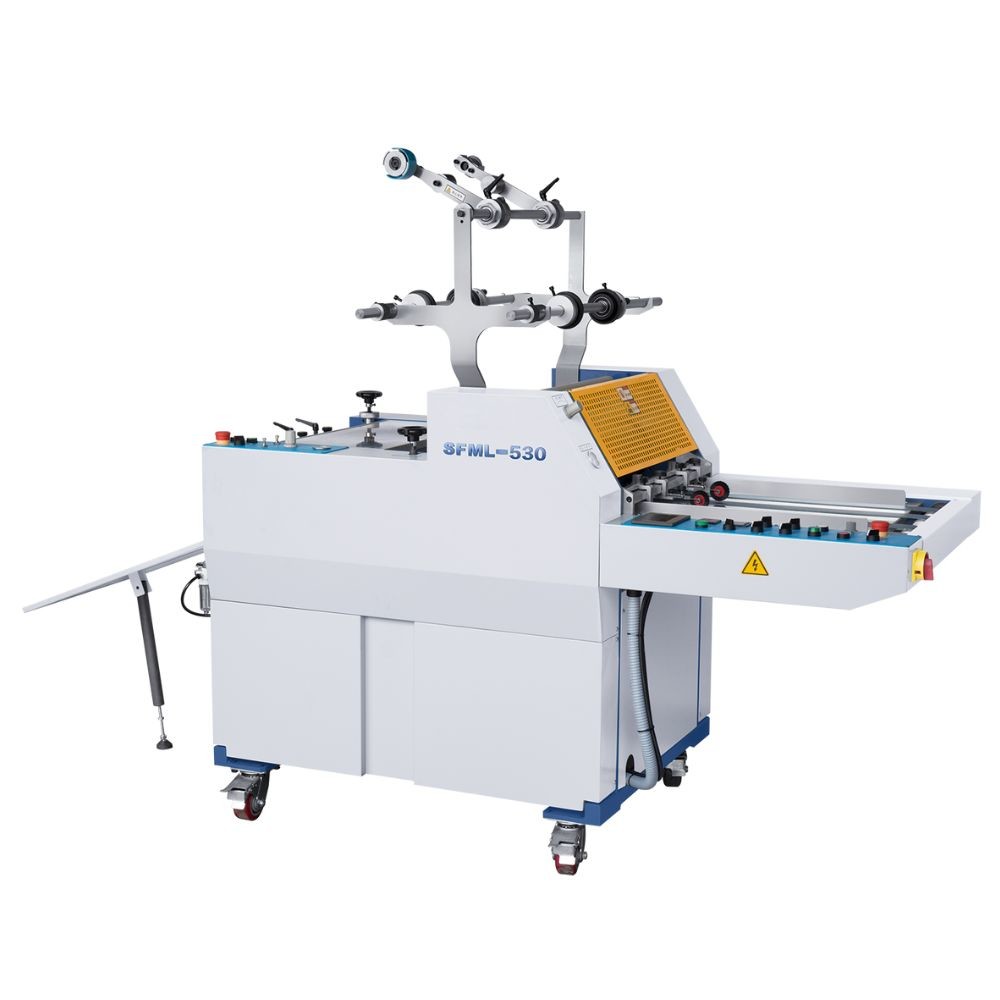

SFML-530 Semi Automatic Thermal Film Laminator Machine 380V

SFML-530 Semi Automatic Thermal Film Laminator Machine 380V
SFML-530 Semi Automatic Thermal Film Laminator Machine 380V
SFML-530 Semi Automatic Thermal Film Laminator Machine 380V SFML-530 Semi Automatic Thermal Film Laminator Machine 380V SFML-530 Semi Automatic Thermal Film Laminator Machine 380V SFML-530 Semi Automatic Thermal Film Laminator Machine 380V
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: SFML-530
Minimum Order Quantity: 1 Set
Price: US 8600 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Type: Laminating Machine Automatic Grade: Semi-automatic
Driven Type: Electric Voltage: 380 V
Dimension: 2500 * 1000 * 1550 Mm Weight: 400 KG
Model: SFML-530 Max Paper Width: 500 Mm
Paper Thickness: 105-500 Gsm Max Laminating Speed: 0-20 M/min
Gross Power: 7 Kw
Highlight:

Semi Automatic Thermal Film Laminator

,

500mm Thermal Film Laminator

,

Touch Screen Film Laminating Machine

SFML-530 Semi Automatic Thermal Film Laminator Machine 380V 0
SFML-530 Semi-Auto Laminator
SFML-530 Semi Automatic Thermal Film Laminator Machine 380V 1
Features
SFML-530 is a small semi-auto laminating machine which is designed and manufactured upon the market requirements.The machine has the feature of compact structure and easy operation.The electric and pneumatic system is controlled by PLC system.And one person can operate it easily.When the operator inputs paper size on touch screen,the machine can realize automatically paper lamination and separation.
1.Man-machine interface system with color touch screen simplies operation.
2.Pneumatic pressuring system provides steady pressure to guarantee good laminating quality.The pressure is adjustable upon requests.
3.Film cutter cuts film width to make it meet paper size.The cut film is left on the film release spindle.
4.Film perforating wheel perforates film edge for the automatic cut of laminated paper.
Technical Parameters
SFML-530 Semi-Auto Laminator
Model
SFML-530
Max Paper Width
500 mm
Paper Thickness
105-500 gsm
Max Laminating Speed
0-20 m/min
Gross Power
7 kw
Total Weight
400 kg
Overall Dimension
2500 * 1000 * 1550 mm
Configuration

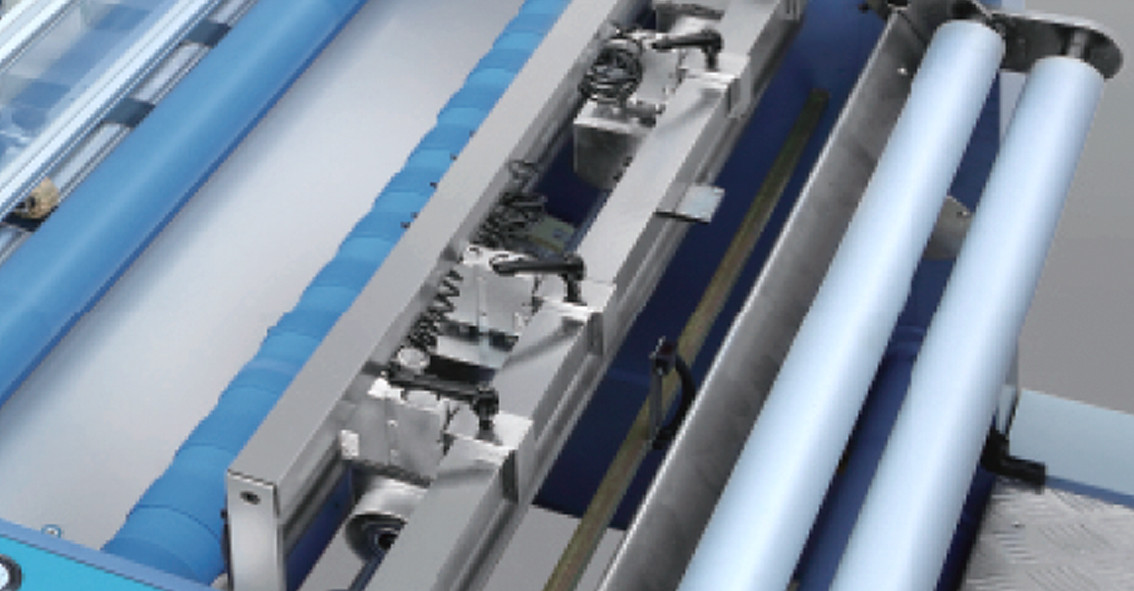

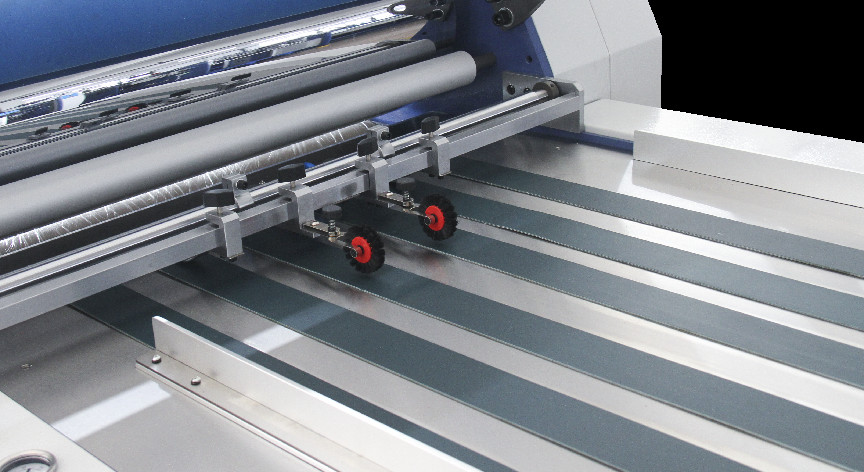

SFML-530 Semi Automatic Thermal Film Laminator Machine 380V 2 SFML-530 Semi Automatic Thermal Film Laminator Machine 380V 3 SFML-530 Semi Automatic Thermal Film Laminator Machine 380V 4

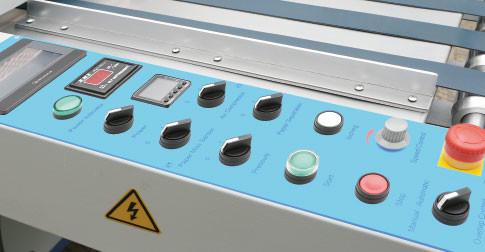

Pneumatic Sheeter                           PLC Control Panel                            Overlap Regulator
Feeding
*Magnetic regulating plates fit manual feed
*The overlap regulator adjusts the sheets overlapped length
*The operator replenishes sheets on the run to provide a continuous feed
Laminator
*Chrome laminating roller with build-in electrical tube heaters
*Rubber counter-pressure roller
*Pneumatic pressure system exerts a constant and steady pressure
*2 film release spindles shorten the time for film exchanging
*Film roll slitting and perforating mechanisms
Sheeter
*Adjustable pro-active,anti-curl bar takes the curl out of laminated sheets
*Chain wheels of delivering rollers maintain film tension
*Adjustable sheeting pressure
*Stable and efficient pneumatic sheeting system
Sheets Collecting
*Delivering rollers and sheeting rollers run in line
*Height-adjustable inclined table
Others
*User-friendly design,refined appearance,as well as space-saving structure
*Touch screen
*Wheels at the bottom of the machine for flexible space arrangement

SFML-530 Semi Automatic Thermal Film Laminator Machine 380V 5
SFML-530 Semi Automatic Thermal Film Laminator Machine 380V 6
SFML-530 Semi Automatic Thermal Film Laminator Machine 380V 7
SFML-530 Semi Automatic Thermal Film Laminator Machine 380V 8
SFML-530 Semi Automatic Thermal Film Laminator Machine 380V 9
SFML-530 Semi Automatic Thermal Film Laminator Machine 380V 10
SFML-530 Semi Automatic Thermal Film Laminator Machine 380V 11
SFML-530 Semi Automatic Thermal Film Laminator Machine 380V 12
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
