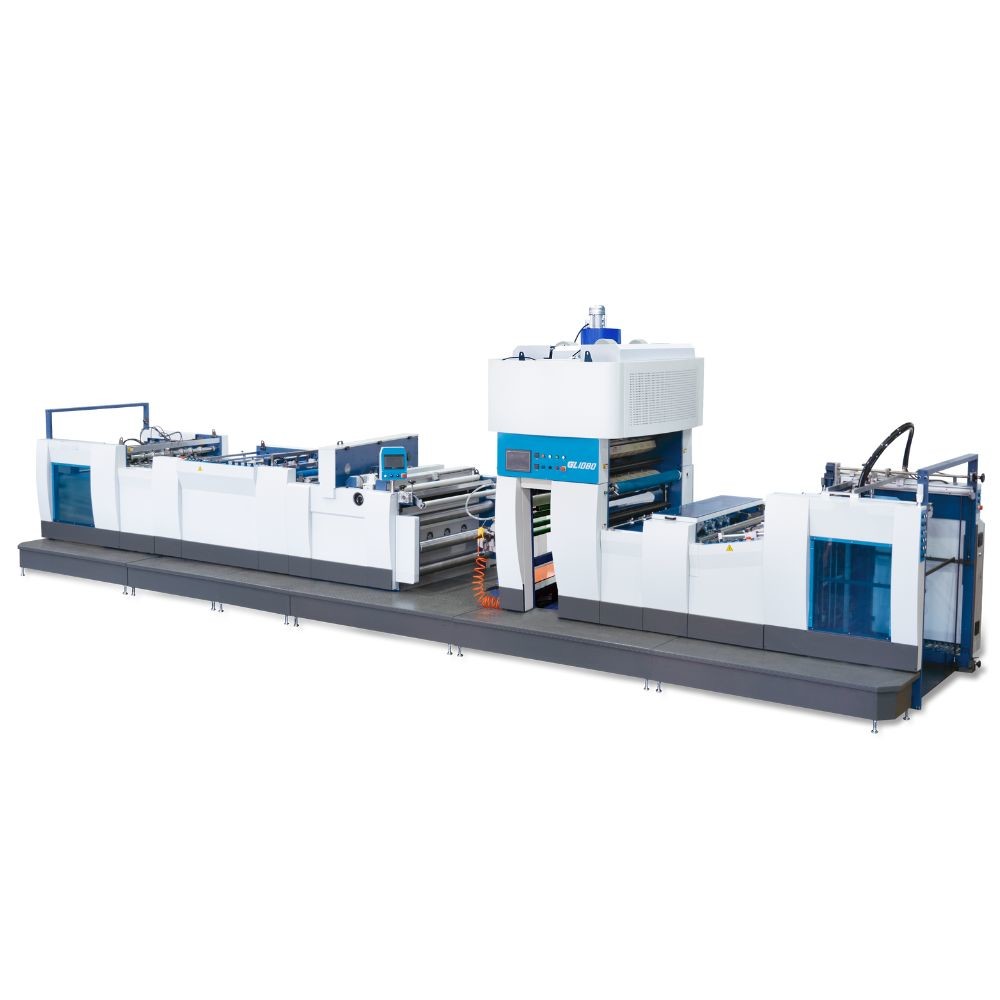

GL-1080 Film Laminating Machine

Features

Feeder
*Sheets pre-stacker provides a continuous feed without a stop
*Servo-controlled feeder head,synchronizing with the host speed,replenishes sheets
*Sheets gap sensor for self-protection
*Overlap regulator & Side-lay regulator

Powder Remover
*Electric-heated powder remover improves film-sheet fastness and laminating effect

Laminator

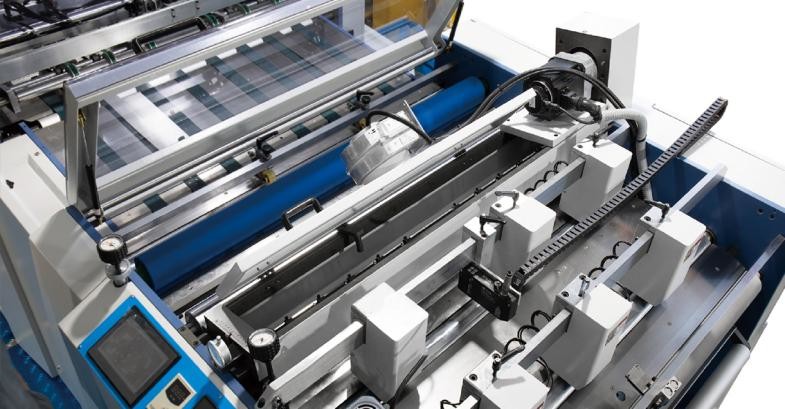

*Electromagnetic-heated,chrome laminating roller and hydraulic-pump driven rubber roller
*High-precision glue applying roller and glue scraper
*Φ800 large diameter steel roller and the electromagnetic heater dry glue instantaneously
*Pre-coated film mounted on a quick-change,micro-adjustable air-shaft
*Air-shaft ensures precise film release tension and speed
*Film roll slitting and perforating mechanisms
*Film rewinders for pre-coated or uncoated left film

Sheeter
*Anti-curl assembly de-curls thin sheets after thermal lamination
*Steer wheels exert negative force on one side to help with sheeting
*Rotatory perforating mechanism prepares the web for subsequent sheeting
*High-speed mechanical sheeting system driven by steady pneumatic assembly

Stacker
*Corrugated delivery system flattens and delivers sheets
*Slow-down drop wheels
*Side joggers and back-stop stack sheets in order
*Non-stop automatic stacker with a sheets counter

Others
*Suitable for both pre-coated film lamination and uncoated film lamination
*Feed,overlap and side-lay adjustment,powder removal,laminating,drying,sheeting and stacking are finished in one pass

Optional
*Double lamination unit improves laminated film fastness
*Embossing system improves sheets exquisiteness to maximize the products value
*UV film reinforcement system avoids film peeling and blisters
*Chain knife sheeting system facilitates PET and PVC film sheeting
*Advanced hot-knife sheeting system,combining hot-knife and the pneumatic sheeting system,features accurate and stable sheeting,no excess film,and high running speed
*Code printing system that features a high-precision sprayer and precise printing is suitable for QR code printing
*Plastic removal assembly contributes to plastic film recycling and reusing

Technical Parameters

GL Series Film Laminating Machine
Model	GL-1080				GL-1300		GL-1450
Max Paper Size(mm)	1080*900	1080*1300	1080*1450	1080*1650	1300*1450	1300*1650	1450*1450	1450*1650
Min Paper Size(mm)	300*260	300*300	390*450	450*450	390*450	450*450	390*450	450*450
Laminating Speed(m/min)	0-100	0-100	0-100	0-100	0-100	0-100	0-100	0-100
Laminating Speed(PET Film)(m/min)	0-80	0-80	0-80	0-80	0-80	0-80	0-80	0-80
Paper Thickness(gsm)	100-500	100-500	100-500	100-500	100-500	100-500	100-500	100-500
Gross Power(kw)	100/50	100/50	100/50	100/50	110/55	110/55	120/60	120/60
Total Weight(kg)	9000	9500	10000	10500	12500	13300	13500	14500
Overall Dimensions(mm)	90502550 3250	106002550 3250	112502550 3250	120502550 3250	12050255 3250	12680275 3250	11880287 2800	12680287 3250
Pre-stacker(mm)	1700	1920	2140	2350	4000	4000	4000	4000

Configuration

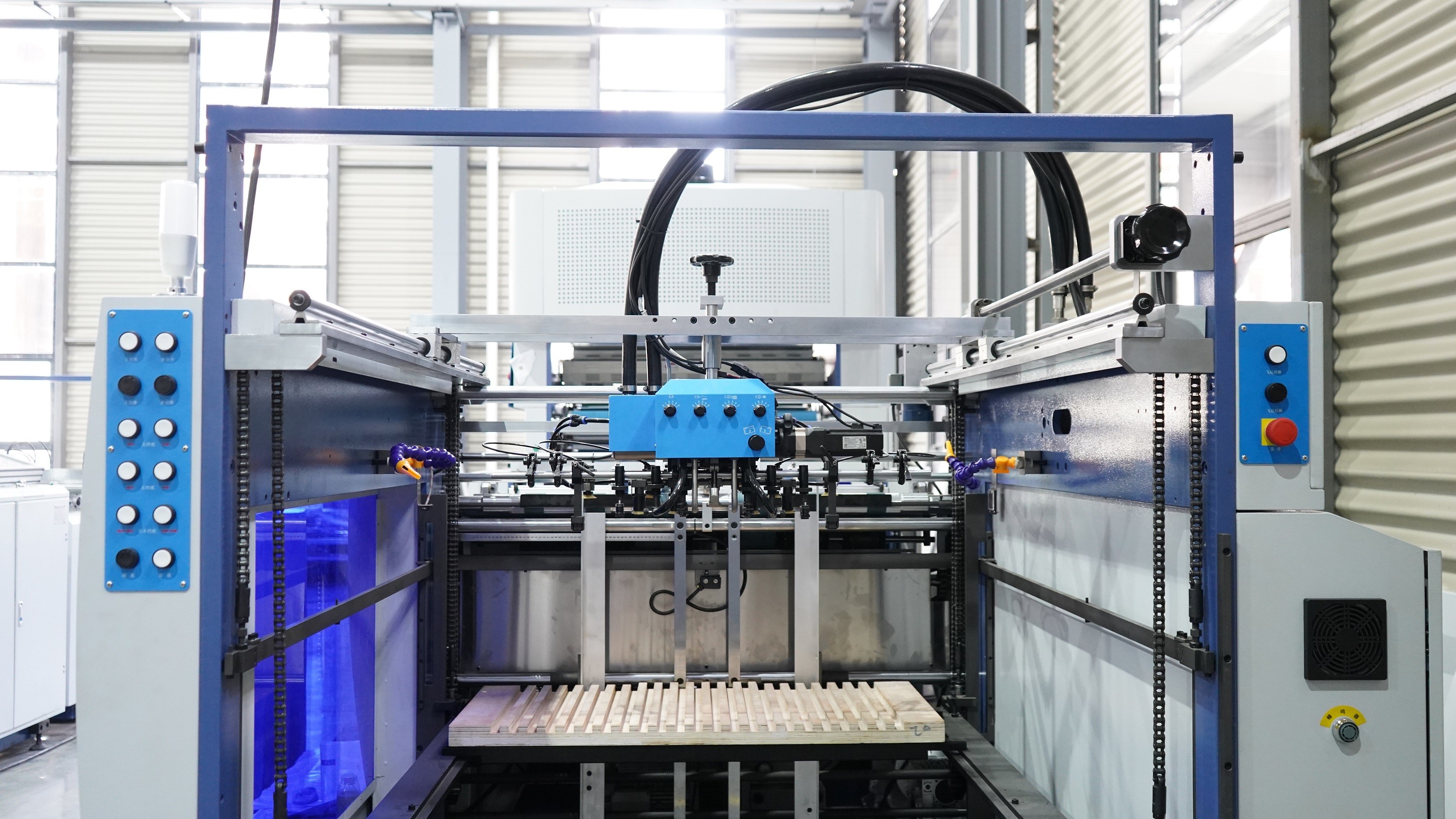

Automatic Feeder

Equipped with pre-feeder and electric paper feeding system ensures paper continuity

Mechanical Side Lay Register

Make sure the sides of paper are neat

Powder Remover

Heating roller with scraper effectively remove the powder which enhance the brightness and adhension of the laminating paper

Electromagnetic Heater

Electromagnetic heater heat up the surface of heating roller directly,Fast heating speed and energy saving

Water-Base Glue & Thermal Film Dual Function Laminator

The machine can do thermal film or water-base film according to customer’s request

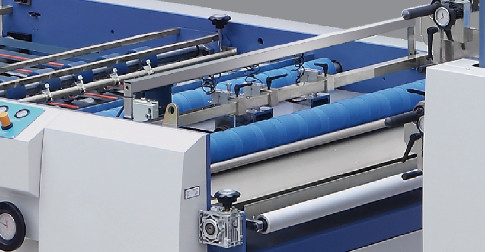

Coated Glue Unit

Coated steel roller is chrome-plated and high-precision special treatment,Frequency conversion drive eliminate the phenomenon of glue being thrown out and ensure uniform coating.Using big drying roller,the dia of roller is 900mm

Anti-Curvature Device

Prevent thin paper from curling after lamination

Mechanical Separation System

Equipped with double rotary knife to help separate the paper,High speed and fast response

High Speed Automatic Stacker

The pneumatic stacker receives the paper,keeping them in order,while rapidly counting every sheet

Double lamination unit(Optional)

Embossing System(Optional)

UV film reinforcement system(Optional)

Chain knife sheeting system(Optional)

Advanced hot-knife sheeting system(Optional)

Code printing system(Optional)

Plastic removal assembly(Optional)

Q1.Are you a manufacturer or a trading company?

A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.

Q2.What is the machine warranty?

A:One year.After the warranty,we still provide technical support to buyer at low cost.

Q3.What is the production time while placing order?

A:Normally about 10-20 days.

Q4.What is the delivery time?

A:15-30days after deposit.

Q5.Can your company handle shipping for customers?

A:Yes,just give us destination sea port or container yard.

Q6.Does the packing strong?

A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.

Q7.How about the machine installation and training?

A:1)We provide training in our factory for free;

2)We can send technicians (engineers) to your factory for installation and training.

You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.

Q8.Do you have machines in stock?

A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.

Q9.How can you assure the machines’ quality?

A:Each machine will be test running at least 24 hours before delivery to assure the quality.

And during the warranty,we will give spare parts for free if machine has any problem.

Q10.Do you inspect machines or test running before packing?

A:Of course we do.We have QC department to debug the machine before packing.

If you want to use specific material to do the test running,you need to pay for the cost of the material.

Q11.What’s the payment term?

A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.

Q12.Do you accept factory visiting?

A:Warmly welcome for your visiting.

Q13.How many years are you in printing field?

A:The Shanghai company since in 2008,the factory is more than 25years.

Q14.How many clients do you have?

A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.

Tag:

Place of Origin:	China
Brand Name:	PRINTYOUNG
Certification:	CE
Model Number:	GL-1080,1300,1450

Minimum Order Quantity:	1 Set
Price:	US 75000-77000 Set
Packaging Details:	Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time:	60 days
Payment Terms:	L/C, T/T
Supply Ability:	10 Set/Sets per Month

Type:	Laminating Machine	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	380V
Dimension:	9050 * 2550 * 3250mm	Weight:	9000 KG
Model No.:	GL-1080,1300,1450	Max Paper Size:	1080 * 900mm
Min Paper Size:	300 * 260mm	Laminating Speed:	0-100 M/min
Laminating Speed(PET Film):	0-80 M/min	Paper Thickness:	100-500 Gsm
Gross Power:	100/50 Kw	Pre- Feeder:	1700 Mm
High Light:	Thermal PET Film Laminating Machine , Water Base Glue Film Laminator , Dual Function Film Laminating Machine
