Home ProductsFilm Laminating MachinePlastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides

Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides

Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides
Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides
Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: YFMA-590/760
Minimum Order Quantity: 1 Set
Price: US 22800-25800 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Type: Laminating Machine Automatic Grade: Automatic
Driven Type: Electric Voltage: 380V
Speed: 0-80m/min Paper Thickness: 100-500gsm
Loading: By Sea
Highlight:

PVC Metallic Thermal Film Laminating Machine

,

OPP Film Embossing Laminating Machine

,

Double Sides Plastic Film Embossing Machine

Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides 0

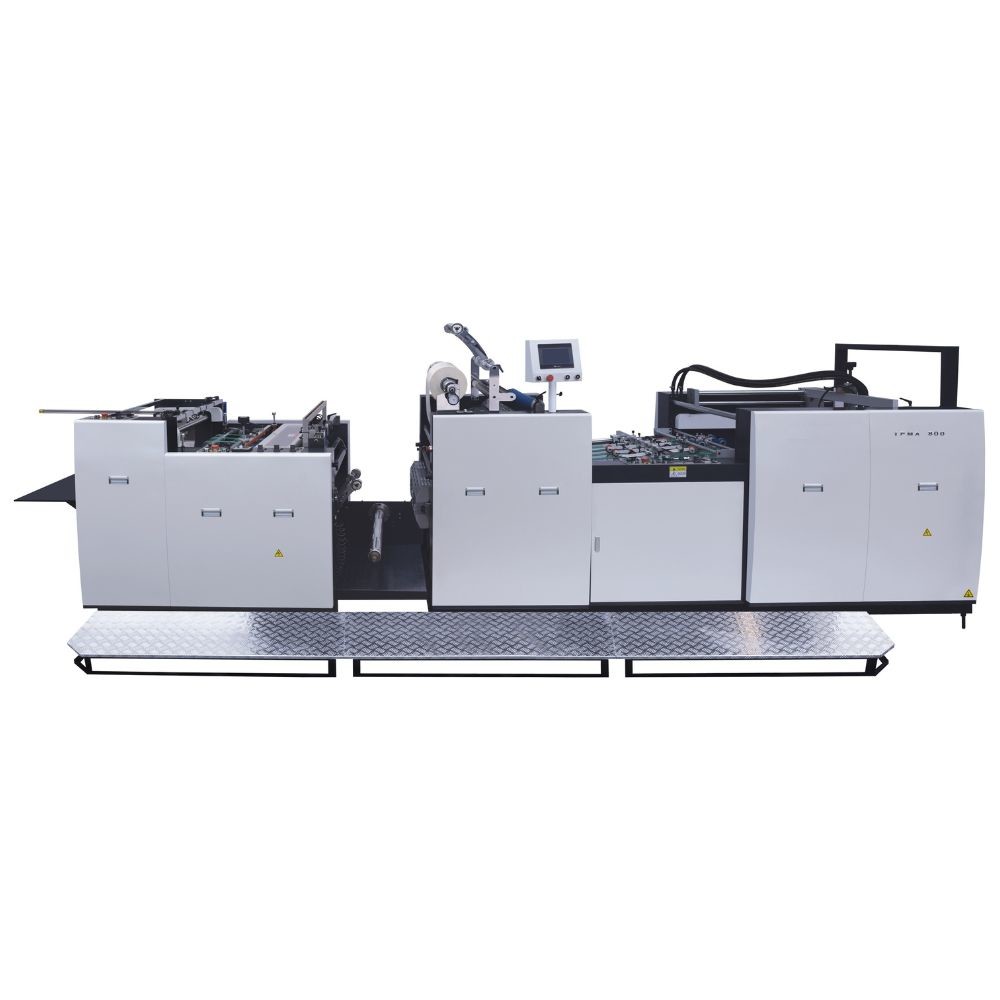

YFMA-760 Automatic Laminating Machine
Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides 1
Features
YFMA-760 fully automatic laminating machine as a professional equipment used for plastic film laminating on the surface of paper printer matter.
* Thermal laminating (Pre-coated /thermal film)
* Film:OPP,PET,PVC,METALLIC,etc.
Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides 2
Technical Parameters
YFMA Series Film Laminator Machine
Model
YFMA-590
 YFMA-760
Max. Paper Size
590*760mm
 760*1020mm
Min. Paper Size
 240*240mm 240*270mm
Speed
 0-80m/min 0-80m/min
Paper Thickness
 100-500gsm 100-500gsm
Power
 18kw 25kw
Weight
 2500kgs 3000kgs
Dimension (layout)
 5500*1300*1800mm 5600*1450*1600mm
Loading
By sea
 By sea
Configuration
Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides 3 Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides 4
Automatic Paper Feeding Unit
The paper feeder is an important part of the coating machine.The function of the paper feeder is to automatically,accurately,steadily and periodically separate the sheets one by one,and continuously send them to the regular positioning parts.
The paper feeding method of this machine is continuous paper feeding,which has the advantages of high automation,compact structure,good performance,convenient operation,accurate paper feeding and high precision.The main components of the paper feeder are paper feeding bridge,paper feeding head,paper stacking table,lifting system and transmission system.
(1)Adopt oil-free vacuum air pump suction system;
(2)High-speed offset printing feeder(12,000 sheets/hour)ensures high­ speed and stable operation;
(3)Stepless frequency conversion speed regulation paper feeding;
(4)The paper feeding table of the production line is positioned and conveyed by vacuum suction to ensure smooth,tidy and stable conveying;
(5)The upper and lower limit protection devices of the feeding table;manual rapid lifting;
(6)The paper feeding table automatically replenishes the paper feeding system;
(7)Attached double sheet controller:double or multiple sheet feeding detection and shutdown system:use the induction of the safety voltage.
Suction Device
Equipped with a turbofan suction motor and a servo-synchronized paper feeding belt to ensure that the paper is stably fed to the front gauge device.
Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides 5 Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides 6
Front Lay
The servo motor controls the front lay and the feeder to synchronize,and the cam mechanism precisely controls to ensure the value of the edge covering.
Side Lay
The servo-controlled side lay is synchronized with the feeder,and the cam mechanism precisely controls the side pull to ensure that the side edges of the paper are aligned.
Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides 7 Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides 8
Electromagnetic Heater Unit
It adopts the international advanced electromagnetic heating control technology, which has the characteristics of fast heating speed and easy temperature control.
Loading and Unloading Unit
Air shaft equiped with clutch device can adjust film release extension and speed.
Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides 9 Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides 10
Man-Machine Interaction System
The color touch screen operation interface can quickly and conveniently input and view the parameters of the machine operation.
Anti-Warping Device
Prevent the paper from warping due to film shrinkage,ensure the paper is flat and has the characteristics of easy adjustment and no shaking.
Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides 11 Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides 12
Automatic Delivery System
The automatic paper delivery system is equipped with a fan-cooled paper pressing structure,which can perfectly deliver the paper under the high­ speed operation of the machine,ensuring that the paper is delivered neatly.
(1)The belt has low-noise delivery,and the upper and lower rails are designed to ensure smooth delivery;
(2)The thin paper coating is prone to curling, and the vacuum suction paper vstabilizer device keeps the paper stable;
(3)The delivery table can be raised and lowered manually;
(4)The upper and lower limit protection devices of the delivery table;
(5)The automatic lowering device of the delivery table,and the delivery limit paper stop and alarm system;
(6)Automatic coating paper cumulative count.
Pneumatic Slitting System
Equipped with flying knife,pneumatic punching device,photoelectric detection,need to adjust the cutting position according to the size of the paper,high-speed automatic cutting.
Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides 13 Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides 14
Double Sided Lamination Unit(Optional Unit)
To solve the problem of two times lamination,making more profits for users.
Chain Cutter(Optional Unit)
Chain cutter system applying pet,pvc film and etc. having the feature of accurate separation without film margin.
Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides 15 Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides 16
Second Lamination Unit(Optional Unit)
The second lamination enhances the bond strength of the lamination.
Embossing Unit(Optional Unit)
Embossing process makes paper good-looking and valuable.
Applications
Widely applicable for laminating in packaging,paper box,books,magazines,calendars,carton, handbags,gift box, wine packaging paper improving the printing matter grades,and achieve the purpose of dust-proof,water-proof, oil proof.It’s the best choice for printing and laminating enterprises of all scales.
Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides 17
Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides 18
Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides 19
Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides 20
Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides 21
Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides 22
Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides 23
Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides 24
Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides 25
Plastic OPP PET PVC Metallic Thermal Film Laminating Embossing Machine Double Sides 26
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
