Home ProductsPaper Processing MachineryZF-480B Automatic Pocket Wallet Envelope Making Machine With Patching Windows

ZF-480B Automatic Pocket Wallet Envelope Making Machine With Patching Windows

ZF-480B Automatic Pocket Wallet Envelope Making Machine With Patching Windows
ZF-480B Automatic Pocket Wallet Envelope Making Machine With Patching Windows ZF-480B Automatic Pocket Wallet Envelope Making Machine With Patching Windows ZF-480B Automatic Pocket Wallet Envelope Making Machine With Patching Windows ZF-480B Automatic Pocket Wallet Envelope Making Machine With Patching Windows
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: ZF-480B
Minimum Order Quantity: 1 Set
Price: US 42000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Product Type: Envelope Making Machine Voltage: 380V
Power: 6.5Kw Dimension: 5000x950x1100mm
Weight: 2800 Kg Production Capacity: 170 Pcs/min
Model: ZF-480B Finished Products: Envelope
Raw Material: Paper Paper Thickness: 60-180 Gsm
Window Size: Min.30x55mm Max.130x150mm Size Range Of Envelope: Min.85x85mm Max.230x160mm
Capacity: 8000-10000 Pcs/hour Machine Weight: 2800KG
Machine Size: 5000x950x1100mm
High Light:

Patching Windows Envelope Making Machine 380V

,

60gsm Paper Processing Machinery

,

Automatic Wallet Envelope Making Machine

ZF-480B Automatic Pocket Wallet Envelope Making Machine With Patching Windows 0

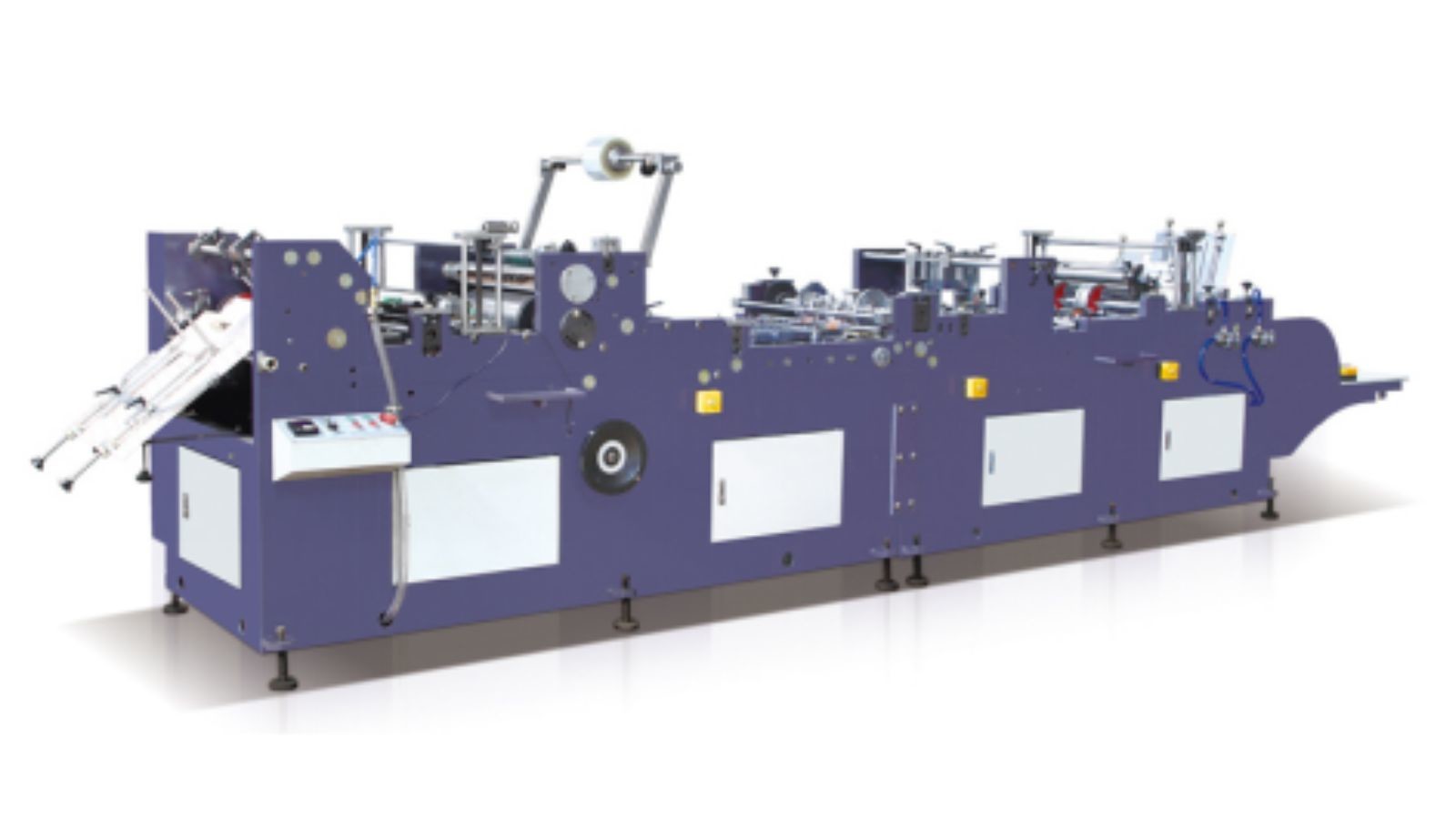

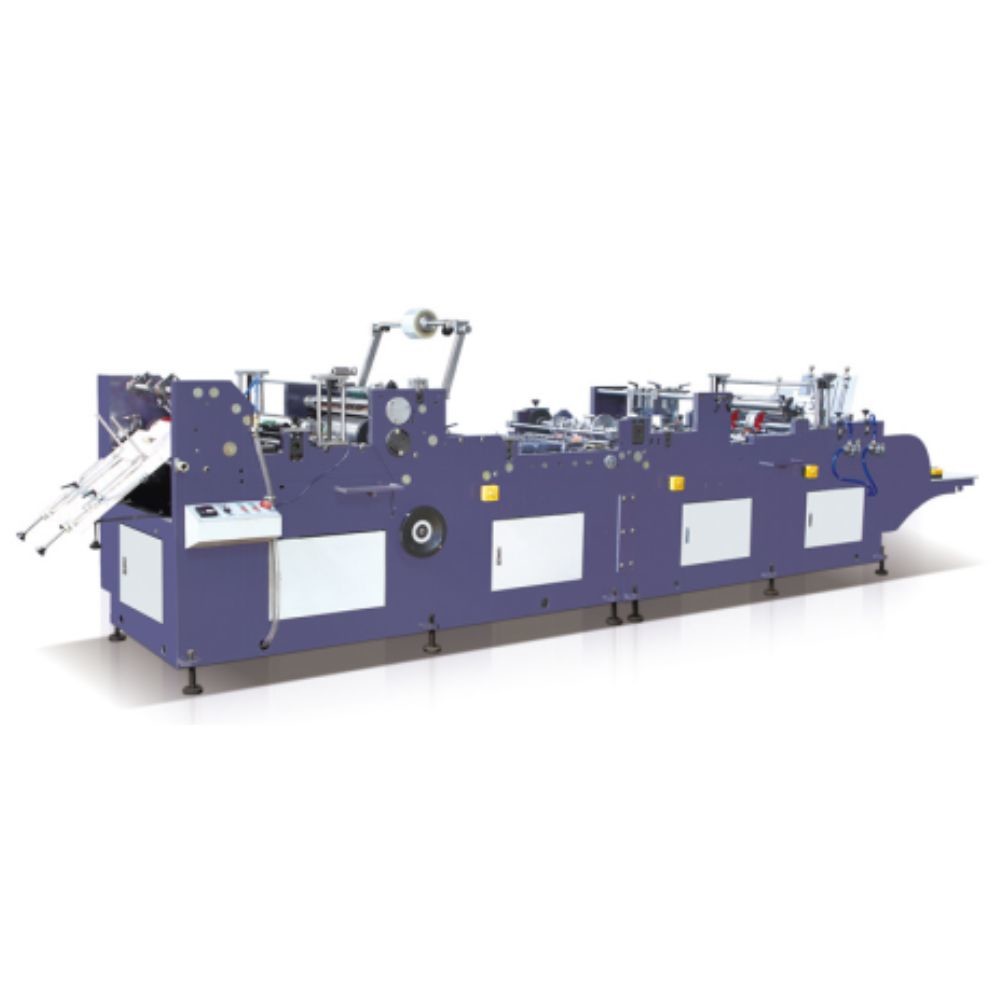

ZF-480B Envelope Making Machine
ZF-480B Automatic Pocket Wallet Envelope Making Machine With Patching Windows 1
Features
ZF-480B full automatic window envelope making machine is specially designed for producing pocket and wallet envelopes with patching windows.
It's patching windows system can stop cutting automatically when the machine is short of paper during running;also it's provided with a finished product counter and an automatic rotary delivery unit,also featured by stable performance as well as fast and accurate debugging during mass production.
1.Reliable sheet separation of the air-suction bottom feeding system with automatic feeding of non-stop operation of the equipment.
2.Easy regulation of the positioning structure of the paper with accurate positioning.
3.Ensuring the precision of finished products regarding the parts of vertical and cross creasing under the high-speed running of the machine.
4.Rotary sizing applicable for any forms of glue lines.
5.Provided with the folder for the suction roller for the stable production in a high-speed state.
6.Visible and accurate regulation of the dial under the condition of fine adjustment.
Mounted with electric counter and automatic delivery unit on the collecting part.
Technical Parameters
ZF-480B Envelope Making Machine
Model
ZF-480B
Paper Thickness
60-180 gsm
Window Size
Min.30x55mm Max.130x150mm
Size Range of Envelope
Min.85x85mm Max.230x160mm
Capacity
8000-10000 pcs/hour
Power
6.5kw
Machine Weight
2800KG
Machine Size
5000x950x1100mm
Process Sequence
ZF-480B Automatic Pocket Wallet Envelope Making Machine With Patching Windows 2
Sample Show
ZF-480B Automatic Pocket Wallet Envelope Making Machine With Patching Windows 3 ZF-480B Automatic Pocket Wallet Envelope Making Machine With Patching Windows 4

ZF-480B Automatic Pocket Wallet Envelope Making Machine With Patching Windows 5
ZF-480B Automatic Pocket Wallet Envelope Making Machine With Patching Windows 6
ZF-480B Automatic Pocket Wallet Envelope Making Machine With Patching Windows 7
ZF-480B Automatic Pocket Wallet Envelope Making Machine With Patching Windows 8
ZF-480B Automatic Pocket Wallet Envelope Making Machine With Patching Windows 9
ZF-480B Automatic Pocket Wallet Envelope Making Machine With Patching Windows 10
ZF-480B Automatic Pocket Wallet Envelope Making Machine With Patching Windows 11
ZF-480B Automatic Pocket Wallet Envelope Making Machine With Patching Windows 12
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
