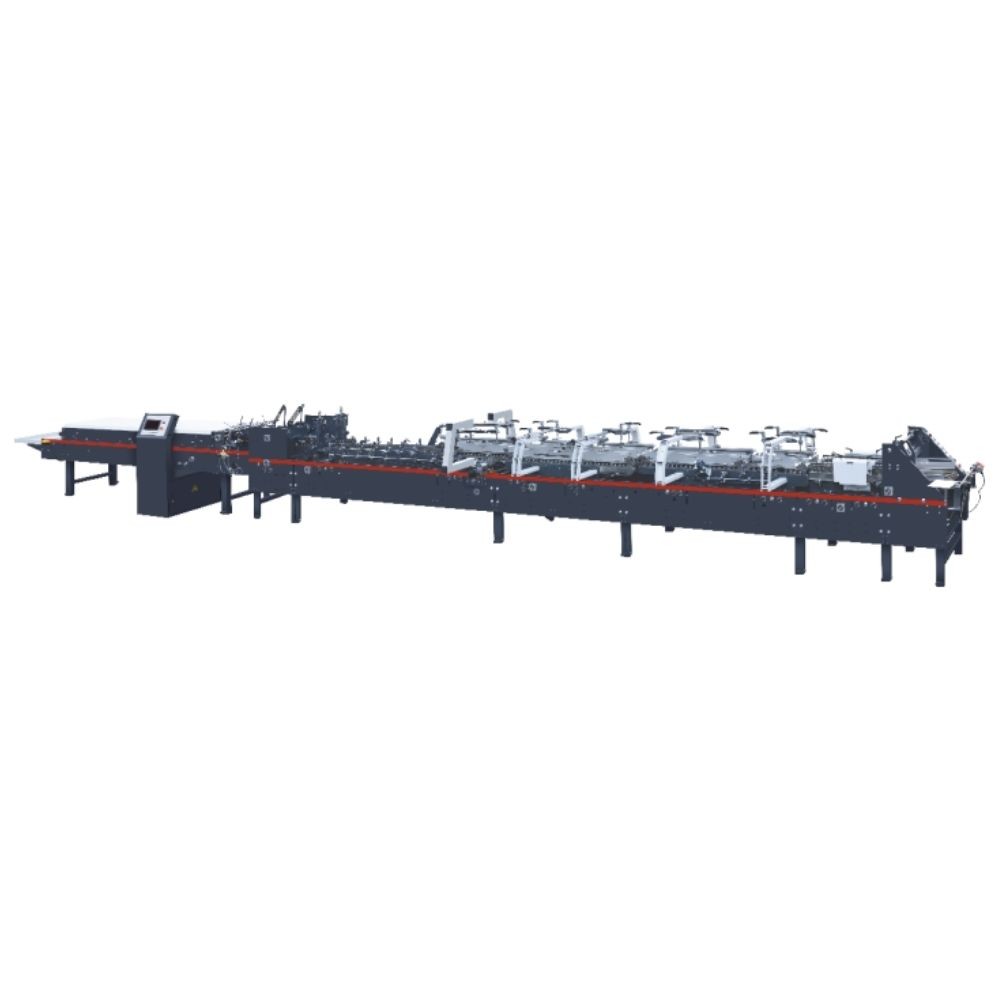

ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System

ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System
ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System
ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: ZH-XAG Series
Minimum Order Quantity: 1 Set
Price: US 23000-36000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Product Type: Folder Gluer Machine Processing Type: Paper Folding Gluing Machine
Voltage: 380V Power: 25KW
Weight: 5000 Kg Production Capacity: 300m/min
Finished Products: Paper Box Raw Material: Paper
Paper Material: 210-600g/m² Paperboard.Compatible With E/F Corrugated Max. Liner Speed: 300m/min Continuous Adjustment
Feeding Way: Automatic Feeding Glue Material: Cold Glue
Highlight:

3 Guns Spraying Folder Gluer Machine

,

Multifunction Folder Gluer Machine

,

Crash Lock Bottom Carton Folder Gluer

ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System 0
ZH-XAG Series Folder Gluer Machine
ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System 1
ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System 2
Features
1.With Several national patents,the performance of the GEN 5 machine is ahead of its peers.
2.Modular structure,different functions can be combined according to customer needs.
3.Functions can be upgraded after purchase.
4.The Multi-motor transmission has strong power,fast speed,and longer service life.
5.Equipped with synchronous belt transmission with high speed and low noise.
6.The upper and lower conveyor belts are powered,and there is no curling phenomenon.
7.The new curved arm bracket has a unique shape and a beautiful appearance.
8.Possible to upgrade to the four six-corner devices at any time.
9.The integrated electrical control box is hidden at the bottom of the conveyor,which saves space.
Technical Parameters
Line Speed
0-300m/min adjustable
Paperboard
210-600g/m2Paperboard Compatible with E/F corrugated
Box Forming
Single side gluing, Pre-foleding, Crash lockbottom
Paper Board Feeding
Automatic feeding
Glue Type
Cold glue
Power
ZH-600XAG 11KW AC 3PH 380V
ZH-700XAG 11KW AC 3PH 380V
ZH-800XAG 12KW AC 3PH 380V
ZH-900XAG 12KW AC 3PH 380V
ZH-1100XAG
25KW AC 3PH
380V
Weight
2100KG
2200KG
2500KG
2600KG
5000KG
Dimension(m)
11*1.0*1.3
11*1.1*1.3
13*1.2*1.3
13*1.3*1.3
16*1.3*1.3
ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System 3
ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System 4
ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System 5 ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System 6
Main Technical Datas   Unit:mm
Model
Box type
A
B
(C MIN)
(D MIN)
ZH-600XAG
Straight-line box
110-600
60-500
50
10
Pre-fold box
170-500
60-500
80
10
Crash lock bottom box
180-500
100-500
80
40
ZH-700XAG
Straight-line box
110-700
60-500
50
10
Pre-fold box
170-600
60-500
80
10
Crash lock bottom box
180-600
100-500
80
40
ZH-800XAG
Straight-line box
130-800
60-700
60
10
Pre-fold box
170-700
60-700
80
10
Crash lock bottom box
180-700
100-700
90
50
ZH-900XAG
Straight-line box
130-900
60-700
60
10
Pre-fold box
170-800
60-700
80
10
Crash lock bottom box
180-800
100-700
90
50
ZH-1100XAG
Straight-line box
200-1100
100-700
100
50
Pre-fold box
200-1000
100-700
100
50
Crash lock bottom box
200-1000
100-700
100
50
Configuration
ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System 7

Paper Feeding Section

Equipped with 2 output knives,adjust the asymmetric length according to the actual sample.The embossing power guide wheel guides the paper output belt,and there are baffles on the left and right sides,which can be moved left and right according to the product style.The vibrating device cooperates with the motor to feed paper quickly,easily and continuously automatically.
ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System 8

Aligner Section

The paper board sent from feeder section will be corrected by aligner section to ensure transmission accurately.
Pressing drive pressure can be adjusted up and down to accommodate different
paper board thickness.
ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System 9

Pre-Folding Section

The first line can be pre-folded at 180°,and the third line at 135°,which is perfectly combined with automated packaging.
ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System 10

Crash Lock Bottom Section

A complete set of front flap bottom locking device and servo anti-hook device to ensure accurate bottom locking action.The segmented upper belt board,combined with a special design,can be adjusted by expansion and contraction according to the needs of
the product.
ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System 11

Lower Gluing Tank

Lower gluing tank is large volume.
Easy to remove and clean.
Electronic upper gluing system by guns.
ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System 12

Folding and Closing

The Second and fourth folding line 180°.
Folding and closing section transmit from right and left side,the belt speed can be adjusted separately and correct the way of box running to ensure straightly delivery.
ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System 13

Trombone Section

Up and down belt can be adjusted separately
Equipped with photo electronic counting device and kicking paper device,which can press the paper after accounting and make it easy to pack.Also equipped with feeding paper inspection device.
ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System 14

Transmission

Equipped with special additional sponge belt for the press of boxes valley part.
Upper section moves back and forward, allowing for different box length.
ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System 15

Box Squaring Device

Full press section continuously and automatically box collection mechanism that ensures a neat transfer to the press section,
guaranteeing a well aligned flow.
ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System 16

Synchronous Belt & Wheel

The most efficient mechanical power transmission method currently on the market Reduce noise,reduce wear,and efficient power transmission system.
ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System 17

Aviation Connector

Easy to install and transport.
ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System 18

Independent Electrical Box

The independent structure reduces the interference of the mechanical structure to the electrical system,and it is beautiful and
atmospheric.
ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System 19

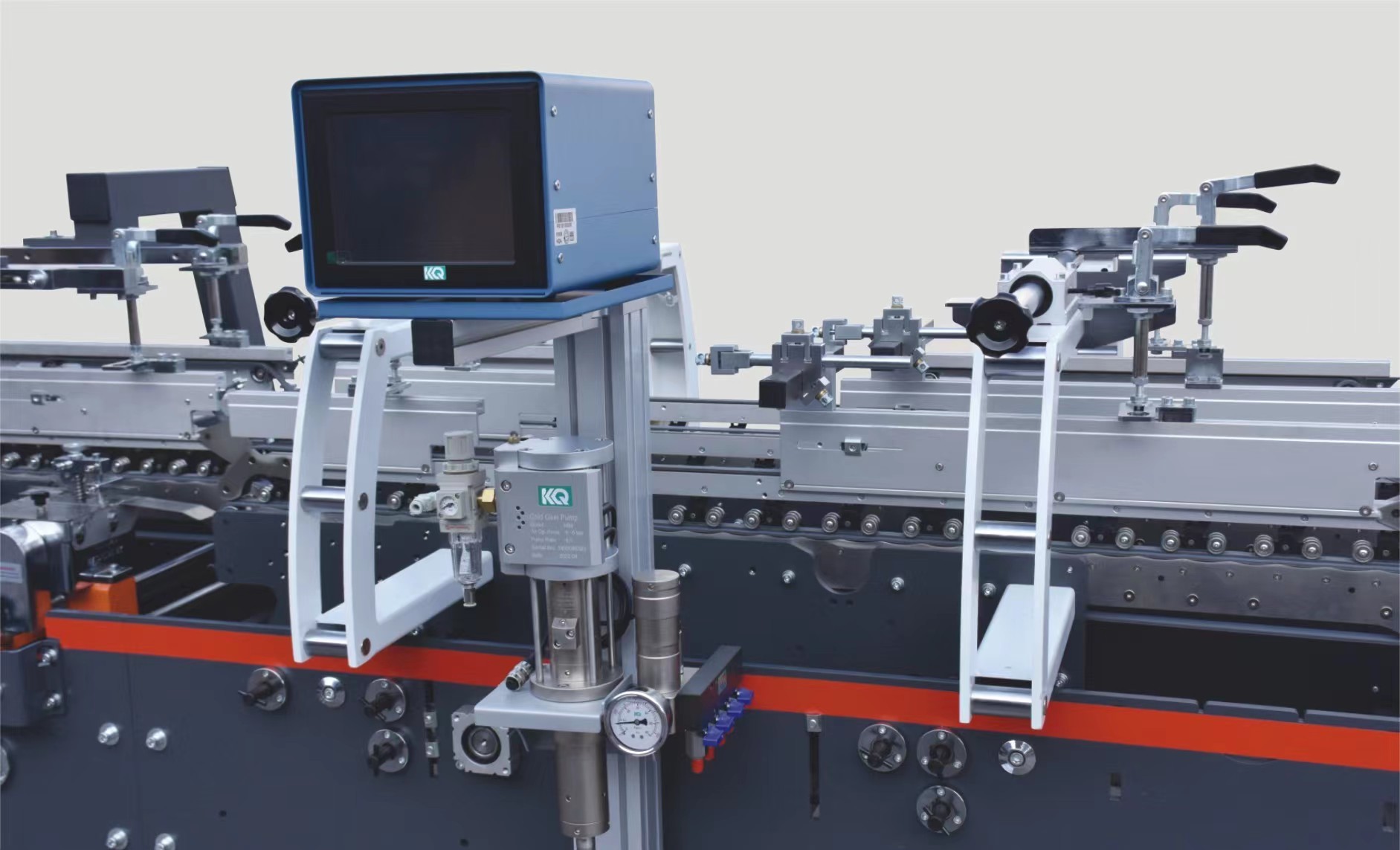

Spraying System
Equipped with three guns, convenient in the production of 4/6 corner box and various special-shaped box,gluing quickly and accurately sizing
ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System 20
ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System 21
ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System 22
ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System 23
ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System 24
ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System 25
ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System 26
ZH-XAG Multifunction Crash Lock Bottom Folder Gluer Machine With 3 Guns Spraying System 27
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
