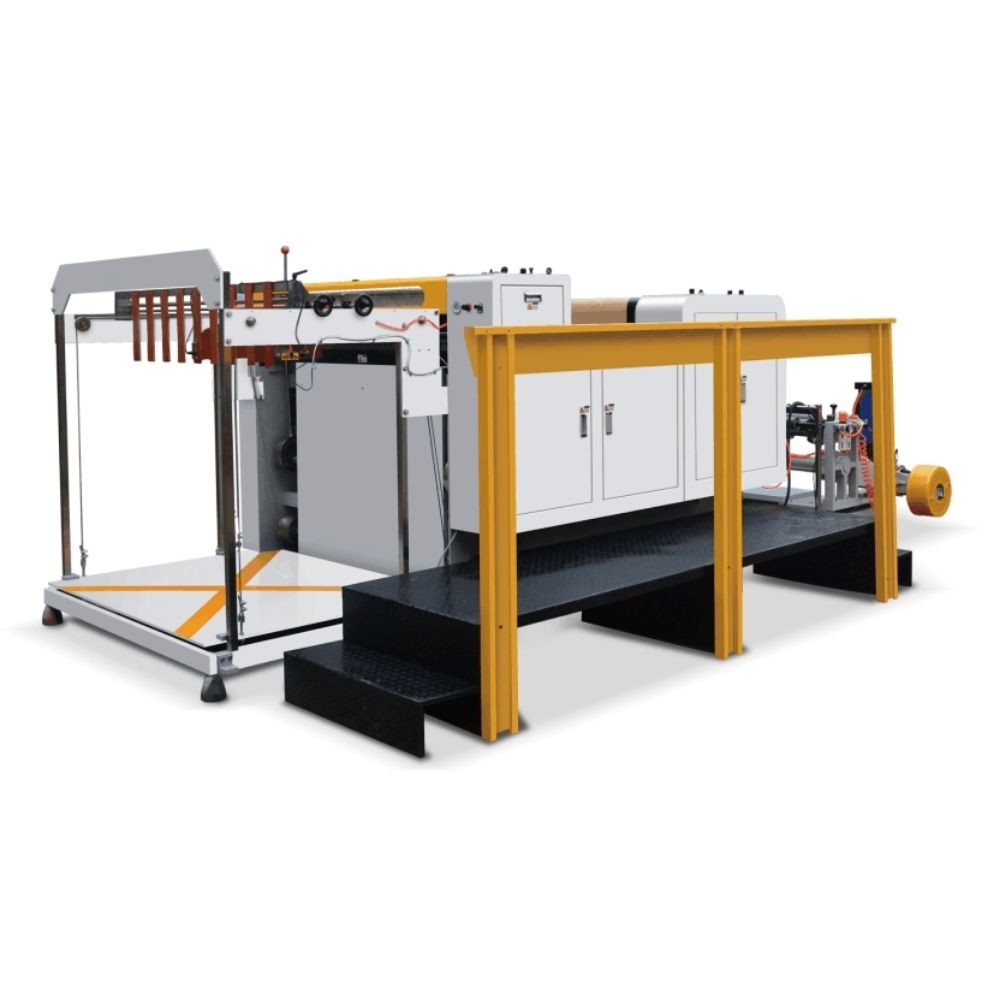

Automatic Roll To Sheeting Paper Cutting Machine ZHQ-1100B

Automatic Roll To Sheeting Paper Cutting Machine ZHQ-1100B
Automatic Roll To Sheeting Paper Cutting Machine ZHQ-1100B Automatic Roll To Sheeting Paper Cutting Machine ZHQ-1100B Automatic Roll To Sheeting Paper Cutting Machine ZHQ-1100B Automatic Roll To Sheeting Paper Cutting Machine ZHQ-1100B Automatic Roll To Sheeting Paper Cutting Machine ZHQ-1100B
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: ZHQ-1100B
Minimum Order Quantity: 1 Set
Price: US 20000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Type: Paper Sheeting Machine Voltage: 380V
Dimension: 4000*1600*1500(mm) Weight: 4000 Kg
Production Capacity: 150times/min Max. Workable Width: 1100mm
Max Diameter Of Material (Air Shaft): 1200mm ( Maximum 1200kg) Max. Width Of Cutting: 1100mm
Length Of Cutting: 20-1200mm Reference Weight Of Cutting Paper: 40~500g
Precision Of Fixed Length: ±0.2mm Speed: 10-150times/min
Total Power: 7.5kw ( 380V 50 HZ ) Weight (approx): 4000kg
Overall Dimension(LxWxH): 4000*1600*1500(mm)
High Light:

380V Paper Sheeting Machine

,

1100mm Roll To Sheeting Paper Cutter

,

PLC Paper Processing Machinery

Products Description
ZHQ-1100B Automatic Paper Sheeting Machine
Automatic Roll To Sheeting Paper Cutting Machine ZHQ-1100B 0
Automatic Roll To Sheeting Paper Cutting Machine ZHQ-1100B 1

Features

1.This paper cutting machines is suitable for cutting big rolling packaging materials such as paper,paper-plastic,

multicolor laminated material,etc.
2.It adopts servo motor for controlling constant-length cutting.
3.It adopts pneumatic,photoelectric sensor for controlling transmission system,with photo,electric,gas together.

4.It has the functions of easy operation,high precision,good stability,low noise.
5.This machine has the functions of the frequency converter timing device,automatic counting,stop working by alarm and tension adjustment by magnetic powder or manual with friction unit.
6.With PLC control.
7.With sensor control to tracking the printing marks (optional).
8.With shaft less hydraulic loading system (optional).
9.With Slitting function (optional).

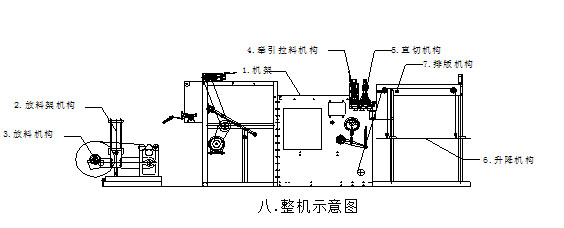

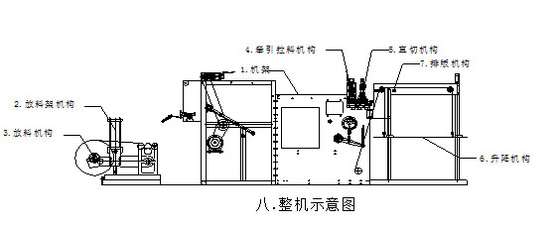

Machine Layout Loading Roll Path
Automatic Roll To Sheeting Paper Cutting Machine ZHQ-1100B 2
Technical Parameters
Model
ZHQ-1400B
ZHQ-1100B
Max diameter of material (Air shaft)
Φ1200mm(Maximum 1200kg)
Φ1200mm(Maximum 1200kg)
Max. width of cutting
1400mm
1100mm
Length of cutting
20-1200mm
20-1200mm
Reference weightof cutting paper
40~500g
40~500g
Precision of fixed length
±0.2mm
±0.2mm
Speed
10-150times/min
10-150times/min
Total Power
10kw (380V 50 HZ )
7.5kw ( 380V 50 HZ )
Weight (approx.)
4500kg
4000kg
Overall dimension(LxWxH)
4000×1900×1500(mm)
4000×1600×1500(mm)
Configuration
Automatic Roll To Sheeting Paper Cutting Machine ZHQ-1100B 3 Automatic Roll To Sheeting Paper Cutting Machine ZHQ-1100B 4

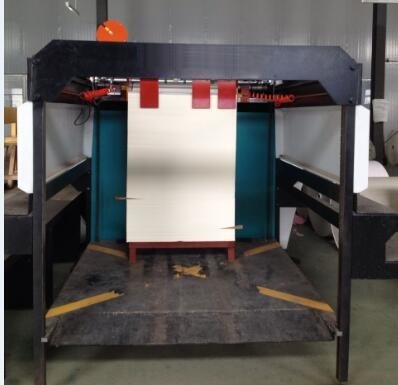

Paper stacking device with paper insert function

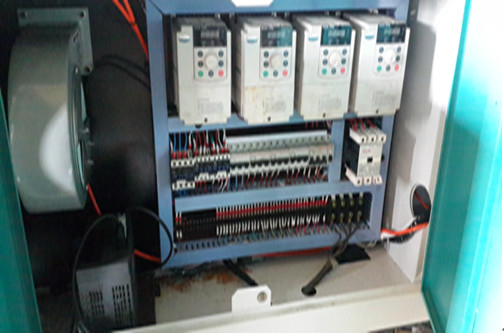

Control System:(PLC control,French Schneider electrical component)

Application

This machine is specialist for horizontal and vertical cutting paper rolling materials to Sheet size.
Customer
Automatic Roll To Sheeting Paper Cutting Machine ZHQ-1100B 5
Company Profile
Automatic Roll To Sheeting Paper Cutting Machine ZHQ-1100B 6
Automatic Roll To Sheeting Paper Cutting Machine ZHQ-1100B 7
Automatic Roll To Sheeting Paper Cutting Machine ZHQ-1100B 8
Why Choose Us
Automatic Roll To Sheeting Paper Cutting Machine ZHQ-1100B 9
Product Packaging
Automatic Roll To Sheeting Paper Cutting Machine ZHQ-1100B 10
Automatic Roll To Sheeting Paper Cutting Machine ZHQ-1100B 11
FAQ
Q1: Are you a manufacturer or a trading company?
A: Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2. What is the machine warranty?
A: One year.After the warranty,we still provide technical support to buyer at low cost.
Q3. What is the production time while placing order?
A: Normally about 10-20 days.
Q4. What is the delivery time?
A: 15-30days after deposit.
Q5. Can your company handle shipping for customers?
A: Yes,just give us destination sea port or container yard.
Q6. Does the packing strong?
A: Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7. How about the machine installation and training?
A: 1)We provide training in our factory for free
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8. Do you have machines in stock?
A: For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9. How can you assure the machines’ quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10. Do you inspect machines or test running before packing?
A: Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11. What’s the payment term?
A: T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.
Q13. How many years are you in printing field?
A: The Shanghai company since in 2008,the factory is more than 25 years.
Q14. How many clients do you have?
A: We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
