Home ProductsBook Binding MachineSuperbinder-7000M Fully Automatic Glue Book Binding System Production Line

Superbinder-7000M Fully Automatic Glue Book Binding System Production Line

Superbinder-7000M Fully Automatic Glue Book Binding System Production Line
Superbinder-7000M Fully Automatic Glue Book Binding System Production Line
Superbinder-7000M Fully Automatic Glue Book Binding System Production Line Superbinder-7000M Fully Automatic Glue Book Binding System Production Line Superbinder-7000M Fully Automatic Glue Book Binding System Production Line Superbinder-7000M Fully Automatic Glue Book Binding System Production Line
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: Superbinder-7000M
Minimum Order Quantity: 1 Set
Price: US 650000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 90 days
Payment Terms: L/C, T/T
Supply Ability: 1 Set/Sets per Month
Contact Now
Type: Glue Binding Machine No. Of Clamps: 21
Max. Mechanical Speed: 7000cycles/h Book Block Length: 140-460mm
Book Block Width: 120-300mm Book Block Thickness: 3-50mm
Cover Length: 140-470mm Cover Width: 250-640mm
Power Required: 74kw Machine Height: 6800kg
Machine Dimensions: 12200*1900*1500mm
High Light:

Touch Screen Book Glue Binding Machine

,

Automatic Glue Book Binding Machine

,

Glue Book Binding System Production Line

Superbinder-7000M Fully Automatic Glue Book Binding System Production Line 0
Superbinder-7000M Production Line of Binding System
Superbinder-7000M Fully Automatic Glue Book Binding System Production Line 1
Configurations
Description
Q‘ty
G460B/16 Stations Gatherer
Including 16 gathering stations, a hand feeding station, a criss-cross delivery and a reject-gate for faulty signature.
1 Set
Superbinder-7000M binder
Including 21 book clamps, 4 spine preparation stations,
2 moveable spine gluing station and a moveable side gluing station, a stream cover feeding station, 2 nipping stations, a touch screen and automatic lubrication system.
1 Set
Book Stacker
Including stacking unit,
book pushing unit and emergency exit.
1 Set
Supertrimmer-100
Three-Knife Trimmer
Including touch screen control panel, horizontal in-feed carriage belt from the right, vertical in-feed unit, three knife trimmer unit, gripper delivery, and discharge conveyor.
1 Set
Conveyor
Including 50-meter connection conveyor.
1 Set
Features
The Superbinder-7000M Binding System is an ideal solution to fulfill your every demand for high production efficiency and quick return of investment.It features easy operation and setup,double spine gluing stations and double nipping stations for perfect spine forming.
*High net output at 7000 cycles/hour with thickness up to 50mm.
*Four spine prepration stations for spine roughening,milling, notching and brushing.
*Double spine gluing stations and double nipping stations for perfectly-shaped book spines.
*Position indicators provide user-friendly operation and precise adjustments.
*Durable construction with using of high quality European imported spare parts as key parts.
*Optional Gauzing Station and PUR glue application system to meet different demands.
Superbinder-7000M Fully Automatic Glue Book Binding System Production Line 2
Technical Parameters
Machine Model
G460B/8
G460B/12
G460B/16
G460B/20
G460B/24
No. of Stations
8
12
16
20
24
Sheet Size
135-280mm
Sheet Size
196-460mm
In-line Max. Speed
8000 cycles/h
Off-line Max. Speed
4800 cycles/h
Power Required
7.5kw
9.7kw
11.9kw
14.1kw
16.3kw
Machine Weight
3000kg
3500kg
4000kg
4500kg
5000kg
Length of Machine
1073mm
13022mm
15308mm
17594mm
19886mm



Machine Model
Superbinder-7000M
No. of Clamps
21
Max. Mechanical Speed
7000cycles/h
Book Block Length
140-460mm
Book Block Width
120-300mm
Book Block Thickness
3-50mm
Cover Length
140-470mm
Cover Width
250-640mm
Power Required
74kw
Machine Model
6800kg
Machine Dimensions (L*W*H)
12200*1900*1500mm



Machine Model
Supertrimmer-100



Untrimmed Book Size
Max. 445*310mm (Off-line)
Min. 85*100mm (Off-line)
Max. 420*285mm (In-line)
Min. 150*100mm (In-line)
Trimmed Book Size
Max. 440*300mm (Off-line)
Min. 80*95 mm (Off-line)
Max. 415*280mm (In-line)
Min. 145*95mm (In-line)

Trim Thickness
Max. 100 mm
Min. 10 mm
Mechanical Speed
15-45 cycles/h
Power Required
6.45 kw
Machine Weight
4,100 kgs
Configuration

Configuration 1:G460B/16 Stations Gatherer

G460B automatic gathering machine is speedy,stable,convenient,efficient,and flexible.
It can be used either as a stand-alone machine or connected in-line with Cambridge-12000/Superbinder-7000M/ Challenger-5000 Perfect Binder for fast and efficient
production.
*Reliable and non-marking separating of sections thanks to the vertical gathering design.
*Touch screen allows easy operation and convenient fault analysis.
*Comprehensive inspection system for miss-sheet,double-sheet and paper jams.
*Easy changeover between 1:1 and 1:2 production modes brings high flexibility.
*Criss-cross delivery unit and hand feeding station are offered as standard features.
*Reject gate for wrong signatures ensures non-stop production.
*Excellent quality control is enabled by the optional signature recognition system.
Superbinder-7000M Fully Automatic Glue Book Binding System Production Line 3

A touch Screen Control System

The touch screen control system allows easy operation and convenient fault analysis.
Superbinder-7000M Fully Automatic Glue Book Binding System Production Line 4

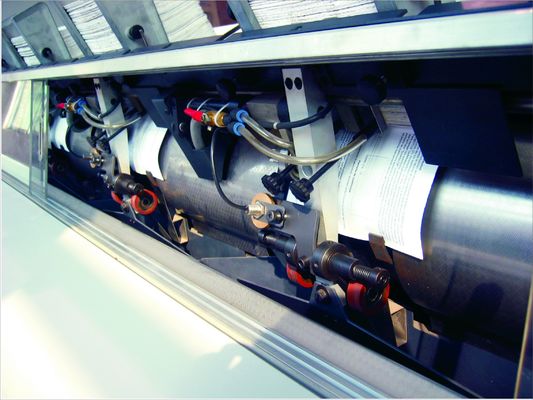

16 Gathering Stations

16 stations in 4 units (each unit has 4 stations) and 1 vacuum pump for each unit. Automatic signature inspection system on each station to detect miss-feeds,multi-feeds,and paper jams.
The vertical gathering design can reduce the friction of signatures so as to avoid any mark on the paper during gathering process.
Superbinder-7000M Fully Automatic Glue Book Binding System Production Line 5

1:2 Speed Mode Change Mechanism

High gathering speed with 1:2 speed change mechanism.
Superbinder-7000M Fully Automatic Glue Book Binding System Production Line 6

A Reject Gate

The reject gate for faulty signatures to ensure a non-stop production.
Superbinder-7000M Fully Automatic Glue Book Binding System Production Line 7

A Hand Feeding Station

Hand feeding station is provided for convenient feeding of additional signatures.
Superbinder-7000M Fully Automatic Glue Book Binding System Production Line 8

A Criss-Cross Delivery Unit

The criss-cross delivery unit is provided for efficient collection of well-gathered book blocks.

Configuration 2:Superbinder-7000M Binder

The 21-clamp Superbinder-7000M perfect binder offers simple operation and superior binding quality.Double spine gluing station and double nipping stations create durable, strong binding quality with sharp spine corners.
Superbinder-7000M Fully Automatic Glue Book Binding System Production Line 9

Touch Screen Control System

Interactive operating menu provides simple and quick control of the machine.
Superbinder-7000M Fully Automatic Glue Book Binding System Production Line 10

21 Sets of Book Clamps

The 21 book clamps employ aluminum die casting alloy plates and German torsion springs,which can provide stable and reliable
clamping force to ensure high accuracy of each production step.The opening of book clamp can be easily adjusted by position
indicator at one time.
Superbinder-7000M Fully Automatic Glue Book Binding System Production Line 11

Four Spine Preparation Stations

Separate roughening,milling,notching,and brushing units ensure thorough spine preparation.Working together with the reliable paper dust extractor,makes sure book spine is well prepared before glue application.
Superbinder-7000M Fully Automatic Glue Book Binding System Production Line 12

Gluing Application System

Double spine gluing station with one side gluing station guarantee optimal gluing under high-speed.
Movable gluing stations allow easy changeover between PUR and EVA in mintues.
Superbinder-7000M Fully Automatic Glue Book Binding System Production Line 13

Stream Cover Feeder

Large capacity stream cover feeder allows stable feeding of large quantity covers for medium and long print runs.Covers only
need to be added every 30 minutes,which saves a lot of operation time.Covers with flaps can also be smoothly fed through the
wide horizontal cover feeding table.
Superbinder-7000M Fully Automatic Glue Book Binding System Production Line 14

Cover Scoring Station

The specially designed dualaxis scoring rollers with large diameter enable straight and nice-looking scoring lines.Position
indicator are installed for precise adjustment.Books of only 3mm thickness can also be scored perfectly.
Superbinder-7000M Fully Automatic Glue Book Binding System Production Line 15

Two Nipping Stations

Two superior nipping stations exert powerful nipping pressure to create strong,durable binds with perfectly-shaped book spines.
Nipping pressure and pressing time can be adjusted to achieve optimal book spine shapes.
Superbinder-7000M Fully Automatic Glue Book Binding System Production Line 16

Automatic Lubrication System

The automatic lubrication system makes the lubrication and maintenance easier.

Configuration 3:Supertrimmer-100 Three-Knife Trimmer

The Supertrimmer-100 features sturdy configurations and precise trimming accuracy with a user-friendly touch-screen control system.This machine could be used standalone,or connected in-line with perfect binder for efficient book production.
*Streamlined process:feeding,positioning,pushing-in,pressing,trimming,output.
*Robust one-piece machine frame for a reduced vibration and higher trimming precision.
*No book no cut control avoid unnecessary movements and extend the machine lifetime.
Superbinder-7000M Fully Automatic Glue Book Binding System Production Line 17
One Set of Supertrimmer-100
Touch screen control panel
Horizontal infeed carriage belt from the right
Vertical infeed unit
Three-knife trimmer unit
Gripper delivery
Output conveyor
With 1 air compressor
Configuration 4:Book Stacker
Superbinder-7000M Fully Automatic Glue Book Binding System Production Line 18





One Set of Book Stacker
Stacking Unit
Book Pushing Unit
Emergency Exit
Configuration 5:Conveyor
Superbinder-7000M Fully Automatic Glue Book Binding System Production Line 19
50-Meter Connection Conveyor
Total length: 50 meters.
1 book emergency exit.
LCD main control.
Each section of conveyor speed adjusted by ratio or separately.
Imported conveyor belts for straight part.
Imported materials for 90 degrees and 180 degrees turning link joints.
Superbinder-7000M Fully Automatic Glue Book Binding System Production Line 20
Superbinder-7000M Fully Automatic Glue Book Binding System Production Line 21
Superbinder-7000M Fully Automatic Glue Book Binding System Production Line 22
Superbinder-7000M Fully Automatic Glue Book Binding System Production Line 23
Superbinder-7000M Fully Automatic Glue Book Binding System Production Line 24
Superbinder-7000M Fully Automatic Glue Book Binding System Production Line 25
Superbinder-7000M Fully Automatic Glue Book Binding System Production Line 26
Superbinder-7000M Fully Automatic Glue Book Binding System Production Line 27
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
