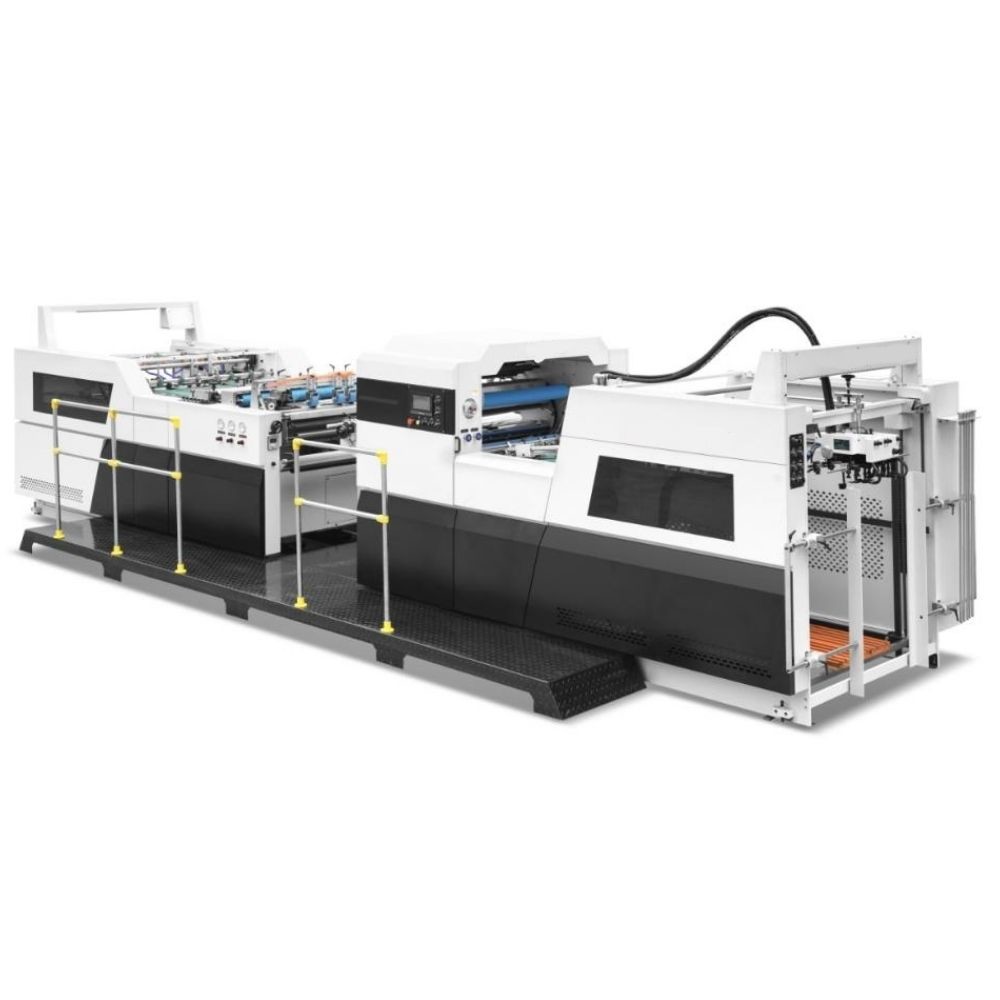

NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min

NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min
NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: NFY-B1080
Minimum Order Quantity: 1 Set
Price: US 38900 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 1 Set/Sets per Month
Contact Now
Type: Laminating Machine Automatic Grade: Automatic
Driven Type: Electric Voltage: 220V
Dimension: 7715*1995*1960mm Weight: 6100 KG
Max. Paper Width: 1080mm/1380mm/1580mm Max. Paper Length: 880mm/1250mm/1450mm/1650mm
Min. Paper Size: 350*290mm Speed: 10-110m/min
Paper Thickness: 80-500gsm Overlap Precision: ≤±2mm
Non-Stop Feeding Height: 1300mm Collector Paper Height (incl. Pallet): 1300mm
Roll Working Pressure: 15Mpa Cable Thickness: 16mm
High Light:

Automatic Thermal Laminating Machine

,

NFY-B1080 Thermal Laminating Machine

,

110m/min Thermal Film Laminator

NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min 0
NFY-B1080 Automatic Thermal Laminating Machine
NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min 1
NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min 2
NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min 3
Features
NFY-B series pre-coat glue automatic thermal laminating machine as a professional equipment used for plastic film laminating on the surface of paper printed matter.Improving the printing matter grades,and achieve the purpose of dust-proof,waterproof,oil proof.
*Thermal laminating (Pre-coated /thermal film)
*Film: OPP,BOPP,PET(option chain knife),SOFT TOUCH FILM.
NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min 4
Technical Parameters
Model
NFY-B1080
Max. Paper width (X)
1080mm/1380mm/1580mm
Max. Paper length (Y)
880mm/1250mm/1450mm/1650mm
Min. Paper Size
350*290mm
Speed
10-110m/min
Paper Thickness
80-500gsm
Overlap Precision
≤±2mm
Film Thickness (common micrometer)
1005,1006,1206
(1508 and 1208 for deep embossing paper)
Non-Stop Feeding Height
1300mm
Collector Paper Height (incl. pallet)
1300mm
Main Motor Power
5.5kw
Whole Machine Power
35kw
Working Power
25-28kw
Voltage
380V-50Hz-3P
Roll Working Pressure
15Mpa
Cable Thickness
16mm
Weight
6100kgs
1080*880--Dimension (layout)
7715*1995*1960mm
Loading
40 GP
Machine Layout Size
NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min 5
Configuration
NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min 6
NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min 7

Feeding Unit

1.High Speed Feeder, 4 suckers for lifting and 4 suckers for conveying structure.
Max Speed 12000 sheets/h
2.The paper feeding table has upper and lower over-limit protection
3.The height of non-stop feeding can reach 1150mm,pre-stacking device,non-stop feeding
4.Becker Pump.
5.Servo motor control feeder is option.
NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min 8

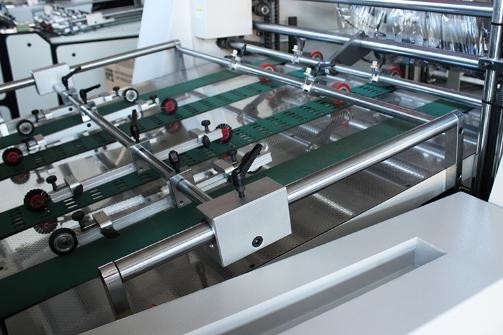

Conveying Table and Overlap
1.The conveying table adopts customized stainless steel corrugated board
2.The brush wheel and rubber pressing wheel move smoothly
3.Servo motor overlap,improve accuracy of lap,error≤±2mm
NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min 9
NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min 10

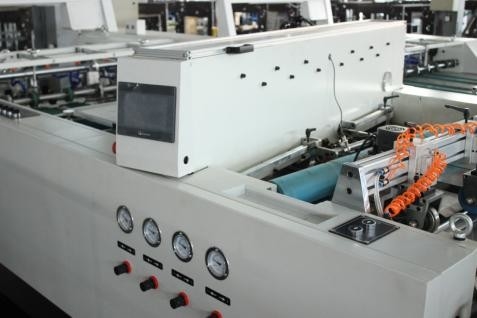

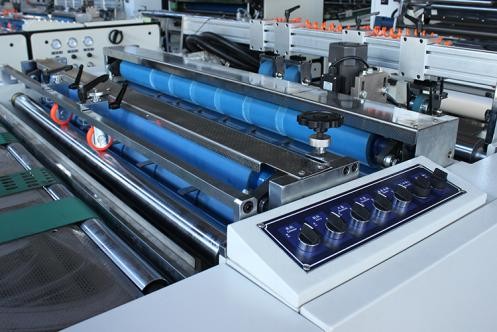

Laminating Unit

1.Touch screen control board,The Internet of things,long remote control.
2.Heating roll with Chromium treatment,Electromagnetic heating system,Temperature sensor inner,Intelligent constant temperature system.
3.Rubber pressure roll automatic pressurization.
4.Paper miss detection,Automatic lubrication & cooling.
5.Driver Chain KMC-Taiwan.
NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min 11
NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min 12
NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min 13
NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min 14

Automatic Cutting Unit

1.The paper cutter is equipped with a tension controller and an anti-curl device to ensure that the paper is flat and not curled.
2.The paper cutting part contains grinding wheel,disc knife and hot knife for slitting, meeting customers' requirements for slitting films of different materials.
3.The bounce roller is controlled by an independent motor,and the paper can be separated by using the speed difference.
4.Chain knife cutting (optional),independently controlled by servo motor,suitable for perfect slitting of PET film.
NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min 15
NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min 16
NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min 17

Delivery Unit

1.Adopt pneumatic paper sorting structure to ensure the neatness of the paper and facilitate the next process
2.with a reduction wheel to prevent the paper from being damaged due to too fast hitting the baffle
3.Counting electric eye,the number of running paper is displayed on the display screen at the take-up machine,which can be cleared and accumulated
4.Induction electric eye, sensing the length of the paper,if the length of the paper changes, the belt will accelerate,and the baffle of the take-up machine will overturn and lift the paper
5.Automatic change the collecting palte with non stop is OPTION
Applications
Widely applicable for laminating in packaging,paper box,books,magazines,calendars,carton, handbags,Gift box,Wine packaging paper improving the printing matter grades,and achieve the purpose of dust-proof,water-proof,oil proof.It’s the best choice for printing and laminating enterprises of all scales.
NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min 18
NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min 19
NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min 20
NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min 21
NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min 22
NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min 23
NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min 24
NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min 25
NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min 26
NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min 27
NFY-B1080 High Speed Automatic Thermal Laminating Machine 10 - 110m/Min 28
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
