ML1100 Paper Die Cutting Machine PRY1100 Automatic Feeding Machine

ML1100 Paper Die Cutting Machine PRY1100 Automatic Feeding Machine
ML1100 Paper Die Cutting Machine PRY1100 Automatic Feeding Machine
ML1100 Paper Die Cutting Machine PRY1100 Automatic Feeding Machine ML1100 Paper Die Cutting Machine PRY1100 Automatic Feeding Machine ML1100 Paper Die Cutting Machine PRY1100 Automatic Feeding Machine ML1100 Paper Die Cutting Machine PRY1100 Automatic Feeding Machine
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY1100
Minimum Order Quantity: 1 Set
Price: US 32000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Voltage: 380 V Dimension: 5900 * 2100 * 2000 Mm
Weight: 7500 Kg Production Capacity: 2100 Sheets/hr
Max. Workable Width: 1100 Mm Model: PRY-1100
Size Of Face Plate: 850 * 1160 Mm Maximum Cutting Size: 790 * 1090 Mm
Minimum Cutting Paper: 360 * 520 Mm Thickness Of Cutting Paper: Card Paper : 0.2 ~ 0.3 Mm Corrugated Paper : 7.8 Mm
Maximum Speed: 2100 Sheets/hr Total Weight Of Machine: 7500 Kg
Dimensions: 5900 * 2100 * 2000 Mm
Highlight:

ML1100 Paper Die Cutting Machine

,

PRY1100 Paper Die Cutting Machine

,

2100 sheets/hr paper die cutters

ML1100 Paper Die Cutting Machine PRY1100 Automatic Feeding Machine 0

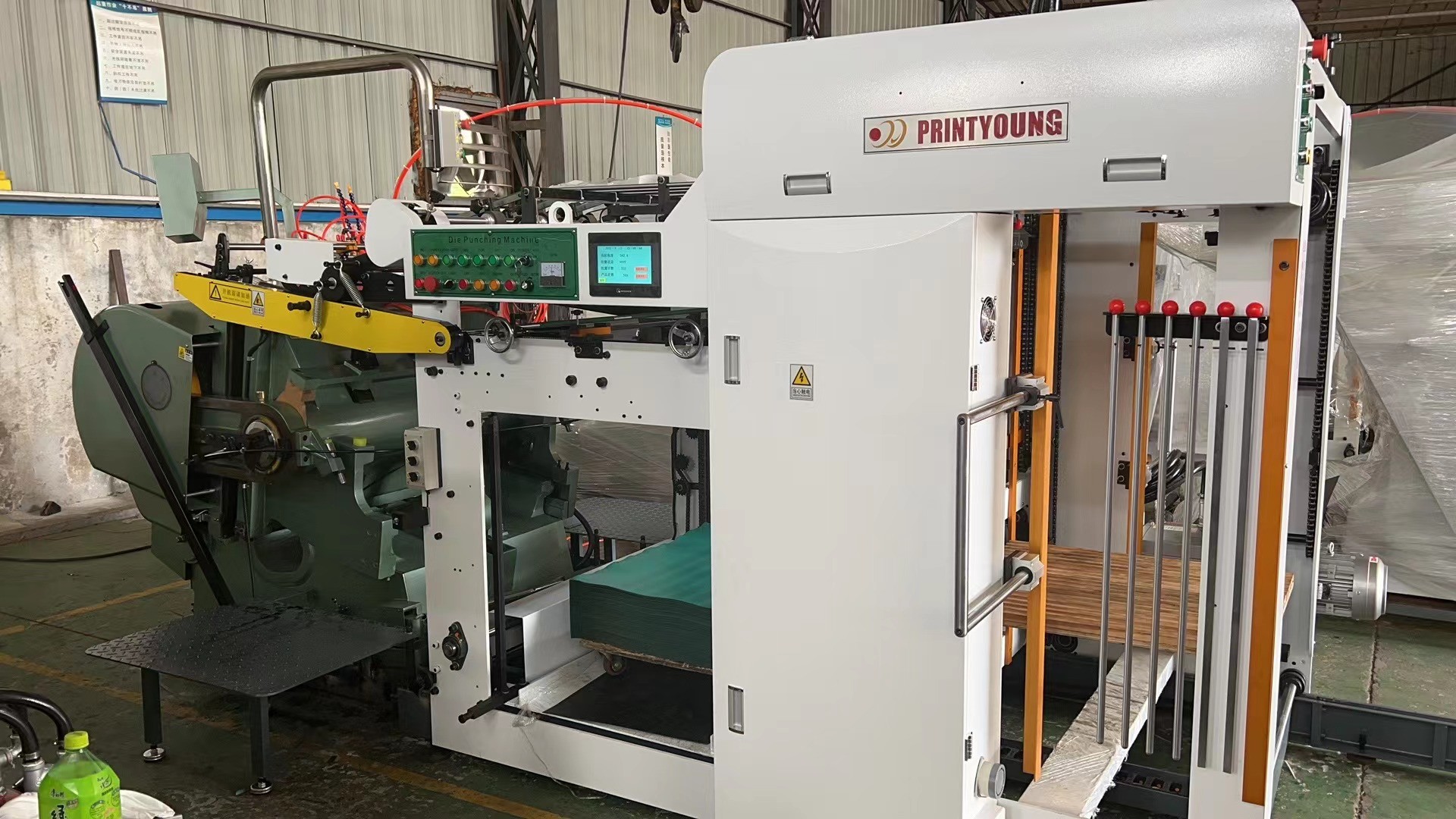

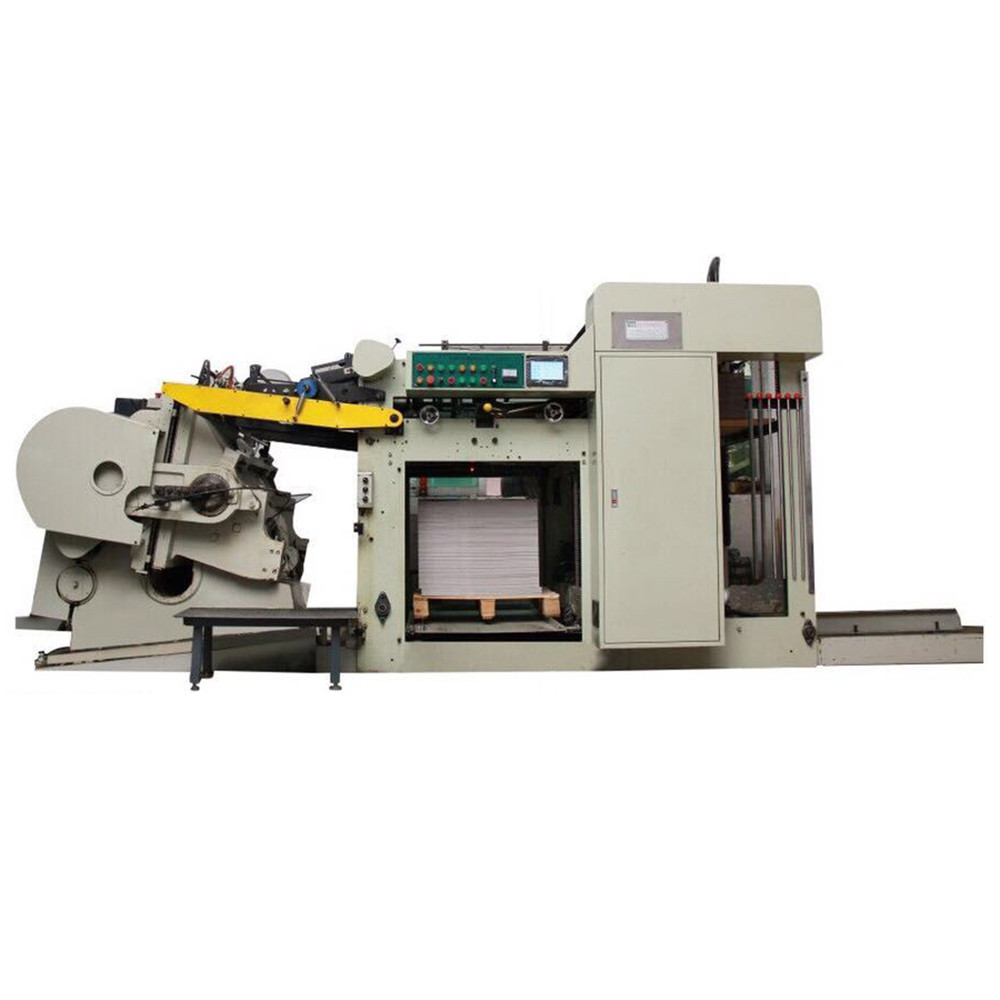

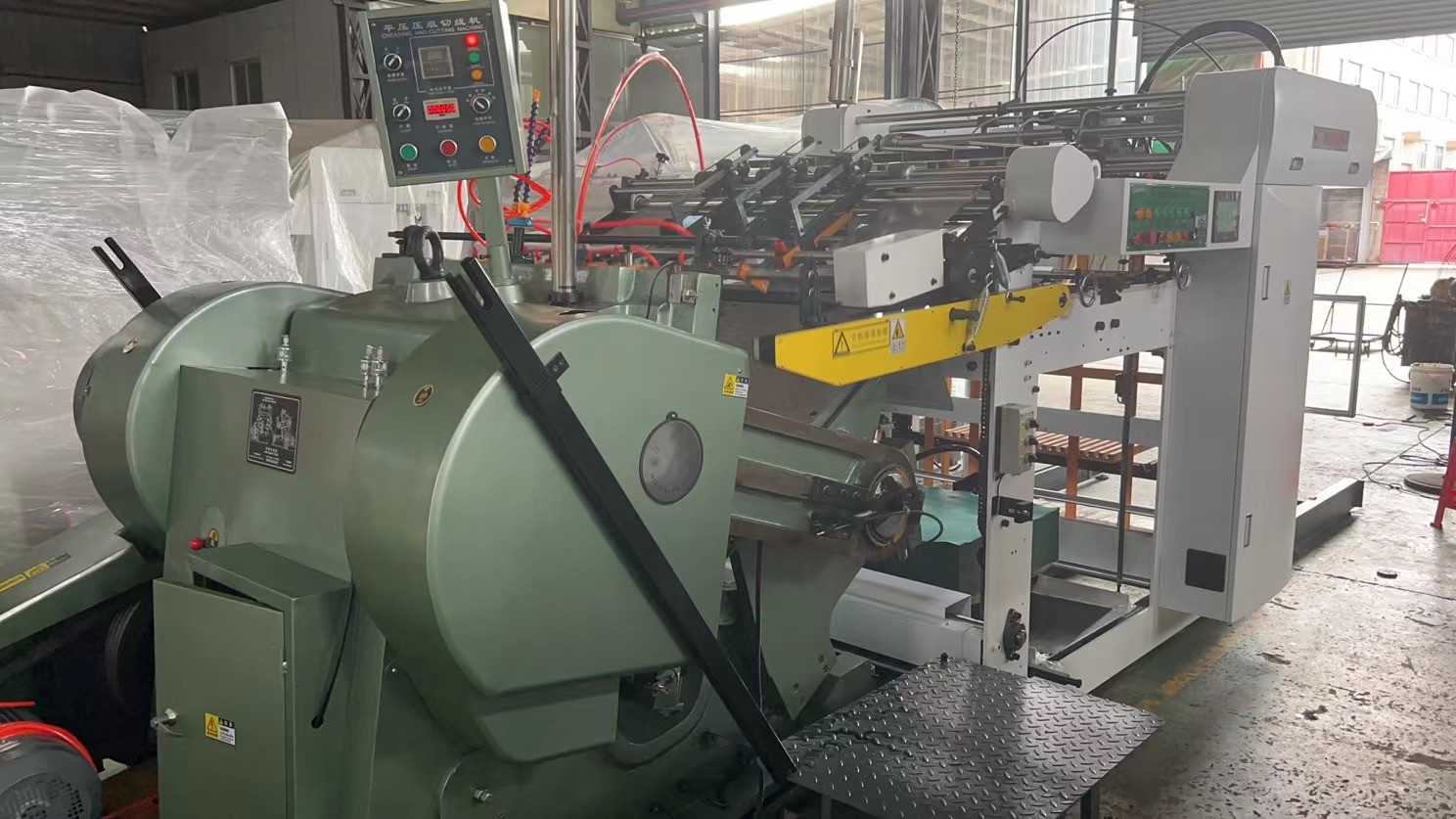

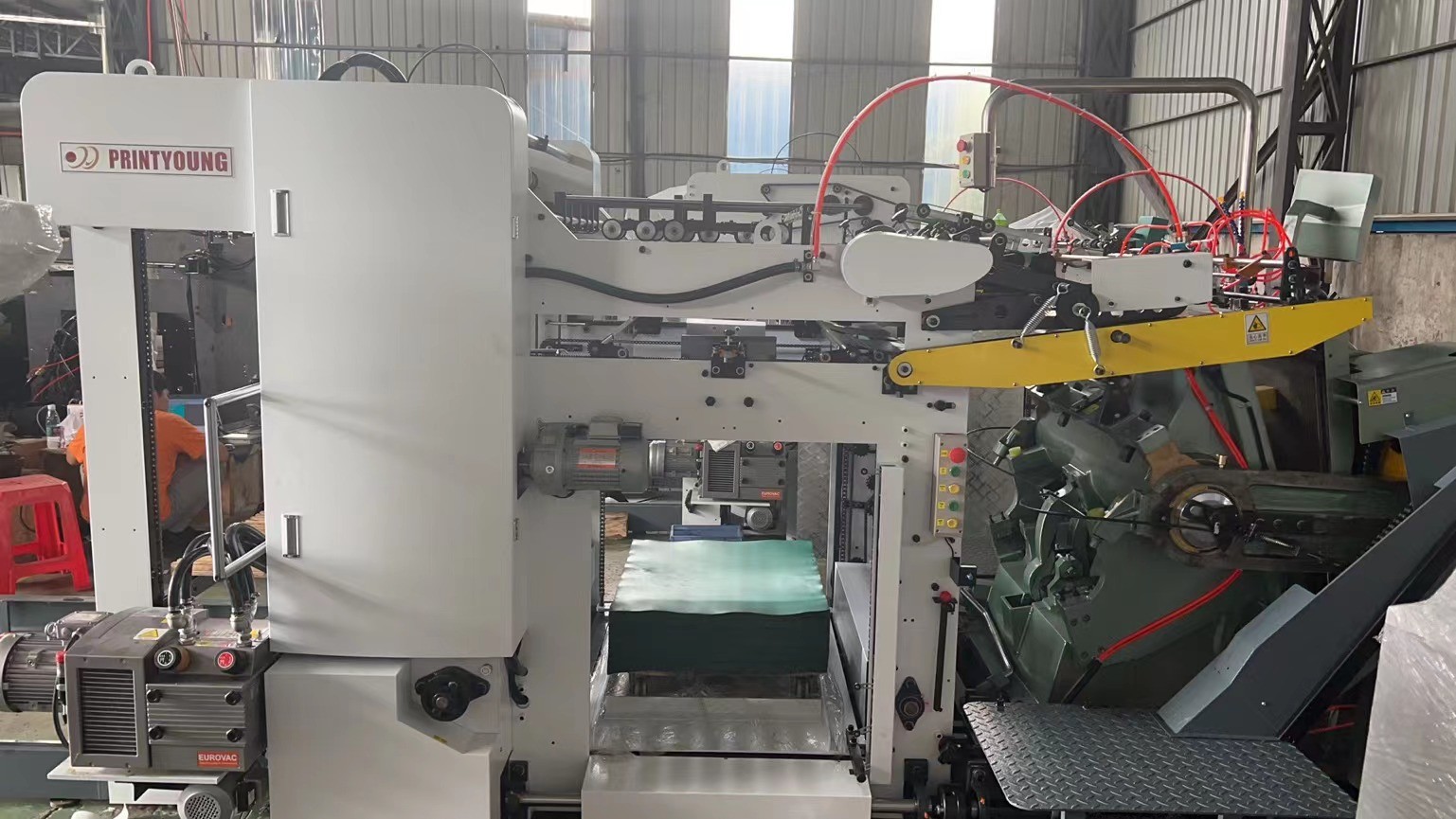

       PRY1100+ML1100 Die Cutting Machine with Automatic Feeding Machine
ML1100 Paper Die Cutting Machine PRY1100 Automatic Feeding Machine 1
ML1100 Paper Die Cutting Machine PRY1100 Automatic Feeding Machine 2ML1100 Paper Die Cutting Machine PRY1100 Automatic Feeding Machine 3ML1100 Paper Die Cutting Machine PRY1100 Automatic Feeding Machine 4
ML1100 Paper Die Cutting Machine PRY1100 Automatic Feeding Machine 5
Technical Parameters
Model
ZS-1100
ZS-1300
ZS-1450
Size of face plate
850*1160mm


Maximum cutting size
790*1090mm
890*130mm
1000*1450mm
Minimum cutting paper
360*520mm
480*540mm
540*660mm
Thickness of cutting paper
Card paper:0.2-0.3mm
Corrugated paper:7.8mm
Card paper:0.2-0.3mm
Corrugated paper:7.8mm
Card paper:0.2-0.3mm
Corrugated paper:7.8mm
Maximum speed
2100sheets/hr
1900sheets/hr
1500sheeets/hr
Total weight of machine
7500kg
9500kg
10700kg
Dimensions
L5900*W2100*H2000mm
L6500*W2200*H2000mm
L7550*W2800*H2300mm
Configuration
ML1100 Paper Die Cutting Machine PRY1100 Automatic Feeding Machine 6    ML1100 Paper Die Cutting Machine PRY1100 Automatic Feeding Machine 7
Multiple electric eyes check to reduce the paper waste.Delivery table is equipped with automatic support device.Precisely and Safely,Easy to operate.Delivery table is equipped with automatic support device.continuous operation without stop,work efficiently
ML1100 Paper Die Cutting Machine PRY1100 Automatic Feeding Machine 8    ML1100 Paper Die Cutting Machine PRY1100 Automatic Feeding Machine 9
The front block and side block can adjust freely in accordance with the paper size.Easy to adjust and precisely.
Collection and delivery table both adopt the vacuum inspiration to avoid the problem of the gripper biting no paper.The device applies to common paperboard,E/B/A corrugated paper and plastic board.
ML1100 Paper Die Cutting Machine PRY1100 Automatic Feeding Machine 10    ML1100 Paper Die Cutting Machine PRY1100 Automatic Feeding Machine 11
Collection table is equipped with automatic support device.Continuous operation without stop,work efficiently
The feeder part is equipped with track device ,separating freely when you make plate.

ML1100 Paper Die Cutting Machine PRY1100 Automatic Feeding Machine 12
ML1100 Paper Die Cutting Machine PRY1100 Automatic Feeding Machine 13
ML1100 Paper Die Cutting Machine PRY1100 Automatic Feeding Machine 14
ML1100 Paper Die Cutting Machine PRY1100 Automatic Feeding Machine 15
ML1100 Paper Die Cutting Machine PRY1100 Automatic Feeding Machine 16
ML1100 Paper Die Cutting Machine PRY1100 Automatic Feeding Machine 17
ML1100 Paper Die Cutting Machine PRY1100 Automatic Feeding Machine 18
ML1100 Paper Die Cutting Machine PRY1100 Automatic Feeding Machine 19

Q1.Are you a manufacturer or a trading company?

A:Our shanghai office is mainly doing export.
We have our own factory in Wenzhou,Zhejiang Province.

Q2.What is the machine warranty?

A:One year.After the warranty,we still provide technical support to buyer at low cost.

Q3.What is the production time while placing order?

A:Normally about 10-20 days.

Q4.What is the delivery time?

A:15-30days after deposit.

Q5.Can your company handle shipping for customers?

A:Yes,just give us destination sea port or container yard.

Q6.Does the packing strong?

A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.

Q7.How about the machine installation and training?

A:1)We provide training in our factory for free;

2)We can send technicians (engineers) to your factory for installation and training.

You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.

Q8.Do you have machines in stock?

A:For standard model,we have a large quantity in stock.
For special model,we need 20-30 days to produce it for you.

Q9.How can you assure the machines’ quality?

A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.

Q10.Do you inspect machines or test running before packing?

A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.

Q11.What’s the payment term?

A:T/T 30% in advance,the balance shall be paid before delivery.
We also accept payment by West Union or L/C at sight.

Q12.Do you accept factory visiting?

A:Warmly welcome for your visiting.

Q13.How many years are you in printing field?

A:Shanghai company is 12 years old, the factory is more than 20years.

Q14.How many clients do you have?

A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
