| Place of Origin: | China |
|---|---|
| Brand Name: | PRINTYOUNG |
| Certification: | CE |
| Model Number: | FM520H |
| Minimum Order Quantity: | 1 Set |
| Price: | US 8200 Set |
| Packaging Details: | Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 Set/Sets per Month |
| Model: | FM-520H | Max Paper Size: | 490x580mm |
|---|---|---|---|
| Mini Paper Size: | 180x200mm | Paper Height: | 450mm |
| Operating Speed: | 0-18m/min | Laminating Temperature: | 50-120℃ |
| Total Power: | 4kw | Pressure: | 3~8Mpa |
| Pressure Mode: | Automatic | Paper Thickness: | 105-350g |
| Controller: | PLC | Dimensions(LxWxH): | 2.35x0.87x1.4m |
| Highlight: | PLC Control Film Laminating Machine,105-350gsm Film Laminating Machine,Thermal bopp lamination machine |
||
This is China's first self-developed paper feeding system.Our feeder has many patents.What we are showing you now is model 520H.This model max paper width is 490 millimeter and max paper length is 580 millimeter.If you need a longer length,the length can be customized.
All machines’ heating rollers of our company are equipped with oil heating system,which can solve the problem that Allover black,red and green and will not appear white spots.Other companies are using electric heating in heating system.Electric heating will appear white spots.The pressure roller is made of Teflon material,which is non-stick and has a better laminating effect.The pressure adopts automatic hydraulic lifting function.and use frequency conversion speed control function,the fastest laminate speed can be about A3 paper 34 sheets in one minute.And our machine has Anti-curl function.Thinner paper after laminating will not curl.And with automatic overlap and automatic cut function.
|

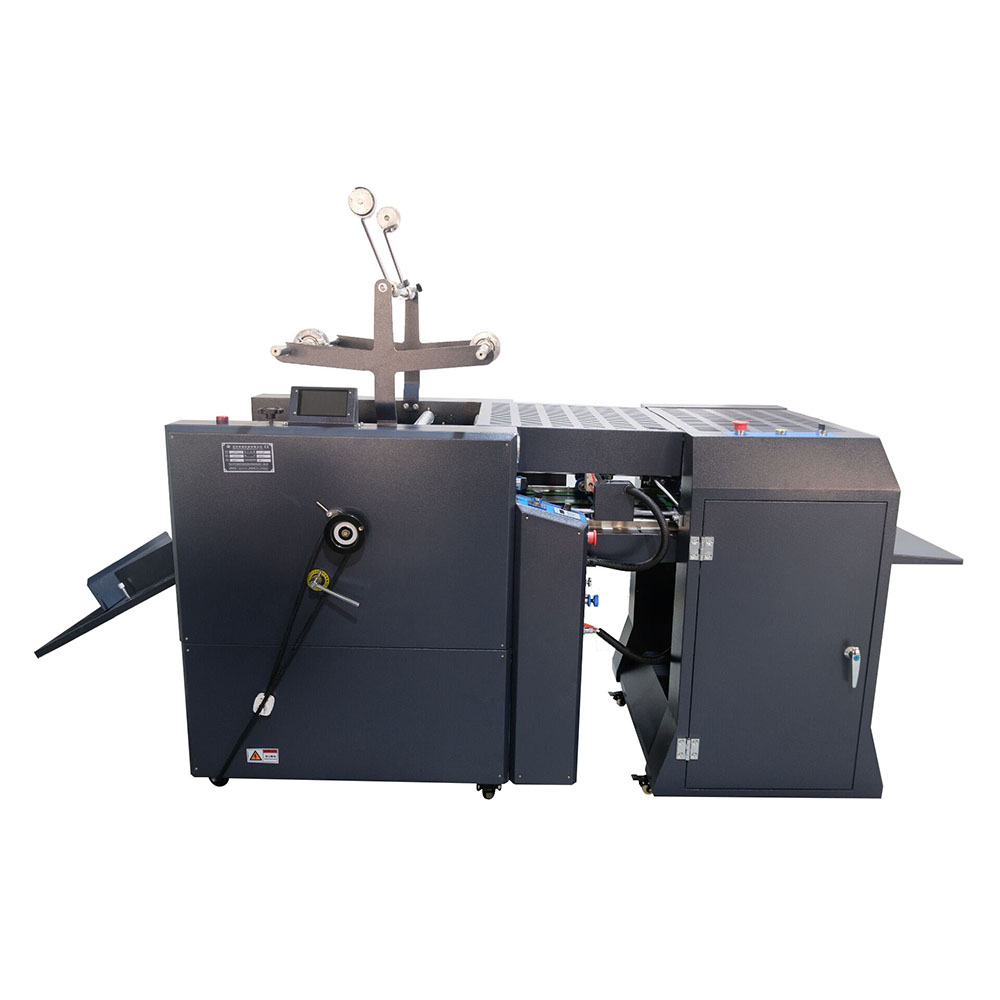

FM520H Laminating Machine
|
|
|---|---|
|
Model
|
FM-520H
|
|
Max Paper Size
|
490x580mm
|
|
Mini paper size
|
180x200mm
|
|
Paper height
|
450mm
|
|
Operating speed
|
0-18m/min
|
|
Laminating temperature
|
50-120℃
|
|
Total power
|
4kw
|
|
Pressure
|
3~8Mpa
|
|
Pressure mode
|
Automatic
|
|
Paper Thickness
|
105-350g
|
|
Controller
|
PLC
|
|
Dimensions(LxWxH )
|
2.35x0.87x1.4m
|
