FM390H Automatic Film Laminating Machine Hydraulic Oil Heating

Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: FM390H
Minimum Order Quantity: 1 Set
Price: US 6200 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 50 Set/Sets per Month
Model: FM390H Max Paper Size: 380x540mm
Mini Paper Size: 200x200mm Operating Speed: 0-18m/min
Laminating Temperature: 50-120℃ Total Power: 0.5-3.5kw
Dimensions(LxWxH ): 2.25x0.77x1.3m Pressure: 3~8Mpa
Pressure Mode: Automatic Voltage: 220V/50Hz
Controller: PLC Feeding Mode: By Feeder
Paper Thickness: 105-350g Anti-curl Function: With
Auto Cut After Laminating: Yes With Overlap: With
High Light:

Automatic Film Laminating Machine

,

Film Thermal Laminating Machine

,

Hydraulic Automatic Laminating Machine

Products Description

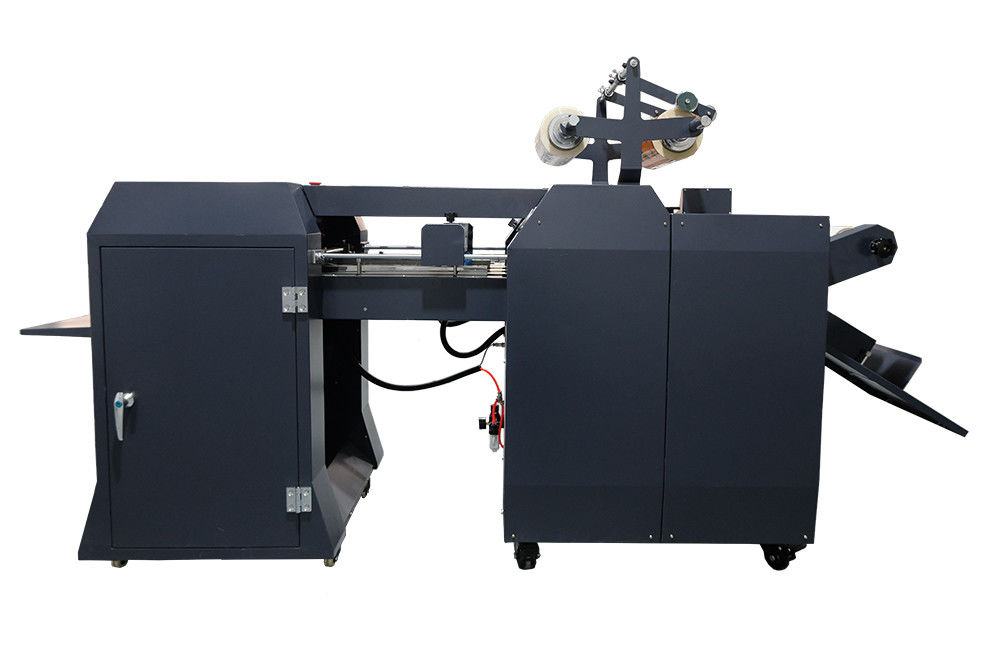

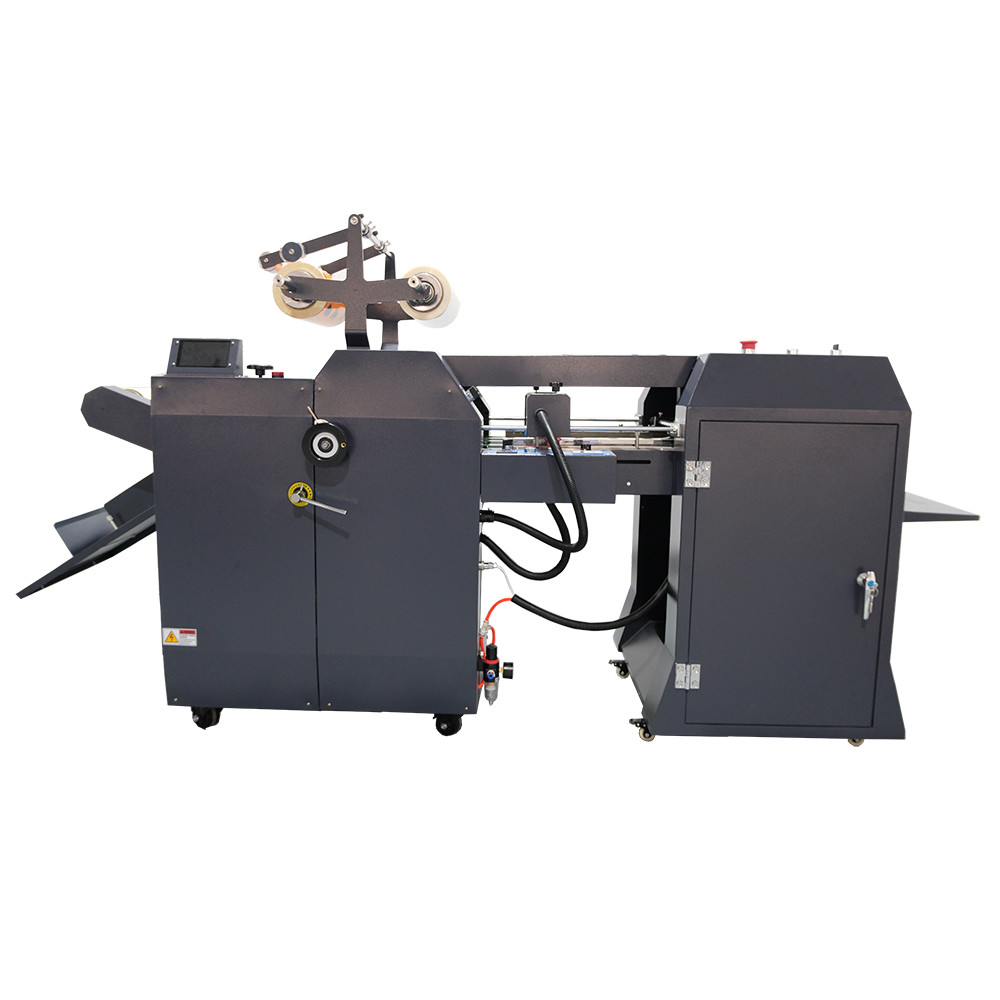

                                          FM390H Automatic Laminating Machine
FM390H Automatic Film Laminating Machine Hydraulic Oil Heating 0

Features

This is China's first self-developed paper feeding system.Our feeder has many patents.What we are showing you now is model 520H.This model max paper width is 380 millimeter and max paper length is 540 millimeter.

If you need a longer length,the length can be customized.
All machines’ heating rollers of our company are equipped with oil heating system,which can solve the problem that Allover black,red and green and will not appear white spots.
Other companies are using electric heating in heating system.Electric heating will appear white spots.The pressure roller is made of Teflon material,which is non-stick and has a better laminating effect.The pressure adopts automatic hydraulic lifting function.and use frequency conversion speed control function,the fastest laminate speed can be about A3 paper 34 sheets in one minute.And our machine has Anti-curl function.Thinner paper after laminating will not curl.And with automatic overlap and automatic cut function.

Technical Parameters
FM390H Automatic Laminating Machine
Model
FM390H

 Max paper size

380x540mm
Mini paper size
200x200mm
Operating speed
0-18m/min
Laminating temperature
50-120℃
Total power
0.5-3.5kw
Dimensions(LxWxH )
2.25x0.77x1.3m
Pressure
3~8Mpa
Pressure mode
Automatic
Voltage
220V/50Hz
Controller
PLC
Feeding mode
by feeder
Paper Thickness
105-350g
Anti-curl function
with
Auto cut after laminating
Yes
With overlap
with
Customer
FM390H Automatic Film Laminating Machine Hydraulic Oil Heating 1
Company Profile
FM390H Automatic Film Laminating Machine Hydraulic Oil Heating 2
FM390H Automatic Film Laminating Machine Hydraulic Oil Heating 3
FM390H Automatic Film Laminating Machine Hydraulic Oil Heating 4
Why Choose Us
FM390H Automatic Film Laminating Machine Hydraulic Oil Heating 5
Product packaging
FM390H Automatic Film Laminating Machine Hydraulic Oil Heating 6
FM390H Automatic Film Laminating Machine Hydraulic Oil Heating 7
FAQ
Q1: Are you a manufacturer or a trading company?
A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?
A: Normally about 10-20 days.

Q4. What is the delivery time?
A: 15-30days after deposit.

Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..

Q7. How about the machine installation and training ?
A: 1)We provide training in our factory for free
2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.

Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.

Q9. How can you assure the machines’ quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will
give spare parts for free if machine has any problem.

Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material.

Q11. What’s the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.

Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.

Q13. How many years are you in printing field?
A: Shanghai company is 12 years old, the factory is more than 20years.

Q14. How many clients do you have?
A: We have sold our machines to about 60 countries. We have agents in South Africa, Morocco and Italy.
