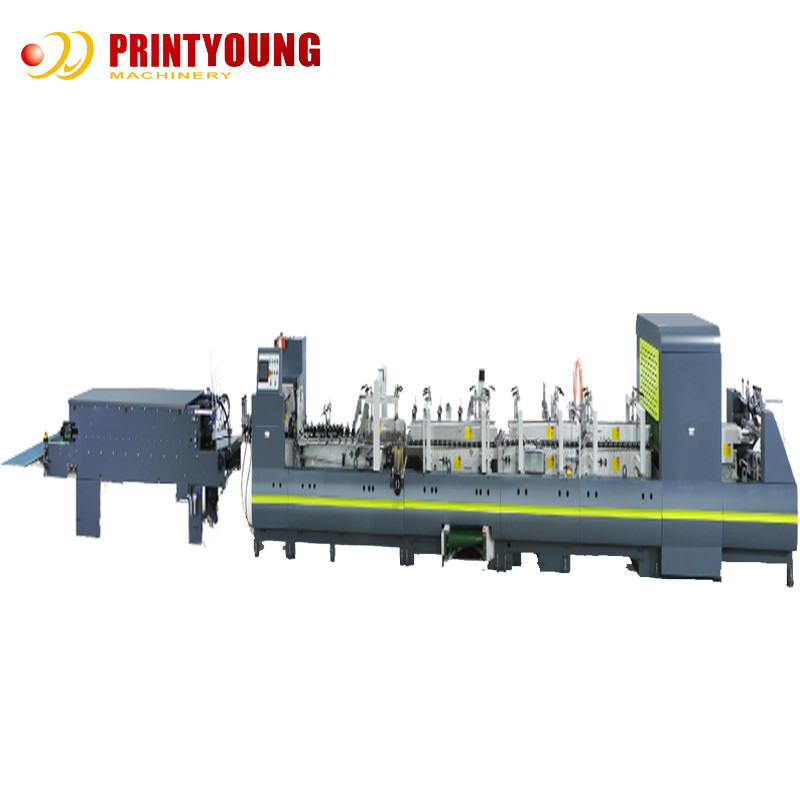

Mechanical Six Corner Automatic Folder Gluer 350m/Min 20KW

Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-YC-650
Minimum Order Quantity: 1 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Showroom Location: Egypt, Italy, Saudi Arabia, Mexico, Morocco, Algeria, South Africa Video Outgoing-inspection: Provided
Machinery Test Report: Provided Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Condition: New Automatic Grade: Automatic
Driven Type: Mechanical Voltage: 380V
Dimension: 15*2.5*1.6M Weight: 8.5T
Warranty: 1 Year Key Selling Points: High-accuracy
Max. Format Size: 650mm*500mm Inspection Size: Max450mm*450mm,min:100mm*100mm
Paperweight: 180-450g/m Max. Feeding Speed: 350m/min
Max. Inspection Speed: 240m/min Power Need: 20KW
Min. Spot Defect Size: 0-1 Mm2,Contrast>15 After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Egypt, Italy, Saudi Arabia, Mexico, Morocco, Algeria, South Africa After-sales Service Provided: Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support
High Light:

PLC Automatic Folder Gluer

,

350m/Min Feeding Automatic Folder Gluer

,

Automatic Folder Gluer 20KW

Mechanical Six Corner Automatic Folder Gluer 350m/Min 20KW 0
                              PRY-YC-650 ALL-IN-ONE INSPECTION MACHINE FOR FOLDER GLUER

Features
* Paste box and inspect quality at the same time, increasing qualified rate of delivery and shortening process flow.
* Feed paper with the printing surface facing down, to avoid the second time scratch.
* Easy to install and connect to existing folder gluer machine without any modification, or used as inspection machine alone.
* Inspect bath the front and back sides for printing defects, dis-cutting devaluation, drug code and etc comprehensively.Designed with intelligence, it only takes 2 hours for the operator to fully control the inspection system.
* It takes only 5 minutes to create a new job.
* Inspect with stability to make machine vision extremely close to human eyes, efficiently avoiding the waste and saving cost.
Technical Parameters
PRY-YC-650 ALL-IN-ONE INSPECTION MACHINE FOR FOLDER GLUER
Modal
PRY-YC-650
PRY-YC-850
PRY-YC-1100
Max. Format Size
650mmx500mm
850mmx600mm
11 □OmmxSOOmm
Max. Inspection Size
450mmx450mm
600mmx600mm
800rTimx800mm
Min. Inspection Size
100mmx100mm
100mmx100mm
100mmx100mm
Paperweight
180-450g/m
180-450g/m
180-450g/m
Max. Feeding Speed
350m/min
350m/min
350m/min
Max. Inspection Speed
240m/min
240m/min
240m/min
Dimension (LxWxH)M
15*2.5x1.6
17 x 2.7 x 1-6
17.5x2.9 x 1.6
Gross Weight
8.5T
9.5T
10.5T
Power need
20KW
22KW
24KW
Min. Spot Defect Size
0-1 mm2 (Contrast>15)
Min. Linear Defect Size
G.15mm*5mm (Contrast>15)
Color Difference Accuracy
A Es3
Overprint Devaluation
±0-15mm
Die-cutting Devaluation
± 0.3mm
Drug Code Inspection
Code repeated, code missing, code mistake
□rug Code Appearance Inspection
Printing missing, break, spot, printing misplace, smear
Collection for Good sheets
In fish-scale way
Collection for defected sheets
In fish-scale way
Configuration
Mechanical Six Corner Automatic Folder Gluer 350m/Min 20KW 1 Mechanical Six Corner Automatic Folder Gluer 350m/Min 20KW 2

Btrombone                                                                                 Folding Unit

Single and easy.eration for upper/down expansion                  Independent frame and fixed folding bar for stable farming box.
adjustment, Is fhight twin board moveable for piling belt is         Left Aight folding belt is separately fine adjustable for belt speed,
fine adjustable on height according to pile demand, improving   improving the folding accuracy. Special belt expansion function
the production efficiency. Conveying belt coordinate with main  for convenient belt adjustment, no necessary to increase this
motor at AUTO model, equipped with counter and ejector.         belt tension again.
Mechanical Six Corner Automatic Folder Gluer 350m/Min 20KW 3 Mechanical Six Corner Automatic Folder Gluer 350m/Min 20KW 4

Folding-Back unit                                                                      Gluing Unit

Longer throe-board type, the first raiding line with 180° and       A user-friendly interface system with a colour touchscreen
the third folding line with 135* , easy open box. Segment          simplifies the operation process. The operator can easily and
type upper board with special design is able to regulate in e)  automatically control paper sizes, overlapping and machine
Q3ansion and contraction, assistant tar special shape box.       speeds.
Mechanical Six Corner Automatic Folder Gluer 350m/Min 20KW 5 Mechanical Six Corner Automatic Folder Gluer 350m/Min 20KW 6

Register                                                                                            Feeding Unit

Independent part could guide the paper box to a parallel                 Independent motor for drive, frequency inverter for adjusting
handrail hat allows a perfect blank alignment                                   speed,coordinating in proportion with main motor speed,to
1) Correct the deviation                                                                     efficiently control the paper space. Pneumatic raising or
2)Facilitate the subsequent accurate folding of the paper                 Ailling far the feeding paper gauge holder and left fright side
cassette                                                                                             gauge,convenient for prompt regulation .The vibration motor
3)Perfect folding quality inroughout the machine                              mounted on paper supporting holder-for feeding paper                                                                                                                                                                                  smoothly.
Applications
It suitable for post press processing, widely used in cartons, cardboard boxes, gift boxes, food boxes, medicine boxes, etc
Mechanical Six Corner Automatic Folder Gluer 350m/Min 20KW 7
Mechanical Six Corner Automatic Folder Gluer 350m/Min 20KW 8
Mechanical Six Corner Automatic Folder Gluer 350m/Min 20KW 9
Mechanical Six Corner Automatic Folder Gluer 350m/Min 20KW 10
Mechanical Six Corner Automatic Folder Gluer 350m/Min 20KW 11
Mechanical Six Corner Automatic Folder Gluer 350m/Min 20KW 12
Mechanical Six Corner Automatic Folder Gluer 350m/Min 20KW 13
Mechanical Six Corner Automatic Folder Gluer 350m/Min 20KW 14
Mechanical Six Corner Automatic Folder Gluer 350m/Min 20KW 15

Q1: Are you a manufacturer or a trading company?

A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

Q2. What is the machine warranty?

A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?

A: Normally about 10-20 days.

Q4. What is the delivery time?

A: 15-30days after deposit.

Q5. Can your company handle shipping for customers?

A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?

A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..

Q7. How about the machine installation and training ?

A: 1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.

Q8. Do you have machines in stock?

A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.

Q9. How can you assure the machines’ quality?

A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.

Q10. Do you inspect machines or test running before packing?

A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material

Q11. What’s the payment term?

A: T/T 50% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.

Q12. Do you accept factory visiting?

A: Warmly welcome for your visiting.

Q13. How many years are you in printing field?

A: Shanghai company is 12 years old, the factory is more than 20years.

Q14. How many clients do you have?

A: We have sold our machines to about 60 countries. We have agents in South Africa, Morocco and Italy.
