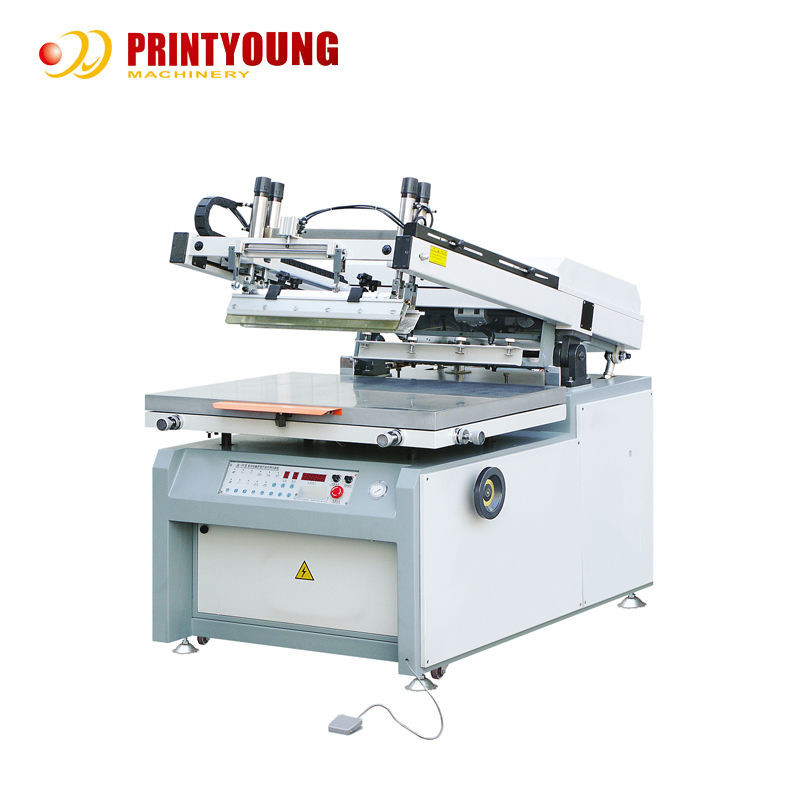

Multicolor Micro Computer Screen Printing Machine 1200p/H 2.6KW

Multicolor Micro Computer Screen Printing Machine 1200p/H 2.6KW
Multicolor Micro Computer Screen Printing Machine 1200p/H 2.6KW Multicolor Micro Computer Screen Printing Machine 1200p/H 2.6KW Multicolor Micro Computer Screen Printing Machine 1200p/H 2.6KW Multicolor Micro Computer Screen Printing Machine 1200p/H 2.6KW Multicolor Micro Computer Screen Printing Machine 1200p/H 2.6KW
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-6090G
Minimum Order Quantity: 1 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Plate Type: Screen Printer Condition: New
Usage: Paper Printer, Label Printer, Card Printer, Bill Printer, Cloths Printer, T-shirt Printer Automatic Grade: Semi-automatic
Color & Page: Multicolor Voltage: 380V
Dimensions: 600*900mm Weight: 500KG
Warranty: 1 Year After-sales Service Provided: Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support
Key Selling Points: High-accuracy Machinery Test Report: Provided
Video Outgoing-inspection: Provided Core Components: Motor, PLC, Engine
Color: 4 Color Max. Printing Dimension: 600*900mm
Max. Screen Frame Dimension: 950*1100mm Min. Screen Frame Dimension: 650*800mm
Printing Board: 800*1000mm Max. Printing Speed: 1200p/h
Power: 3P 380V 2.6KW Net Gross: 500kg
Overall Dimension: 1600*1200*1300mm After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Egypt, Italy, Saudi Arabia, Mexico, Morocco, Algeria, South Africa
Highlight:

Multicolor Screen Printing Machine

,

Screen Printing Machine 1200p/h

,

2.6KW Screen Printing Machine

Multicolor Micro Computer Screen Printing Machine 1200p/H 2.6KW 0
                                                  PRY-6090G Screen Printing Machine Manual

Features
1. The printing table adopts to be supported by four parallel axes, the height of table is adjusted by chain driven by hand wheel, so that the stable degree and adjust properties can be increased. The surface of the table is made of the stainless steel which make the table is hard to scratch and distort, the plane degree of the table is less than 0.20mm, which ensure to get the printing pattern much more equal and clearer;
2. The printing speed reducer and printing knife rest are connected by in-phase belt and guide line, which clean out the shake and glide when the connection rods are connected and can get the printing speed more consistent and stable;
3. The squeegee and ink return blade are controlled by four cylinders and can be adjusted separately at infinite pressure, the printing pressure is large and equal, which increase the service life of the screen frame and the printing quality;
4. The printing is driven by frequency conversion timing which make the run more stably and exactly; The printing course is controlled by inductive switch, it can move quickly and locate on guide line, the fixation mechanism of screen frame also can be adjusted quickly, which reduce the time of exchanging frame and printing and increase the work efficiency;
5. There is snap-off device, and the height of snap-off can be adjusted, which ensure the printing precision and quality of products;
6. The run of whole machine is controlled by the microcomputer. The printing time and printing delay both can be adjusted and shown instantly. The speed of printing and ink returning can be adjusted quickly; There is the safe system of rise back urgently which to protect the safe of worker.
Technical Parameters
PRY-6090G screen printing machine manual
Model
PRY-6090G
PRY-8012G
Max. printing dimension (mm)
600*900
800*1200
Max. screen frame dimension(mm)
950*1100
1250*1500
Min. screen frame dimension(mm)
650*800
850*900
Printing board(mm)
800*1000
1000*1300
Max. printing speed(p/h)
1200
1000
Overprint precision(mm)
≤ 0.12
Instant snap-off height(mm)
0 ~ 23
Power
3P 380V 2.6KW
3P 380V 3.7KW
Net gross(Kg)
500
600
Overall dimension(mm)
1600*1200*1300
1900*1400*1400
Configuration
Multicolor Micro Computer Screen Printing Machine 1200p/H 2.6KW 1 Multicolor Micro Computer Screen Printing Machine 1200p/H 2.6KW 2
Multicolor Micro Computer Screen Printing Machine 1200p/H 2.6KW 3 Multicolor Micro Computer Screen Printing Machine 1200p/H 2.6KW 4
Applications
PRY-6090G Series Microcomputer Screen Printing Machine is semi-automatic plane screen printing machine. The printing scope is very widely and it can be used for screen printing of many plane bodies such as paper,plastic, glass, ceramics, metal, textile products, leather, etc.
Multicolor Micro Computer Screen Printing Machine 1200p/H 2.6KW 5
Multicolor Micro Computer Screen Printing Machine 1200p/H 2.6KW 6
Multicolor Micro Computer Screen Printing Machine 1200p/H 2.6KW 7
Multicolor Micro Computer Screen Printing Machine 1200p/H 2.6KW 8
Multicolor Micro Computer Screen Printing Machine 1200p/H 2.6KW 9
Multicolor Micro Computer Screen Printing Machine 1200p/H 2.6KW 10

Q1: Are you a manufacturer or a trading company?

A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

Q2. What is the machine warranty?

A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?

A: Normally about 10-20 days.

Q4. What is the delivery time?

A: 15-30days after deposit.

Q5. Can your company handle shipping for customers?

A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?

A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..

Q7. How about the machine installation and training ?

A: 1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.

Q8. Do you have machines in stock?

A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.

Q9. How can you assure the machines’ quality?

A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.

Q10. Do you inspect machines or test running before packing?

A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material

Q11. What’s the payment term?

A: T/T 50% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.

Q12. Do you accept factory visiting?

A: Warmly welcome for your visiting.

Q13. How many years are you in printing field?

A: Shanghai company is 12 years old, the factory is more than 20years.

Q14. How many clients do you have?

A: We have sold our machines to about 60 countries. We have agents in South Africa, Morocco and Italy.
