Combined 150m/Min 200gsm Paper Folding Machine With Sound Barrier

Combined 150m/Min 200gsm Paper Folding Machine With Sound Barrier
Combined 150m/Min 200gsm Paper Folding Machine With Sound Barrier Combined 150m/Min 200gsm Paper Folding Machine With Sound Barrier Combined 150m/Min 200gsm Paper Folding Machine With Sound Barrier Combined 150m/Min 200gsm Paper Folding Machine With Sound Barrier Combined 150m/Min 200gsm Paper Folding Machine With Sound Barrier
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: ZYH660D
Minimum Order Quantity: 1 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Year
Contact Now
Showroom Location: Egypt, Italy, Saudi Arabia, Algeria, Morocco Voltage: 380V
Dimension: 2070*1630*1470mm Weight: 2990kg
Warranty: 1 Year Production Capacity: 150m/min
Max. Workable Width: 660*1040mm Rotation Range: 40-200gsm
Total Power: 5.2kw Packing Size: 2920*1465*1610mm
Highlight:

200gsm Paper Folding Machine

,

150m/Min Paper Folding Machine

,

Sound Barrier Paper Folding Machine

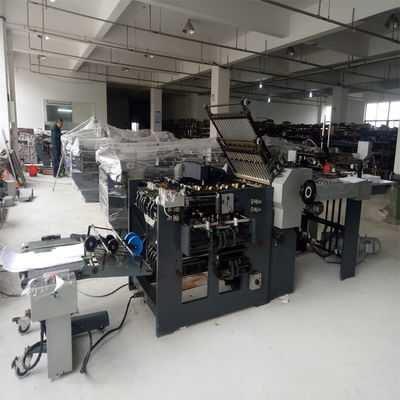

Combined 150m/Min 200gsm Paper Folding Machine With Sound Barrier 0
                                                PRY-ZYH660D Combined Paper Folding Machine

Features
The PRY-ZYH660D is a folio buckle-knife combination folding machine with a pile feeder or around feeder. Parallel folding of the ZYH660D can be carried out times with the buckle plates. The folding fonts of the signatures may be concertina fold, parallel fold or letter fold. The ZYHJ660D can handle parallel folding 2 times. Right angle folding can be carried out 3 times combination the buckle plates and the folding knives. At the same time of folding, perforating and creasing can be handled. The standard machine is suitable for handling 8mo, 16mo and 32mo signatures. The two-on folder can handle 32mo two-on signatures, except possessing the folding functions of the standard machine.
Technical Parameters
PRY-ZYH660D Combined Paper Folding Machine
Foldable max sheet size
660*1040mm
Foldable mix sheet size
150*200mm
Foldable sheet rotation range
40-200gsm
Folding & rolling max line speed
150m/min
Clasp knife max speed
150 strokes/min
Total power
5.2kw
Packing Size
main:2070*1630*1470mm
Total packing weight
2990kg
Configuration

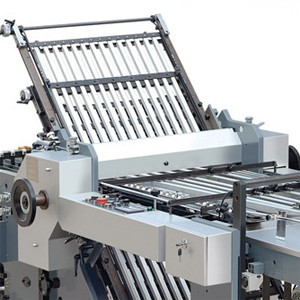

Combined 150m/Min 200gsm Paper Folding Machine With Sound Barrier 1 Combined 150m/Min 200gsm Paper Folding Machine With Sound Barrier 2
Combined 150m/Min 200gsm Paper Folding Machine With Sound Barrier 3 Combined 150m/Min 200gsm Paper Folding Machine With Sound Barrier 4
Applications
It is suitable for handling 8mo, 16mo and 32mo signatures. The two-on folder can handle 32mo two-on signatures, except possessing the folding functions of the standard machine.
Combined 150m/Min 200gsm Paper Folding Machine With Sound Barrier 5
Combined 150m/Min 200gsm Paper Folding Machine With Sound Barrier 6
Combined 150m/Min 200gsm Paper Folding Machine With Sound Barrier 7
Combined 150m/Min 200gsm Paper Folding Machine With Sound Barrier 8
Combined 150m/Min 200gsm Paper Folding Machine With Sound Barrier 9
Combined 150m/Min 200gsm Paper Folding Machine With Sound Barrier 10
Combined 150m/Min 200gsm Paper Folding Machine With Sound Barrier 11
Combined 150m/Min 200gsm Paper Folding Machine With Sound Barrier 12
Combined 150m/Min 200gsm Paper Folding Machine With Sound Barrier 13

Q1: Are you a manufacturer or a trading company?

A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

Q2. What is the machine warranty?

A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?

A: Normally about 10-20 days.

Q4. What is the delivery time?

A: 15-30days after deposit.

Q5. Can your company handle shipping for customers?

A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?

A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..

Q7. How about the machine installation and training ?

A: 1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.

Q8. Do you have machines in stock?

A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.

Q9. How can you assure the machines’ quality?

A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.

Q10. Do you inspect machines or test running before packing?

A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material

Q11. What’s the payment term?

A: T/T 50% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.

Q12. Do you accept factory visiting?

A: Warmly welcome for your visiting.

Q13. How many years are you in printing field?

A: Shanghai company is 12 years old, the factory is more than 20years.

Q14. How many clients do you have?

A: We have sold our machines to about 60 countries. We have agents in South Africa, Morocco and Italy.
