Automatic Thermal Glueless Paper Lamination Machine 30m/Min

Automatic Thermal Glueless Paper Lamination Machine 30m/Min
Automatic Thermal Glueless Paper Lamination Machine 30m/Min
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: SADF-540
Minimum Order Quantity: 1 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Contact Now
Showroom Location: Egypt, Italy, Morocco, Algeria, South Africa Automatic Grade: Automatic
Driven Type: Electric Voltage: 380V
Dimension: 3300*1250*1600mm Weight: 1000kg
Warranty: 1 Year Key Selling Points: Easy To Operate
Max Paper Size: 780*540mm Min Paper Size: 290*290mm
Laminating Speed: 0-30m/min Paper Thickness: 100-500gsm
High Light:

Thermal Glueless Paper Lamination Machine

,

500gsm Paper Film Laminating Machine

,

Paper Lamination Machine 30m/Min

Automatic Thermal Glueless Paper Lamination Machine 30m/Min 0

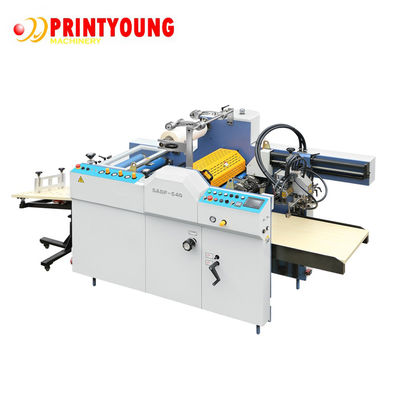

                     SADF-540 Fully Automatic Both Thermal and Glue-Less Film Laminating Machine

Features
Model SADF-540 is one of our fully automatic laminators newly developed upon market needs. The most attractive features of the machine are compact structure and humanized design. SCHNEIDER, OMRON etc international brands of electrical and photovoltaic parts equipped perfect the running stability and safety of the laminator. The machine realizes automated operation, and suits two kinds of film, pre-glued film and glueless film for paper lamination. For the laminating treatment of greeting cards, certificates,documents, book covers, packing boxes etc, this model is an excellent choice.
Technical Parameters
Model No.
SADF-540
Max Paper Size
780*540mm
Min Paper Size
290*290mm
Laminating Speed
0-30m/min
Paper Thickness
100-500gsm
Gross Power
19kw
Overall Dimensions
3300×1250×1600mm
Weight
1000kg
Configuration
1. Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically.
2. Automatic paper feeding system is equipped with no paper protector and paper break protector, which are controlled by photoelectric and mechanical systems.When no paper or paper break occurs,the machine will stop automatically for self-protection.
3. Man-machine interface system: color touch screen simplifies the machine operation.On the touch screen, as long as the operator inputs paper size, overlap length and working speed etc., the machine can realize completely automated operation. And on touch screen, working status of the machine can be checked at any time.
4. High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
5. Pneumatic pressuring system provides automatically stable pressure to guarantee good laminating quality. And the pressure can also be adjusted upon requests.
6. Air expansion shaft releases film roll, and positions film roll more accurately, and also makes the loading and unloading of film roll more convenient.
7. The combination of air expansion shaft and braking device can adjust film release tension and speed.
8. Film cutter cuts film width to make it meet paper size.
9. Serrated perforating wheel perforates film edge for the automatic cut of laminated paper.
10. Anti-curvature device: when going though the anti-curvature device, the laminated paper shall be leveled at once and won’t curve again after cut.
11. Pneumatic cutting system realizes automatic paper cut.
12. After cut,the laminated paper will be sent automatically to vibrating receiving table and be put into order.
Automatic Thermal Glueless Paper Lamination Machine 30m/Min 1
Automatic Thermal Glueless Paper Lamination Machine 30m/Min 2
Automatic Thermal Glueless Paper Lamination Machine 30m/Min 3
Automatic Thermal Glueless Paper Lamination Machine 30m/Min 4
Automatic Thermal Glueless Paper Lamination Machine 30m/Min 5
Automatic Thermal Glueless Paper Lamination Machine 30m/Min 6
Automatic Thermal Glueless Paper Lamination Machine 30m/Min 7
Automatic Thermal Glueless Paper Lamination Machine 30m/Min 8

Q1: Are you a manufacturer or a trading company?

A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

Q2. What is the machine warranty?

A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?

A: Normally about 10-20 days.

Q4. What is the delivery time?

A: 15-30days after deposit.

Q5. Can your company handle shipping for customers?

A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?

A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..

Q7. How about the machine installation and training ?

A: 1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.

Q8. Do you have machines in stock?

A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.

Q9. How can you assure the machines’ quality?

A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.

Q10. Do you inspect machines or test running before packing?

A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material

Q11. What’s the payment term?

A: T/T 30% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.

Q12. Do you accept factory visiting?

A: Warmly welcome for your visiting.

Q13. How many years are you in printing field?

A: Shanghai company is 12 years old, the factory is more than 20years.

Q14. How many clients do you have?

A: We have sold our machines to about 60 countries. We have agents in South Africa, Morocco and Italy.
