Home ProductsPaper Die Cutting MachineHydraulic Stable Beer Label Punching Machine 3kw 12000 Sheets/Min

Hydraulic Stable Beer Label Punching Machine 3kw 12000 Sheets/Min

Hydraulic Stable Beer Label Punching Machine 3kw 12000 Sheets/Min
Hydraulic Stable Beer Label Punching Machine 3kw 12000 Sheets/Min
Hydraulic Stable Beer Label Punching Machine 3kw 12000 Sheets/Min Hydraulic Stable Beer Label Punching Machine 3kw 12000 Sheets/Min Hydraulic Stable Beer Label Punching Machine 3kw 12000 Sheets/Min Hydraulic Stable Beer Label Punching Machine 3kw 12000 Sheets/Min
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-LPM-280
Minimum Order Quantity: 1 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 40 Set/Sets per Month
Contact Now
Machine Type: Punching Machine Slide Stroke: 200mm
Voltage: 380V Dimension: 2300*850*1600mm
Motor Power: 3kw Weight: 560KG
Key Selling Points: High-accuracy Warranty: 1 Year
The Maximum Cutting Size: 200*200mm The Minimum Cutting Size: 55*60mm
Cutting Stroke: 200mm Nominal Force: 40KN
Work Speed: ±12000 Sheets/min
High Light:

Stable Beer Label Punching Machine

,

Hydraulic Beer Label Punching Machine

,

Beer Label Punching Machine 3kw

Hydraulic Stable Beer Label Punching Machine 3kw 12000 Sheets/Min 0

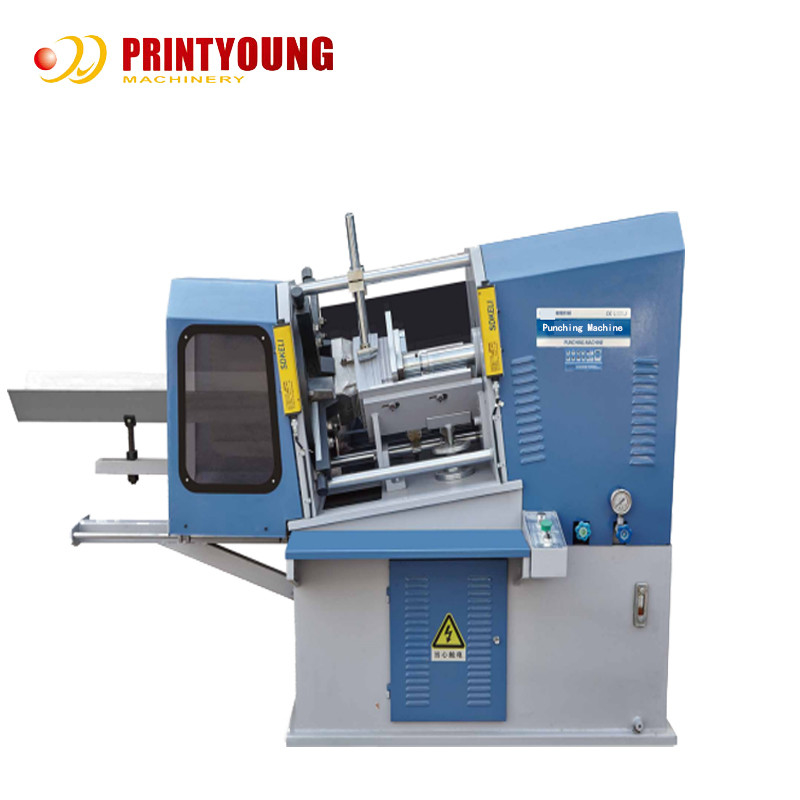

PRY-LPM-280 Punching Machine

Features

1. The hydraulic power supply system is stable and reliable
2. Die cutting high precision, trimming neat, no burr
3. Infrared photoelectric protection of fuselage,
4. High safety factor of operation, flexible adjustment of tool loading and unloading
Technical Parameters
PRY-LPM-280 Punching Machine
Model No
LPM-150
LPM-220
LPM-280
LPM-400
LPM-500
The maximum cutting size
110x110mm
160x160mm
200x200mm
270x270mm
340x340mm
The minimum cutting size
10x20mm
10x20mm
55x60mm
120x120mm
150x150mm
Cutting stroke
200mm
200mm
200mm
200mm
200mm
Nominal force
16KN
30KN
40KN
50KN
50KN
Work speed
±12000 Sheets/min
Motor power
1.5kw
2.2kw
3kw
4kw
4kw
Net weight
300kg
360kg
560kg
900kg
1140kg
Packing size
1200x850x1400mm
1450x850x1500mm
2300x850x1600mm
2500x1040x1660mm
2700x1140x1860mm
Applications
It suits for all kinds of special-shaped die cutting, such as various types of beer labels, food and bever- age labels, cards etc.
Hydraulic Stable Beer Label Punching Machine 3kw 12000 Sheets/Min 1
Hydraulic Stable Beer Label Punching Machine 3kw 12000 Sheets/Min 2
Hydraulic Stable Beer Label Punching Machine 3kw 12000 Sheets/Min 3
Hydraulic Stable Beer Label Punching Machine 3kw 12000 Sheets/Min 4
Hydraulic Stable Beer Label Punching Machine 3kw 12000 Sheets/Min 5
Hydraulic Stable Beer Label Punching Machine 3kw 12000 Sheets/Min 6
Hydraulic Stable Beer Label Punching Machine 3kw 12000 Sheets/Min 7
Hydraulic Stable Beer Label Punching Machine 3kw 12000 Sheets/Min 8
FAQ
Hydraulic Stable Beer Label Punching Machine 3kw 12000 Sheets/Min 9

Q1: Are you a manufacturer or a trading company?

A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

Q2. What is the machine warranty?

A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?

A: Normally about 10-20 days.

Q4. What is the delivery time?

A: 15-30days after deposit.

Q5. Can your company handle shipping for customers?

A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?

A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..

Q7. How about the machine installation and training ?

A: 1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.

Q8. Do you have machines in stock?

A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.

Q9. How can you assure the machines’ quality?

A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.

Q10. Do you inspect machines or test running before packing?

A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material

Q11. What’s the payment term?

A: T/T 50% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.

Q12. Do you accept factory visiting?

A: Warmly welcome for your visiting.

Q13. How many years are you in printing field?

A: Shanghai company is 12 years old, the factory is more than 20years.

Q14. How many clients do you have?

A: We have sold our machines to about 60 countries. We have agents in South Africa, Morocco and Italy.
