Plate Size: | 4-12 Inch (molds Exchangeable) | Speed: | 130 Pieces Per Minute (total Two Working Stations) |
---|---|---|---|
Weight: | 1200kg | Power: | 3KW, 220V 50Hz Or Other Required |
Material: | Paper/paperboard, Single Aluminum-foil/film Coated Paper Or Other (100 -- 500gsm) | ||
Highlight: | 130pcs/Min Automatic Paper Plate Machine,Automatic Paper Plate Machine 3KW,500gsm Paper Plate Machine |

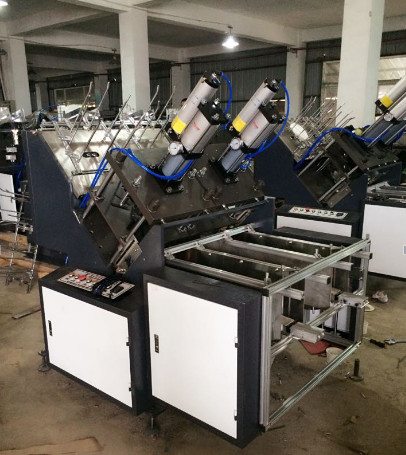

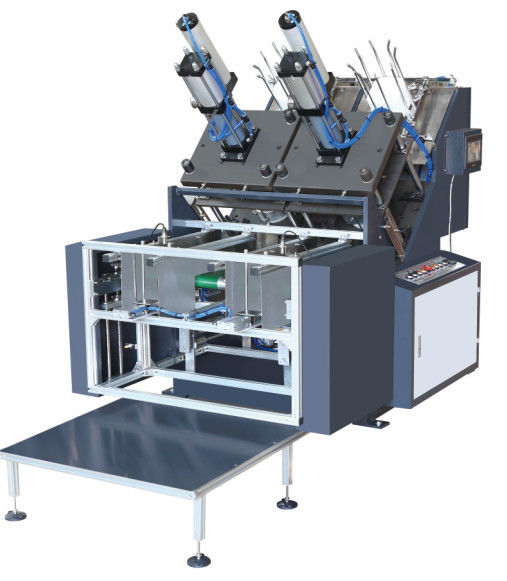

ZDJ-700 Medium-speed Automatic Paper Plate Machine
Features
With the advanced Program (PLC control the machine processing), High efficient Pressurize Air-Cylinder and Solenoid Valve (imported from Taiwan), Reliable machine design to keep the machine fast speed and durableness. With the function of fault detection and auto stop, magnet control paper position, etc to get good quality plates and easy maintenance. Two times pressurizing forming to keep high quality plate/dish shape. Each working station has separately control.
Technical Parameters
Model No. | ZDJ-700 |
Plate Size | 4-12 inch (molds exchangeable) |
Speed | 130 pieces per minute (total two working stations) |
Material | Paper/paperboard, Single Aluminum-foil/film coated paper or other (100 -- 500gsm) |
Power | 3KW, 220V 50Hz or other required |
Weight | 1200kg |
Package Size | (L x W x H): 1.7m x 1.7m x 1.9m ; Standard five-lay board Wooden Case |
Air source | Working pressure 0.8Mpa, working air volume 1m3/minute; Should buy air compressor. |
Configuration
Process: PreForm paper feeding, Suck paper down, Slide Preform paper to the mold, Press down &heating-forming the shape, Release mold (plate/tray out). Press and make round, rectangle, irregular, customize shaped paper plates, dishes, trays. Pneumatic Air Cylinder(Piston) provide the press power, Press UP-mold to DOWN-mold. Standard machine press power is 5Tons, Heater in Down-mold, Make shape nice and hard.
Product Samples
